SMB Connector

The SMB interface uses a snap-on coupling mechanism and is available in 50-ohm and 75-ohm configurations. The SMB connector is MIL-C-39012 compliant and the interface is MIL-STD-348 compliant.

SMB subminiature coaxial connectors are suitable for a variety of applications up to 4 GHz. Snap-lock mechanisms provide fast and reliable connections for high packing density applications. These versatile connectors can be used for internal devices and cable assemblies.

SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz. SMB connectors are available in a variety of materials, including options for die-cast assemblies in non-critical areas to provide a low-cost solution.

Quick View

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – DOSIN-807-0006

Cable Type: J1.5
Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – DS807FPR0014

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – RHT-626-0004

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

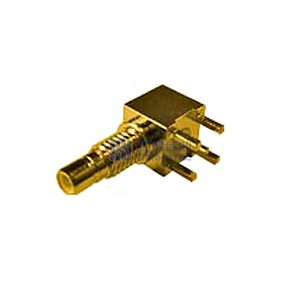

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – RHT-626-0006

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

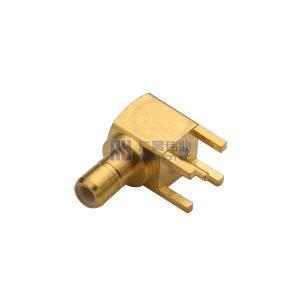

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – RHT-626-0204

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – RHT-626-0237

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – RHT-626-0238

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 75 Ohm – RHT-626-3001

Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 75 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Jack Male Pin Solder Cable Type 50 Ohm – RHT-626-0214

Cable Type: UT085
Connector Type: Jack
Contact Material: Brass
Contact Type: Male Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Shield Termination: Solder
Quick View

SMB Connector Right Angle Male Female Pin Panel Mount Through Hole 50 Ohm – DS807FPR011

Connector Type: Plug
Contact Material: Brass
Contact Type: Female Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Male Female Pin Panel Mount Through Hole 50 Ohm – RHT-626-0005

Connector Type: Plug
Contact Material: Brass
Contact Type: Female Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Quick View

SMB Connector Right Angle Male Female Pin Clamp Cable Type 50 Ohm – RHT-626-0217

Cable Type: RG178
Connector Type: Plug
Contact Material: Brass
Contact Type: Female Pin
Fastening Type: Snap On
Frequency - Max: 4GHz
Impedance: 50 ohm
Shell Finish: Gold Plated
Shell Material: Copper Alloy
Shield Termination: Clamp
