SMB Connector Right Angle Plug Female Pin Crimp 50 Ohm for RG178 Cable – RHT-626-0216

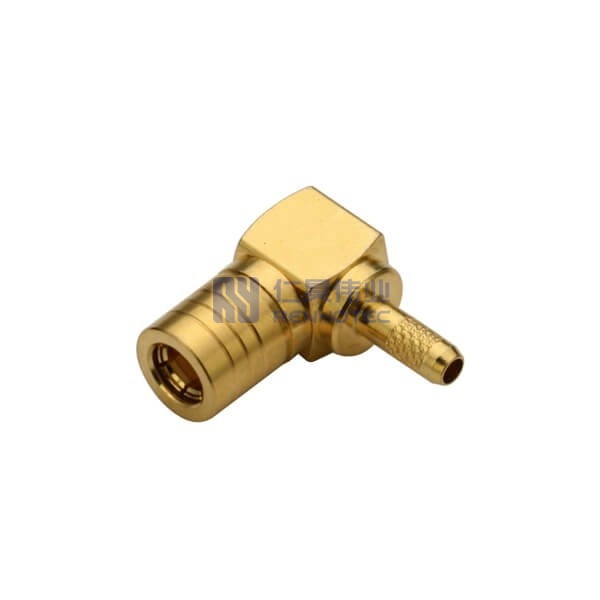

Right-angle SMB plug, 50Ω, female pin with crimp termination for RG178 cable, angled body facilitates low-profile cable routing in compact enclosures, operates up to 4 GHz, suitable for handheld devices, avionics modules, and space-constrained RF assemblies.
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Contact Type | Female Pin |
||
| Shell Material | Copper |
||
| Shell Finish | Gold Plating |
||
| Contact Finish | Gold Plating |
||
| Contact Material | Brass |
||
| RF Series | SMB Type |
||
| Contact Termination Style | Crimp |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 4GHz |
||
| Impedance | 50 ohm |
||
| Cable Type | RG178 |
||
| Insulation Resistance | 1000 Ohms min |
||
| Insulator Material | TEFLON |
||
| Mounting Type | Cable |
||
| Number of Ports | 1 |
||
| Orientation | Right Angle |
||
| Temperature Range | -40°C to +125°C |
||
| VSWR | 1.5MAX |
||
| Working Voltage | 500V rms |
||
| Connector Type | Plug |
Contact Type | Female Pin |
| Shell Material | Copper |
Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
Contact Material | Brass |
| RF Series | SMB Type |
Contact Termination Style | Crimp |
| Fastening Type | Snap On |
Frequency - Max | 4GHz |
| Impedance | 50 ohm |
Cable Type | RG178 |
| Insulation Resistance | 1000 Ohms min |
Insulator Material | TEFLON |
| Mounting Type | Cable |
Number of Ports | 1 |
| Orientation | Right Angle |
Temperature Range | -40°C to +125°C |
| VSWR | 1.5MAX |
Working Voltage | 500V rms |
| Connector Type | Plug |
|---|---|
| Contact Type | Female Pin |
| Shell Material | Copper |
| Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| RF Series | SMB Type |
| Contact Termination Style | Crimp |
| Fastening Type | Snap On |
| Frequency - Max | 4GHz |
| Impedance | 50 ohm |
| Cable Type | RG178 |
| Insulation Resistance | 1000 Ohms min |
| Insulator Material | TEFLON |
| Mounting Type | Cable |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Temperature Range | -40°C to +125°C |
| VSWR | 1.5MAX |
| Working Voltage | 500V rms |
Drawing for SMB Connector Right Angle Plug Female Pin Crimp 50ohm for RG178 CableDownload
