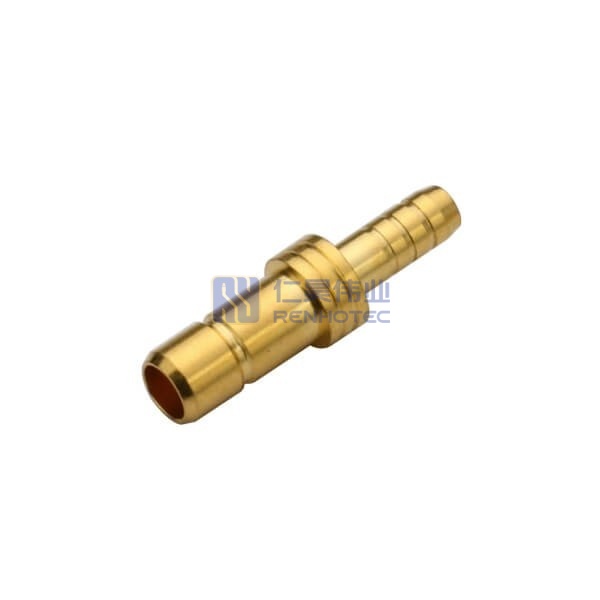

SMB Connector Straight Jack Male Pin Crimp 50 Ohm for RG178 Cable – RHT-626-0211
Straight SMB jack, 50Ω, male pin with crimp termination for RG178 cable, compact package enables dense PCB and cable interconnections, supports DC to 4 GHz with stable VSWR, used in portable test instruments and miniature RF transceivers.
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Type | Male Pin |
||
| Shell Material | Copper |
||
| Shell Finish | Gold Plating |
||
| Contact Finish | Gold Plating |
||
| Contact Material | Brass |
||
| RF Series | SMB Type |
||
| Contact Termination Style | Crimp |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 4GHz |
||
| Impedance | 50 ohm |
||
| Cable Type | RG178 |
||
| Insulator Material | TEFLON |
||
| Mounting Type | Cable |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Connector Type | Jack |
Contact Type | Male Pin |
| Shell Material | Copper |
Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
Contact Material | Brass |
| RF Series | SMB Type |
Contact Termination Style | Crimp |
| Fastening Type | Snap On |
Frequency - Max | 4GHz |
| Impedance | 50 ohm |
Cable Type | RG178 |
| Insulator Material | TEFLON |
Mounting Type | Cable |
| Number of Ports | 1 |
Orientation | Straight |
| Connector Type | Jack |
|---|---|
| Contact Type | Male Pin |
| Shell Material | Copper |
| Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| RF Series | SMB Type |
| Contact Termination Style | Crimp |
| Fastening Type | Snap On |
| Frequency - Max | 4GHz |
| Impedance | 50 ohm |
| Cable Type | RG178 |
| Insulator Material | TEFLON |
| Mounting Type | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
Drawing for SMB Connector Straight Jack Male Pin Crimp 50ohm for RG178 CableDownload
