Automotive-Grade FAKRA & Mini FAKRA (HFM) Solutions for OEMs, Tier-1s & Integrators

Request Corporate Quote Request Engineering Sample

FAKRA & Mini FAKRA Solutions

Renhotec supplies IATF 16949 and USCAR-compliant FAKRA and Mini FAKRA (HFM®) intermateable interconnect solutions, including PCB receptacles, cable connectors, and factory-terminated harness assemblies. Built with 18+ years of precision RF manufacturing expertise, our product portfolio covers standard sub-6 GHz FAKRA components and high-density Mini FAKRA systems supporting up to 20 GHz bandwidth and 28 Gbps data rates.

We deliver complete OEM/ODM customization—from custom mechanical coding (A–Z) and specialized cable jackets to 100% VNA-tested GMSL2/3 and FPD-Link cable assemblies tailored to your exact pinout and length specifications.

FAKRA vs. Mini FAKRA Comparison

Engineering Parameter Standard FAKRA (SMB-Based) Mini FAKRA (HFM® Series)
Frequency Range DC to 6 GHz DC to 15 GHz / 20 GHz
Max Data Rate Up to 8 Gbps Up to 28 Gbps
Impedance 50 Ω nominal 50 Ω nominal
Space Savings Standard automotive footprint Up to 80% footprint reduction
Port Configurations Single Port (1-Position) Single, Dual, Quad, and 4+2 Hybrid Ports
Mechanical & Color Coding Codes A through Z (14 standard keys) Codes A through Z (Standardized mechanical coding)
Retention Force Primary & Secondary Locks (≥ 110 N) Primary & Secondary Locks (≥ 110 N)
Standard Cable Types RG174, RG316, RTK 031, Dacar 078 RTK 031, Dacar 535, Dacar 636, Dacar 547
Primary Applications GPS/GNSS, AM/FM, Cellular, Basic Cameras High-Res Cameras (GMSL2/3), LiDAR, Radar, Displays

Product Portfolio & Architecture

Explore Renhotec’s automotive-grade interconnect families, from standardized SMB-based FAKRA components to high-density Mini FAKRA systems and custom SerDes adapter harnesses.

Standard FAKRA Product Family

Standard FAKRA Series

USCAR-18 | DC to 6 GHz | 50 Ω
Sub-Categories
  • Straight Connectors
    Straight Connectors
    Cable & Board Mount
  • Right Angle Connectors
    Right Angle Connectors
    Space-Saving Configurations
  • PCB Mount Receptacles
    PCB Receptacles
    SMT & THT Board Headers
  • Cable Assemblies
    Cable Assemblies
    RG174 / RTK031 Pre-Terminated
View Standard FAKRA Connectors → View FAKRA Cable Assemblies →
Mini FAKRA HFM Series Family

Mini FAKRA (HFM® Series)

High-Density | DC to 20 GHz | Up to 28 Gbps
Sub-Categories
  • Port Configurations
    Multi-Port Systems
    Single, Dual, Quad & 4+2 Hybrid
  • Cable Connectors
    Cable Connectors
    High-Frequency Crimp Types
  • Board Connectors
    Board Connectors
    Vertical & Right-Angle PCB Pins
  • Harness Assemblies
    Harness Assemblies
    High-Speed Automated Crimped
View Mini FAKRA Connectors → View Mini FAKRA Cable Assemblies →
Custom Adapter and Transition Cables

Custom Adapter & Transition Cables

100% VNA Tested | GMSL2/3 & FPD-Link
Sub-Categories
  • Mini FAKRA to Standard FAKRA
    Mini FAKRA to FAKRA
    Inter-Series Adapter Cables
  • FAKRA to SMA / BNC Test Leads
    RF Test Leads
    FAKRA / Mini FAKRA to SMA / BNC
  • Custom Pinout Harness
    Custom Pinouts
    Bespoke Lengths & Jackets
  • OEM Mechanical Coding
    Mechanical Coding
    A–Z Color Key Customization
Explore Custom Assemblies →

Automotive Applications & SerDes Protocol Compatibility

To ensure seamless integration with leading SerDes (Serializer/Deserializer) chipset architectures, our cable assemblies and connectors are validated for characteristic impedance (50 Ω), low insertion loss (S21), and minimal return loss (S11) across full frequency sweeps.

Texas Instruments FPD-Link III / FPD-Link IV

Optimized for ultra-low latency transmission in high-resolution digital displays and multi-camera ADAS setups.

Analog Devices (ADI/Maxim) GMSL2 / GMSL3

Fully compliant with Gigabit Multimedia Serial Link requirements, supporting raw video streaming up to 12 Gbps per lane over single coaxial lines.

MIPI A-PHY & ASA (Automotive SerDes Alliance)

Designed to meet emerging standardized physical layer specifications for long-reach automotive sensor bridging.

Key Application Domains

ADAS & Autonomous Driving Systems

  • Surround View Camera System (SVC / 360°)
  • Driver Monitoring Systems (DMS) & Occupant Monitoring Systems (OMS)
  • LiDAR Systems
  • Radar Modules (77 GHz / 79 GHz)
  • Domain Controllers (DCU / ADAS)

Infotainment & Smart Cockpit

  • Digital Instrument Cluster
  • Center Information Display (CID)
  • Head-Up Display (HUD)
  • Rear Seat Entertainment (RSE)
  • High-End Audio Systems

Telematics & Wireless Connectivity (V2X)

  • Multi-Band Antenna Systems
  • GPS / GNSS Navigation
  • 5G / LTE Telematics Box (T-Box)
  • Wi-Fi / Bluetooth / UWB Modules
  • V2X (Vehicle-to-Everything)

Commercial Vehicles & Heavy Duty

  • Fleet Management Systems (FMS)
  • Agricultural Autonomous Equipment
  • Logistics & Delivery Robots
  • Robotaxi & Robotbus Autonomous Platforms

Non-Automotive & Industrial Applications

  • Test & Measurement Benches
  • Medical Diagnostic Imaging
  • Industrial Automation & Vision Systems
Autonomous Mobile Robot Connectivity Solutions
Passenger Vehicle Connectivity Solutions
Commercial Vehicle FAKRA Connector & Cable Solutions
Agricultural Vehicles FAKRA Connector & Cable Solutions

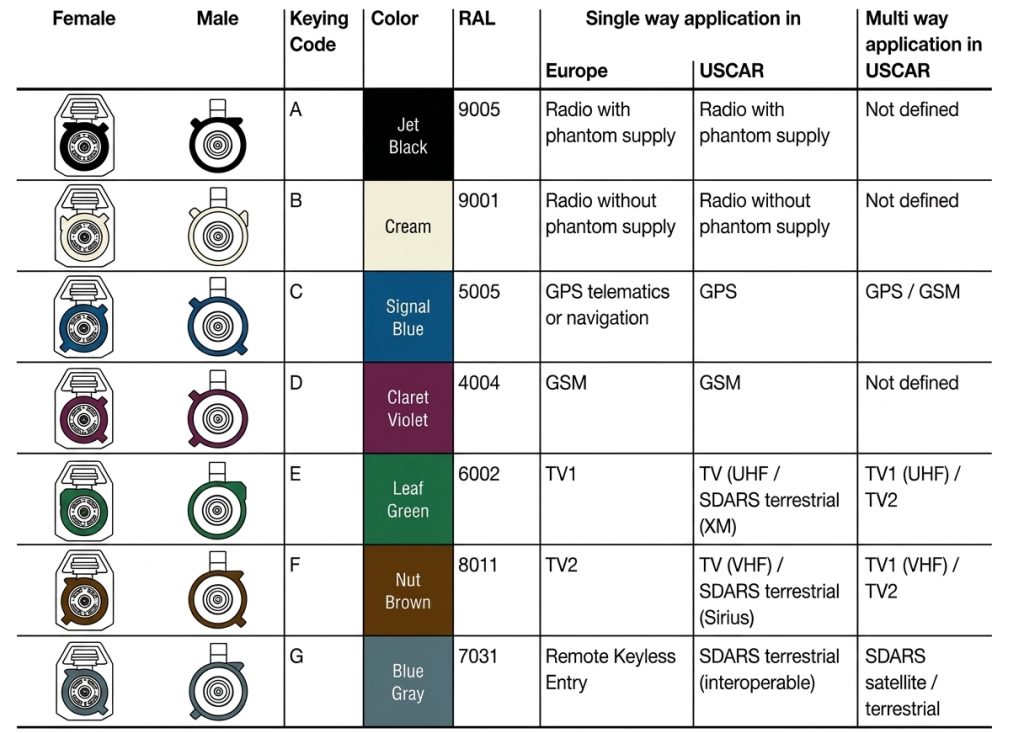

Multiple standardized mechanical and color codings
