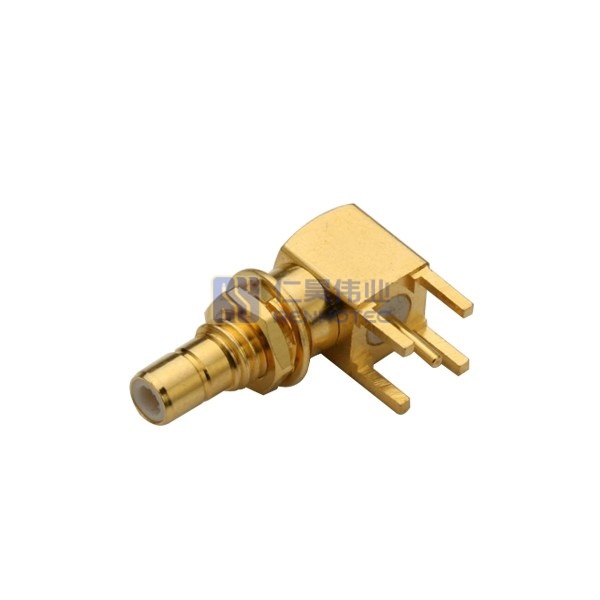

SMB Connector Right Angle Jack Male Pin Solder 50 Ohm – RHT-626-0239
Right-angle SMB jack, 50Ω, male pin with solder termination, angled configuration enables perpendicular PCB or cable connections, operates up to 4 GHz with reliable contact force, suitable for compact transceiver modules and portable RF instruments.
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Type | Male Pin |
||
| Shell Material | Copper |
||
| Shell Finish | Gold Plating |
||
| Contact Finish | Gold Plating |
||
| Contact Material | Brass |
||
| RF Series | SMB Type |
||
| Contact Termination Style | Solder |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 4GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | TEFLON |
||
| Mounting Feature | Through Hole |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Right Angle |
||
| Connector Type | Jack |
Contact Type | Male Pin |
| Shell Material | Copper |
Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
Contact Material | Brass |
| RF Series | SMB Type |
Contact Termination Style | Solder |
| Fastening Type | Snap On |
Frequency - Max | 4GHz |
| Impedance | 50 ohm |
Insulator Material | TEFLON |
| Mounting Feature | Through Hole |
Mounting Type | Panel Mount |
| Number of Ports | 1 |
Orientation | Right Angle |
| Connector Type | Jack |
|---|---|
| Contact Type | Male Pin |
| Shell Material | Copper |
| Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| RF Series | SMB Type |
| Contact Termination Style | Solder |
| Fastening Type | Snap On |
| Frequency - Max | 4GHz |
| Impedance | 50 ohm |
| Insulator Material | TEFLON |
| Mounting Feature | Through Hole |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Orientation | Right Angle |
