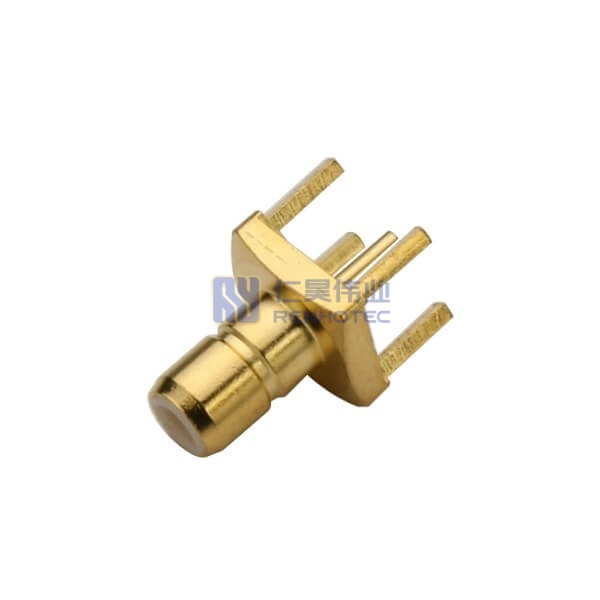

SMB Connector Straight Jack Male Pin Solder 50 Ohm – RHT-626-0230
Straight SMB jack, 50Ω, male pin with solder termination, gold-plated contacts ensure reliable signal continuity, supports DC to 4 GHz with consistent electrical characteristics, commonly used in RF test fixtures, communication transceivers, and microwave modules.
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Type | Male Pin |
||
| Shell Material | Copper |
||
| Shell Finish | Gold Plating |
||
| Contact Finish | Gold Plating |
||
| Contact Material | Brass |
||
| RF Series | SMB Type |
||
| Contact Termination Style | Solder |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 4GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | TEFLON |
||
| Mounting Feature | Through Hole |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Connector Type | Jack |
Contact Type | Male Pin |
| Shell Material | Copper |
Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
Contact Material | Brass |
| RF Series | SMB Type |
Contact Termination Style | Solder |
| Fastening Type | Snap On |
Frequency - Max | 4GHz |
| Impedance | 50 ohm |
Insulator Material | TEFLON |
| Mounting Feature | Through Hole |
Mounting Type | Panel Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Connector Type | Jack |
|---|---|
| Contact Type | Male Pin |
| Shell Material | Copper |
| Shell Finish | Gold Plating |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| RF Series | SMB Type |
| Contact Termination Style | Solder |
| Fastening Type | Snap On |
| Frequency - Max | 4GHz |
| Impedance | 50 ohm |
| Insulator Material | TEFLON |
| Mounting Feature | Through Hole |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Orientation | Straight |
Drawing for SMB Connector Straight Jack Male Pin Solder 50ohmDownload
