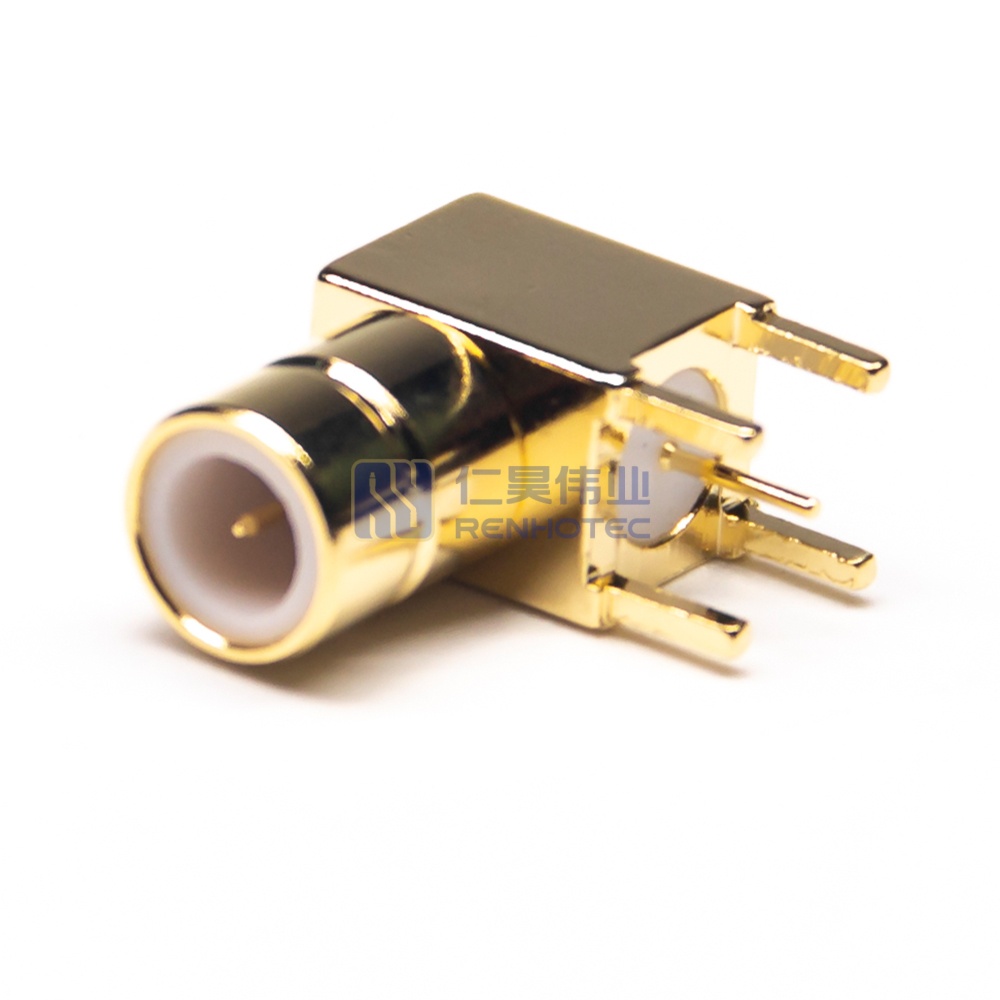

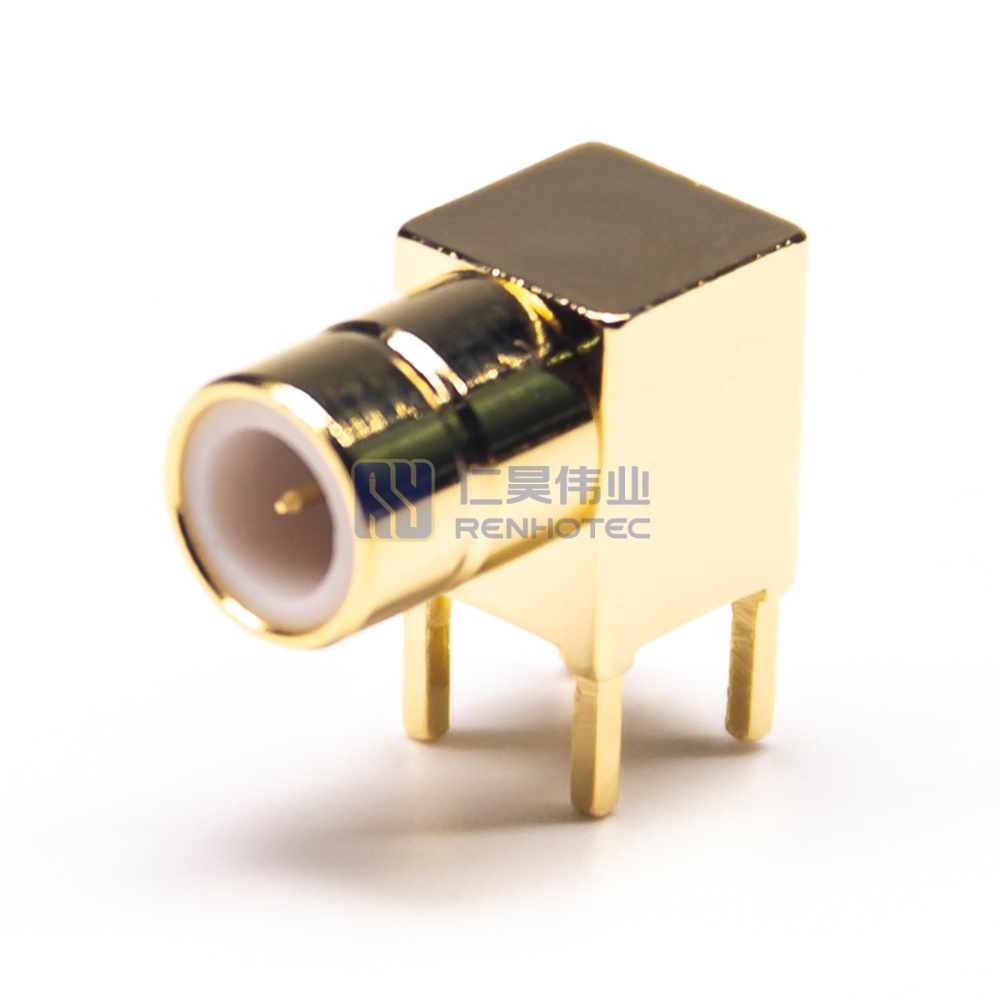

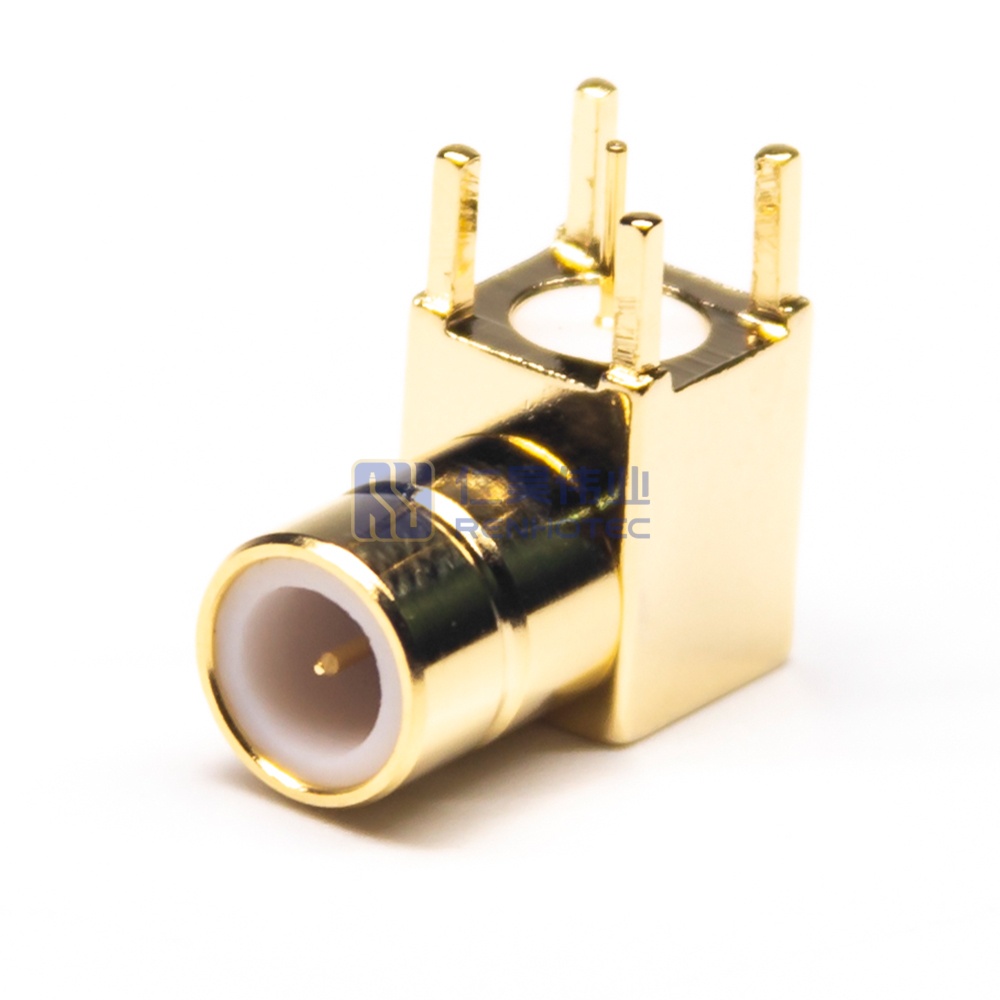

SMB Connector Right Angle Jack Female Pin Solder 50ohm – RHT-626-0219
Product Specification
| RF Series | SMB Type |
||
|---|---|---|---|
| Fastening Type | Snap On |
||
| Orientation | Right Angle |
||
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Mounting Type | Panel Mount |
||
| Impedance | 50ohm |
||
| Insulator Material | PTFE |
||
| Contact Material | Brass |
||
| VSWR | 1.5MAX |
||
| Working Voltage | 500V rms |
||
| Insulation Resistance | 1000 Ohms min |
||
| Temperature Range | −65°C To +165°C |
||
| RF Series | SMB Type |
Fastening Type | Snap On |
| Orientation | Right Angle |
Connector Type | Jack |
| Contact Type | Female Pin |
Mounting Type | Panel Mount |
| Impedance | 50ohm |
Insulator Material | PTFE |
| Contact Material | Brass |
VSWR | 1.5MAX |
| Working Voltage | 500V rms |
Insulation Resistance | 1000 Ohms min |
| Temperature Range | −65°C To +165°C |
| Termination | Solder |
||
|---|---|---|---|
| Mount Feature | Through Hole |
||
| Port Numbers | 1 |
||
| Body Material | Copper |
||
| Body Plating | Gold Plating |
||
| Contact Plating | Gold Plating |
||
| Termination | Solder |
Mount Feature | Through Hole |
| Port Numbers | 1 |
Body Material | Copper |
| Body Plating | Gold Plating |
Contact Plating | Gold Plating |
| RF Series | SMB Type |
|---|---|
| Fastening Type | Snap On |
| Orientation | Right Angle |
| Connector Type | Jack |
| Contact Type | Female Pin |
| Termination | Solder |
| Mounting Type | Panel Mount |
| Mount Feature | Through Hole |
| Port Numbers | 1 |
| Impedance | 50ohm |
| Frequency(Max） | 4GHz |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Insulator Material | PTFE |
| Contact Material | Brass |
| Contact Plating | Gold Plating |
| VSWR | 1.5MAX |
| Working Voltage | 500V rms |
| Insulation Resistance | 1000 Ohms min |
| Temperature Range | −65°C To +165°C |
