Instrumentation Interconnects
Precision RF Interconnects Engineered for Semiconductor Testing, High-Performance Instrumentation, Quantum Systems & Signal Calibration
From DC to 67 GHz, Renhotec delivers connectors, cable assemblies, adapters, and passive components built to the exacting standards of modern test and measurement environments — where every dB and every micron matters.
Why RF Connectivity Is Critical in T&M
As test frequencies exceed 40 GHz and measurement margins shrink, signal integrity at every interconnect point becomes non-negotiable. Whether you’re characterizing semiconductors on a probe station, calibrating a reference system, or routing signals in a cryogenic quantum computing setup — the quality of your RF connectors and cable assemblies directly determines measurement accuracy and repeatability.
Renhotec specializes in precision RF interconnects that meet the dimensional, electrical, and mechanical standards demanded by the world’s most rigorous test environments.
Ultra-low VSWR and insertion loss preserve signal fidelity from source to DUT.
Precision-machined interfaces maintain consistent performance across hundreds of mating cycles.
Full interface compatibility with major instrument manufacturers — Keysight, Rohde & Schwarz, Anritsu and more.
Solution Matrix
Match your test scenario to the recommended Renhotec product series
| Application | Connection Requirements | Recommended Product Series | Why It’s the Right Fit |
|---|---|---|---|
| Semiconductor Testing | DC to 67 GHz, low insertion loss, high mating cycle durability | 2.4mm / 2.92mm / 1.85mm Connectors, RF Cable Assemblies | Sub-millimeter mechanical tolerances with 500+ mating cycles, compatible with ATE systems and wafer probe stations |
| High-Performance Instruments | Ultra-low VSWR, broadband phase stability, port-to-port consistency | RF Adapters (2.4mm / 3.5mm), High Frequency Cable Assemblies | Full adapter interoperability across major instrument interfaces; phase-stable cables preserve measurement accuracy across frequency sweep |
| Cryogenic & Quantum Technology | Stable performance at cryogenic temperatures (<4K), matched thermal expansion coefficients | Cryogenic-rated RF Cable Assemblies, Low-Temperature Connectors | Materials selected and validated for extreme low-temperature environments; electrical performance maintained through full thermal excursion |
| Signal Calibration & Measurement Systems | Traceable precision, tight VSWR, well-defined attenuation reference | RF Attenuators, RF Coaxial Loads, RF Adapters | Calibration-grade passive components with consistent, predictable RF characteristics suitable for reference standards and calibration benches |
Application Scenarios
Semiconductor Testing
Modern semiconductor testing demands signal integrity from DC to millimeter-wave frequencies. Probe stations, automated test equipment (ATE), and wafer-level characterization systems all rely on RF connectors and cable assemblies that can maintain dimensional accuracy and low reflection across thousands of measurement cycles.
Renhotec’s 2.92mm, 2.4mm, and 1.85mm connectors are precision-machined to tight tolerances, delivering stable performance from DC to 67 GHz. Their high mating cycle durability makes them ideal for production test environments where reliability directly impacts throughput and yield.
High-Performance Instruments
Vector network analyzers, spectrum analyzers, signal generators, and power meters all share one demand: the interconnects between them must not degrade the instrument’s native performance. A poor-quality adapter or cable can introduce VSWR mismatches, phase errors, and insertion loss that corrupt measurement results — even on six-figure instruments.
Renhotec’s RF adapters and high-frequency cable assemblies are designed with this in mind. With broadband low VSWR performance and dimensional compliance to IEC and IEEE standards, they act as transparent links between instrument ports, DUTs, and test fixtures — preserving the full dynamic range and accuracy of your measurement system.
Cryogenic- and Quantum Technology
Quantum computing systems operate at temperatures approaching absolute zero — typically below 4 Kelvin. In these environments, standard RF connectors and cables fail due to material brittleness, differential thermal contraction, and increased electrical resistance. Every interconnect inside a cryostat must be carefully selected for both its cryogenic mechanical reliability and its RF transmission characteristics.
Renhotec offers RF cable assemblies and connectors validated for cryogenic operation, featuring material combinations chosen for thermal expansion compatibility and stable dielectric properties at ultra-low temperatures. These products support the signal routing required between room-temperature control electronics and cryogenic quantum processor stages.
Signal Calibration & Measurement Systems
Calibration systems demand more than just functional RF components — they require passive elements with well-characterized, stable, and repeatable electrical properties. An attenuator with imprecise attenuation value, or a load with poor return loss, introduces systematic errors that propagate through every measurement made with that system.
Renhotec’s RF attenuators, coaxial loads, and precision adapters are designed for use in calibration benches, reference systems, and verification setups. Their tight electrical specifications and consistent mechanical dimensions make them reliable building blocks for traceable, high-accuracy measurement chains.
Featured Products
Purpose-built RF interconnects covering the full signal chain — from millimeter-wave connectors to cryogenic cables and precision passive components
Precision coaxial connectors engineered for microwave and millimeter-wave test applications. Available in 1.85mm (DC-67 GHz), 2.4mm (DC-50 GHz), 2.92mm (DC-40 GHz), and 3.5mm (DC-33 GHz) interfaces, all manufactured to IEC dimensional standards.
View High-Frequency Connectors →
Phase-stable RF cable assemblies designed for demanding T&M environments. Maintain consistent amplitude and phase response under mechanical flexure and temperature variation — critical for accurate S-parameter and time-domain measurements.
View Cable Assemblies →
A comprehensive range of precision RF adapters enabling interface compatibility between instruments, cables, and test fixtures across different connector standards. Built to IEC 61169 compliance for full interoperability with major instrument platforms.
View RF Adapters →

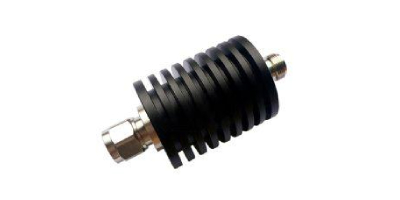

Fixed and variable RF attenuators for accurate signal level control in test and calibration systems. Tight attenuation tolerance and excellent port-to-port VSWR ensure predictable signal conditioning without introducing systematic errors.
View RF Attenuators →
Precision 50Ω coaxial terminations providing a well-matched, low-reflection endpoint for RF signal chains. Used as calibration reference standards, port terminators, and system impedance references. High-power configurations available.
View RF Coaxial Loads →
Designed for applications that combine RF signal transmission with high-voltage isolation requirements. These connectors maintain precise RF performance while providing the dielectric strength needed in power electronics testing.
View HV RF Connectors →T&M RFQ
Send your application, connector interface, frequency range, environment requirements (standard / cryogenic / high-voltage), and target quantity. For part-number matching, include the SKU, drawing, or reference number.
