BNC Connector

The BNC series is the most commonly used coaxial connector. With its bayonet coupling mechanism, this connector can be used at frequencies up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformal, and semi-rigid cable types.
Versions of the BNC connectors are available for mounting to printed circuit boards using through-hole soldering and through-hole crimping techniques. This series uses crimp and clip cable termination processes. BNC connectors are used for signal, data, and video transmission applications.
The BNC connector features a classic, reliable design for various termination styles for RG and industry-standard cables. A full line of printed circuit board receptacles, bulkhead receptacles, reverse polarity connectors, resistor terminations, and other accessories supplement the product offering.

BNC Connector 1x4 R/A Jack Panel Mount Through Hole 50 Ohm - RHT-610-0011
Quick View

BNC Connector 1×4 R/A Jack Panel Mount Through Hole 50 Ohm – RHT-610-0011

Connector Type: Jack
Contact Finish: Tin Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy
BNC Connector 2x1 R/A Jack Panel Mount Through Hole - RHT-610-0006
Quick View

BNC Connector 2×1 R/A Jack Panel Mount Through Hole – RHT-610-0006

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy
BNC Connector 2x1 Right Angle Jack Panel Mount Through Hole - RHT-610-0003
Quick View

BNC Connector 2×1 Right Angle Jack Panel Mount Through Hole – RHT-610-0003

BNC Connector 2x3 Port R/A Jack Panel Mount 50 Ohm - RHT-610-0014
Quick View

BNC Connector 2×3 Port R/A Jack Panel Mount 50 Ohm – RHT-610-0014

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy
BNC Connector 2X4 R/A Jack Panel Mount Through Hole 50 Ohm - RHT-610-0015-50
Quick View

BNC Connector 2X4 R/A Jack Panel Mount Through Hole 50 Ohm – RHT-610-0015-50

Connector Type: Jack
Contact Finish: Nickel Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy

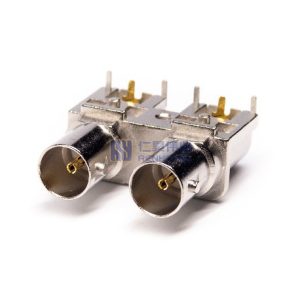

BNC Connector Dual Port R/A Jack Panel Mount Through Hole 75 Ohm - RHT-610-0057
Quick View

BNC Connector Dual Port R/A Jack Panel Mount Through Hole 75 Ohm – RHT-610-0057

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 75 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy
BNC Connector Jack Flange Mount Solder Cup - RHT-610-0222
Quick View

BNC Connector Jack Flange Mount Solder Cup – RHT-610-0222

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Termination Style: Solder Cup
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 75 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Copper Alloy

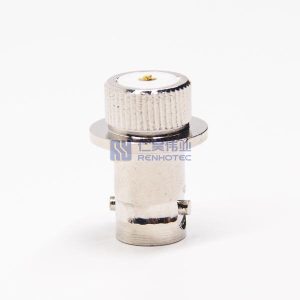

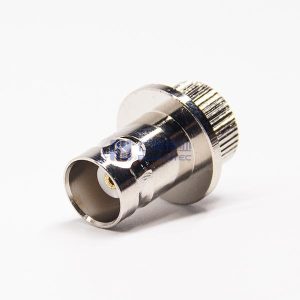

BNC Connector Jack Straight Press in 50 Ohm - RHT-610-0305
Quick View

BNC Connector Jack Straight Press in 50 Ohm – RHT-610-0305

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Termination Style: Solder
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Copper Alloy

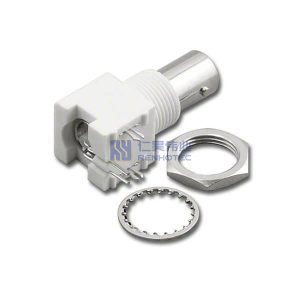

BNC Connector R/A Female Panel Mount 15.8mm White Plastic - RHT-610-0048
Quick View

BNC Connector R/A Female Panel Mount 15.8mm White Plastic – RHT-610-0048

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy

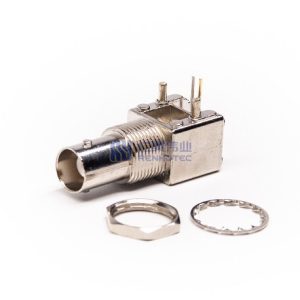

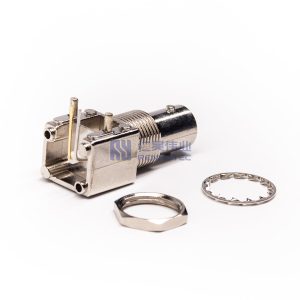

BNC Connector R/A Female Panel Mount Bulkhead 50 Ohm - RHT-610-0035
Quick View

BNC Connector R/A Female Panel Mount Bulkhead 50 Ohm – RHT-610-0035

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 50 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy

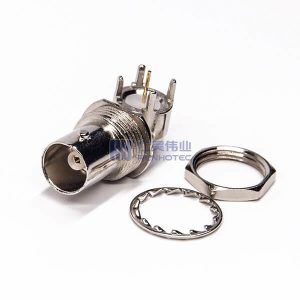

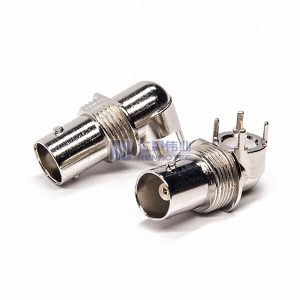

BNC Connector R/A Female Panel Mount Bulkhead 75 Ohm - RHT-610-0034
Quick View

BNC Connector R/A Female Panel Mount Bulkhead 75 Ohm – RHT-610-0034

Connector Type: Jack
Contact Finish: Gold Plated
Contact Material: Copper Alloy
Contact Type: Female Pin
Fastening Type: Bayonet
Frequency Range: 0-4 GHz for 50 ohm
Impedance: 75 ohm
Insulator Material: Teflon White
RF Series: BNC Type
Shell Finish: Nickel Plated
Shell Material: Zinc Alloy

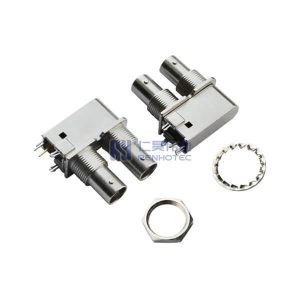

BNC Connector R/A Female Panel Mount Bulkhead 75 Ohm - RHT-610-1076
Quick View

BNC Connector R/A Female Panel Mount Bulkhead 75 Ohm – RHT-610-1076

1st Connector: 2.92MM Plug
