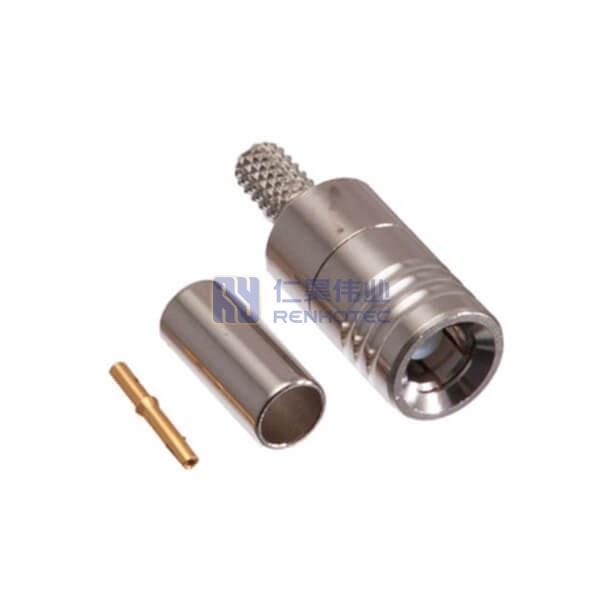

SMB Connector Straight Plug Female Pin Crimp 50 Ohm for RG174 Cable – RHT-626-0010
Straight SMB plug, 50Ω, female pin with crimp termination for RG174 cable, standard snap-on interface enables reliable board-to-cable connections, operates up to 4 GHz, ideal for cellular modems, IoT gateways, and compact antenna feeds.
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Contact Type | Female Pin |
||
| Shell Material | Copper |
||
| Shell Finish | Nickel Plating |
||
| Contact Finish | Gold Plating |
||
| Contact Material | Brass |
||
| RF Series | SMB Type |
||
| Contact Termination Style | Crimp |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 4GHz |
||
| Impedance | 50 ohm |
||
| Cable Type | RG174 |
||
| Insulator Material | TEFLON |
||
| Mounting Type | Cable |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Connector Type | Plug |
Contact Type | Female Pin |
| Shell Material | Copper |
Shell Finish | Nickel Plating |
| Contact Finish | Gold Plating |
Contact Material | Brass |
| RF Series | SMB Type |
Contact Termination Style | Crimp |
| Fastening Type | Snap On |
Frequency - Max | 4GHz |
| Impedance | 50 ohm |
Cable Type | RG174 |
| Insulator Material | TEFLON |
Mounting Type | Cable |
| Number of Ports | 1 |
Orientation | Straight |
| Connector Type | Plug |
|---|---|
| Contact Type | Female Pin |
| Shell Material | Copper |
| Shell Finish | Nickel Plating |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| RF Series | SMB Type |
| Contact Termination Style | Crimp |
| Fastening Type | Snap On |
| Frequency - Max | 4GHz |
| Impedance | 50 ohm |
| Cable Type | RG174 |
| Insulator Material | TEFLON |
| Mounting Type | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
Drawing for SMB Connector Straight Plug Female Pin Crimp 50ohm for RG174 CableDownload
