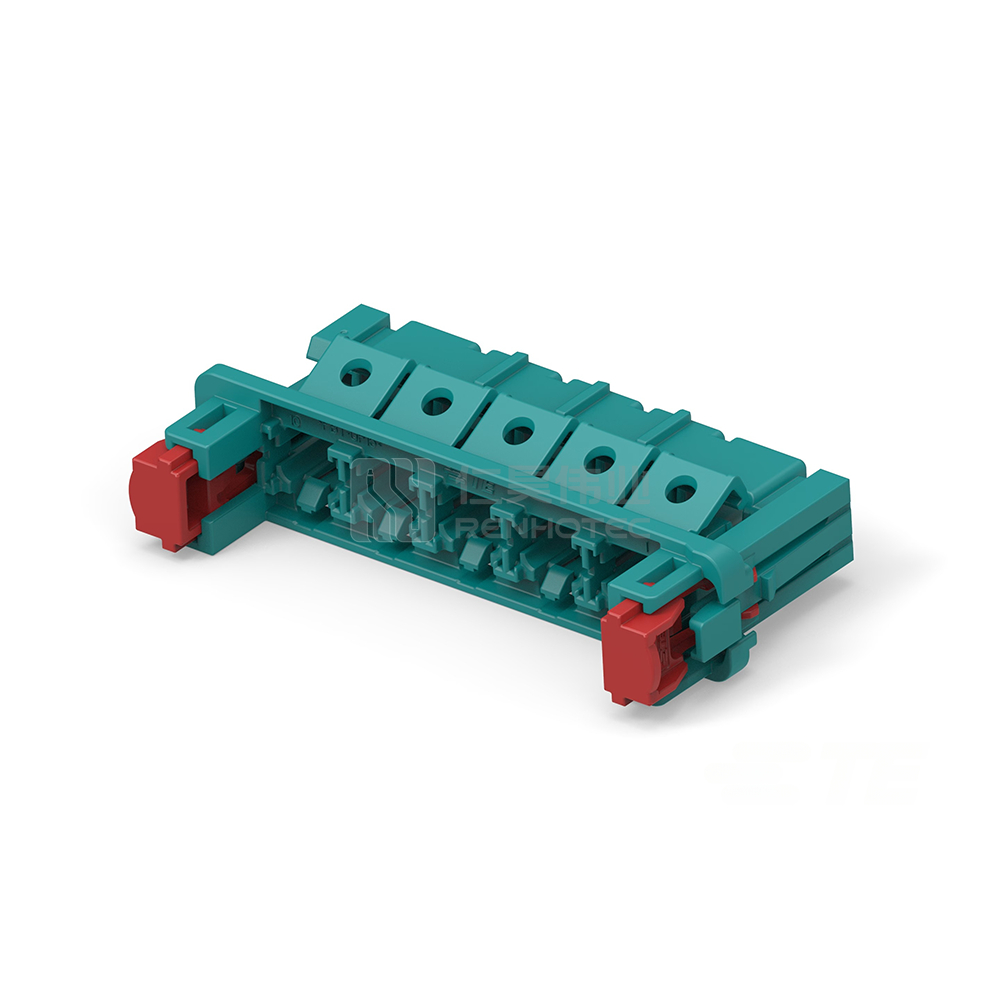

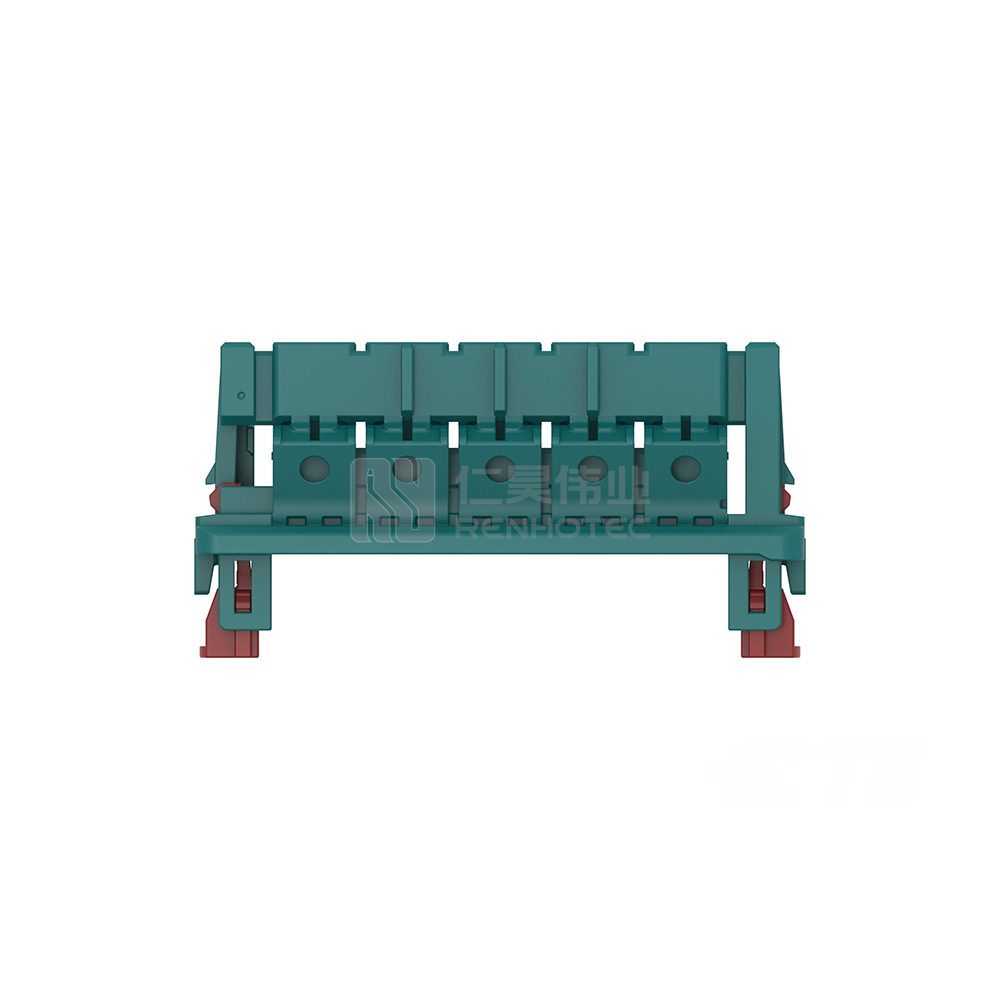

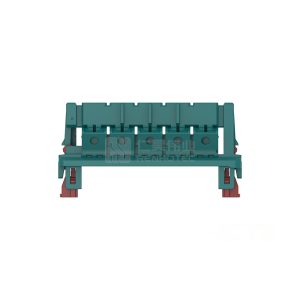

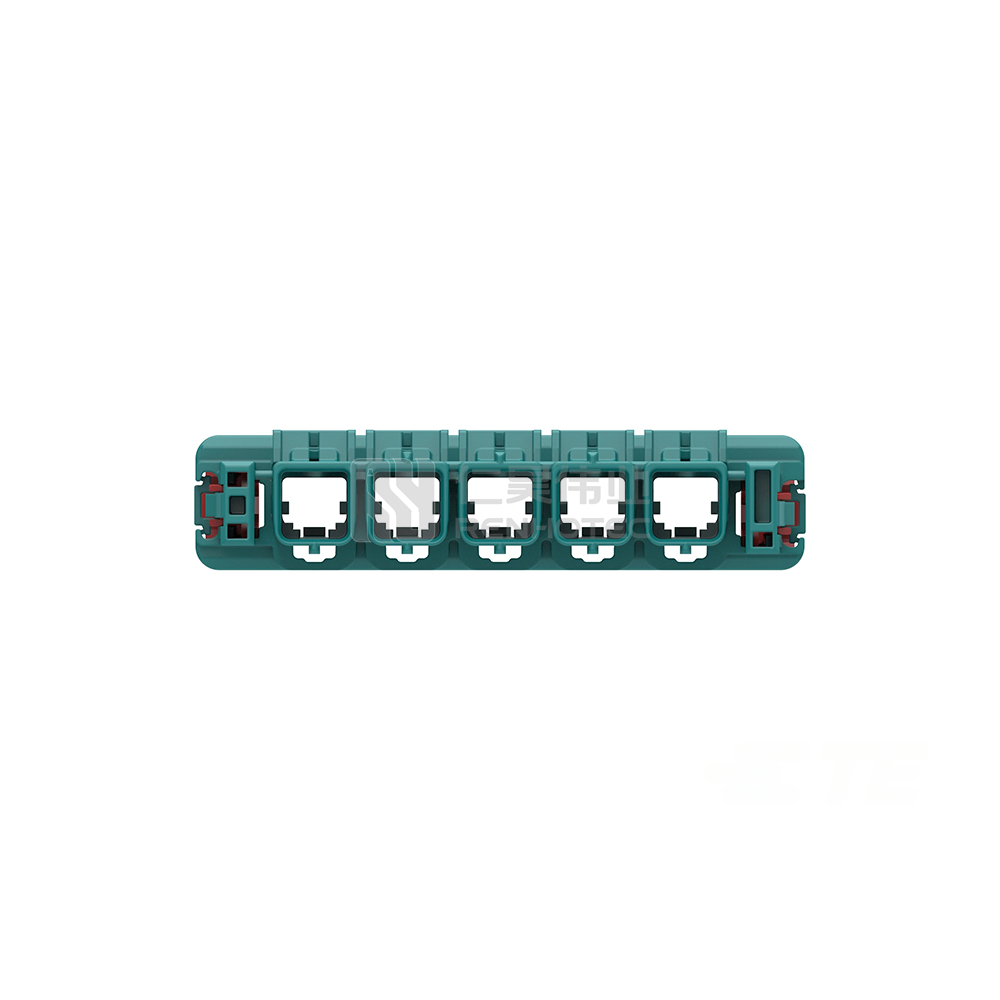

Wire-to-Board, 180° Cable Exit, 5 Position, Z Code, Housing for Female Terminals, 7.8 mm Centerline, Crimp, Signal, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Board
Sealable	No
Row Count	1
Position Count	5
Key Code	Z
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue
Pitch	7.8 mm [ .3 in ]
Connector Height	11.35 mm [ .446 in ]
Product Length	51.4 mm [ 2.024 in ]
Product Width	26.6 mm [ 1.047 in ]
Shielded	No
Circuit Application	Signal
Operating Voltage VDC	60
Body Material	PBT
Tab Width	.5 mm [ .02 in ]
Tab Thickness	.4 mm [ .015 in ]
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Nominal Voltage V	60
Termination Point	Wire & Cable	Connector System	Wire-to-Board
Sealable	No	Row Count	1
Position Count	5	Key Code	Z
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Water Blue
Pitch	7.8 mm [ .3 in ]	Connector Height	11.35 mm [ .446 in ]
Product Length	51.4 mm [ 2.024 in ]	Product Width	26.6 mm [ 1.047 in ]
Shielded	No	Circuit Application	Signal
Operating Voltage VDC	60	Body Material	PBT
Tab Width	.5 mm [ .02 in ]	Tab Thickness	.4 mm [ .015 in ]
Max Temperature	105 °C [ 221 °F ]	Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals	Cable Exit Angle	180°
Cable Termination	Crimp	Position Assurance	No
Nominal Voltage V	60

Termination Point	Wire & Cable
Connector System	Wire-to-Board
Sealable	No
Row Count	1
Position Count	5
Key Code	Z
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue
Pitch	7.8 mm [ .3 in ]
Connector Height	11.35 mm [ .446 in ]
Product Length	51.4 mm [ 2.024 in ]
Product Width	26.6 mm [ 1.047 in ]
Shielded	No
Circuit Application	Signal
Operating Voltage VDC	60
Body Material	PBT
Tab Width	.5 mm [ .02 in ]
Tab Thickness	.4 mm [ .015 in ]
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	STP \| UTP
Position Assurance	No
Nominal Voltage V	60
