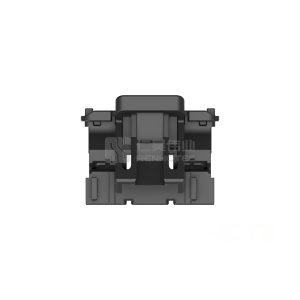

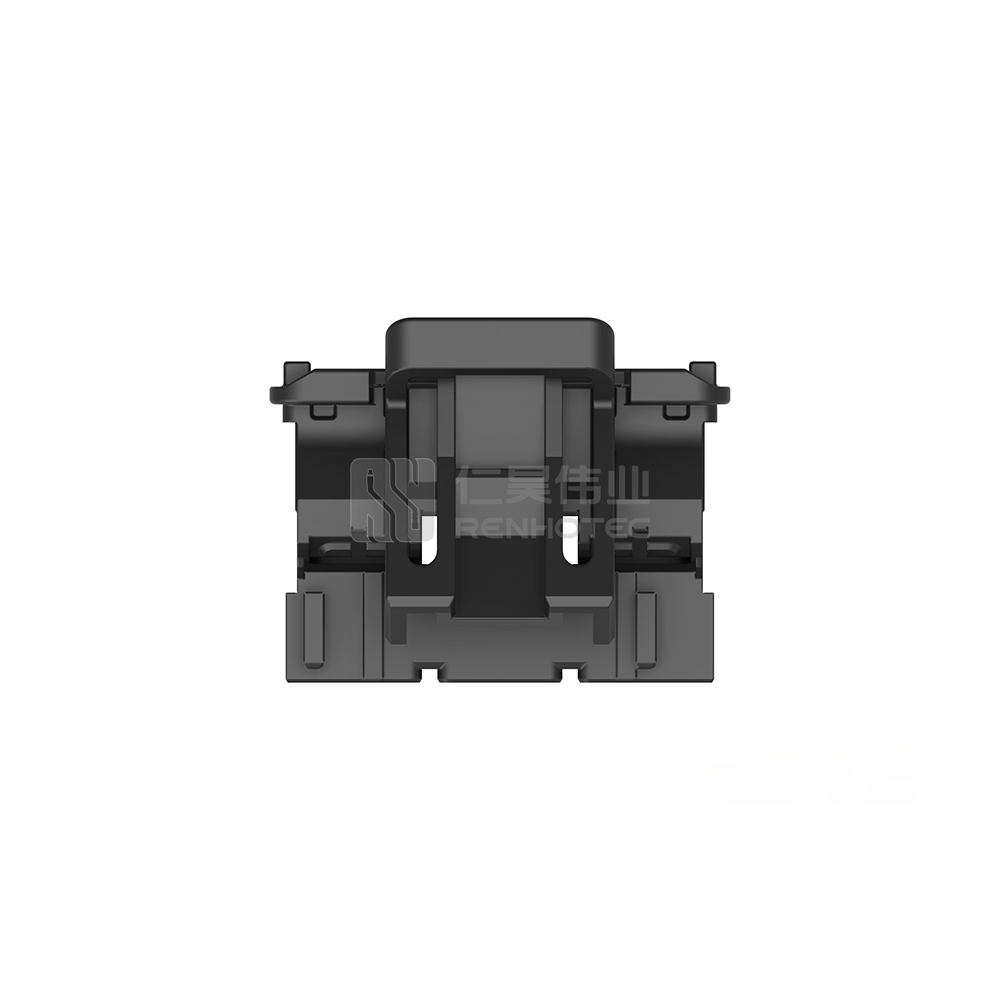

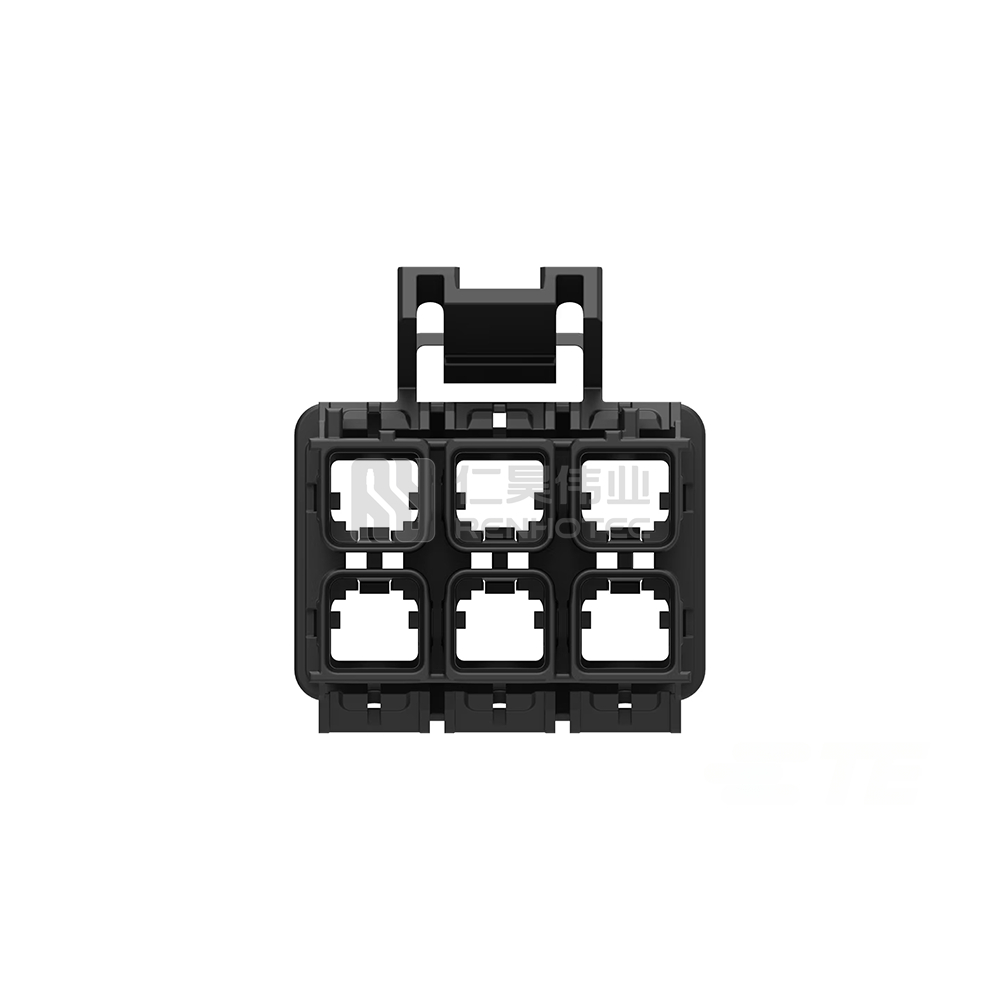

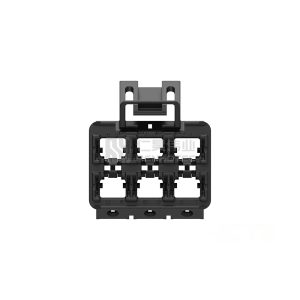

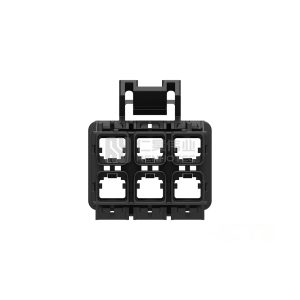

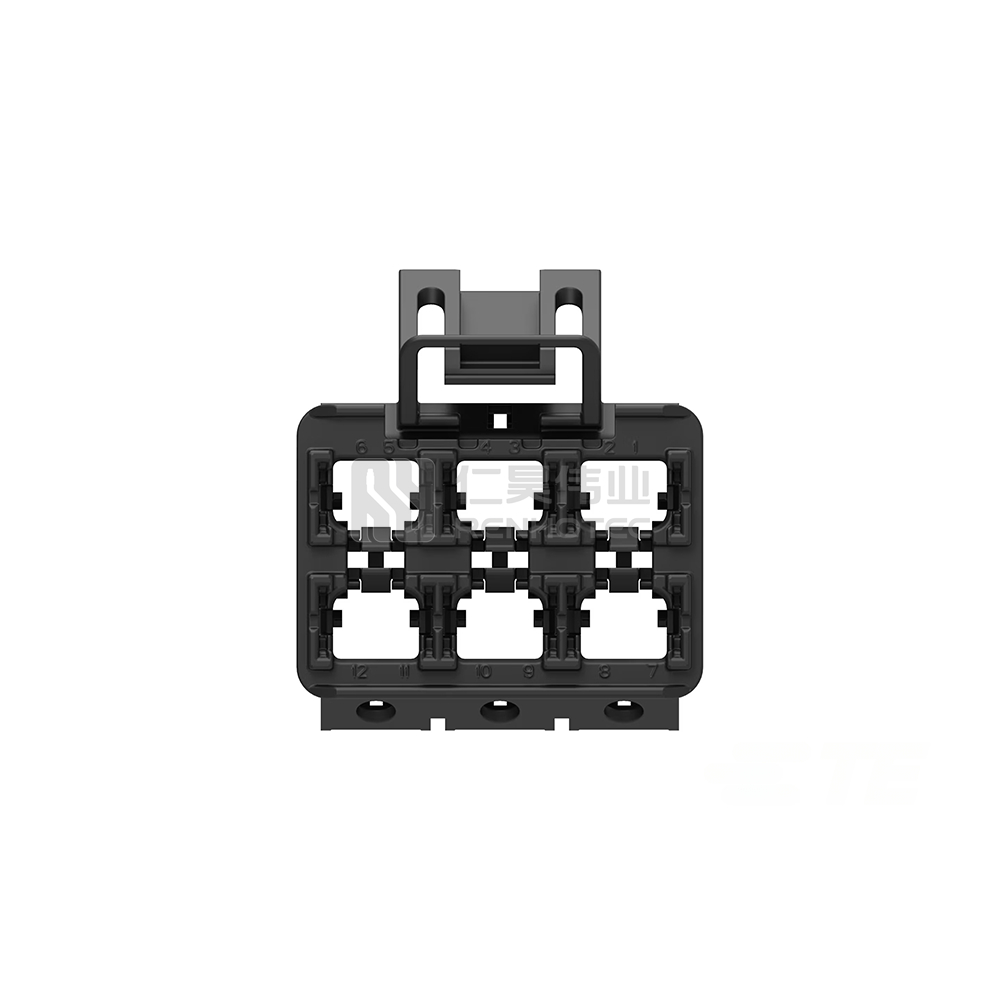

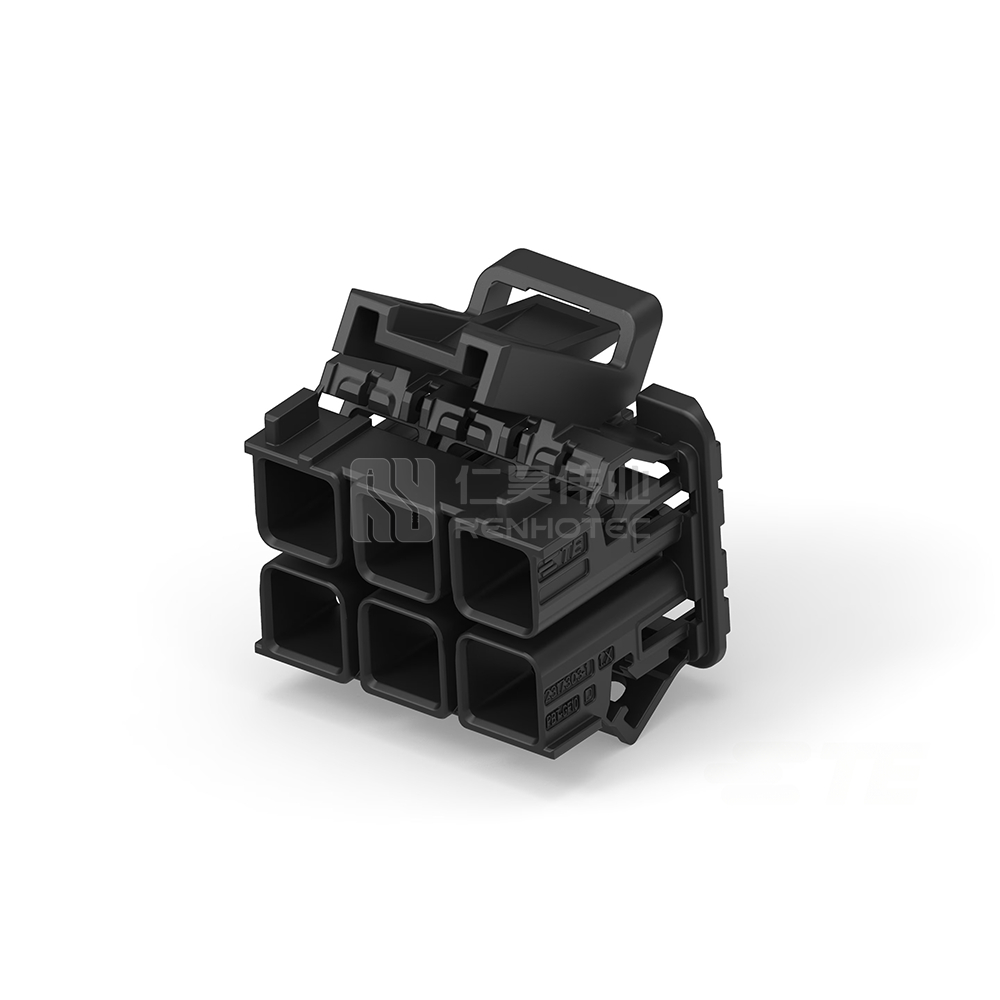

Wire-to-Wire, 180° Cable Exit, 12 Position, A Code, Housing for Female Terminals, 7.8 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	2
Position Count	12
Key Code	A
Center Contact	With
Contact Plating	Silver (Ag) \| Tin (Sn)
Max Current A	3
Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	7.8 mm [ .307 in ]
Connector Height	20.25 mm [ .797 in ]
Product Length	29.3 mm [ 1.154 in ]
Product Width	25.6 mm [ 1.008 in ]
Operating Voltage VDC	60
Body Material	PBT GF
Tab Width	.5 mm [ .02 in ]
Tab Thickness	.4 mm [ .016 in ]
Max Temperature	105 °C [ 221 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Straight to Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Termination Point	Wire & Cable	Connector System	Wire-to-Wire
Sealable	No	Row Count	2
Position Count	12	Key Code	A
Center Contact	With	Contact Plating	Silver (Ag) \| Tin (Sn)
Max Current A	3	Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Black
Pitch	7.8 mm [ .307 in ]	Connector Height	20.25 mm [ .797 in ]
Product Length	29.3 mm [ 1.154 in ]	Product Width	25.6 mm [ 1.008 in ]
Operating Voltage VDC	60	Body Material	PBT GF
Tab Width	.5 mm [ .02 in ]	Tab Thickness	.4 mm [ .016 in ]
Max Temperature	105 °C [ 221 °F ]	Housing Type	Housing for Female Terminals
Snap Lock	With	Cable Exit Type	Straight to Straight
Ferrule	With	Cable Exit Angle	180°
Cable Termination	Crimp

Contact Type	Receptacle
Contact Type	Receptacle

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	2
Position Count	12
Key Code	A
Contact Type	Receptacle
Center Contact	With
Contact Plating	Silver (Ag) \| Tin (Sn)
Max Current A	3
Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	7.8 mm [ .307 in ]
Connector Height	20.25 mm [ .797 in ]
Product Length	29.3 mm [ 1.154 in ]
Product Width	25.6 mm [ 1.008 in ]
Operating Voltage VDC	60
Body Material	PBT GF
Tab Width	.5 mm [ .02 in ]
Tab Thickness	.4 mm [ .016 in ]
Max Temperature	105 °C [ 221 °F ]
Impedance Ω	100
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Straight to Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
