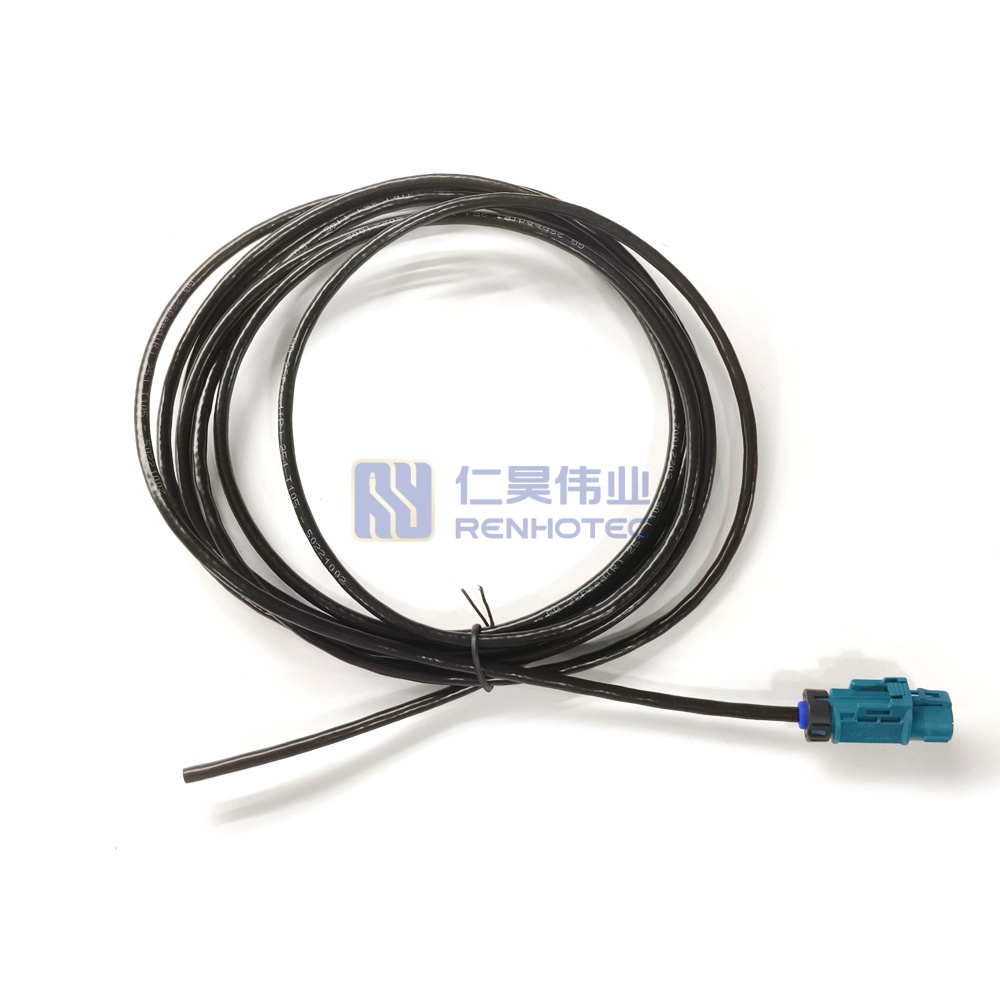

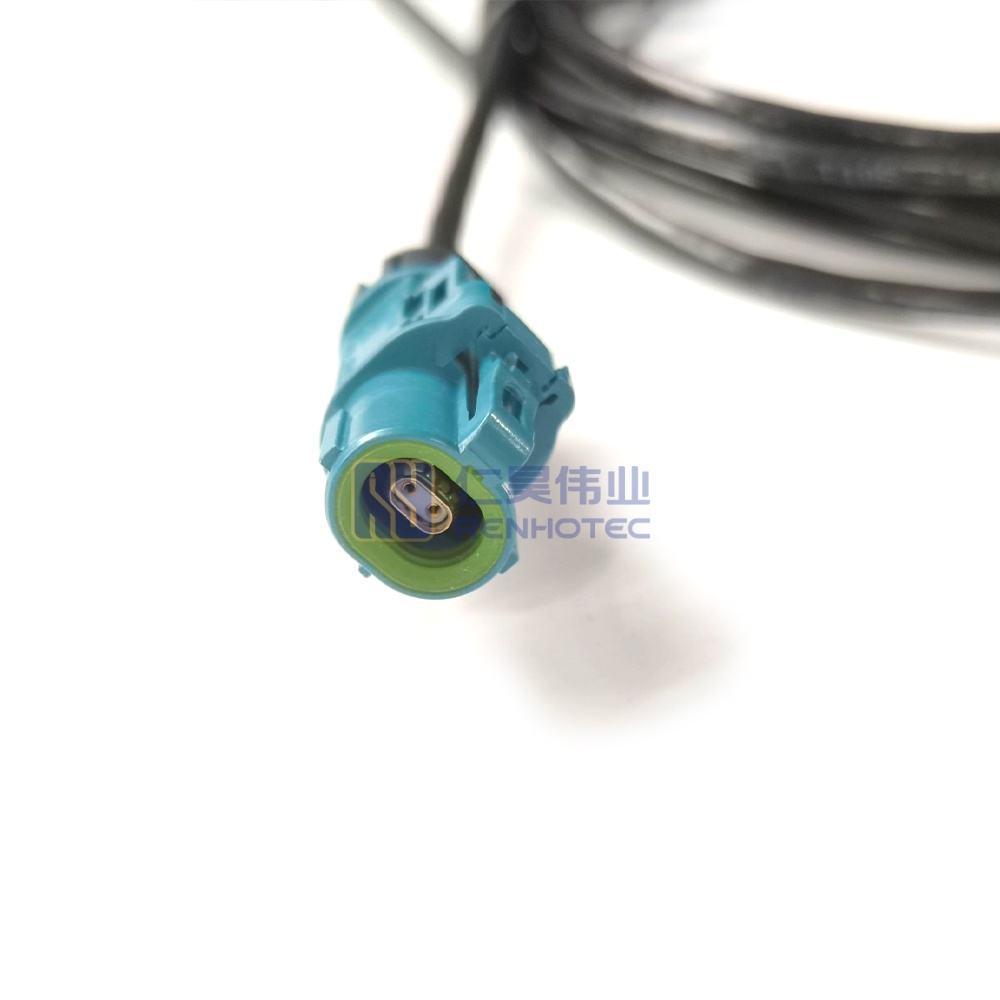

H-MTD E6K14A-1CAZ5 Automotive Ethernet Cable Assemblies, Single Ended Z Code Female Cable
- Primary and secondary lock
- High cable retention force
- High coding efficiency (different codings on plastichousings to avoid misconnections)
- No contact pin damage possible
- Optional Connector Position Assurance (CPA)
H-MTD Automotive Ethernet Connectors
H-MTD is a differential connector system for high-speed data transmission of up to 20 GHz or 56 Gbps, contained in a compact yet robust automotive grade housing.
Apart from ensuring high-bitrate data transmission and savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols.
The application field of the H-MTD is countless as it can be used with a variety of different cables including Shielded Twisted Pair, Unshielded Twisted Pair and new High-Performance cables. With H-MTD the customer can count on an interface that accommodates future vehicle networks, applications and protocols.
Application
H-MTD Pinnings
H-MTD Codings
Product Specification
1st Connector | E6K14A-1CAZ5-A |
||
---|---|---|---|
1st Contact Type | Female Pin |
||
1st Connector Orientation | Straight |
||
Plastic Housing | PA, PBT |
||
Contact Material | Copper |
||
Insulator Material | PA, LCP |
||
Impedance | 100 ohm |
||
1st Connector | E6K14A-1CAZ5-A |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |
Plastic Housing | PA, PBT |
Contact Material | Copper |
Insulator Material | PA, LCP |
Impedance | 100 ohm |
1st Connector | E6K14A-1CAZ5-A |
---|---|
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |
Plastic Housing | PA, PBT |
Contact Material | Copper |
Insulator Material | PA, LCP |
Impedance | 100 ohm |
