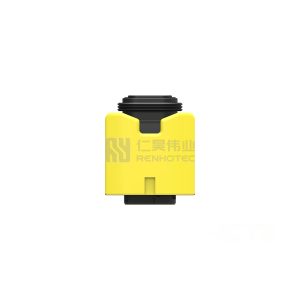

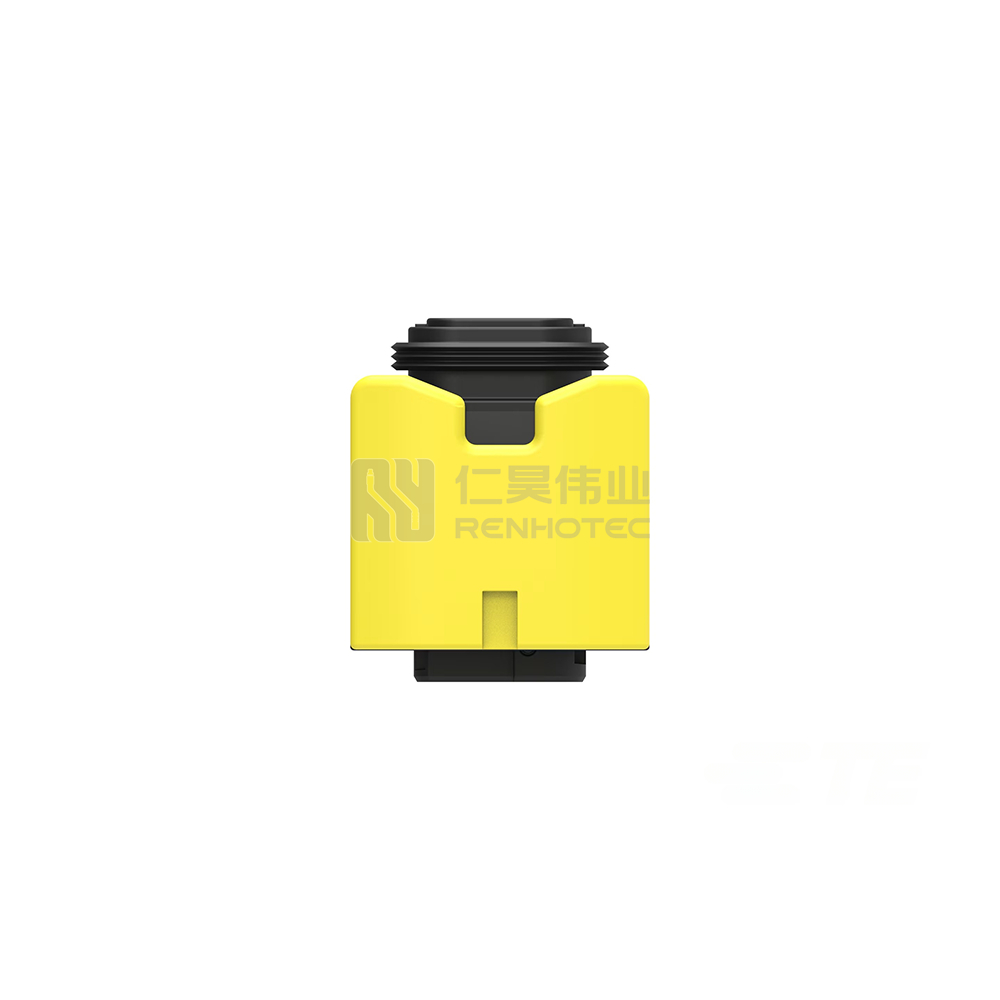

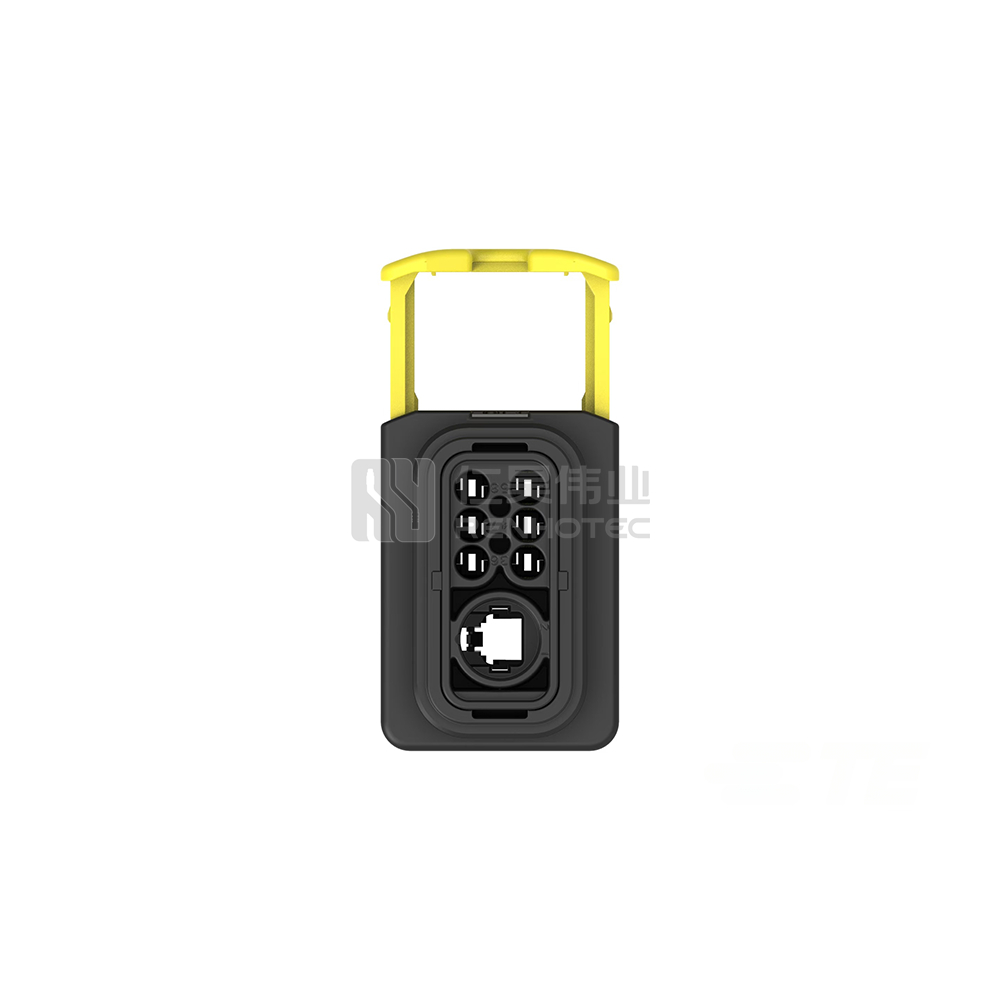

Wire-to-Wire, Sealable, 180° Cable Exit, 8 Position, A Code, Shielded, Heavy Duty Sealed Connector Series, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	Yes
Row Count	2
Position Count	8
Key Code	A
Center Contact	With
Contact Plating	Silver (Ag)
Center Contact Plating	Silver (Ag)
Max Current A	3 \| 20
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Operating Voltage VDC	60
Body Material	PBT GF
Outer Contact Plating	Nickel (Ni)
Pitch mm	1.8 \| 4
Pitch in	.071 \| .16
Primary Lock	Locking Lance \| On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Type	Straight to Angled \| Straight to Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Tab Width mm	.5 \| 1.6
Tab Width in	.02 \| .063
Tab Thickness mm	.4 \| .6
Tab Thickness in	.016 \| .024
Termination Point	Wire & Cable	Connector System	Wire-to-Wire
Sealable	Yes	Row Count	2
Position Count	8	Key Code	A
Center Contact	With	Contact Plating	Silver (Ag)
Center Contact Plating	Silver (Ag)	Max Current A	3 \| 20
Mating Retention	With	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black	Operating Voltage VDC	60
Body Material	PBT GF	Outer Contact Plating	Nickel (Ni)
Pitch mm	1.8 \| 4	Pitch in	.071 \| .16
Primary Lock	Locking Lance \| On the Terminal	Housing Type	Housing for Female Terminals
Cable Exit Type	Straight to Angled \| Straight to Straight	Ferrule	With
Cable Exit Angle	180°	Cable Termination	Crimp
Tab Width mm	.5 \| 1.6	Tab Width in	.02 \| .063
Tab Thickness mm	.4 \| .6	Tab Thickness in	.016 \| .024

Contact Type	Receptacle
Contact Type	Receptacle

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	Yes
Row Count	2
Position Count	8
Key Code	A
Contact Type	Receptacle
Center Contact	With
Contact Plating	Silver (Ag)
Center Contact Plating	Silver (Ag)
Max Current A	3 \| 20
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Operating Voltage VDC	60
Body Material	PBT GF
Outer Contact Plating	Nickel (Ni)
Pitch mm	1.8 \| 4
Pitch in	.071 \| .16
Primary Lock	Locking Lance \| On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Type	Straight to Angled \| Straight to Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Tab Width mm	.5 \| 1.6
Tab Width in	.02 \| .063
Tab Thickness mm	.4 \| .6
Tab Thickness in	.016 \| .024
