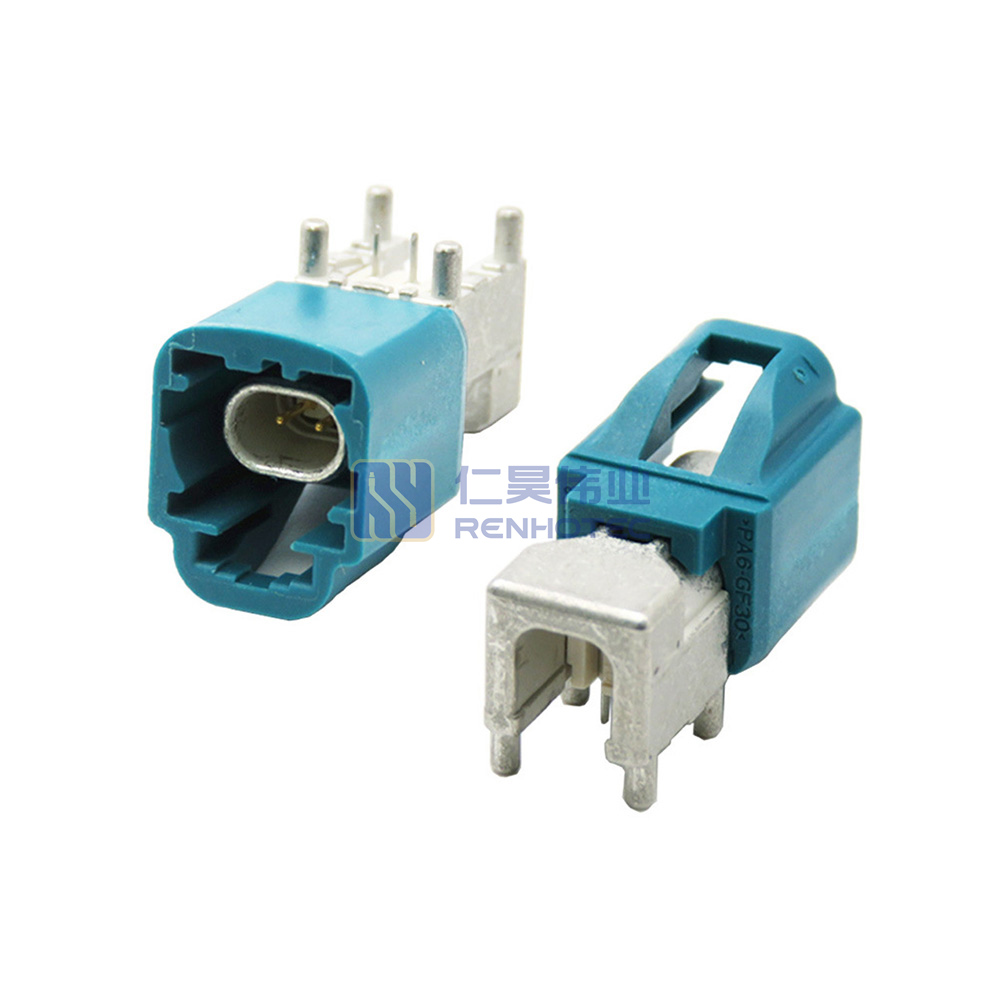

H-MTD Connector Right Angle Through Hole

  • Primary and secondary lock
  • High cable retention force
  • High coding efficiency (different codings on plastichousings to avoid misconnections)
  • No contact pin damage possible
  • Optional Connector Position Assurance (CPA)

H-MTD Automotive Ethernet Connectors

H-MTD is a differential connector system for high-speed data transmission of up to 20 GHz or 56 Gbps, contained in a compact yet robust automotive grade housing.
Apart from ensuring high-bitrate data transmission and savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols.
The application field of the H-MTD is countless as it can be used with a variety of different cables including Shielded Twisted Pair, Unshielded Twisted Pair and new High-Performance cables. With H-MTD the customer can count on an interface that accommodates future vehicle networks, applications and protocols.

Application

H-MTD Pinnings

H-MTD Codings

Product Specification

Connector Type

Plug

Contact Type

Male Pin

Number of Ports

1

Number of Positions

2 Pin

Orientation

Right Angle

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Operating Voltage

AC 250V

Insulation Resistance

7.5-10MΩ

Frequency Range

DC-20GHZ

Operating Temperature

-40°C~+100°C

Connector Type

Plug

Contact Type

Male Pin

Number of Ports

1

Number of Positions

2 Pin

Orientation

Right Angle

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Operating Voltage

AC 250V

Insulation Resistance

7.5-10MΩ

Frequency Range

DC-20GHZ

Operating Temperature

-40°C~+100°C

Operating Current

≥1A DC

Return Losses

20-30dB

Operating Current

≥1A DC

Return Losses

20-30dB

Connector Type

Plug

Contact Type

Male Pin

Number of Ports

1

Number of Positions

2 Pin

Orientation

Right Angle

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Operating Voltage

AC 250V

Insulation Resistance

7.5-10MΩ

Frequency Range

DC-20GHZ

Operating Current

≥1A DC

Return Losses

20-30dB

Operating Temperature

-40°C~+100°C
