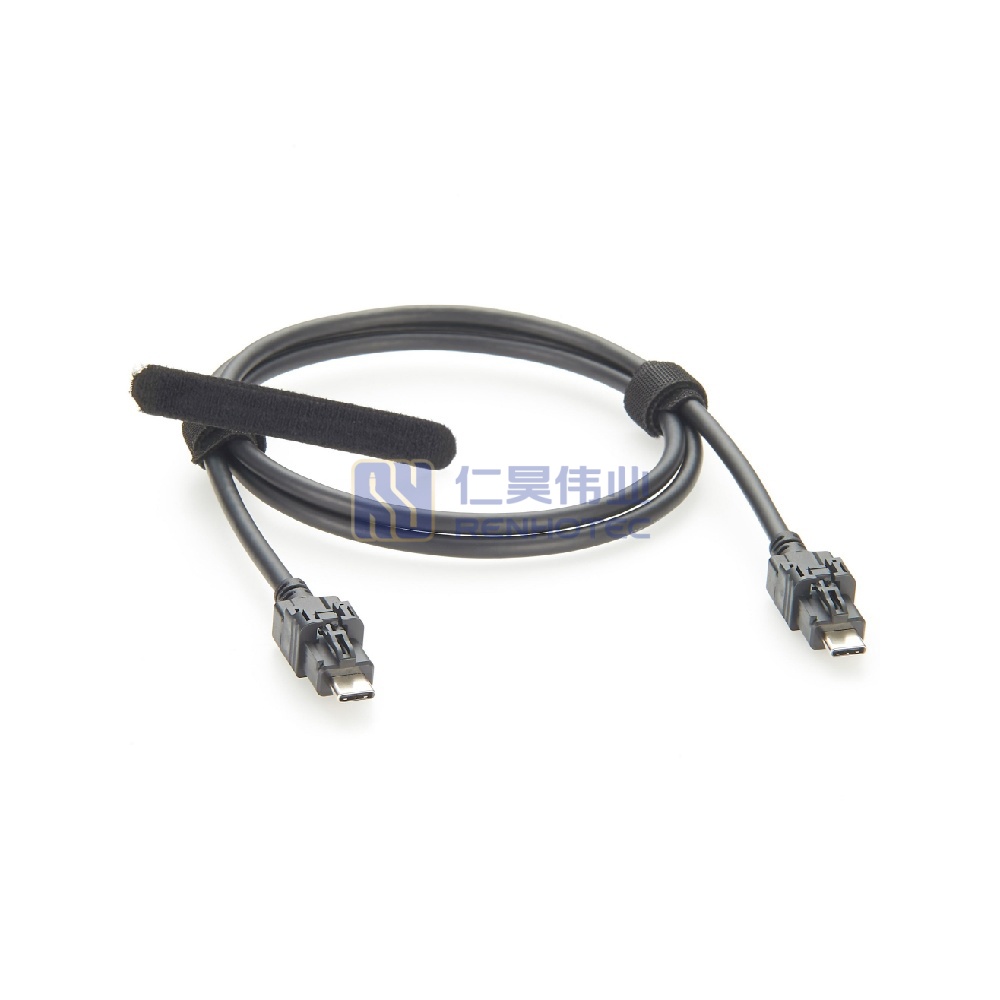

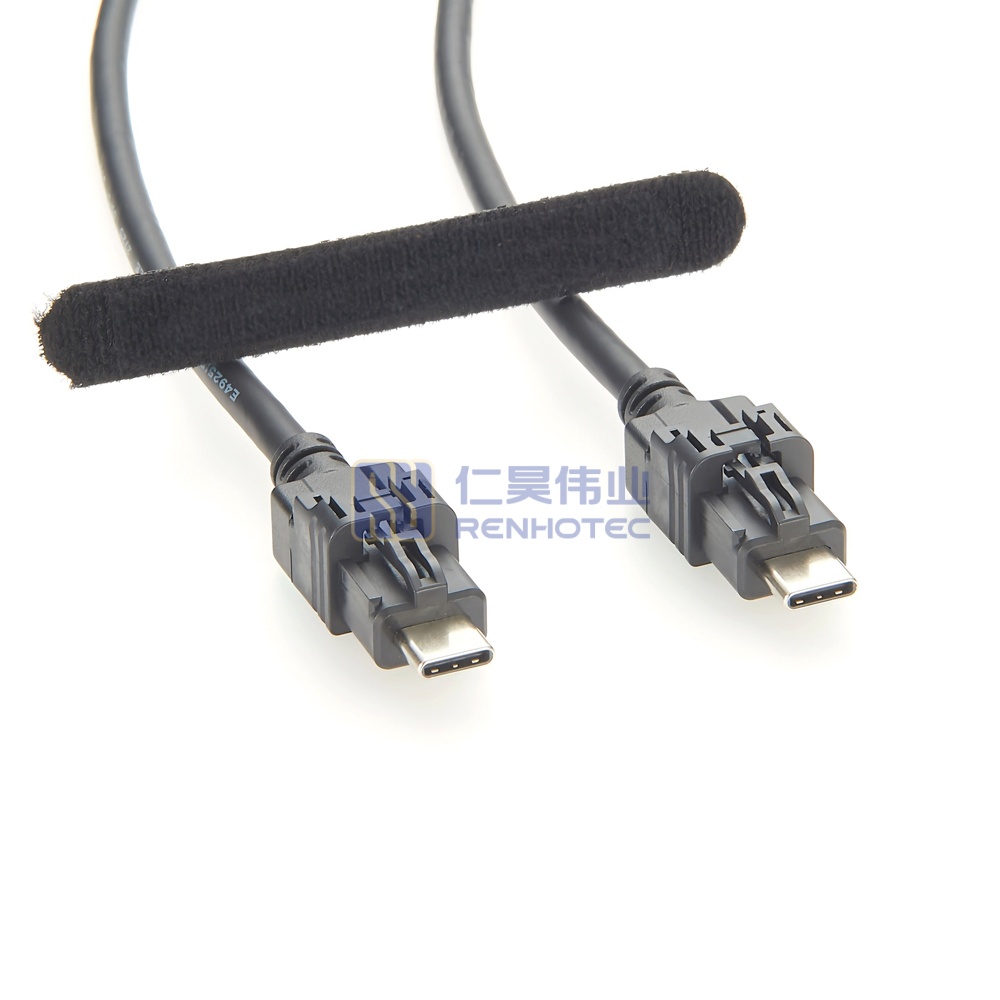

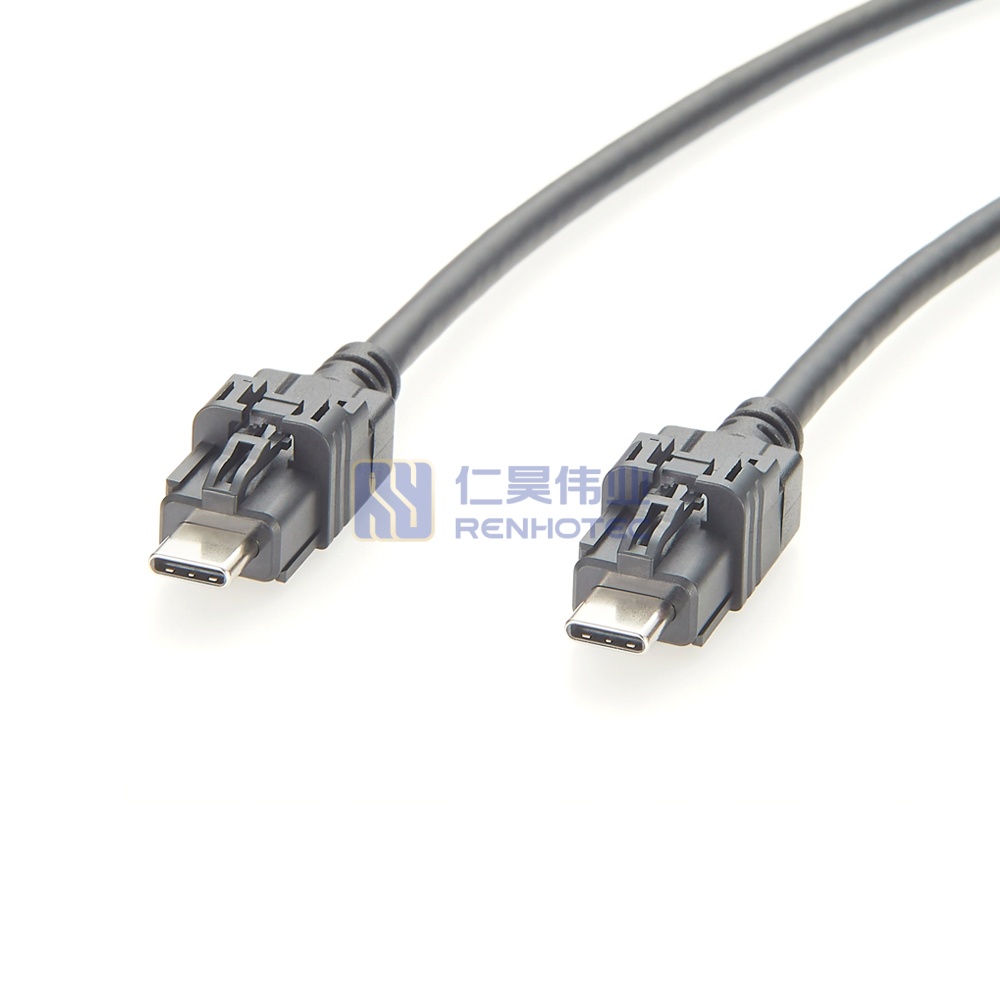

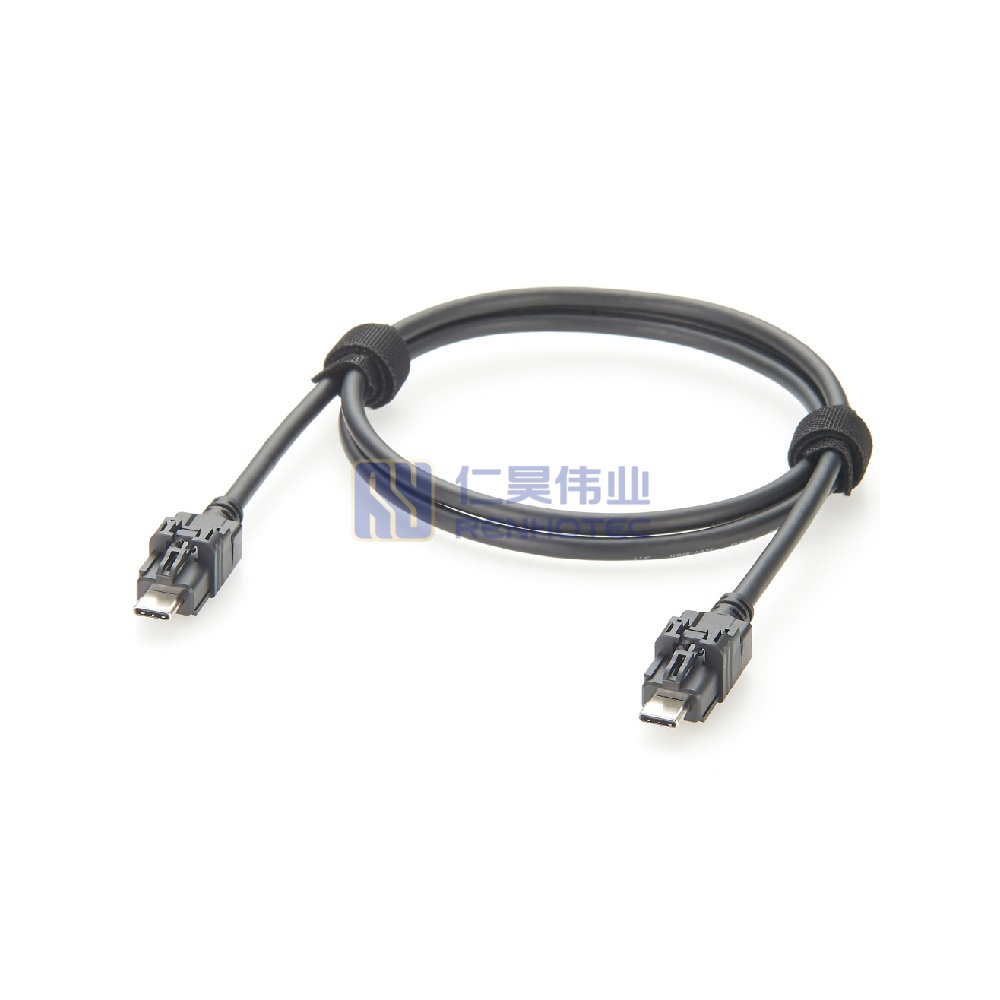

USB 3.1 Type-C Automotive Data Transfer Cable – RHT-605-20799
Product Specification
| 1st Connector | USB 3.1 Type-C |
||
|---|---|---|---|
| 2nd Connector | USB 3.1 Type-C |
||
| Cable Type | [30 AWG×1P+D+AL]×4 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + Braid |
||
| Impedance | 90 ohm |
||
| Frequency Range | DC ~ 5 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| 1st Connector | USB 3.1 Type-C |
2nd Connector | USB 3.1 Type-C |
| Cable Type | [30 AWG×1P+D+AL]×4 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + Braid |
Impedance | 90 ohm |
| Frequency Range | DC ~ 5 GHz |
Temperature Range | -40°C to +105°C |
| Length | Customized |
|---|---|
| Length | Customized |
| 1st Connector | USB 3.1 Type-C |
|---|---|
| 2nd Connector | USB 3.1 Type-C |
| Cable Type | [30 AWG×1P+D+AL]×4 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + Braid |
| Length | Customized |
| Impedance | 90 ohm |
| Frequency Range | DC ~ 5 GHz |
| Temperature Range | -40°C to +105°C |
Overview
This high-performance automotive-grade USB 3.1 Type-C cable assembly is engineered for reliable, high-speed data interconnects and power delivery in modern Vehicle E/E Architectures and In-Vehicle Infotainment (IVI) systems. Designed to meet strict USCAR reliability standards, it provides seamless connectivity between central head units, display modules, and vehicle USB access ports.
Key Features
-
High-Speed Data Performance: Supports USB 3.1 Gen 2 SuperSpeed+ bandwidth up to 10 Gbps, ensuring fast firmware updates and zero-latency media streaming.
-
Automotive-Grade Durability: Built with high-temperature resistance (-40°C to +105°C) and vibration-proof strain relief to withstand long-term operating conditions.
-
Dual-Layer EMC Shielding: Features 100% aluminum foil wrap plus high-coverage tinned copper braided mesh to eliminate EMI/RFI noise interference in vehicle CAN/LIN environments.
-
Universal Type-C Integration: Features robust overmolded connector housings engineered for precise panel integration and repeated insertion cycles.
Applications
-
In-Vehicle Infotainment (IVI) & Smart Cockpit Head Units
-
Center Console & Armrest USB Extension Modules
-
Vehicle Firmware Flashing & Diagnostic Interfaces
