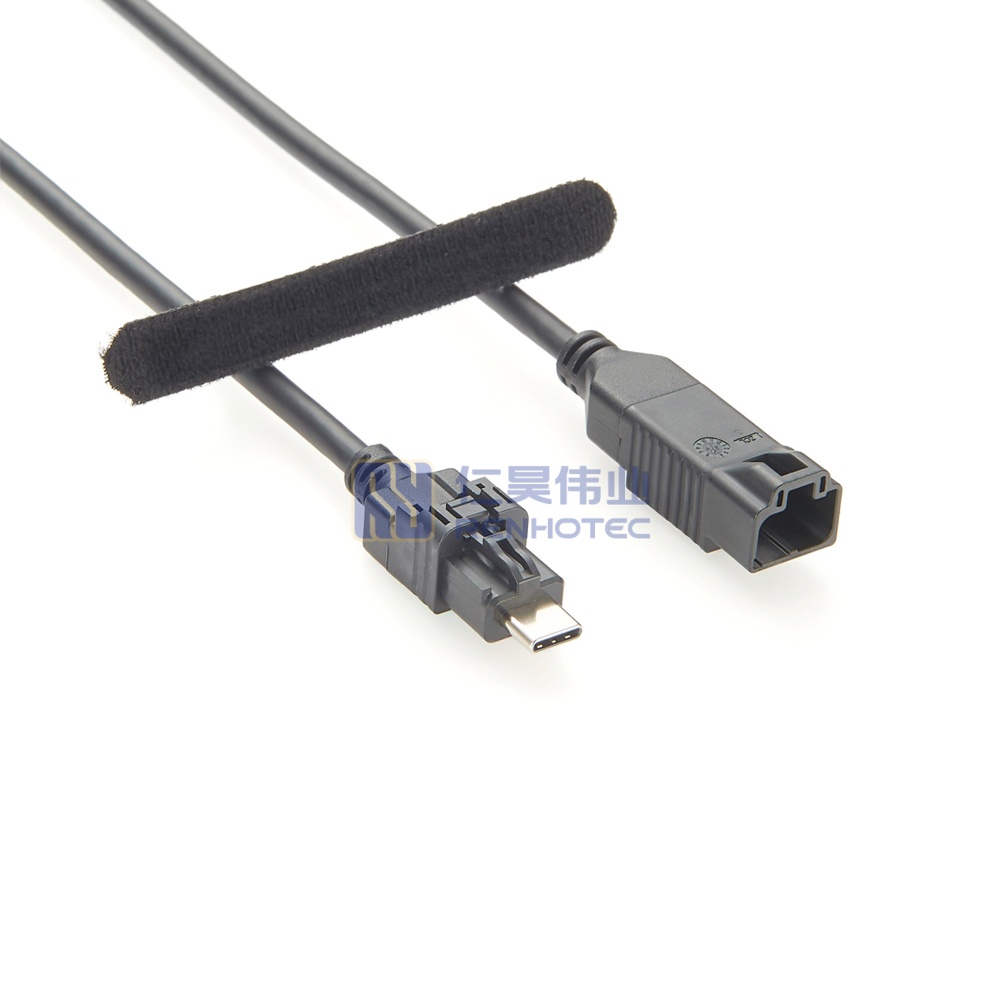

Automotive-Grade USB 3.1 Type-C Extension Cable - RHT-605-20800 - Image 2
Automotive-Grade USB 3.1 Type-C Extension Cable - RHT-605-20800 - Image 3

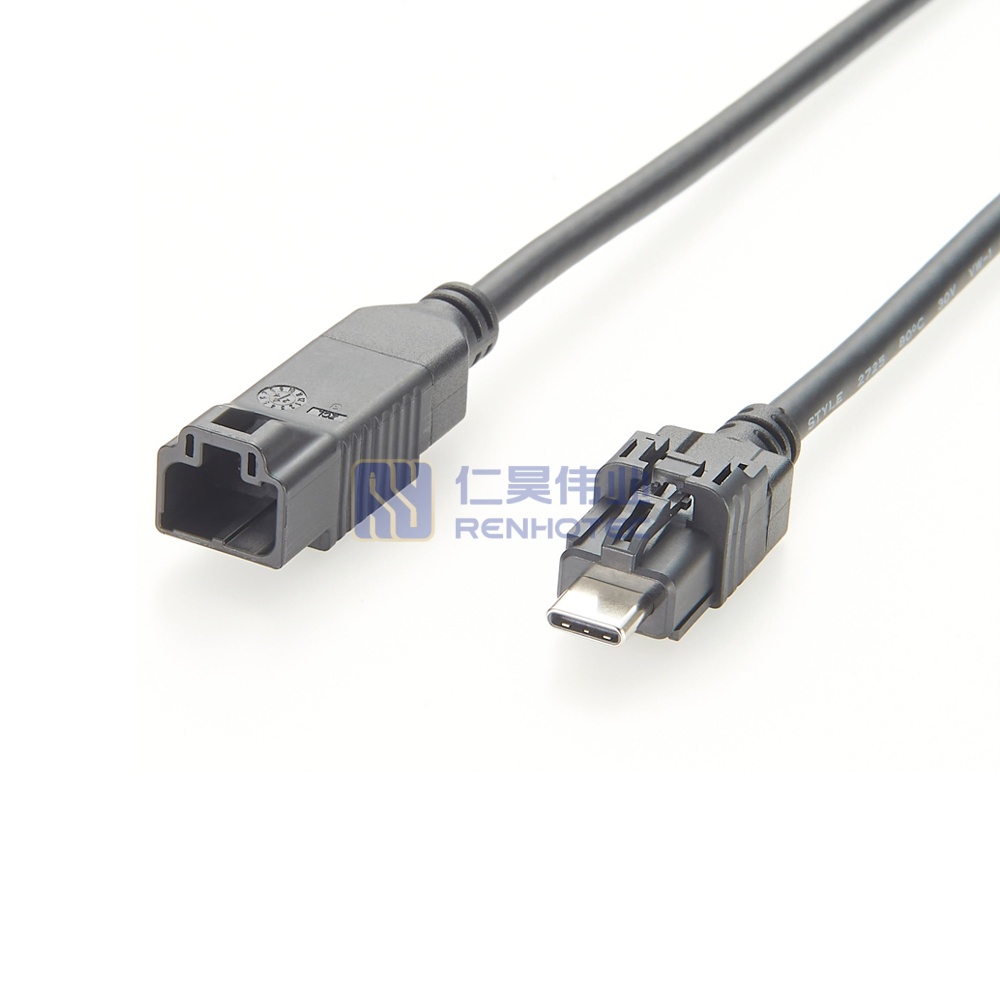

Automotive-Grade USB 3.1 Type-C Extension Cable - RHT-605-20800 - Image 4

Automotive-Grade USB 3.1 Type-C Extension Cable – RHT-605-20800

SKU RHT-605-20800 Category Powered USB Cable Assemblies

Product Files

Open drawing and specification files.

Drawing PDF Catalog PDF RHT-605-20800 Powered USB Cable Assemblies Specs & Datasheet PDF

Product Specification

1st Connector

USB 3.1 Type-C
2nd Connector

USB 3.1 Type-C
1st Contact Type

Male Pin
2nd Contact Type

Female Pin
Cable Type

[30 AWG×1P+D+AL]×4 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + Braid
Impedance

90 ohm
Frequency Range

DC ~ 5 GHz
Temperature Range

-40°C to +105°C
1st Connector

USB 3.1 Type-C

 2nd Connector

USB 3.1 Type-C
1st Contact Type

Male Pin

 2nd Contact Type

Female Pin
Cable Type

[30 AWG×1P+D+AL]×4 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + Braid

 Impedance

90 ohm
Frequency Range

DC ~ 5 GHz

 Temperature Range

-40°C to +105°C

Length

Customized
Length

Customized
1st Connector

USB 3.1 Type-C
2nd Connector

USB 3.1 Type-C
1st Contact Type

Male Pin
2nd Contact Type

Female Pin
Cable Type

[30 AWG×1P+D+AL]×4 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + Braid
Length

Customized
Impedance

90 ohm
Frequency Range

DC ~ 5 GHz
Temperature Range

-40°C to +105°C
