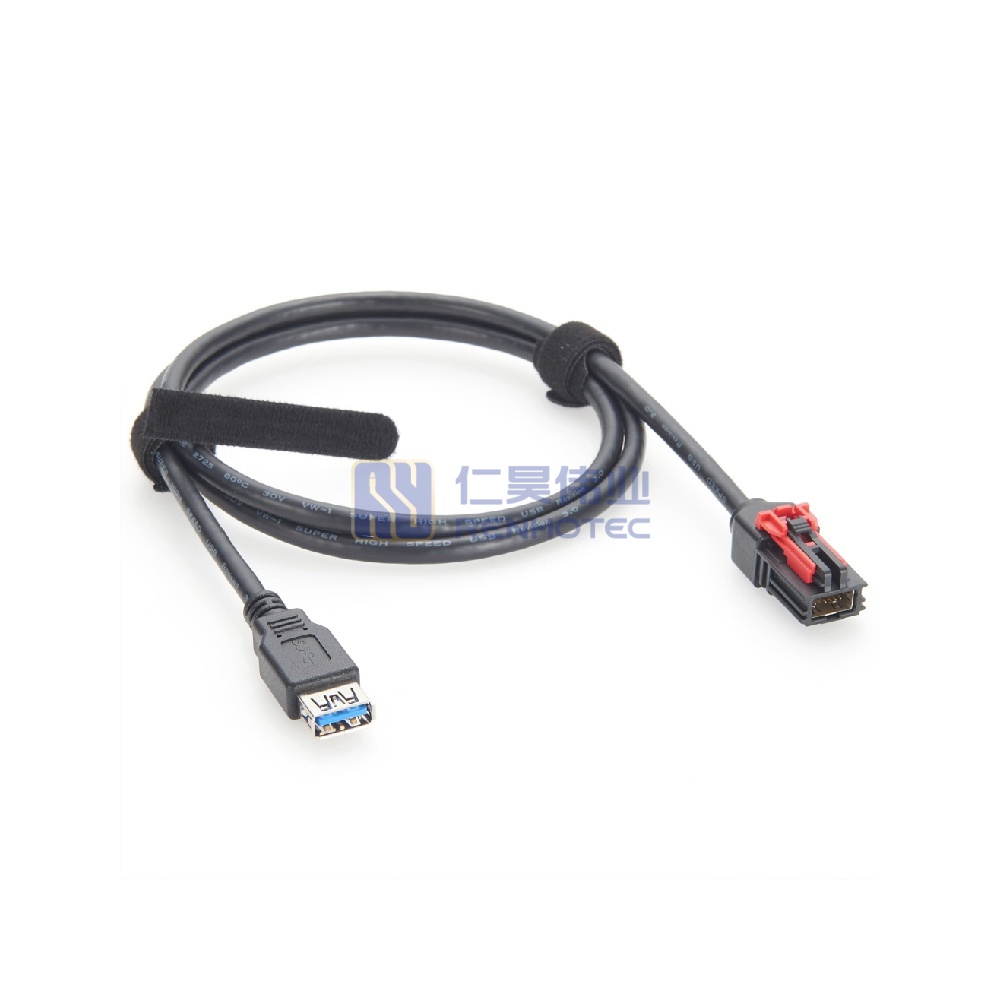

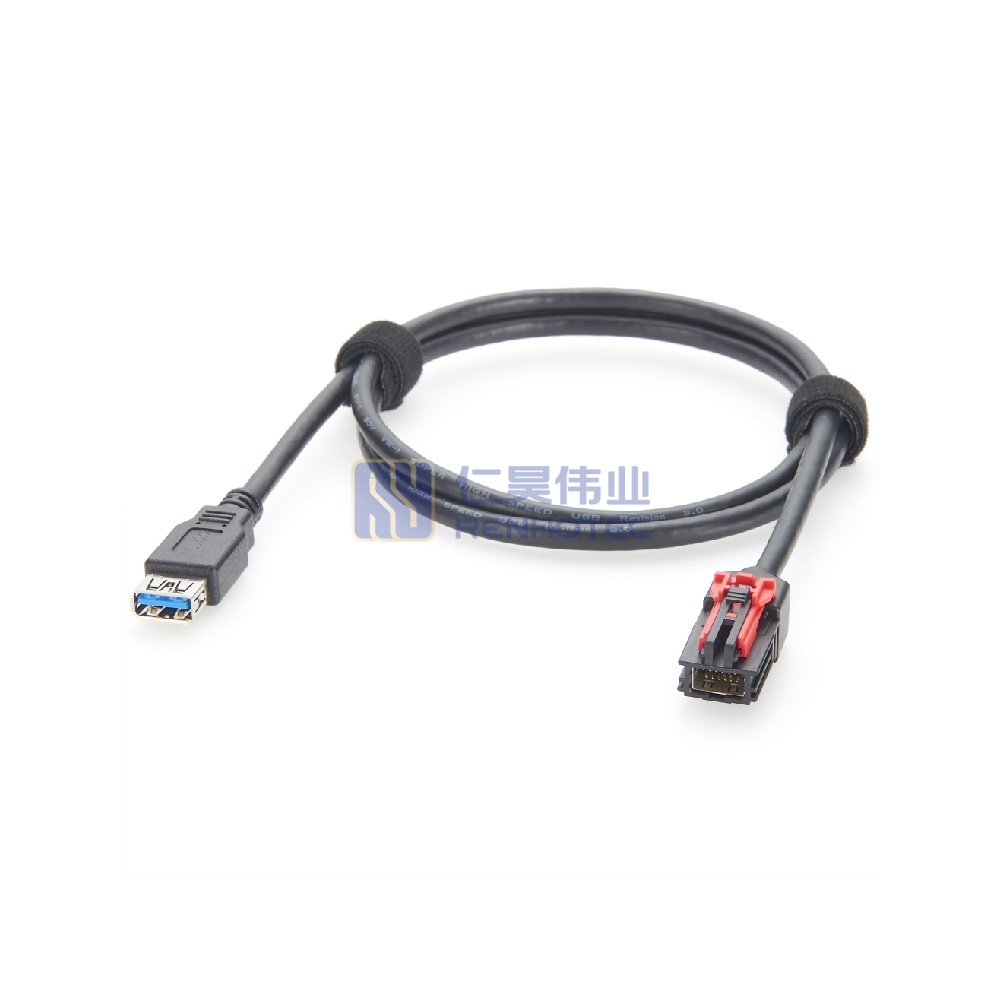

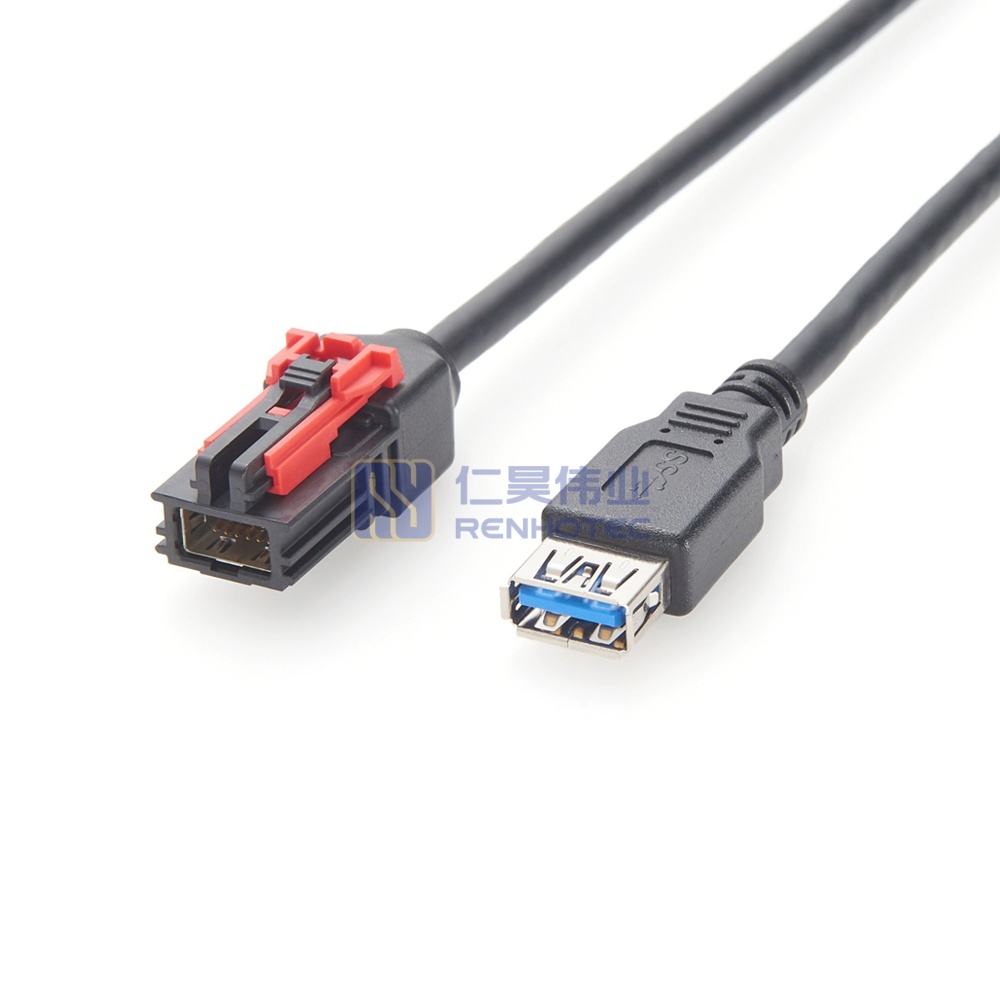

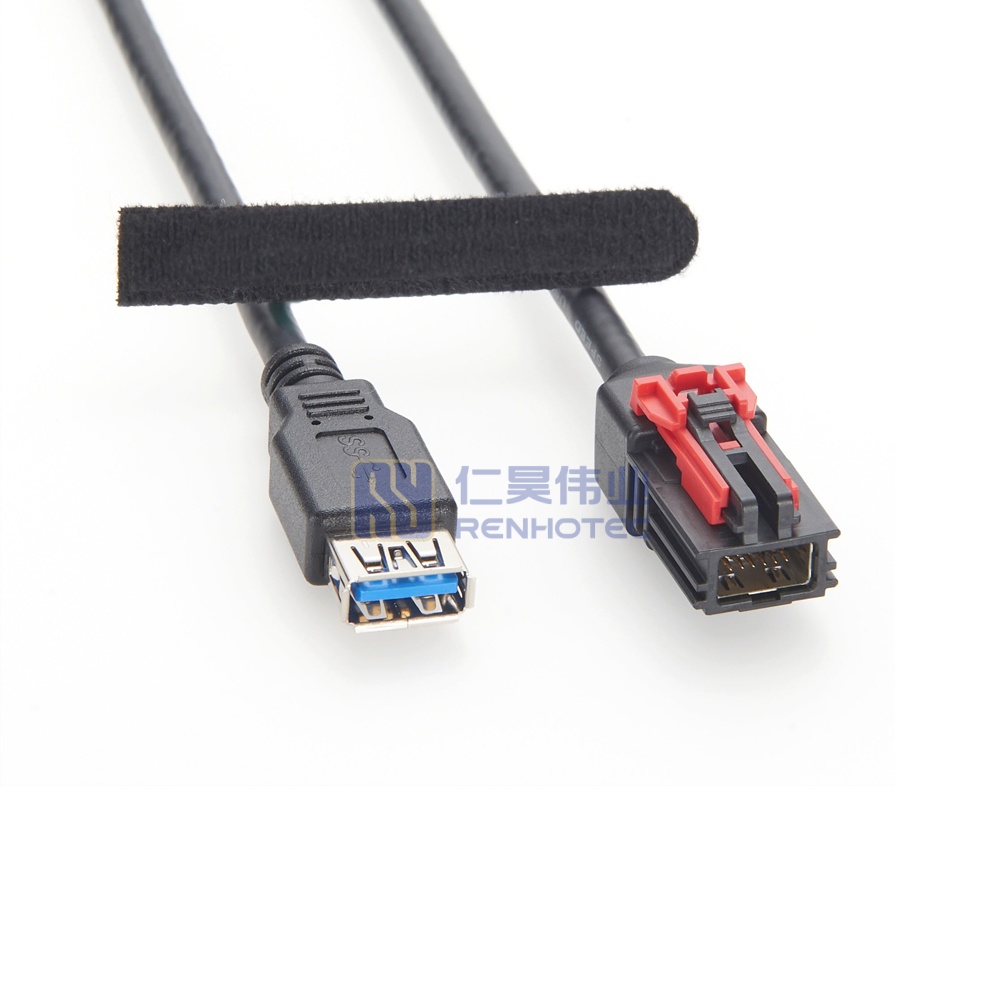

HSAutoLink 12 Pin Male to USB 3.0 Adapter Cable – RHT-605-20867
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20867 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20867 |
| Molex Part No. | 111146-3080 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Connector | 111146-3080 |
||
|---|---|---|---|
| 2nd Connector | USB 3.0 |
||
| 1st Contact Type | Male Pin |
||
| 2nd Contact Type | Female Pin |
||
| Impedance | 90 ohm |
||
| Frequency Range | DC ~ 0.48 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| Cable Type | 2-Pair STP + 1-Pair UT + 4C Power + 1C Ground + Braid Shield |
||
| 1st Connector | 111146-3080 |
2nd Connector | USB 3.0 |
| 1st Contact Type | Male Pin |
2nd Contact Type | Female Pin |
| Impedance | 90 ohm |
Frequency Range | DC ~ 0.48 GHz |
| Temperature Range | -40°C to +105°C |
Cable Type | 2-Pair STP + 1-Pair UT + 4C Power + 1C Ground + Braid Shield |
| Length | Customized |
|---|---|
| Length | Customized |
| 1st Connector | 111146-3080 |
|---|---|
| 2nd Connector | USB 3.0 |
| 1st Contact Type | Male Pin |
| 2nd Contact Type | Female Pin |
| Length | Customized |
| Impedance | 90 ohm |
| Frequency Range | DC ~ 0.48 GHz |
| Temperature Range | -40°C to +105°C |
| Cable Type | 2-Pair STP + 1-Pair UT + 4C Power + 1C Ground + Braid Shield |
Overview
Engineered for multi-channel automotive data transmission, this HSAutoLink 12 Pin cable assembly provides a high-reliability link for high-resolution video streams, LVDS differential signals, and high-speed USB data. It acts as a bridge between multi-pin vehicle domain controllers, ADAS modules, and standard USB 3.0 / Type-C interfaces.
Key Features & Benefits
- Multi-Pin LVDS & High-Speed Data Routing: Multi-terminal HSAutoLink 12 Pin structure handles differential pairs for simultaneous video feed and high-speed USB data routing.
- Industrial & Automotive EMI Protection: Individual twisted pair foil wrapping combined with full outer braided shielding guarantees signal integrity against vehicle motor noise and RF interference.
- USCAR-Compliant Keying & Locking: Integrated color-coded mechanical keying prevents cross-mating while heavy-duty locking tabs resist severe mechanical shock and vibration.
- Precision Terminal Alignment: High-reliability 0.50mm terminal pin contact design ensures low contact resistance and long service life.
Applications
- ADAS Camera Modules & Surround View Monitor Systems
- High-Resolution Instrument Cluster & Co-Driver Entertainment Screens
- Multi-Channel Video & USB Data Routing in Smart Cockpits
