HSAutoLink 12 Pin to USB 3.1 Type-C LVDS Cable Assembly- RHT-605-20866
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20866 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20866 |
| Molex Part No. | 111146-3080 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Connector | 111146-3080 |
||
|---|---|---|---|
| 2nd Connector | USB 3.1 Type-C |
||
| 2nd Contact Type | Male Pin |
||
| Cable Type | [30 AWG×1P+D+AL/My]×2 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + TC Braid |
||
| Impedance | 90 ohm |
||
| Frequency Range | DC ~ 0.48 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| Insulation Resistance | 100 MΩ Min |
||
| 1st Connector | 111146-3080 |
2nd Connector | USB 3.1 Type-C |
| 2nd Contact Type | Male Pin |
Cable Type | [30 AWG×1P+D+AL/My]×2 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + TC Braid |
| Impedance | 90 ohm |
Frequency Range | DC ~ 0.48 GHz |
| Temperature Range | -40°C to +105°C |
Insulation Resistance | 100 MΩ Min |
| Length | Customized |
|---|---|
| Length | Customized |
| 1st Connector | 111146-3080 |
|---|---|
| 2nd Connector | USB 3.1 Type-C |
| 2nd Contact Type | Male Pin |
| Cable Type | [30 AWG×1P+D+AL/My]×2 + 30 AWG×1P + 30 AWG×4C + 20 AWG×1C + TC Braid |
| Length | Customized |
| Impedance | 90 ohm |
| Frequency Range | DC ~ 0.48 GHz |
| Temperature Range | -40°C to +105°C |
| Insulation Resistance | 100 MΩ Min |

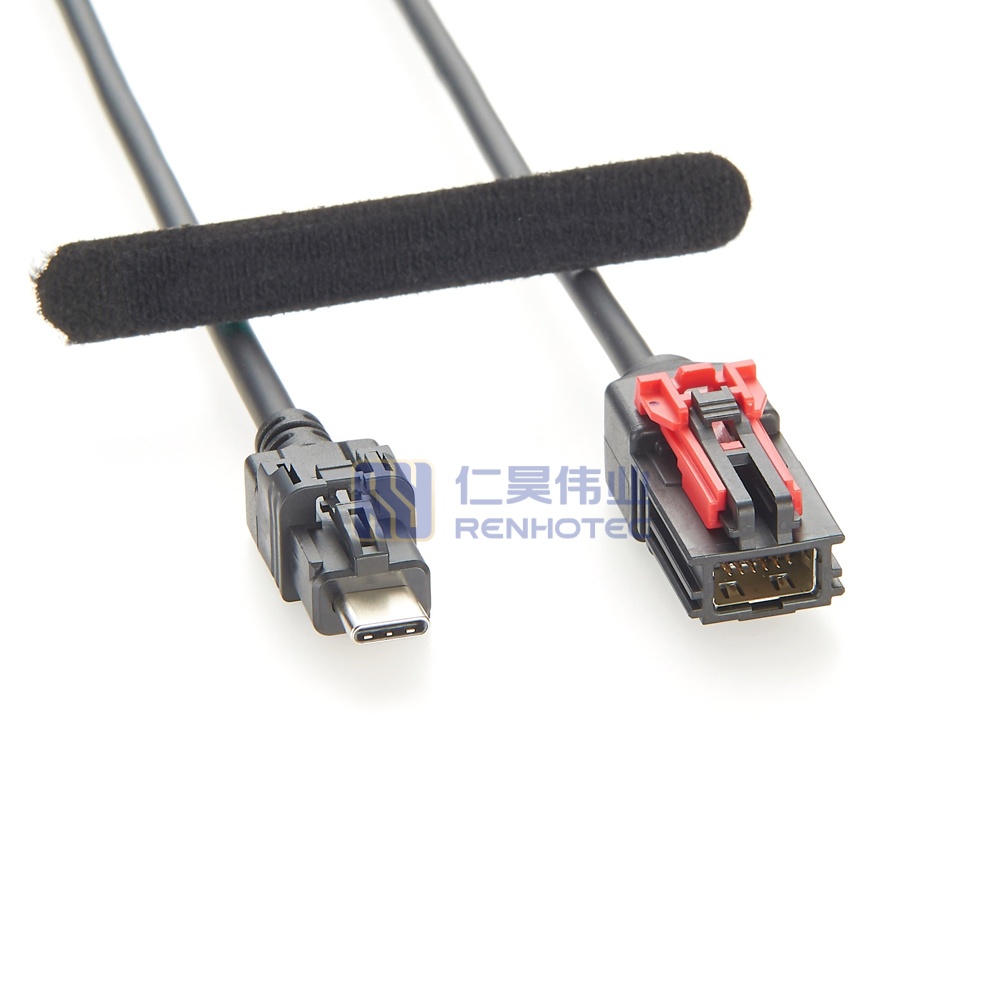

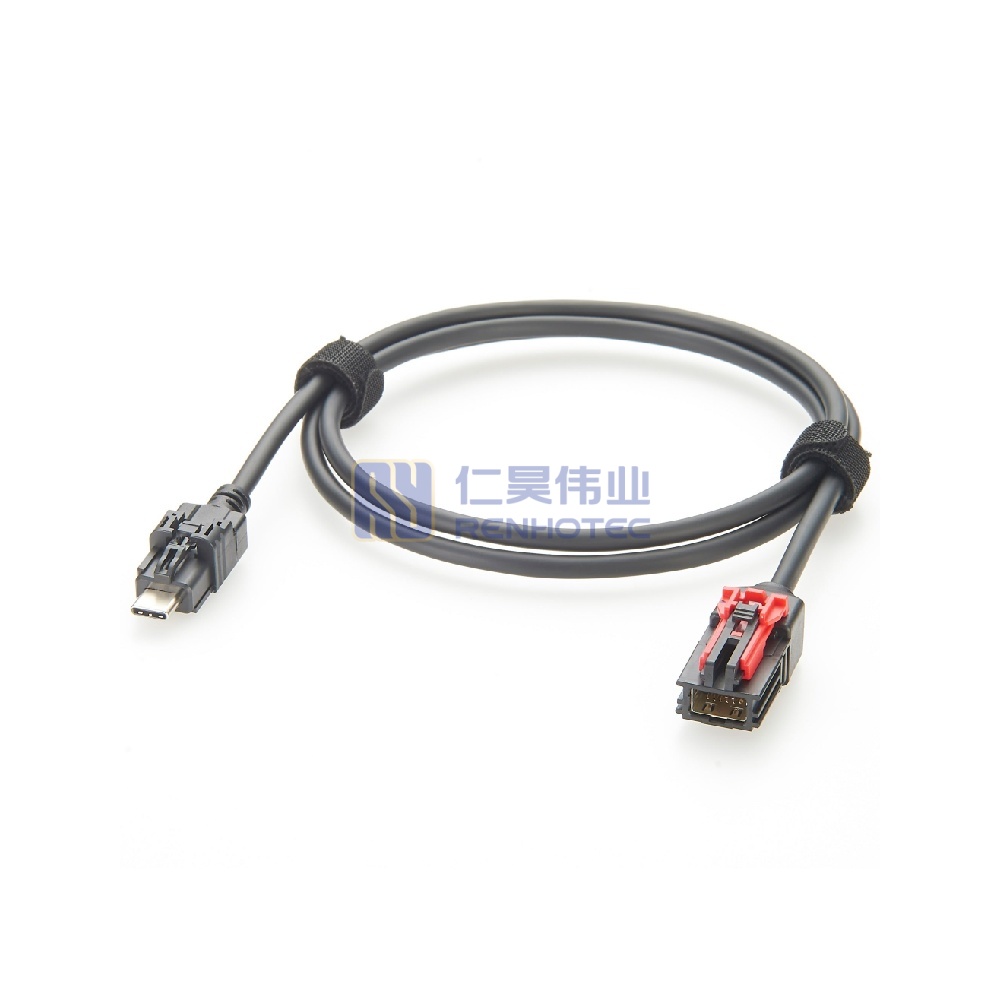

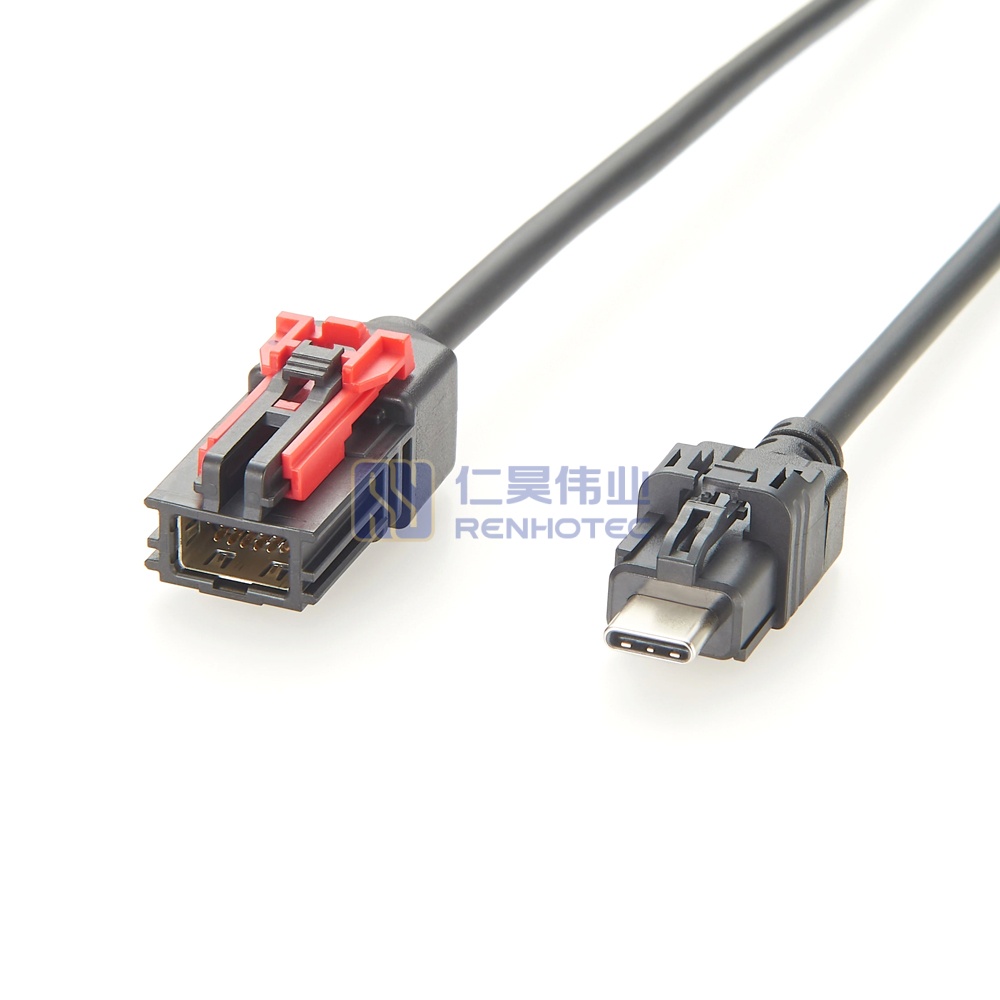

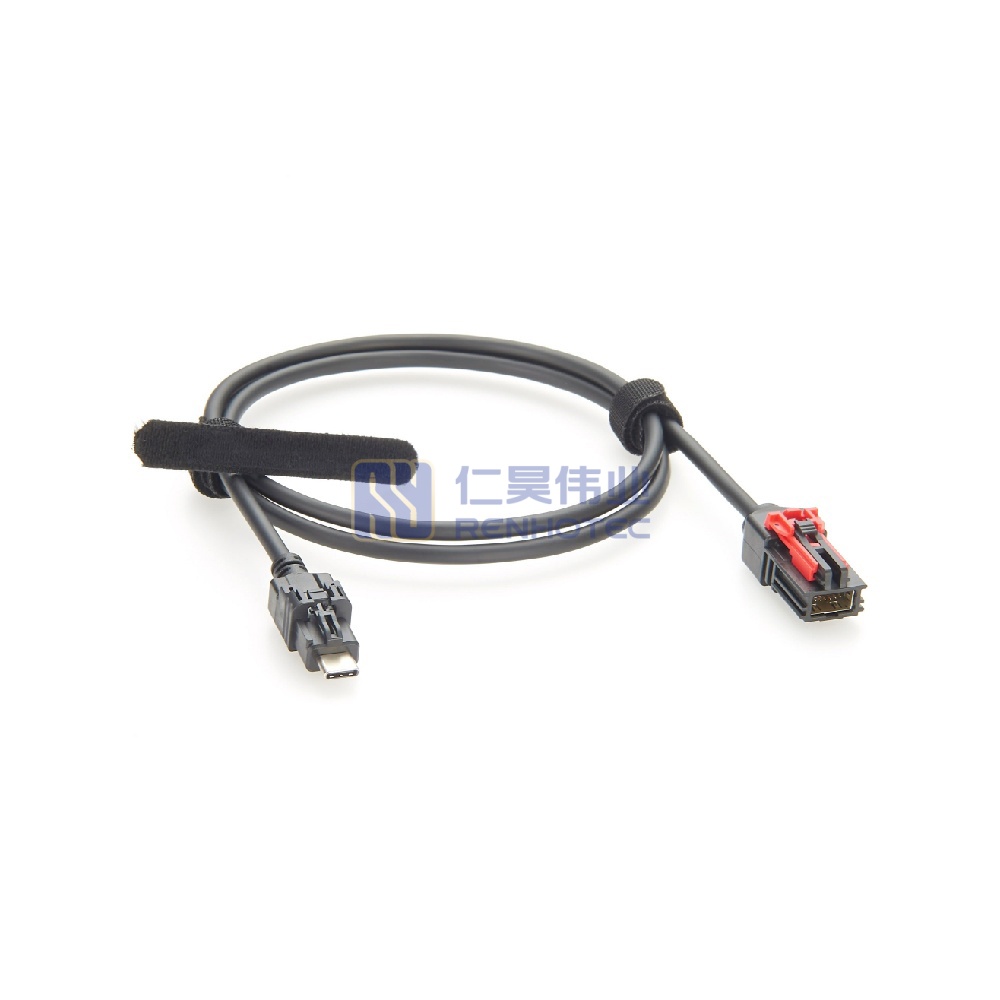

Designed for interconnecting compatible automotive electronic devices through a 12-pin HSAutoLink interface and a USB Type-C connector. It provides a configurable cable solution for applications involving camera systems, automotive electronics testing, and data acquisition.
Featuring a Molex 111146-3080-compatible 12-pin connector and a USB 3.1 Type-C male connector, this assembly can be customized to meet specific interface, cable length, and wiring requirements. Connector compatibility, pin assignment, and signal transmission performance should be verified against the target device specifications before ordering.
Key Features
- Dual-Interface Configuration: 12-pin HSAutoLink connector to USB Type-C male connector.
- Application-Specific Wiring: Cable pinout and conductor configuration can be specified according to the approved interface design.
- Custom Cable Lengths: Cable length and assembly configuration can be tailored to project requirements.
Typical Applications
- Automotive camera and video acquisition systems
- ADAS development and validation equipment
- Automotive electronics testing and debugging
- In-vehicle infotainment and display systems
- Engineering test benches and data acquisition setups
Customization and OEM/ODM Support
Renhotec provides cable assembly solutions tailored to customer-defined connector interfaces, wiring configurations, and mechanical requirements. For projects involving HSAutoLink and USB Type-C interfaces, customers can submit their drawings, pin assignments, cable length requirements, and target application for technical review.
Our team can evaluate the proposed configuration and confirm the available manufacturing and testing options before production.
Ordering Information
To help us evaluate your requirements, please provide:
- Required cable length and order quantity
- Pinout and signal assignment
- Required electrical performance and testing criteria
- Target application and any relevant environmental requirements
