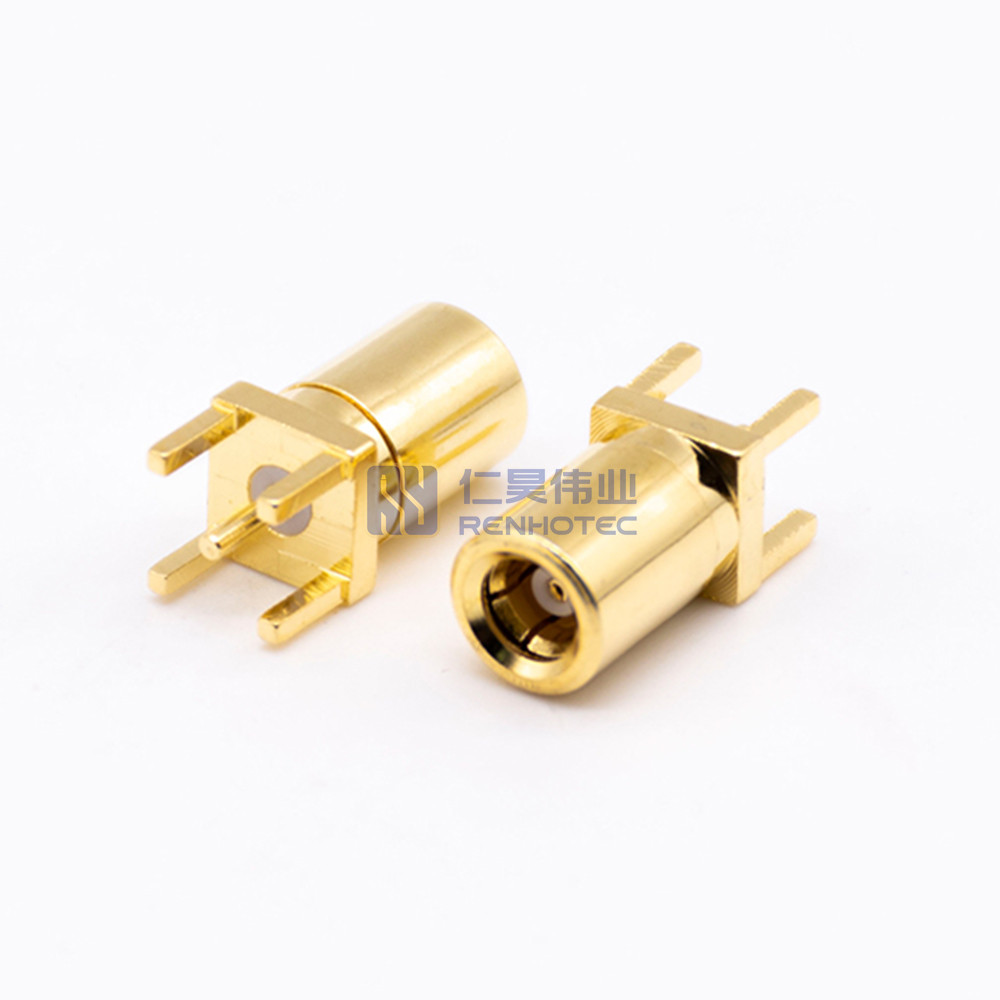

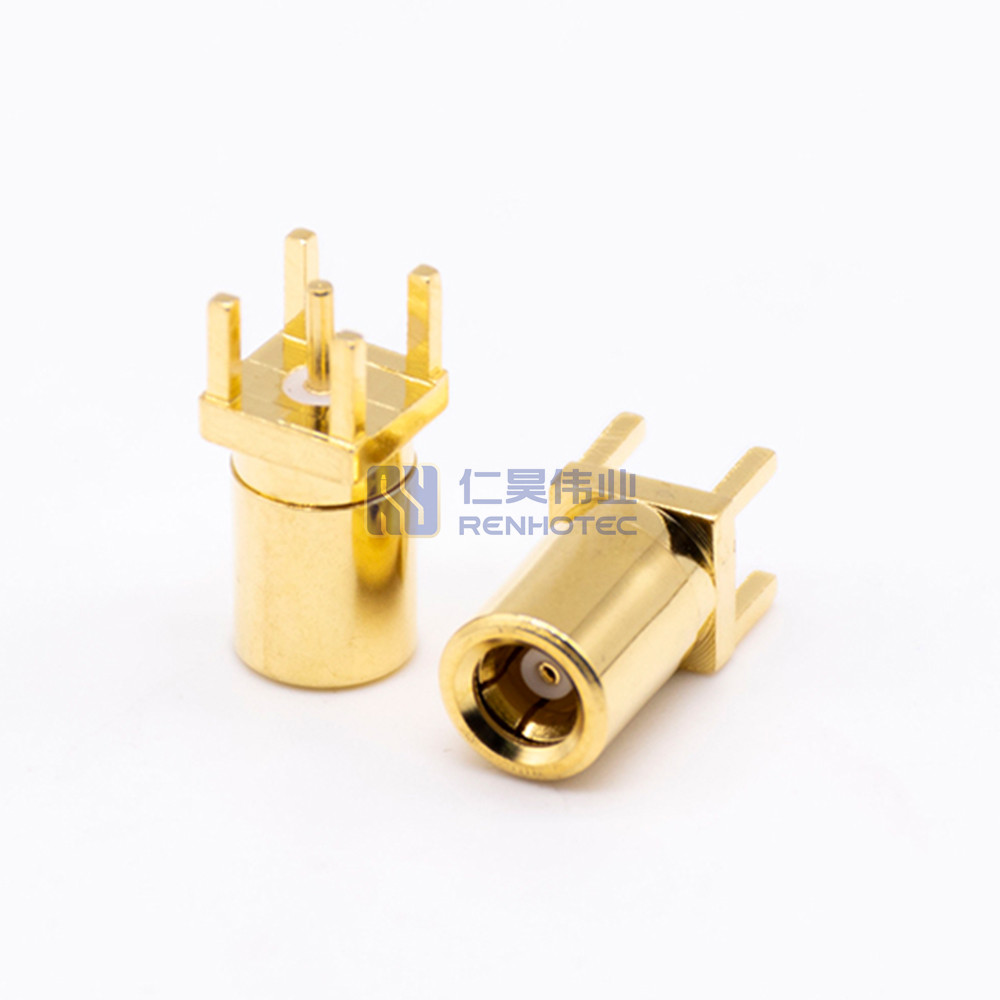

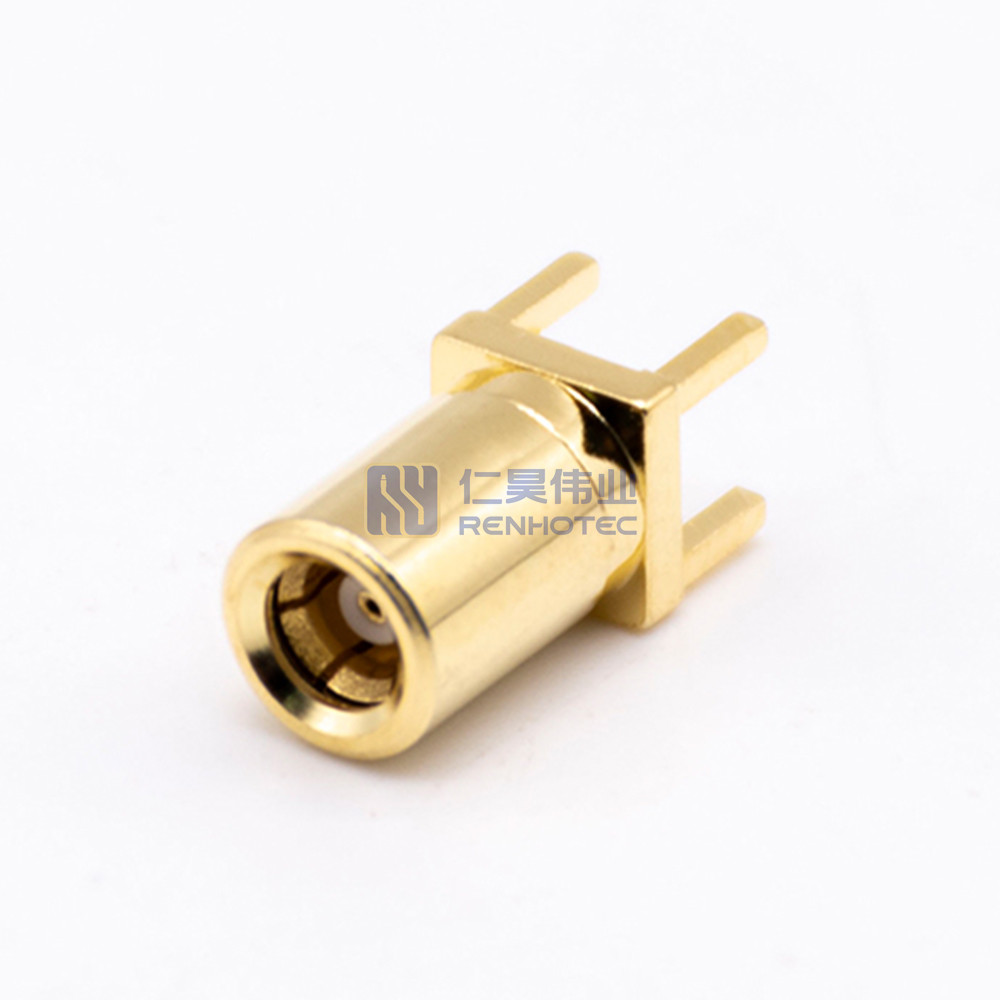

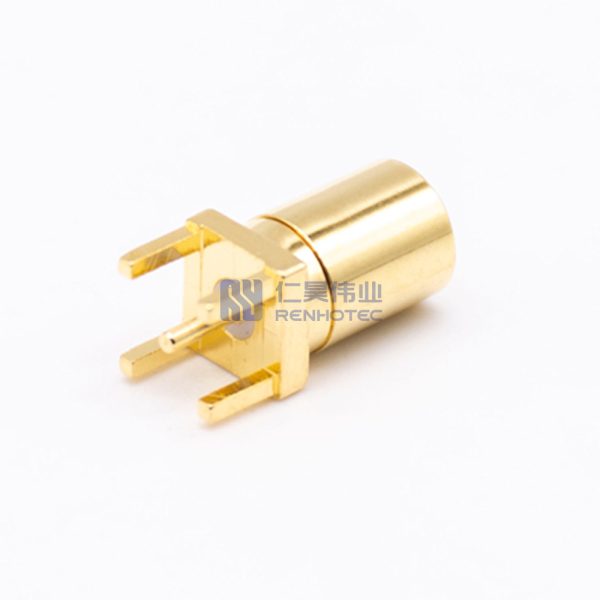

SMB Connector Straight Male Female Pin Panel Mount Through Hole 50 Ohm – RHT-626-0228

  • Various plating options in nickel, gold, and tin-lead
  • Quick connect/disconnect snap-on mating reduces installation time
  • SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.

SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.

Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.

Interface

Application Scenarios



Product Specification

RF Series

SMB Type

Connector Type

Plug

Orientation

Straight

Contact Type

Female Pin

Contact Termination Style

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Cable Type

J1.5

Fastening Type

Snap On

Number of Ports

1

Impedance

50 ohm

Frequency - Max

4GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

≥ 1000 MΩ

Center Contact Resistance

6 MΩ Max

Outer Contact Resistance

1 MΩ Max

Mating Durability

≥ 500 Cycles

Temperature Range

-65℃ to +165℃
