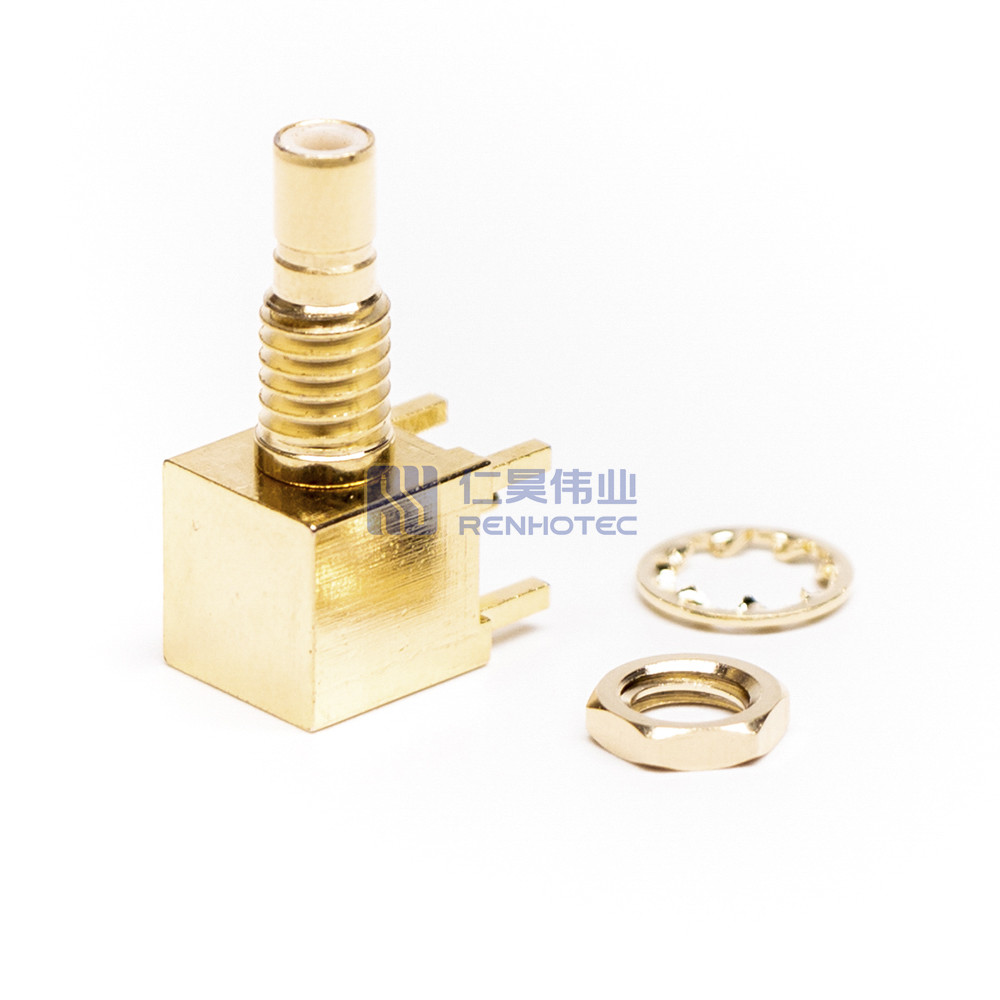

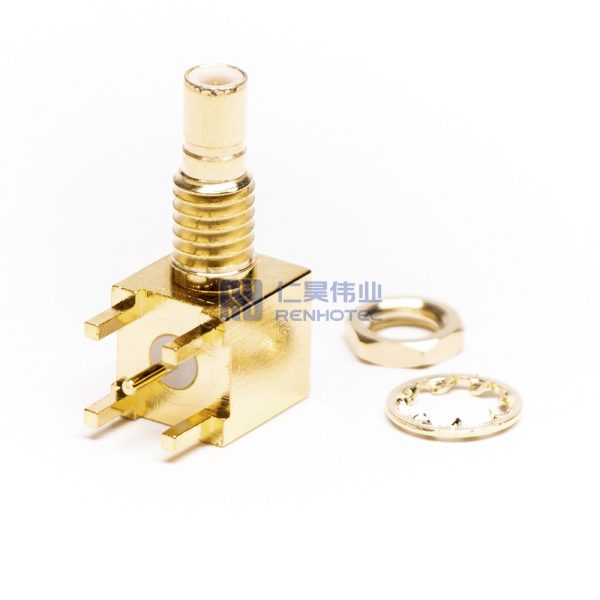

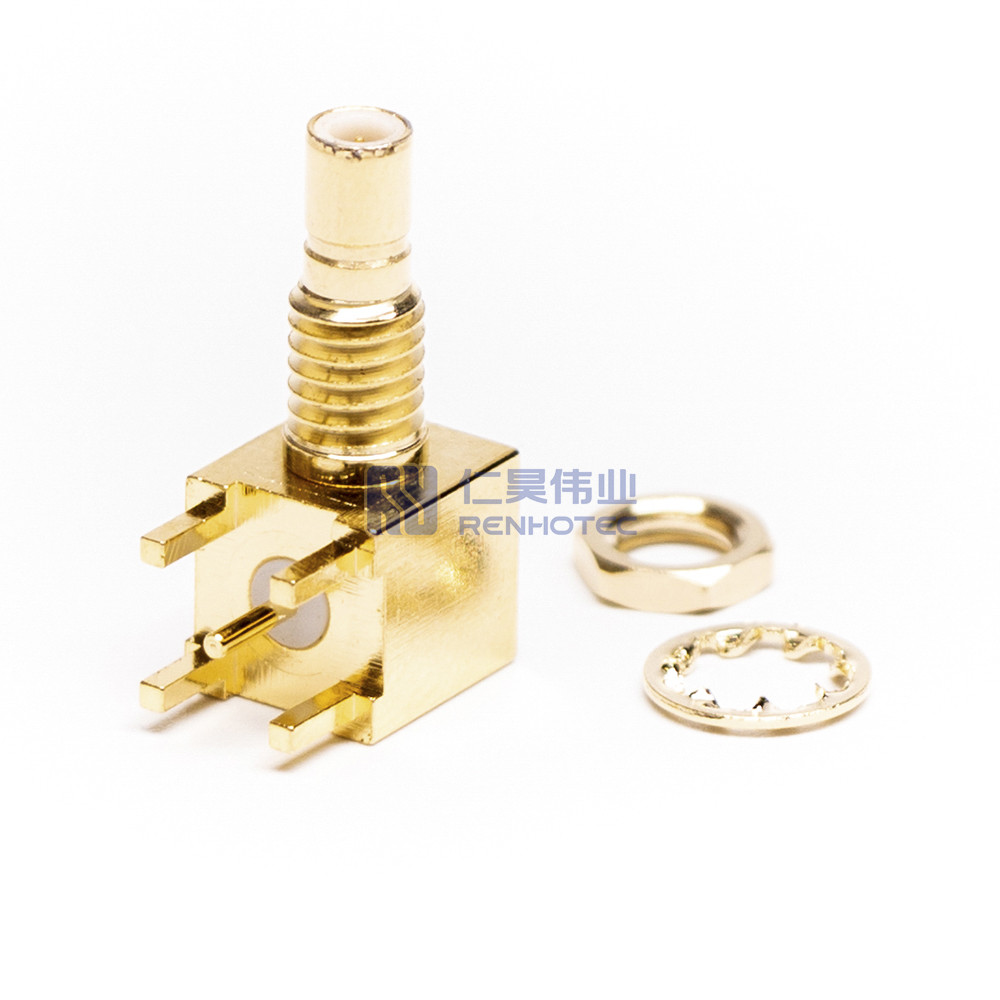

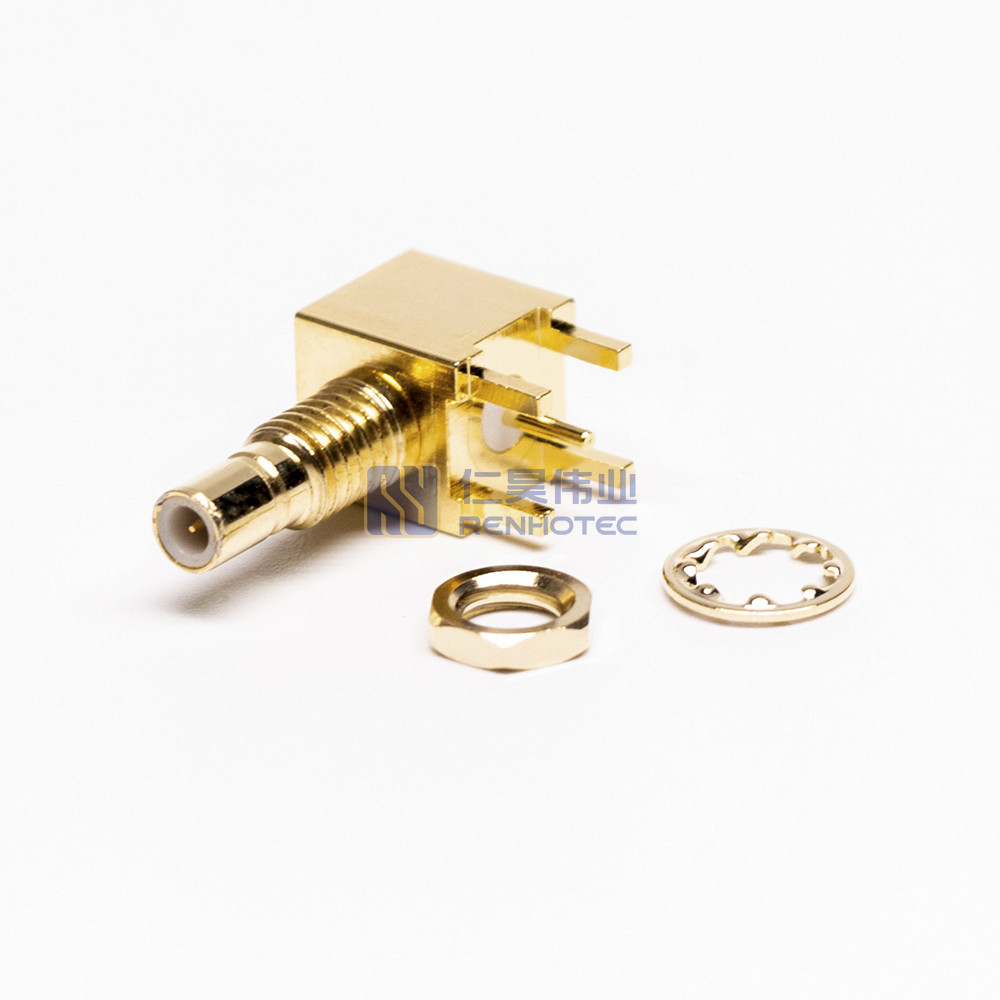

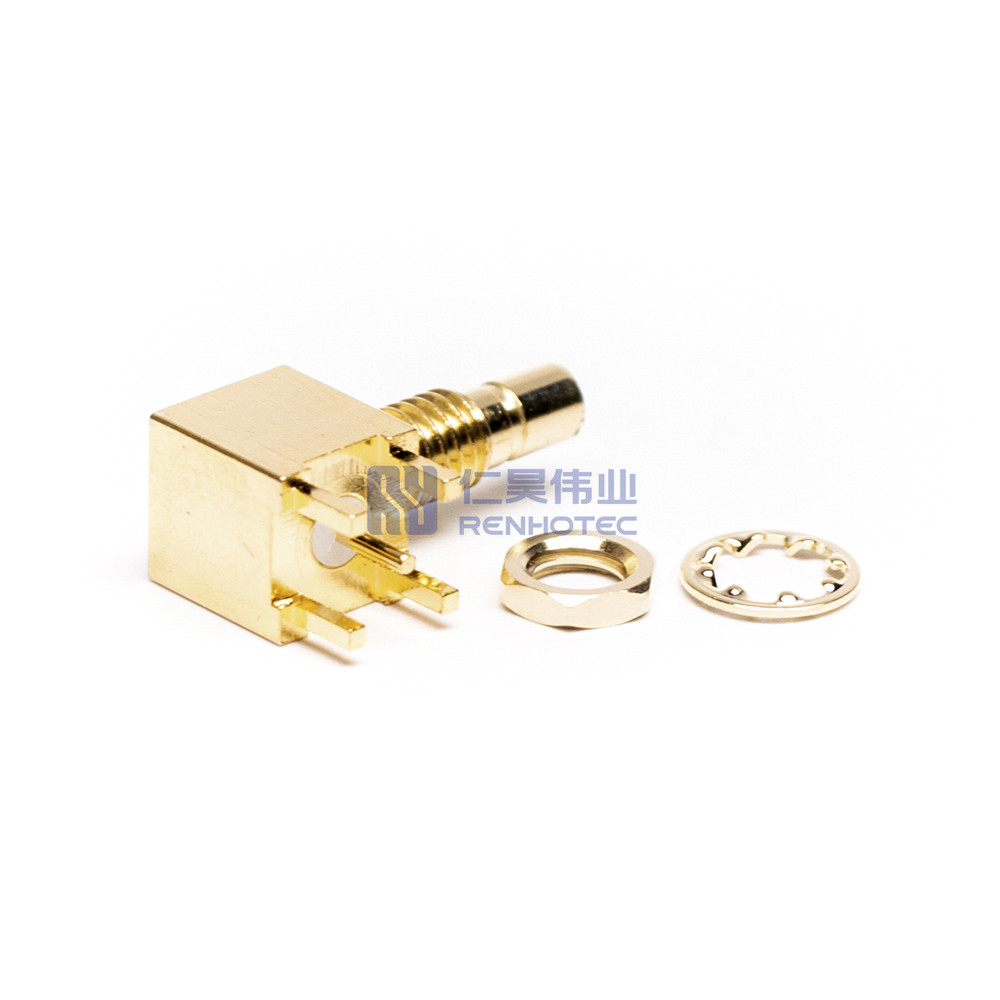

SMB Connector Right Angle Jack Male Pin Panel Mount Through Hole 50 Ohm – DOSIN-807-0006
This SMB connector features a right-angle jack with male pin configuration, ideal for panel mounting through hole installation. It offers a 50 ohm impedance for reliable signal transmission in various applications.
The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.
SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.
Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.
Interface
Application Scenarios
"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
Kindly pls see the blew sheet:
Difference | Dimension | Impedance | Frequency | Connection type | Advantage |
SMA | Small | 50 Ohm | 0-18G(26.5G) | Screw | High frequency, Small size, Stable connection |
SMB | Smaller | 50 Ohm 75 Ohm |
0-4G | Push-on | Small volume, Easy to plug Good at anti-vibration |
