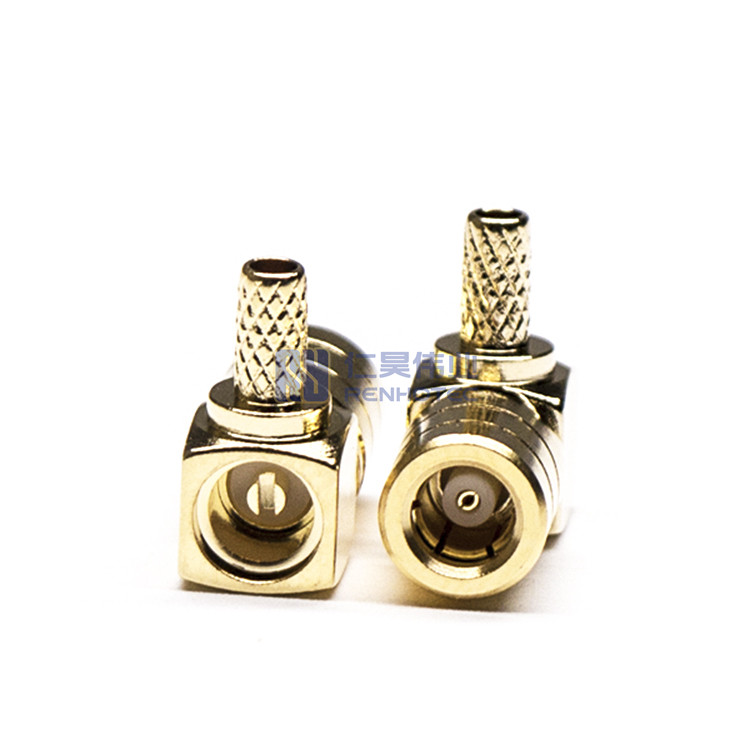

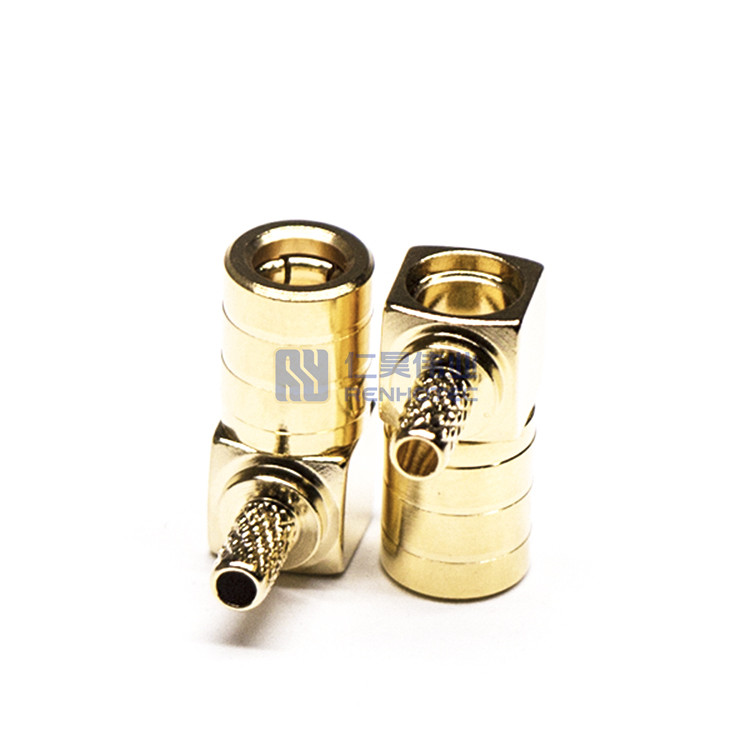

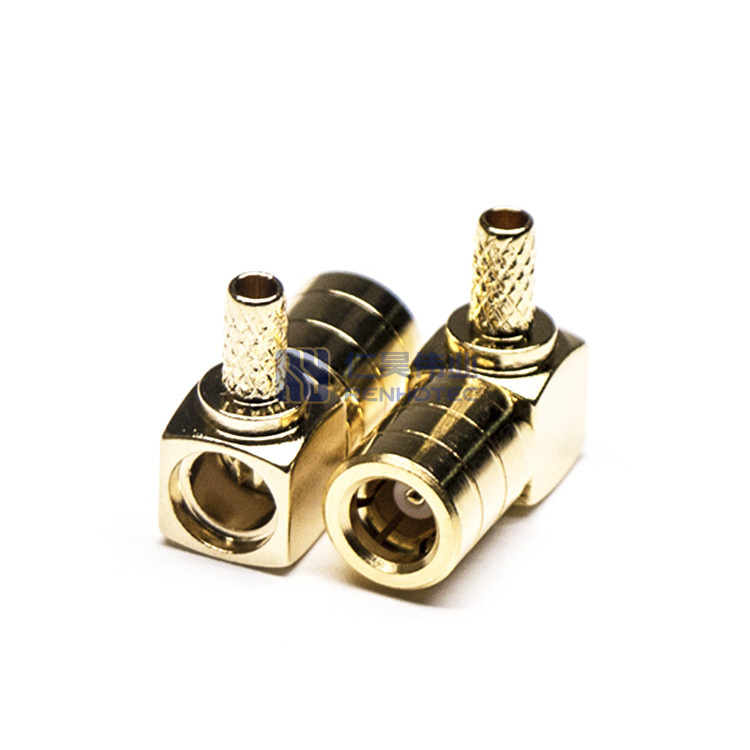

SMB Connector Right Angle Male Plug Crimp Type RG174 50 Ohm – RHT-626-0002

High quality SMB connector with right angle male plug design for easy crimping onto RG174 cables, ensuring reliable 50 Ohm signal transmission.

The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.

SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.

Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.

Interface

Application Scenarios



"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.

Kindly pls see the blew sheet:

Difference Dimension Impedance Frequency Connection type Advantage
SMA Small 50 Ohm 0-18G(26.5G) Screw High frequency,
Small size,
Stable connection
SMB Smaller 50 Ohm
75 Ohm
0-4G Push-on Small volume,
Easy to plug
Good at anti-vibration

For Cable Type:

Clamp

Solder

For Panel Type:

Through Hole

Edge Mount

Clamp

Bulkhead

Flange

Of course, Renhotec has been specialized in supplying RF connector and cable series for over 15 years, just talk with Renhotec freely, the more details you share, the best support you will get.

Drawing for SMB Connector Right Angle Male Plug Crimp Type RG174 50 OhmDownload
