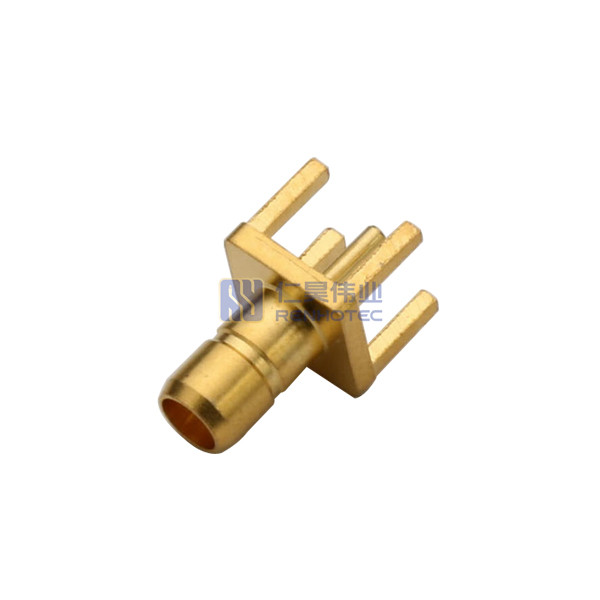

SMB Connector Straight Jack Male Pin Panel Mount Through Hole 75 Ohm – RHT-626-0201

High-quality SMB connector with straight jack male pin designed for panel mounting through holes. Features 75 ohm impedance for efficient signal transmission. Ideal for various electronic applications requiring a reliable RF connection.

The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.

SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.

Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.

Interface

Application Scenarios



Product Specification

RF Series

SMB Type

Connector Type

Jack

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency - Max

4GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

?? 1000 M??

Center Contact Resistance

6 M? Max

Outer Contact Resistance

1 M? Max

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

RF Series

SMB Type

Connector Type

Jack

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency - Max

4GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

?? 1000 M??

Center Contact Resistance

6 M? Max

Outer Contact Resistance

1 M? Max

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

RF Series

SMB Type

Connector Type

Jack

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency - Max

4GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

?? 1000 M??

Center Contact Resistance

6 M? Max

Outer Contact Resistance

1 M? Max

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.

Kindly pls see the blew sheet:

Difference Dimension Impedance Frequency Connection type Advantage
SMA Small 50 Ohm 0-18G(26.5G) Screw High frequency,
Small size,
Stable connection
SMB Smaller 50 Ohm
75 Ohm
0-4G Push-on Small volume,
Easy to plug
Good at anti-vibration

For Cable Type:

Clamp

Solder

For Panel Type:

Through Hole

Edge Mount

Clamp

Bulkhead

Flange

Of course, Renhotec has been specialized in supplying RF connector and cable series for over 15 years, just talk with Renhotec freely, the more details you share, the best support you will get.
