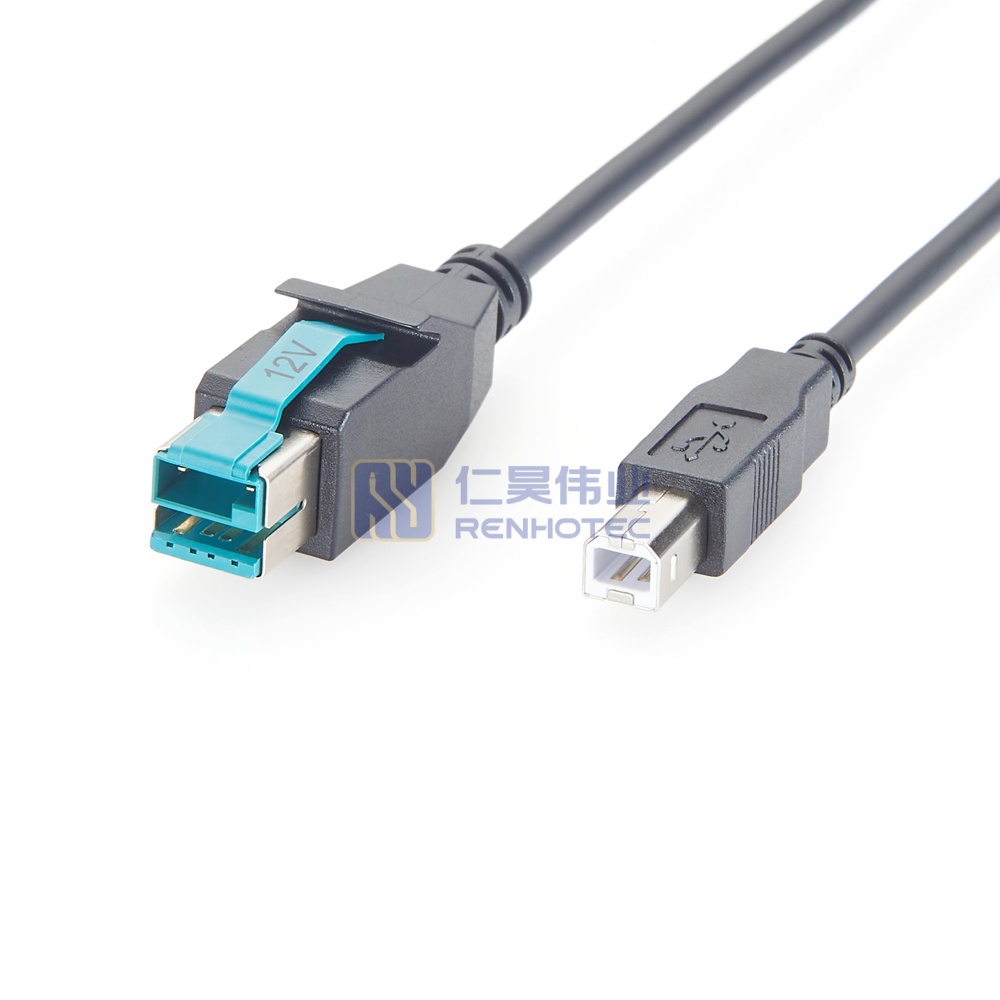

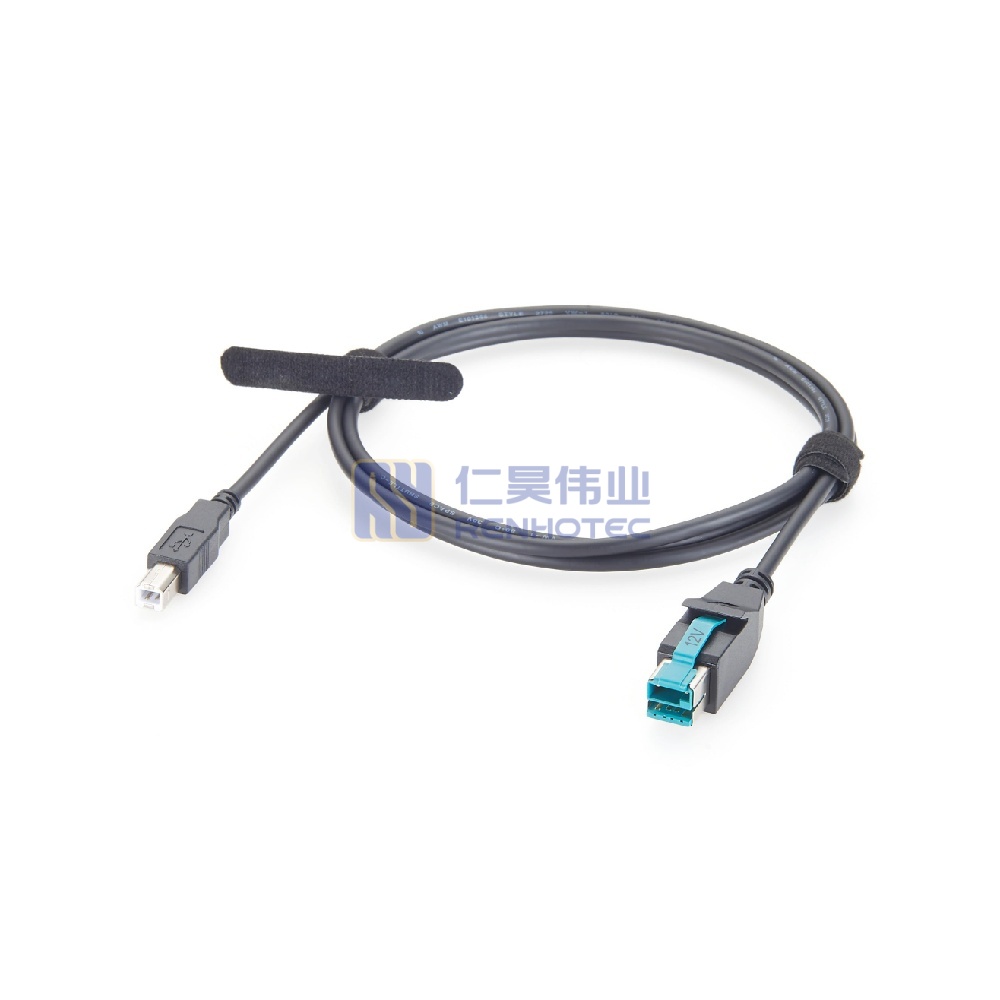

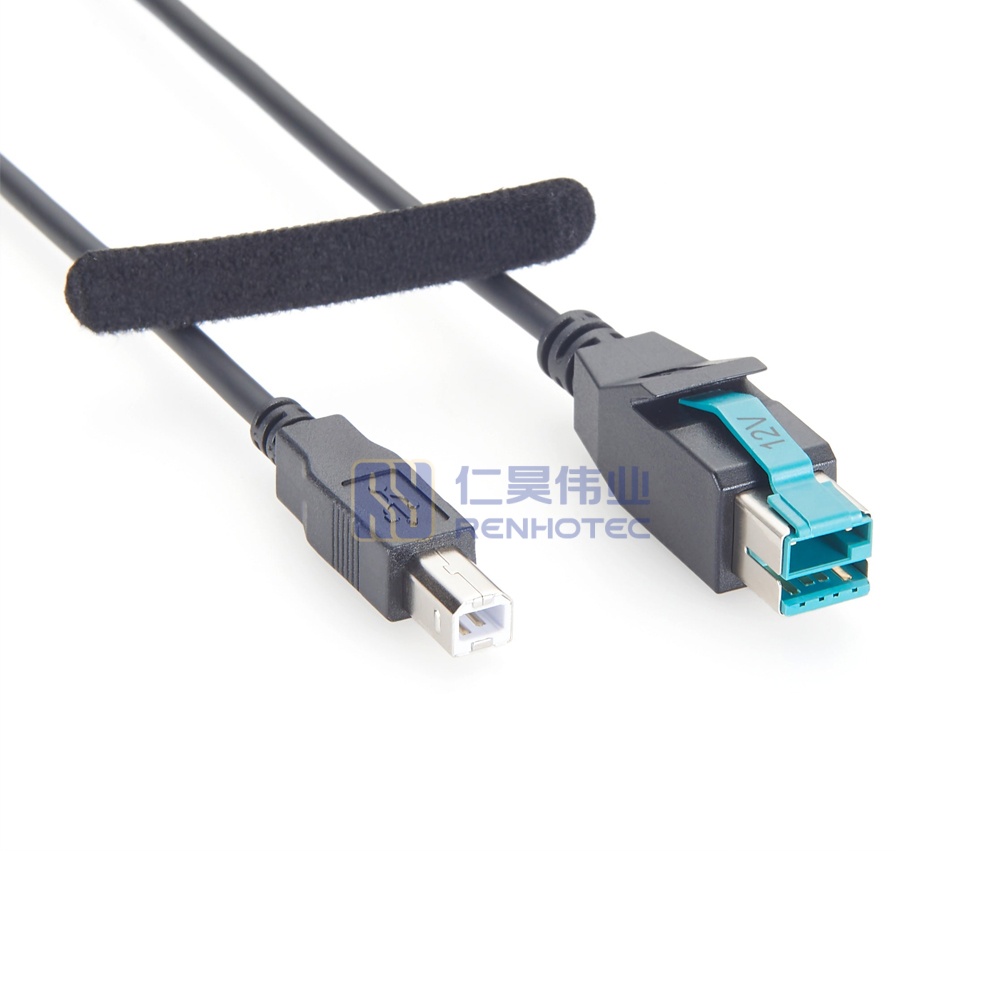

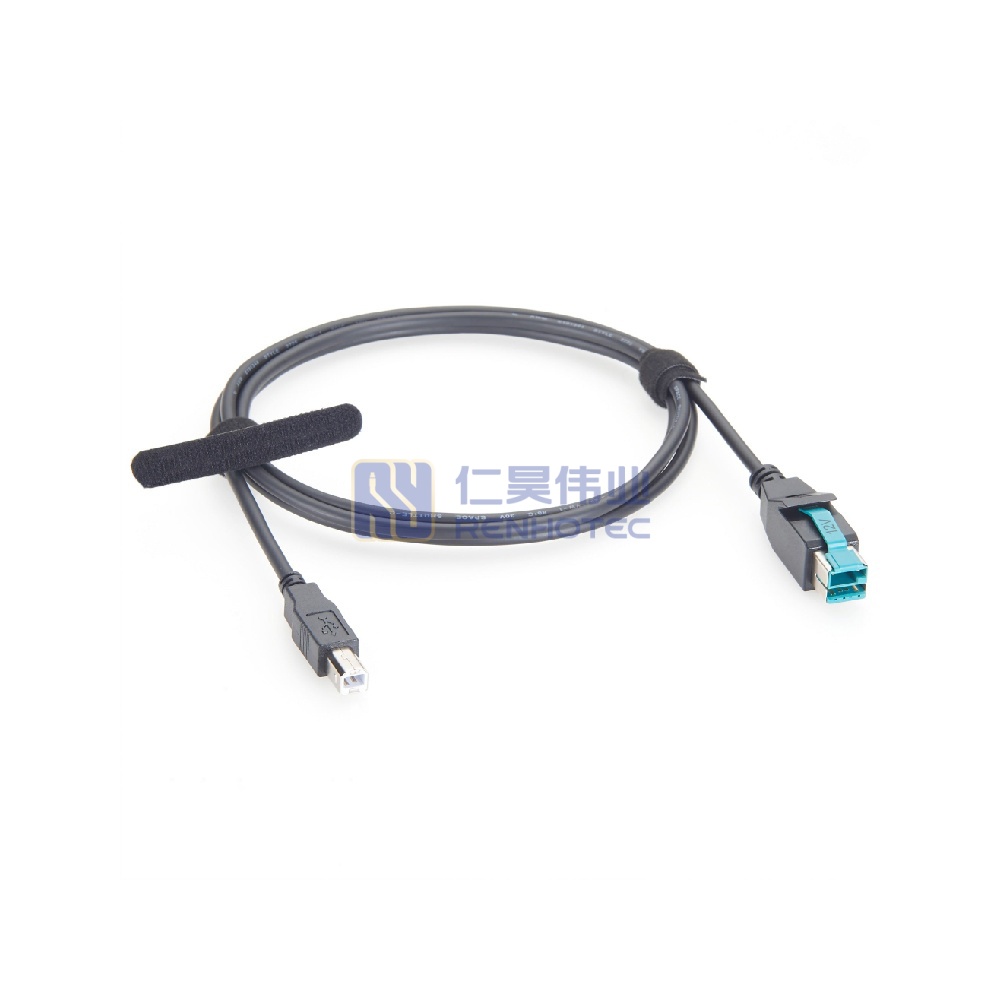

Powered USB 12V to USB Type-B Printer Cable – RHT-605-20926

The PoweredUSB Cable Assembly provides a single-cable solution that integrates high-speed USB data communication with extra high-power delivery (up to 24V/6A). Designed specifically for retail POS systems, industrial automation, and commercial terminals, it eliminates the need for separate external AC power bricks for peripherals like receipt printers, barcode scanners, and customer displays. Featuring color-coded and mechanically keyed connectors, it ensures 100% error-free installation and robust connection reliability in demanding environments.

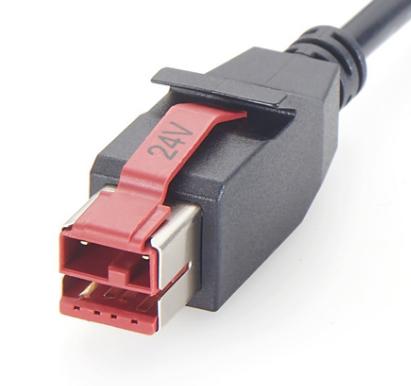

Designed for retail POS and industrial terminals, the host-side PoweredUSB connector combines two vertical interfaces inside one heavy-duty shielded housing. The top portion is equipped with 4 dedicated power pin contacts for high-amp power transmission, while the bottom portion functions as a fully compliant USB Type-A jack. This versatile design ensures the PCB-mount PoweredUSB receptacle is backwards-compatible with standard USB Type-A connectors as well as latching PoweredUSB plugs.

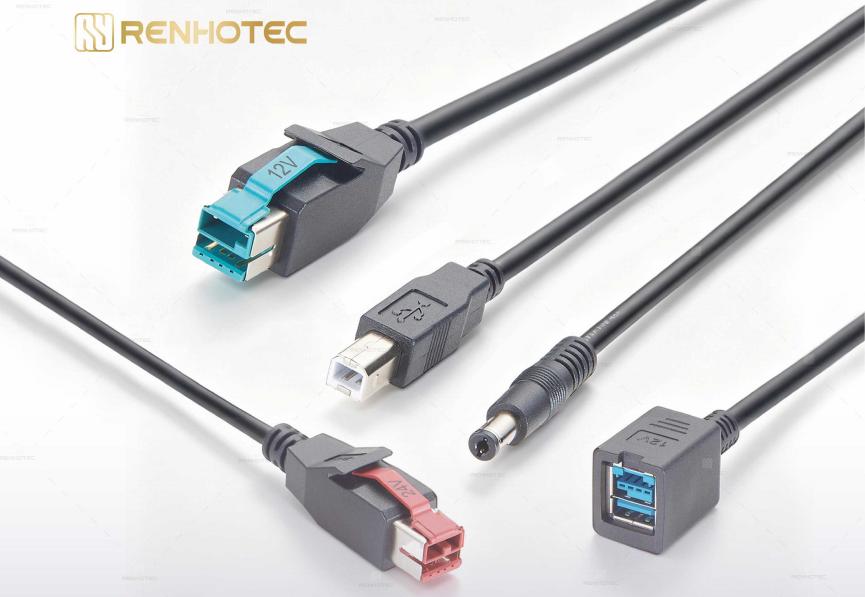

PoweredUSB Components

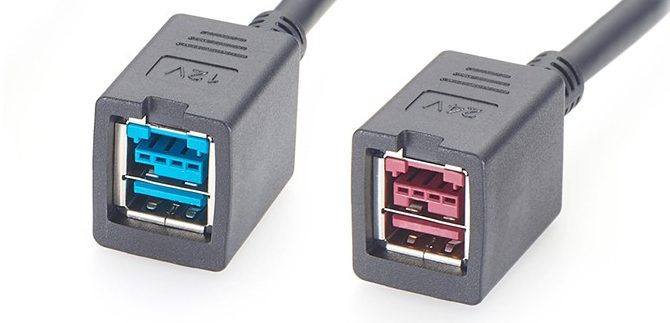

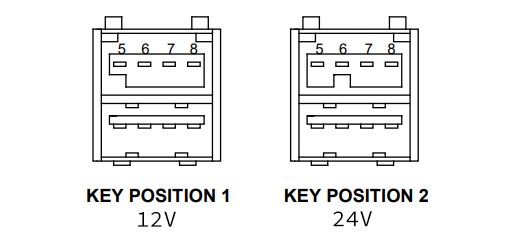

Voltage Color-Coding & Mechanical Keying

• 12V (Pantone Teal 3262C): Designed for barcode scanners, scale platforms, and display monitors.

• 24V (Pantone Red 032C): Optimized for POS receipt printers and cash drawers.

Locking Latch Mechanism: Equipped with secure locking tabs to prevent accidental cable disconnection in high-vibration or heavy-use retail environments.

Key Features & Benefits

• High-speed Data & Power Delivery
• Compliant with USCAR-2
• Durable Construction
• Environmental Resistance
• Wide Operating Temperature

Applications

• Retail & Hospitality POS Systems: Thermal Receipt Printers (e.g., Epson TM-T88 series), Cash Drawers, Barcode Scanners, and PIN Pads.
• Self-Service Terminals: Interactive Kiosks, Ticketing Machines, and ATM Peripherals.
• Industrial & Medical Equipment: High-power embedded systems requiring latching DC power and USB connectivity.
