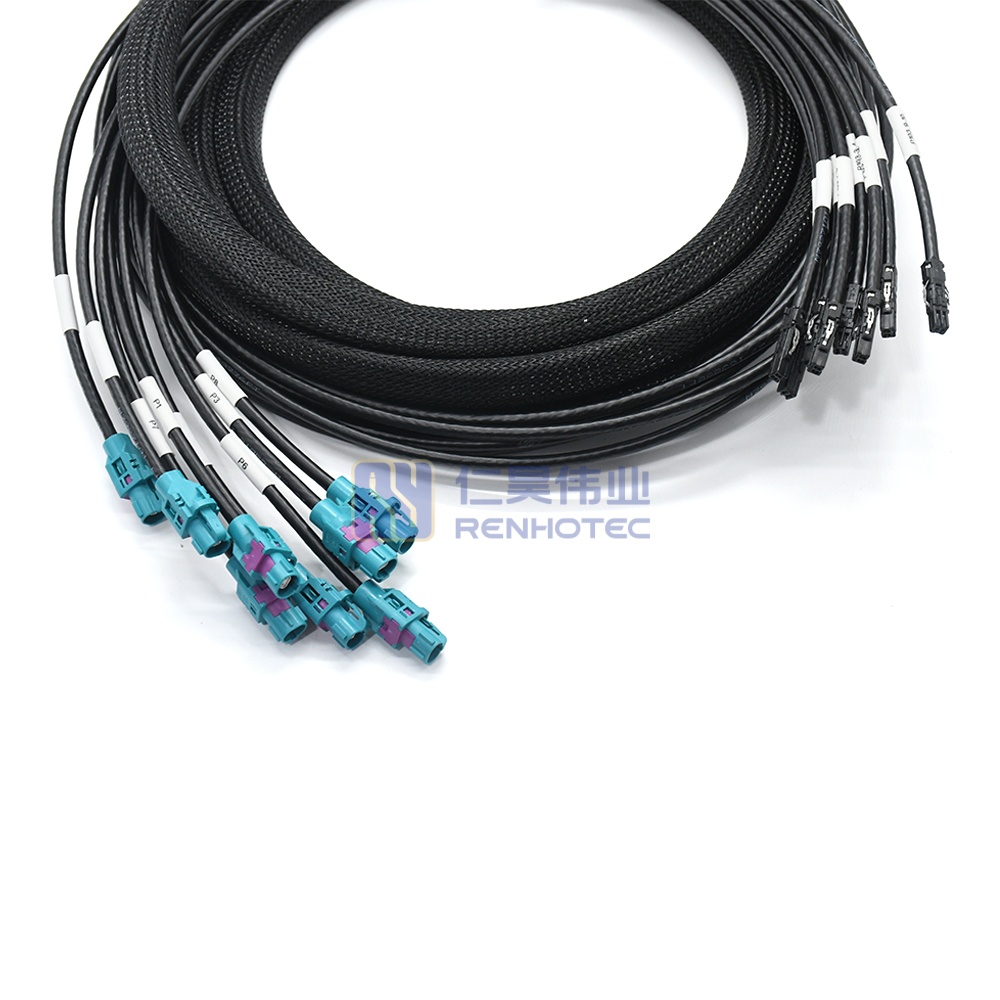

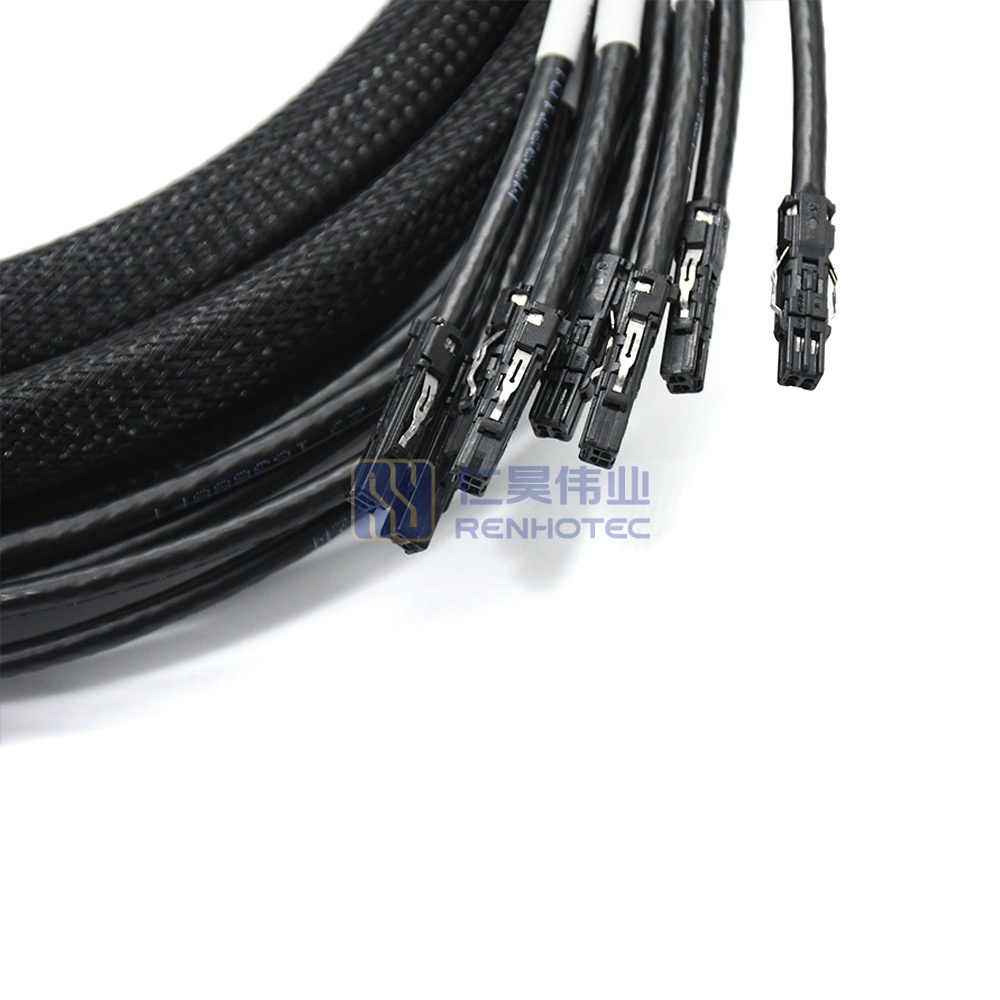

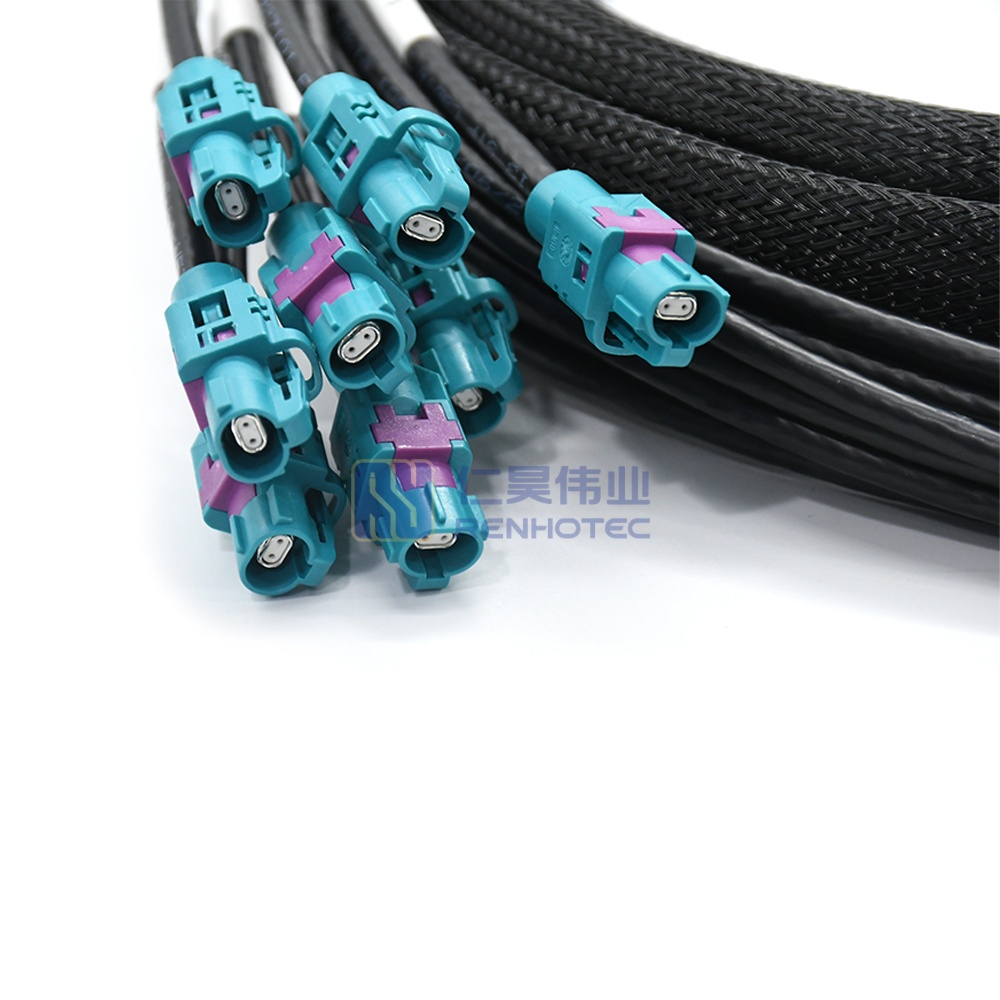

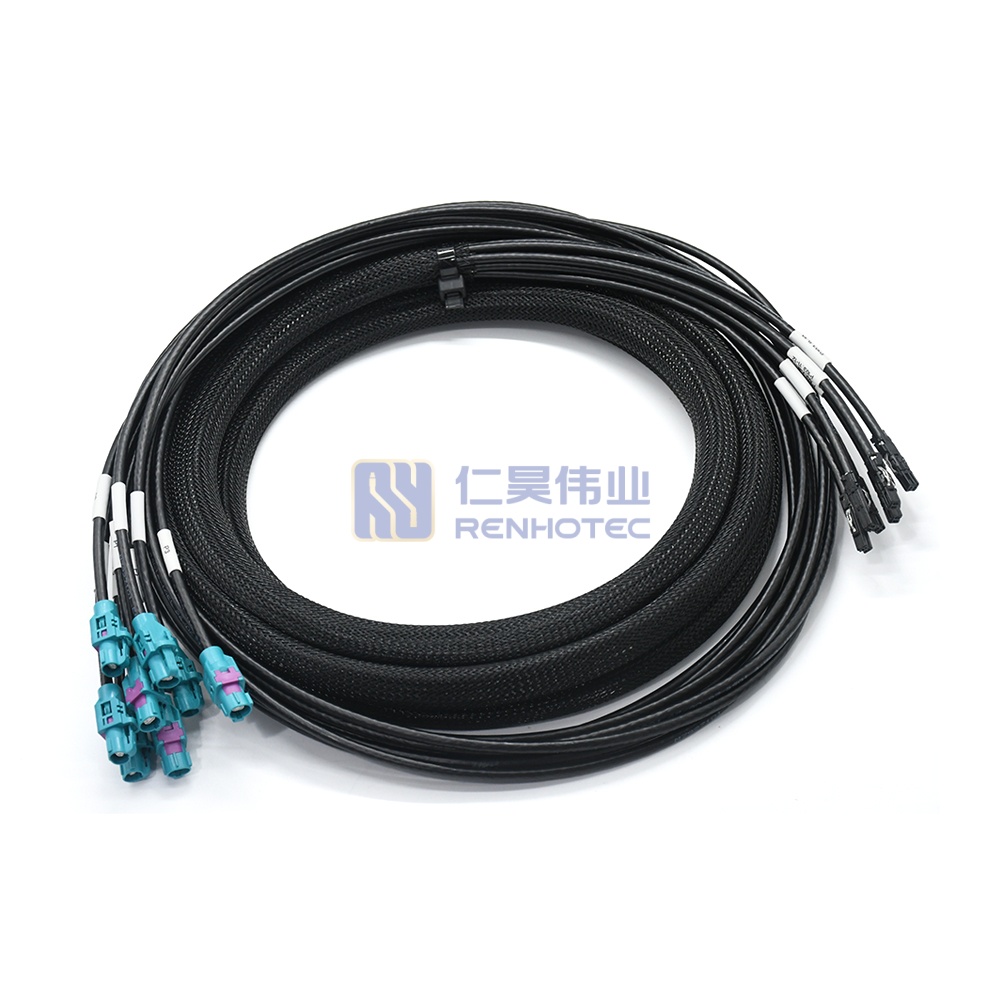

35183882 2P Female to H-MTD Straight Female STP Cable – DOSIN-811-8400
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF DOSIN-811-8400 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | DOSIN-811-8400 |
| Rosenberger Part No. | E6K10A-1CAZ5-Z |
| Aptiv | 35183882 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
• Cost-effective design leverages standard 0.50 terminals
• Assured contact placement via secondary locking
• Robust multiple key codes
Product Specification
| 1st Connector | 35183882 |
||
|---|---|---|---|
| 2nd Connector | E6K10A-1CAZ5-Z*8 |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Cable Type | Dacar® 647-4 |
||
| Impedance | 100 ohm |
||
| Insulation Resistance | ≥ 100 MΩ |
||
| Working Voltage | ≤ 60 V DC |
||
| Temperature Range | -40 °C to +105 °C |
||
| 1st Connector | 35183882 |
2nd Connector | E6K10A-1CAZ5-Z*8 |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Cable Type | Dacar® 647-4 |
Impedance | 100 ohm |
| Insulation Resistance | ≥ 100 MΩ |
Working Voltage | ≤ 60 V DC |
| Temperature Range | -40 °C to +105 °C |
| 2nd Connector Key Code | Z |
||
|---|---|---|---|
| Frequency | DC to 10 GHz |
||
| 2nd Connector Key Code | Z |
Frequency | DC to 10 GHz |
| 1st Connector | 35183882 |
|---|---|
| 2nd Connector | E6K10A-1CAZ5-Z*8 |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Cable Type | Dacar® 647-4 |
| 2nd Connector Key Code | Z |
| Impedance | 100 ohm |
| Frequency | DC to 10 GHz |
| Insulation Resistance | ≥ 100 MΩ |
| Working Voltage | ≤ 60 V DC |
| Temperature Range | -40 °C to +105 °C |
Drawing for 35183882 2P Female to H-MTD Female CableDownload
