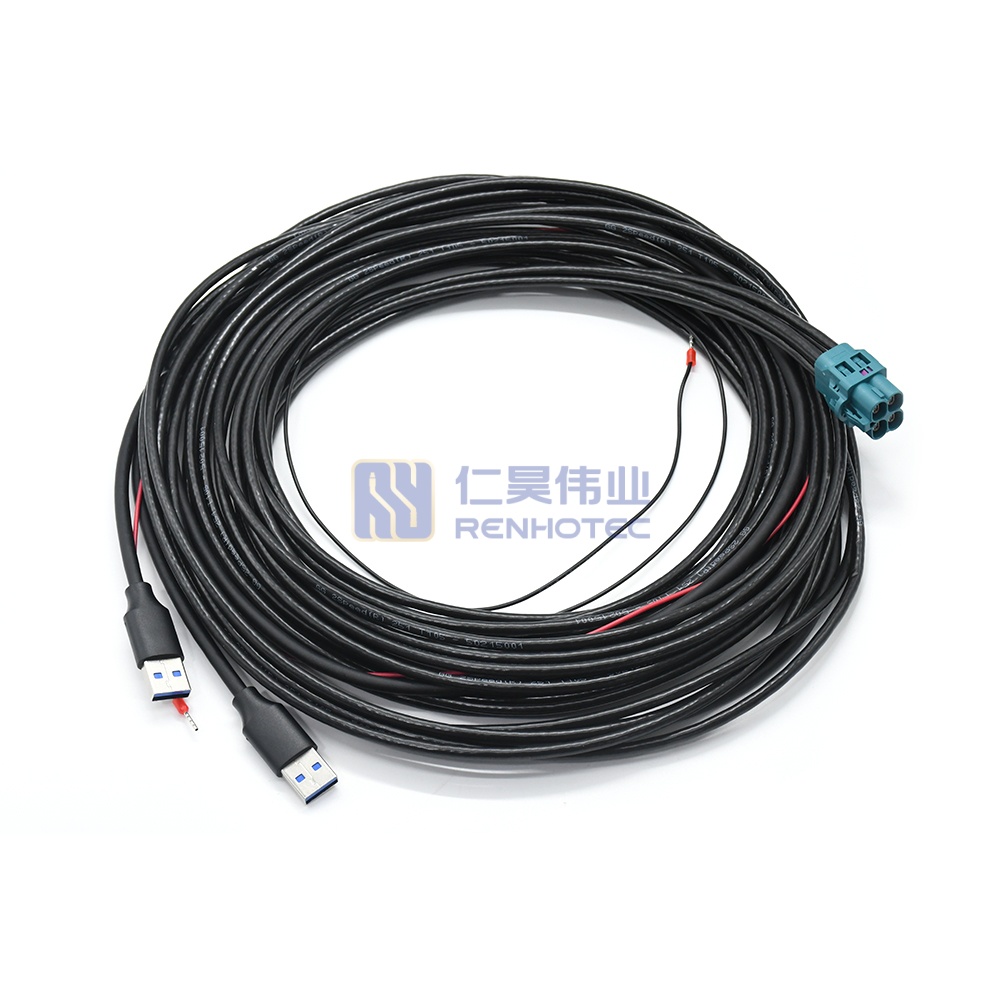

H-MTD Female to USB TYPE A 3.1 Male Cable - DOSIN-811-8401 - Image 2

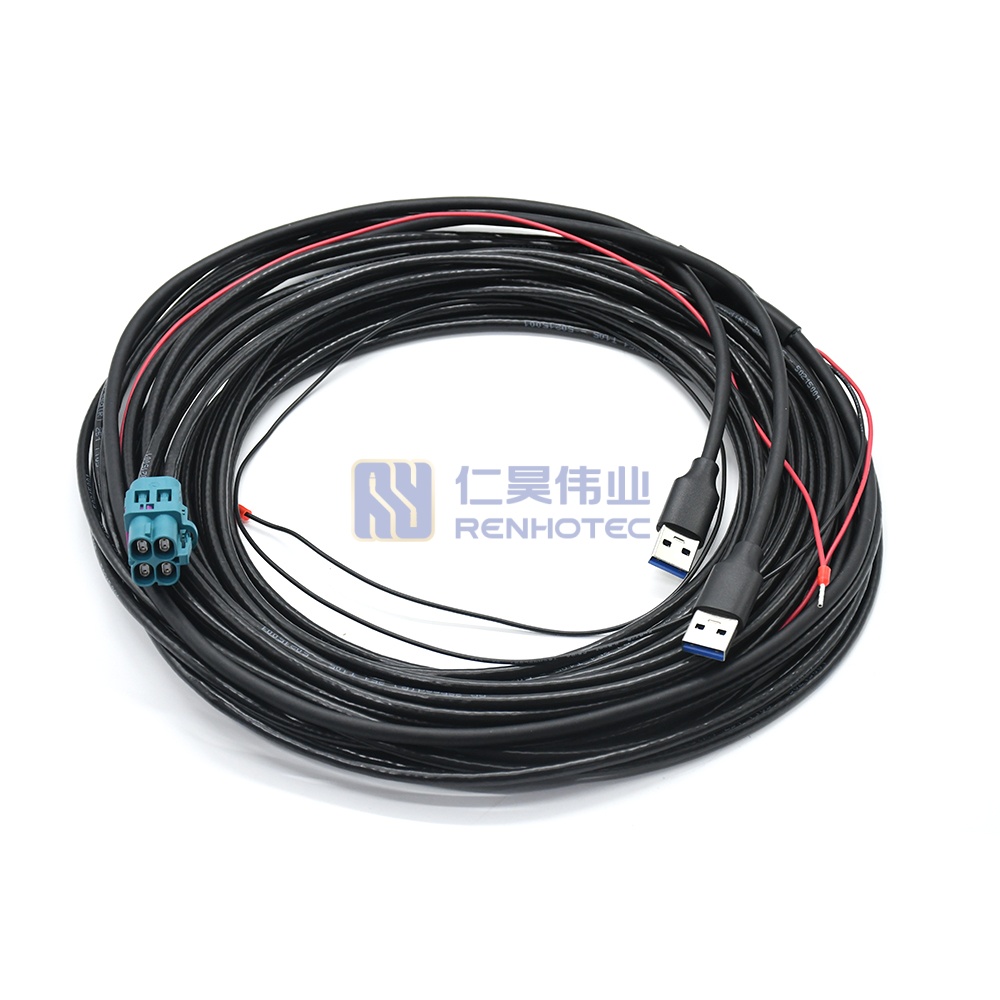

H-MTD Female to USB TYPE A 3.1 Male Cable – DOSIN-811-8401

SKU DOSIN-811-8401 Category Automotive Series Assemblies, Automotive Ethernet Cable Assemblies

Product Files

Open drawing and specification files.

Drawing PDF

OEM Compatibility & Manufacturer Part Number Reference

RenhotecRF DOSIN-811-8401 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.

RenhotecRF Part No. DOSIN-811-8401
Rosenberger Part No. E6K10D-1CAZ5-Z

Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.

Product Specification

1st Connector

E6K10D-1CAZ5-Z
2nd Connector

USB 3.1
1st Contact Type

Female Pin
2nd Contact Type

Male Pin
Cable Type

28AWG*2C+28AWG*1P+(28AWG*1P+AL+F)*2
Impedance

100 ohm
Insulation Resistance

≥ 100 MΩ
Working Voltage

≤ 60 V DC
Temperature Range

-40 °C to +105 °C
1st Connector

E6K10D-1CAZ5-Z

 2nd Connector

USB 3.1
1st Contact Type

Female Pin

 2nd Contact Type

Male Pin
Cable Type

28AWG*2C+28AWG*1P+(28AWG*1P+AL+F)*2

 Impedance

100 ohm
Insulation Resistance

≥ 100 MΩ

 Working Voltage

≤ 60 V DC
Temperature Range

-40 °C to +105 °C

1st Connector Key Code

Z
Frequency

DC to 10 GHz
1st Connector Key Code

Z

 Frequency

DC to 10 GHz
1st Connector

E6K10D-1CAZ5-Z
2nd Connector

USB 3.1
1st Contact Type

Female Pin
2nd Contact Type

Male Pin
1st Connector Key Code

Z
Cable Type

28AWG*2C+28AWG*1P+(28AWG*1P+AL+F)*2
Impedance

100 ohm
Frequency

DC to 10 GHz
Insulation Resistance

≥ 100 MΩ
Working Voltage

≤ 60 V DC
Temperature Range

-40 °C to +105 °C
Drawing for H-MTD FEMALE TO USB TYPE A 3.1 MALE CABLEDownload
