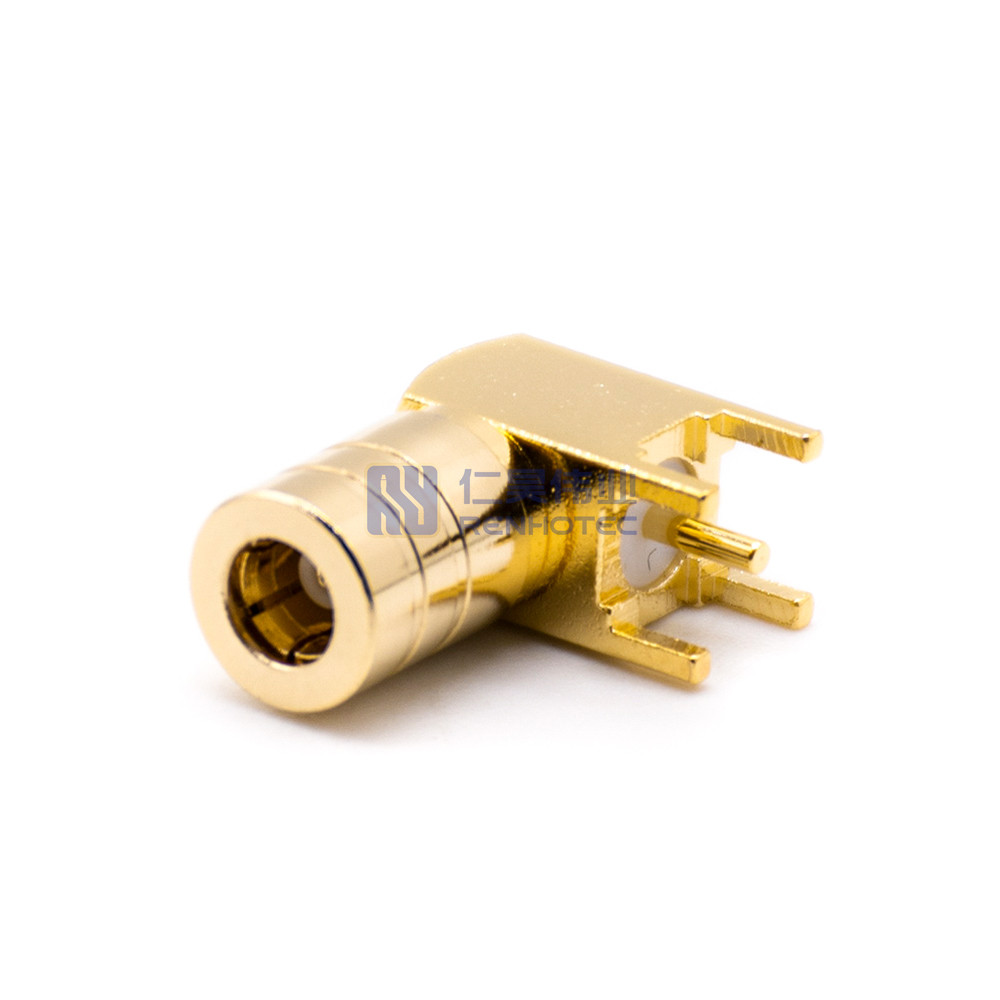

SMB Connector Right Angle Male Female Pin Panel Mount Through Hole 50 Ohm – DS807FPR011
- 50ohm SMB connector with right angle male and female pins for compact installations
- Panel mount and through-hole design ensures stable and secure connections
- Perfect for use in wireless communication and RF applications with limited space
- Durable, high-quality construction for long-lasting, reliable performance
- Simple to install with a low-loss signal path and strong mechanical strength
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Contact Type | Female Pin |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Gold Plated |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Brass |
||
| RF Series | SMB Type |
||
| Contact Termination Style | Solder |
||
| Dielectric Withstanding Voltage | 1000 VRMS Max |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 4GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | ≥1000MΩ |
||
| Insulator Material | Teflon White |
||
| Mating Durability | ≥ 500 Cycles |
||
| Mounting Feature | Through Hole |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Right Angle |
||
| Center Contact Resistance | 6 MΩ Max |
||
| Outer Contact Resistance | 1 MΩ Max |
||
| Temperature Range | -65°C to +165°C |
||
| Connector Type | Plug |
Contact Type | Female Pin |
| Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
| Contact Finish | Gold Plated |
Contact Material | Brass |
| RF Series | SMB Type |
Contact Termination Style | Solder |
| Dielectric Withstanding Voltage | 1000 VRMS Max |
Fastening Type | Snap On |
| Frequency - Max | 4GHz |
Impedance | 50 ohm |
| Insulation Resistance | ≥1000MΩ |
Insulator Material | Teflon White |
| Mating Durability | ≥ 500 Cycles |
Mounting Feature | Through Hole |
| Mounting Type | Panel Mount |
Number of Ports | 1 |
| Orientation | Right Angle |
Center Contact Resistance | 6 MΩ Max |
| Outer Contact Resistance | 1 MΩ Max |
Temperature Range | -65°C to +165°C |
| Connector Type | Plug |
|---|---|
| Contact Type | Female Pin |
| Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
| Contact Finish | Gold Plated |
| Contact Material | Brass |
| RF Series | SMB Type |
| Contact Termination Style | Solder |
| Dielectric Withstanding Voltage | 1000 VRMS Max |
| Fastening Type | Snap On |
| Frequency - Max | 4GHz |
| Impedance | 50 ohm |
| Insulation Resistance | ≥1000MΩ |
| Insulator Material | Teflon White |
| Mating Durability | ≥ 500 Cycles |
| Mounting Feature | Through Hole |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Center Contact Resistance | 6 MΩ Max |
| Outer Contact Resistance | 1 MΩ Max |
| Temperature Range | -65°C to +165°C |
The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.
SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.
Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.
Interface
Application Scenarios
What is the SMB Connector?
"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
What are the differnces between SMB and SMA?
Kindly pls see the blew sheet:
| Difference | Dimension | Impedance | Frequency | Connection type | Advantage |
| SMA | Small | 50 Ohm | 0-18G(26.5G) | Screw | High frequency, Small size, Stable connection |
| SMB | Smaller | 50 Ohm 75 Ohm |
0-4G | Push-on | Small volume, Easy to plug Good at anti-vibration |
What's mounting type of SMB Connector?
For Cable Type:
Clamp
Solder
For Panel Type:
Through Hole
Edge Mount
Clamp
Bulkhead
Flange
How to get the customized SMB connector?
Of course, Renhotec has been specialized in supplying RF connector and cable series for over 15 years, just talk with Renhotec freely, the more details you share, the best support you will get.
