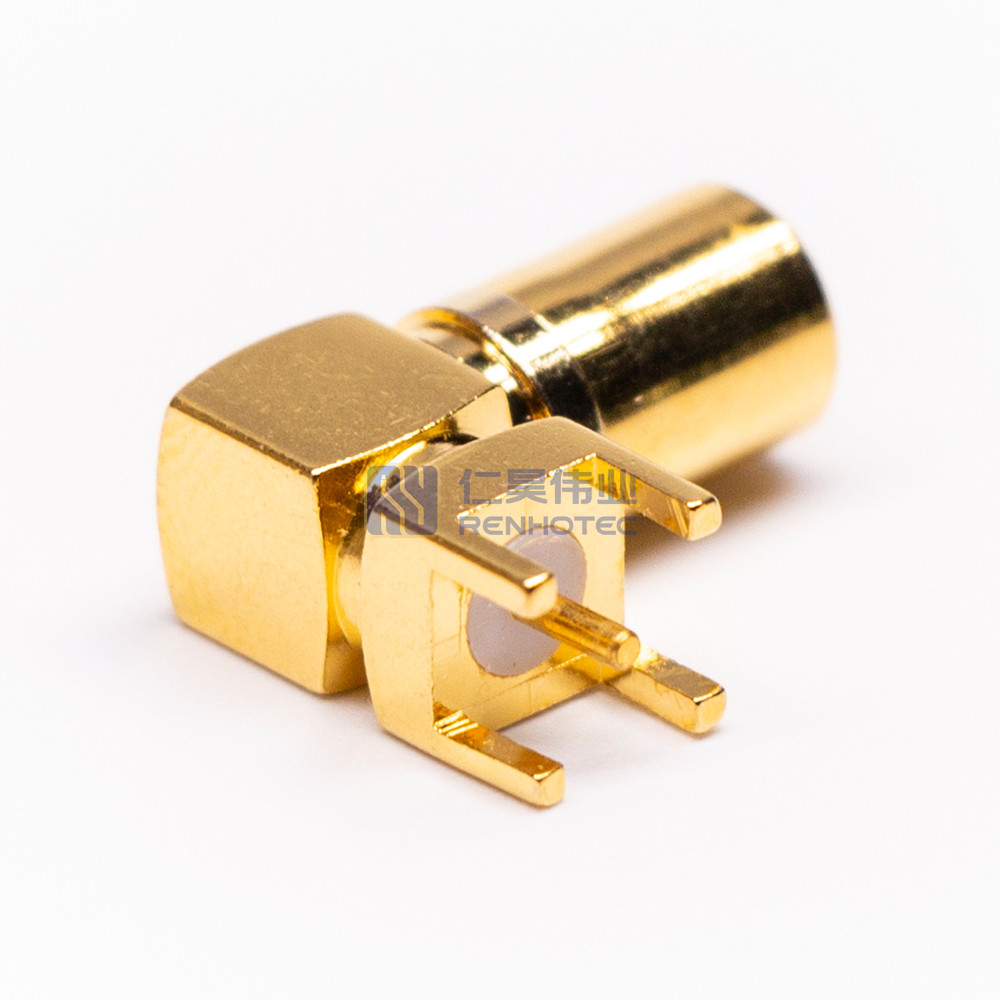

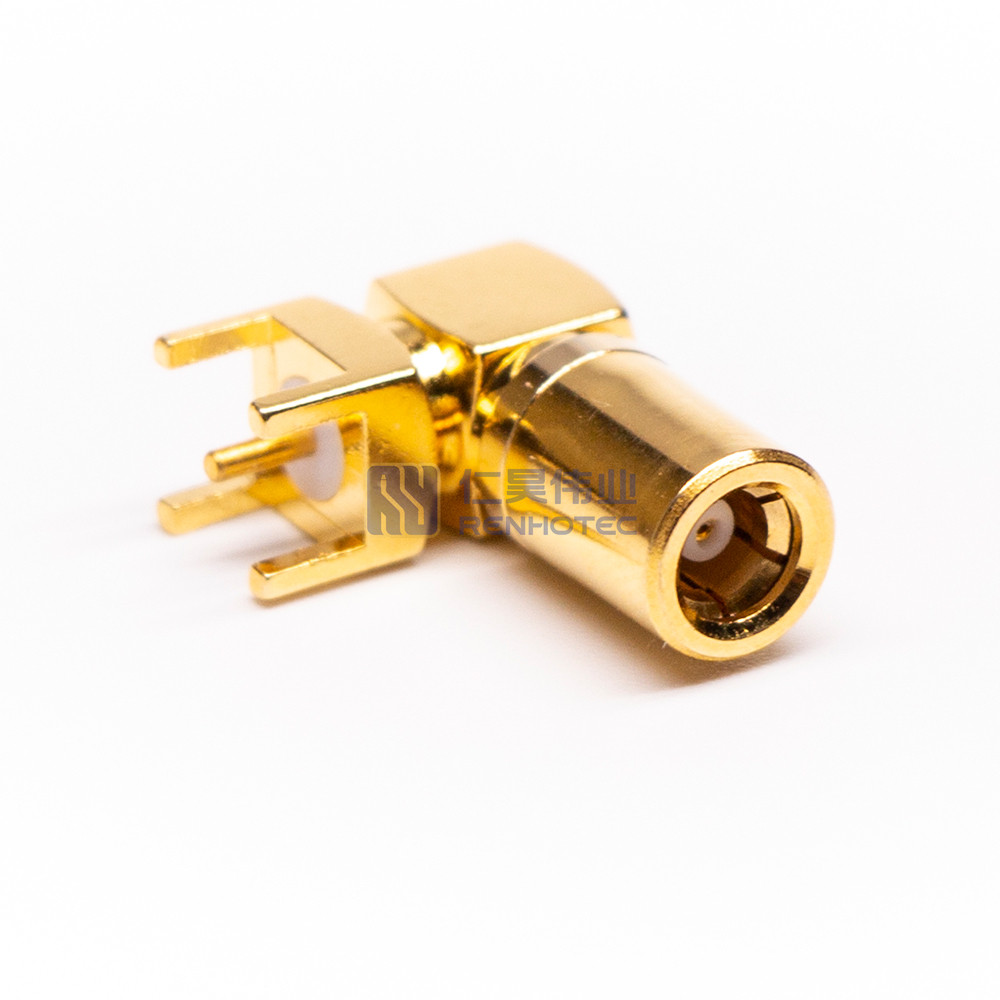

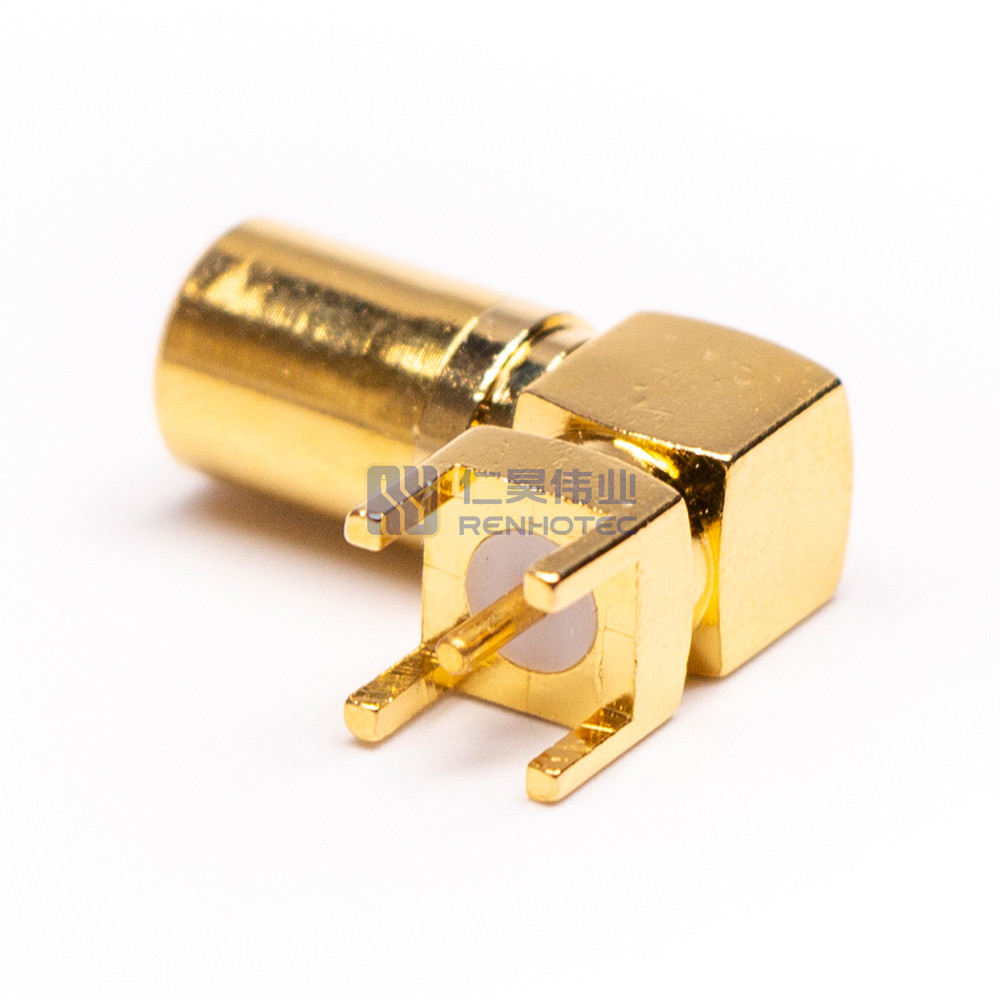

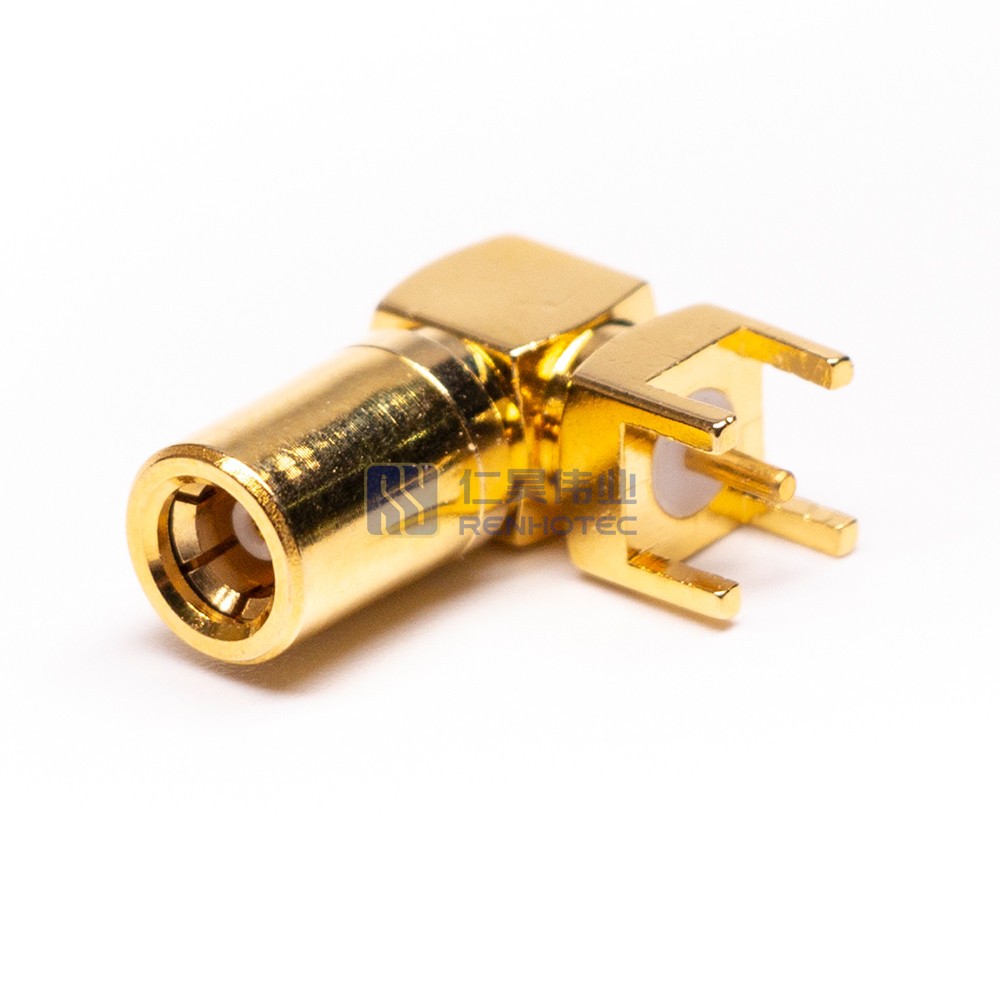

SMB Connector Right Angle Male Female Pin Panel Mount Through Hole 50 Ohm – RHT-626-0005

  • 50 Ohm SMB right angle male-female pin panel mount connector
  • Through hole design ensures secure and stable mounting
  • Ideal for RF signal transmission in compact setups
  • Durable construction for long-term, reliable performance
  • Suitable for a wide range of electronic and communication applications

The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.

SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.

Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.

Interface

Application Scenarios
