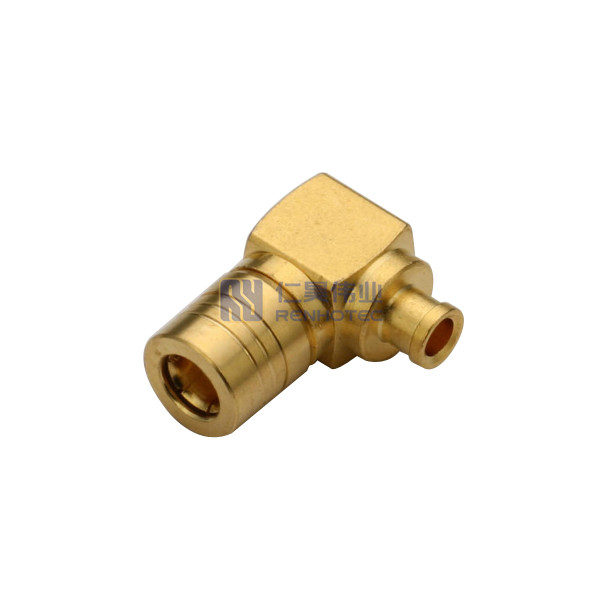

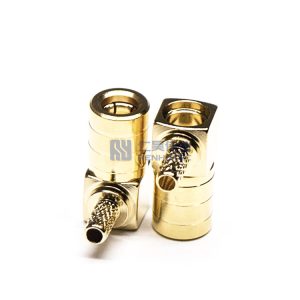

SMB Connector Right Angle Male Female Pin Solder Cable Type 50 Ohm
- Various plating options in nickel, gold, and tin-lead
- Quick connect/disconnect snap-on mating reduces installation time
- SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.
SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.
Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.
Interface
Application Scenarios
Product Specification
| RF Series | SMB Type |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Orientation | Right Angle |
||
| Contact Type | Female Pin |
||
| Contact Termination Style | Solder |
||
| Shield Termination | Solder |
||
| Mounting Type | Cable Mount |
||
| Cable Type | UT085 |
||
| Fastening Type | Snap On |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Frequency - Max | 4GHz |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | Teflon White |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Dielectric Withstanding Voltage | 1000 VRMS Max |
||
| Insultation Resistance | ≥ 1000 MΩ |
||
| Center Contact Resistance | 6 MΩ Max |
||
| Outer Contact Resistance | 1 MΩ Max |
||
| Mating Durability | ≥ 500 Cycles |
||
| Temperature Range | -65℃ to +165℃ |
||
| RF Series | SMB Type |
Connector Type | Plug |
| Orientation | Right Angle |
Contact Type | Female Pin |
| Contact Termination Style | Solder |
Shield Termination | Solder |
| Mounting Type | Cable Mount |
Cable Type | UT085 |
| Fastening Type | Snap On |
Number of Ports | 1 |
| Impedance | 50 ohm |
Frequency - Max | 4GHz |
| Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
| Insulator Material | Teflon White |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Dielectric Withstanding Voltage | 1000 VRMS Max |
| Insultation Resistance | ≥ 1000 MΩ |
Center Contact Resistance | 6 MΩ Max |
| Outer Contact Resistance | 1 MΩ Max |
Mating Durability | ≥ 500 Cycles |
| Temperature Range | -65℃ to +165℃ |
| RF Series | SMB Type |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Contact Type | Female Pin |
| Contact Termination Style | Solder |
| Shield Termination | Solder |
| Mounting Type | Cable Mount |
| Cable Type | UT085 |
| Fastening Type | Snap On |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Frequency - Max | 4GHz |
| Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Dielectric Withstanding Voltage | 1000 VRMS Max |
| Insultation Resistance | ≥ 1000 MΩ |
| Center Contact Resistance | 6 MΩ Max |
| Outer Contact Resistance | 1 MΩ Max |
| Mating Durability | ≥ 500 Cycles |
| Temperature Range | -65℃ to +165℃ |
