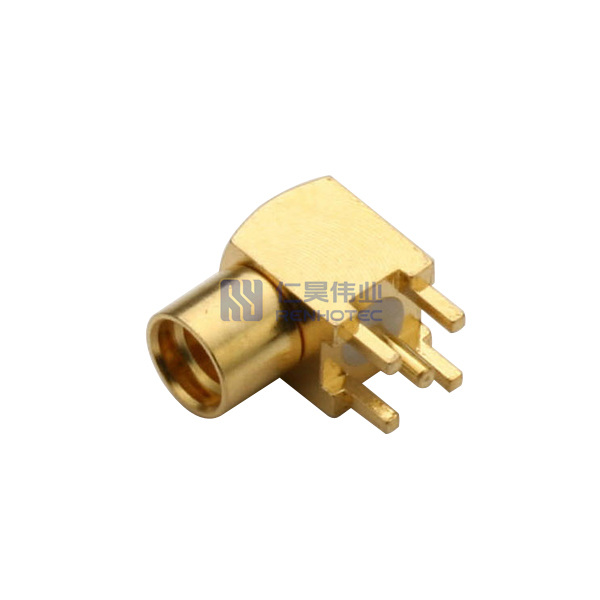

MMCX Connector Jack Solder Panel Mount Through Hole 50ohm – RHT-631-0119

High-quality MMCX connector jack designed for easy soldering onto panels, providing a secure through-hole mounting solution. Ideal for 50ohm applications where durability and reliability are critical.

MCX / MMCX (Micro-Miniature Coaxial) connector are developed in Europe during the 1980s to 1990s, broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. Conforms to the European CECC 22000 specification.With small size, less weight, compact structure and easy fit, they are widely used in small sized communication equipment.

Broadband performance with low reflection

Quick connect/disconnect snap-on mating reduces installation time

Available in straight and right angle plugs and printed circuit board connectors

High-quality solution at a low cost

Complete Variety

MCX Connector

Crimp Type

Solder Type

Through Hole

SMT Type

Flange Mount

Edge Type

MMCX Connector

Crimp Type

Solder Type

R/A Solder Type

Through Hole

R/A Through Hole

Surface Type

Product Application

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

MMCX Type
Connector Type

Jack
Orientation

Right Angle
Contact Type

Female Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Snap On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

500 MΩ Min
Center Contact Resistance

5 MΩ Min
Outer Contact Resistance

1 MΩ Min
Temperature Range

-65℃ to +165℃
Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance
