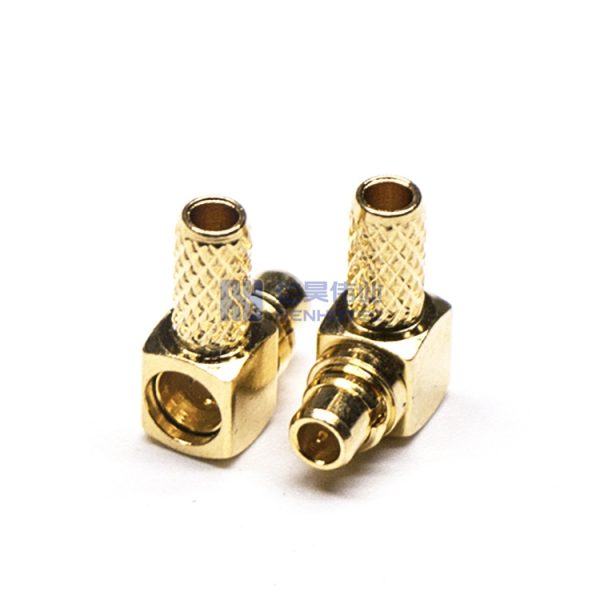

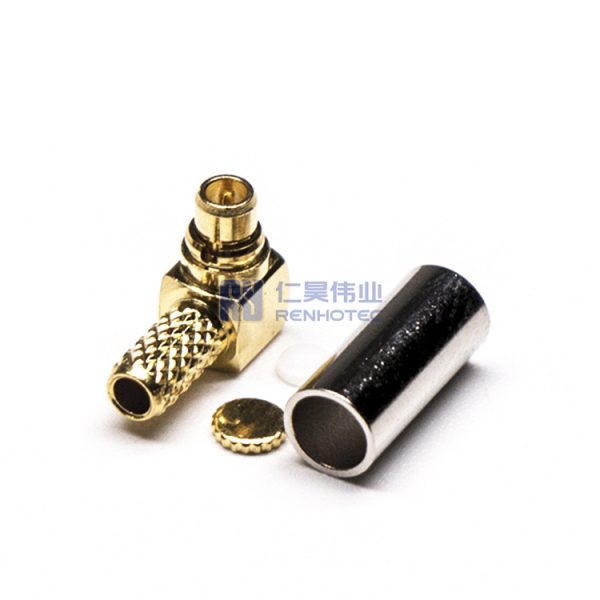

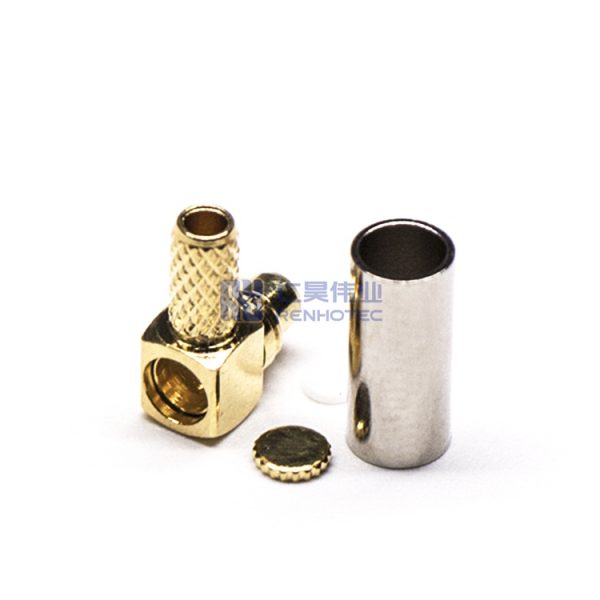

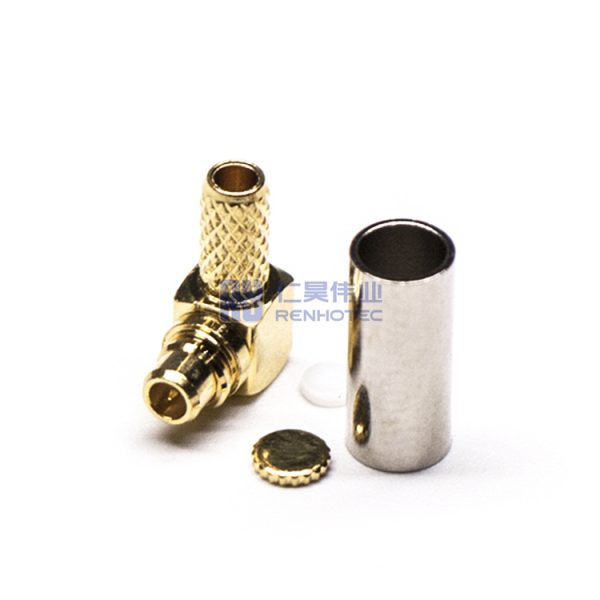

MMCX Connector Male Crimp Type RG316 50ohm – RHT-631-1001
High-quality MMCX male crimp type connector suitable for RG316 cables, designed for optimal signal transmission in a variety of applications requiring 50ohm impedance. Durable construction ensures reliable performance.
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50-ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast, and easy snap-on/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series and are available in a wide array of configurations.
MMCX 50 Ohm microminiature compact and lightweight connectors are designed for densely populated electronic packages with size and weight limitations. The mechanical stability is maintained via a snap-on interface that uses no slotting in the outer conductor. Typical applications include wireless/PCS devices, telecommunications, GPS receivers, and consumer electronics.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Product Specification
RF Series | MMCX Type |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Right Angle |
||
Contact Type | Male Pin |
||
Contact Termination Style | Crimp |
||
Shield Termination | Crimp |
||
Mounting Type | Cable Mount |
||
Fastening Type | Snap On |
||
Cable Type | RG316 |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency - Max | 6GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Insulator Material | PTFE |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 1000 VRMS Max |
||
Insultation Resistance | 500 MΩ Min |
||
Center Contact Resistance | 5 MΩ Min |
||
Outer Contact Resistance | 1 MΩ Min |
||
Temperature Range | -65℃ to +165℃ |
||
Mating Durability | ≥ 500 Cycles |
||
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
||
Vibration | MIL-STD-202 Meth. 204 |
||
Corrosion Resistance | MIL-STD-202 Meth. 101 |
||
RF Series | MMCX Type |
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Crimp |
Shield Termination | Crimp |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Cable Type | RG316 |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
RF Series | MMCX Type |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Crimp |
Shield Termination | Crimp |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Cable Type | RG316 |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
Renhotec Information
We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.
RF Connector Compatibility
Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.
We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.
Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.
Customization and Sample Testing
Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.
Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.
Yes, please advise the thread length for evaluation.
Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.
Yes, please share it and the requirement with us, our engineer team will evaluate it.
RF Connector Specifications
The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.
Order Lead Time
Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.
Shipping and Packaging
For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.
Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.
Payment Methods
Accepted payment methods include T/T, Paypal, etc.
Quality Assurance
Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.
Yes, they conform. RoHS and REACH test reports are available.
Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
