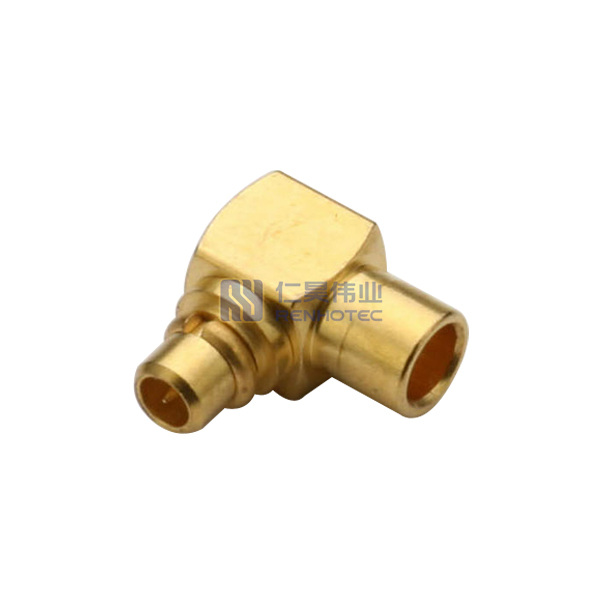

MMCX Connector Male Connector Solder Type Cable UT085 50ohm – RHT-631-0109
High-quality male solder-type MMCX connector suitable for UT085 50ohm cables. Ensures reliable signal transmission in demanding applications. Durable design for long-lasting performance in various electronic devices.
MCX / MMCX (Micro-Miniature Coaxial) connector are developed in Europe during the 1980s to 1990s, broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. Conforms to the European CECC 22000 specification.With small size, less weight, compact structure and easy fit, they are widely used in small sized communication equipment.
Broadband performance with low reflection
Quick connect/disconnect snap-on mating reduces installation time
Available in straight and right angle plugs and printed circuit board connectors
High-quality solution at a low cost
Complete Variety
MCX Connector
Crimp Type
Solder Type
Through Hole
SMT Type
Flange Mount
Edge Type
MMCX Connector
Crimp Type
Solder Type
R/A Solder Type
Through Hole
R/A Through Hole
Surface Type
Product Application
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
RF Series | MMCX Type |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Right Angle |
||
Contact Type | Male Pin |
||
Contact Termination Style | Solder |
||
Shield Termination | Solder |
||
Mounting Type | Cable Mount |
||
Fastening Type | Snap On |
||
Cable Type | UT085 |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency - Max | 6GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Insulator Material | PTFE |
||
Contact Material | Copper Alloy |
||
Contact Finish | Gold Plated |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 1000 VRMS Max |
||
Insultation Resistance | 500 MΩ Min |
||
Center Contact Resistance | 5 MΩ Min |
||
Outer Contact Resistance | 1 MΩ Min |
||
Temperature Range | -65℃ to +165℃ |
||
Mating Durability | ≥ 500 Cycles |
||
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
||
Vibration | MIL-STD-202 Meth. 204 |
||
Corrosion Resistance | MIL-STD-202 Meth. 101 |
||
RF Series | MMCX Type |
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Cable Type | UT085 |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | PTFE |
Contact Material | Copper Alloy |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
RF Series | MMCX Type |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Cable Type | UT085 |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | PTFE |
Contact Material | Copper Alloy |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
