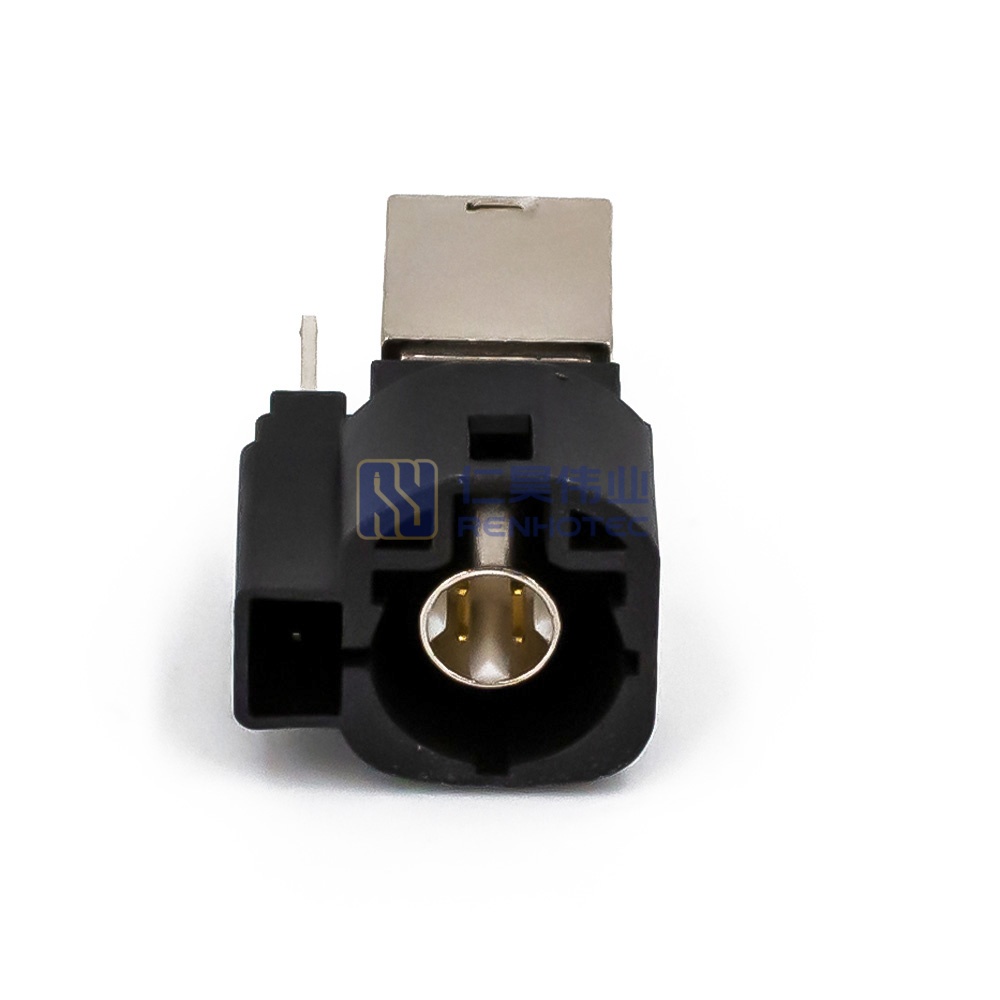

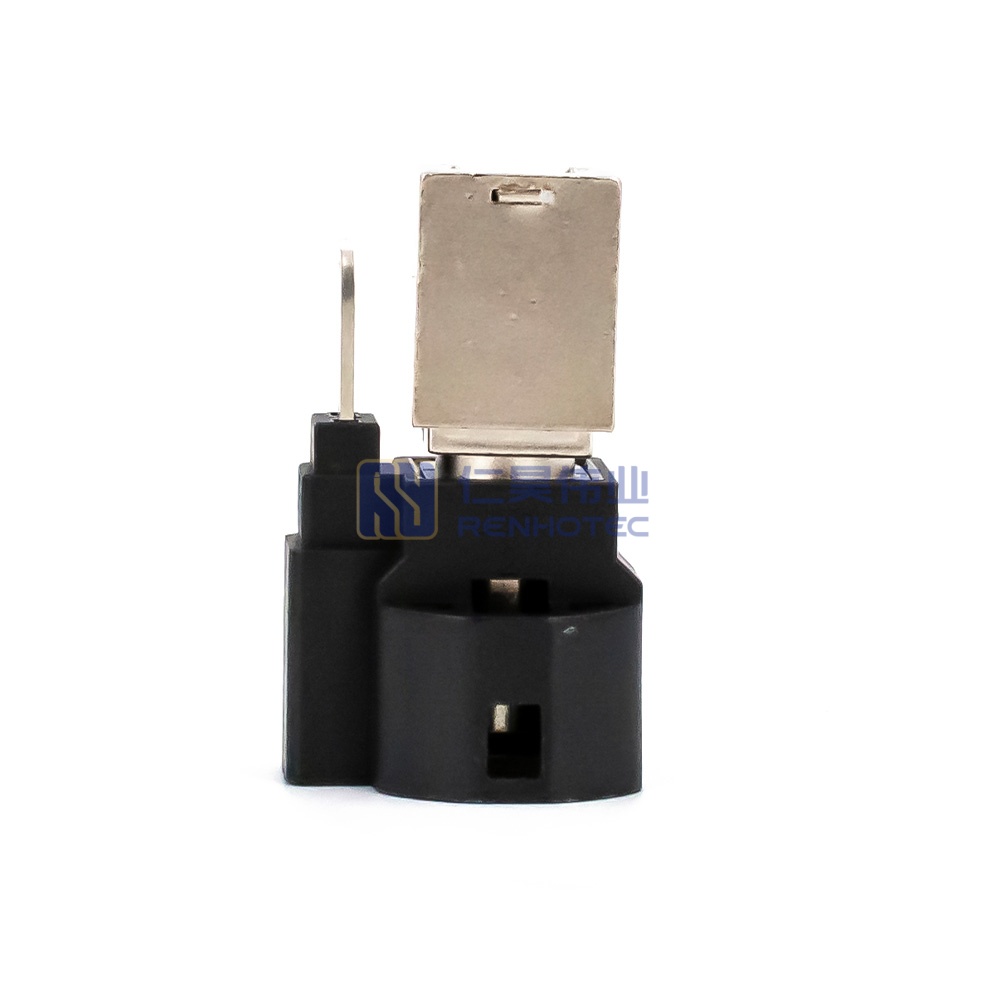

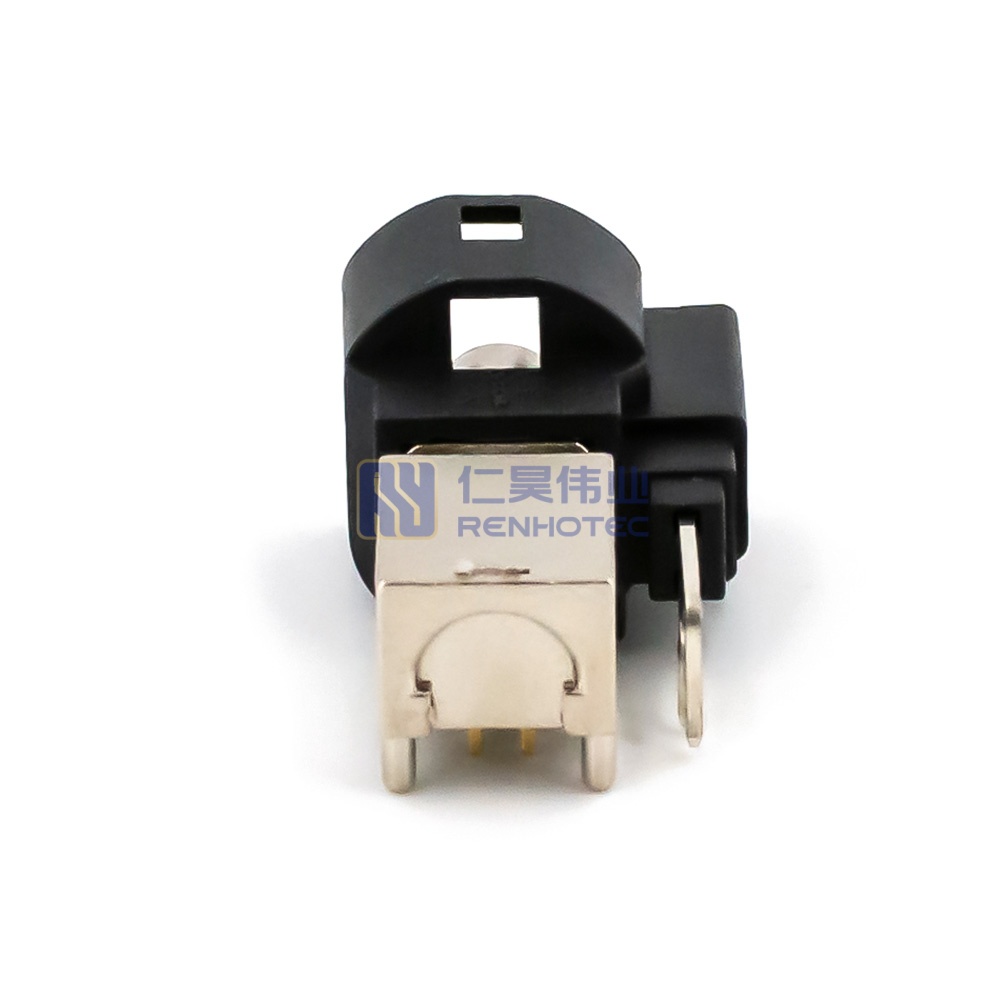

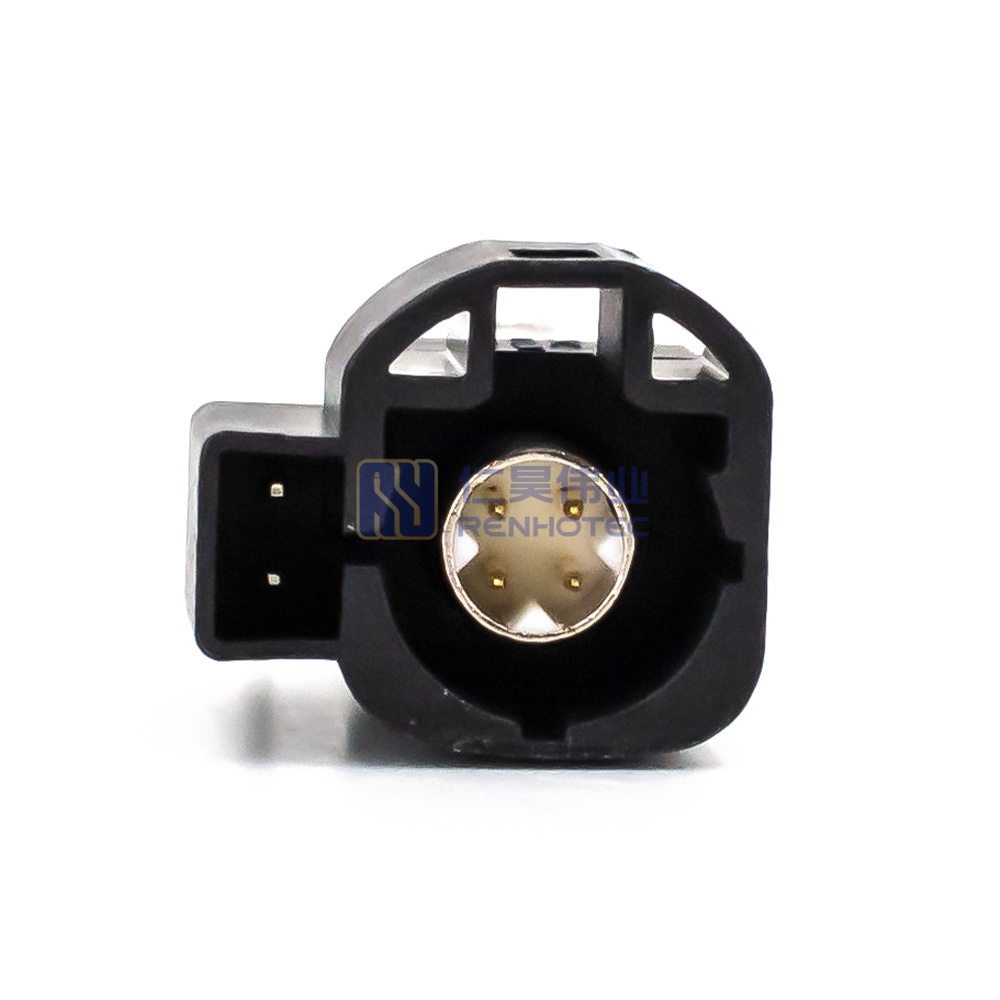

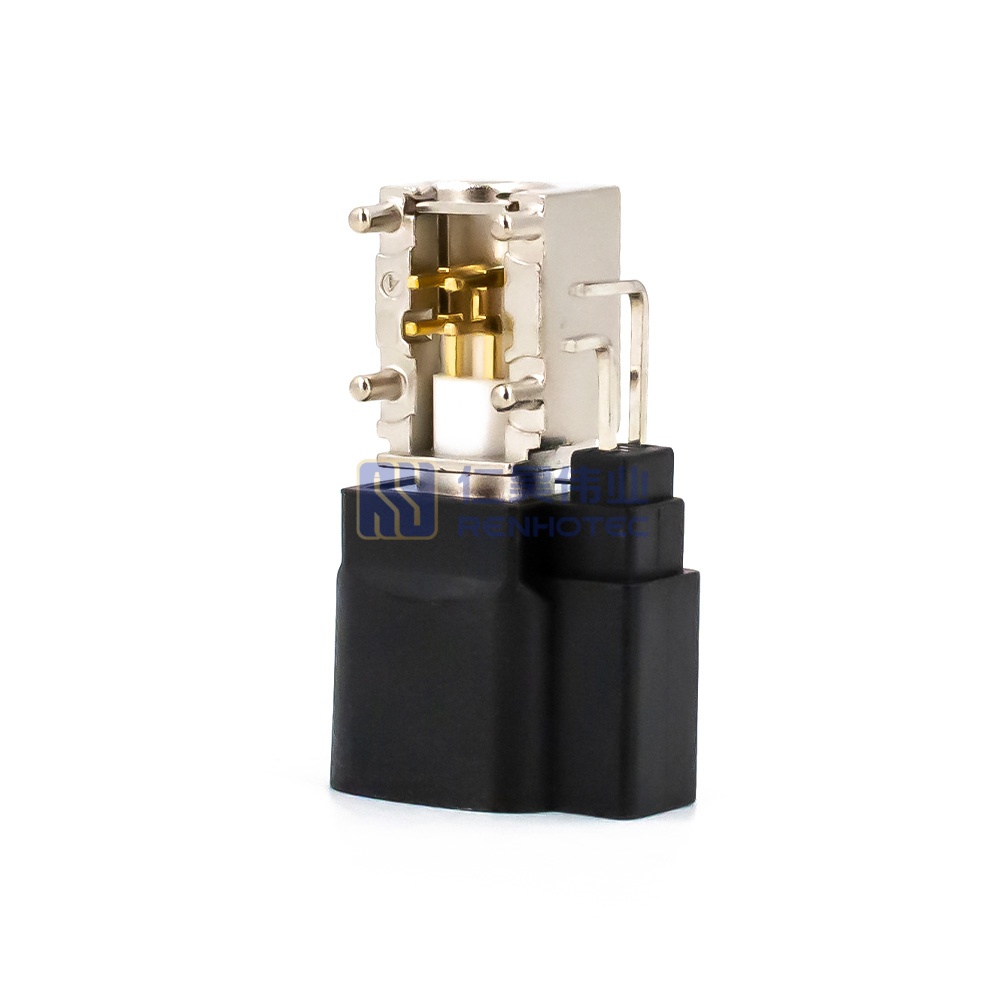

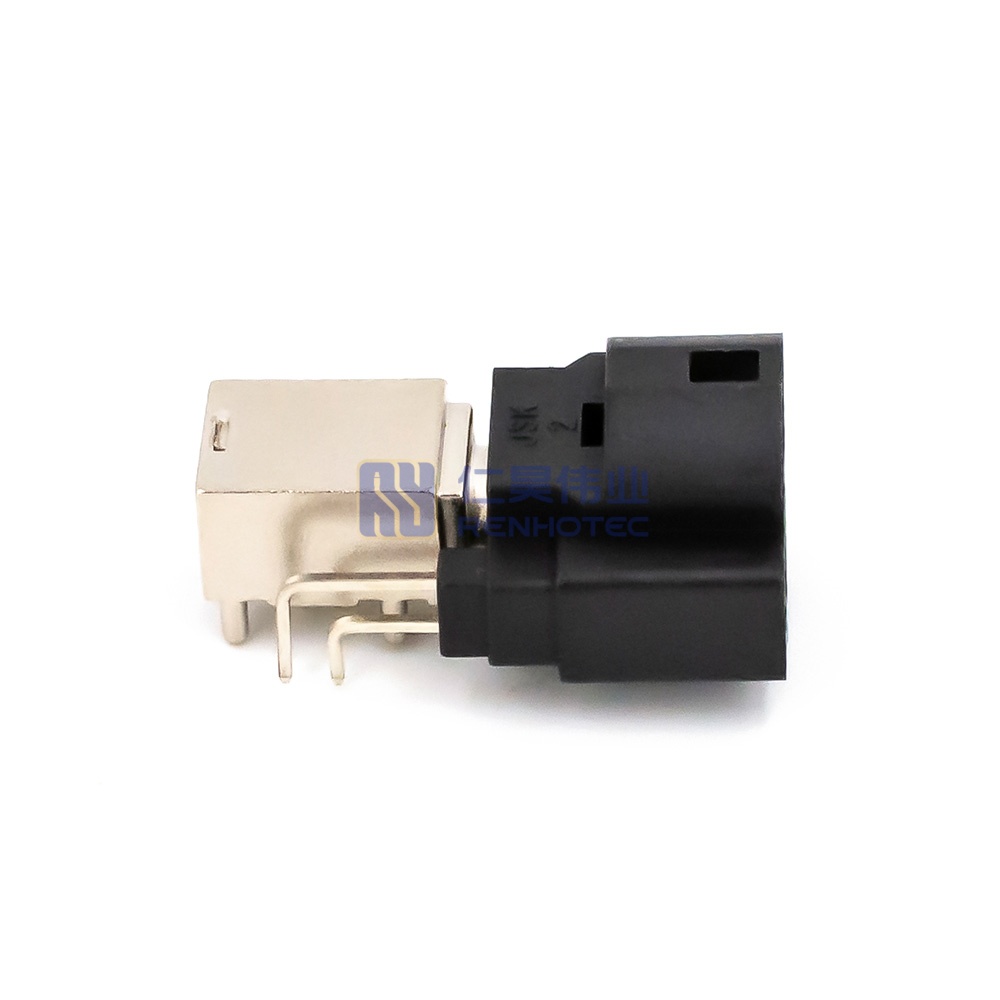

HSD 4+2P A Code Male R/A PCB Mount Connector for GMSL2 Display

HSD connectors provide connectivity solutions for automotive infotainment modules, GMSL/GMSL2 cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive requirements up to 6 Gbps. It is engineered to support leading SerDes protocols with superior signal integrity.

These connectors can be combined with GMSL2, LVDS, IEEE 1394, and USB 2.0. Our high-speed solutions are compatible with the German AK HSD interface and support protocols compliant with USCAR 30.

HSD plug and jack in schematic view with pin assignment

HSD stands for High Speed Data and is a high-density interface available in 1-pin, 4-pin, 6-pin (4+2), and 4+4 pin (Dual HSD) configurations to meet various data and power needs. The core 4-pin data interface is designed based on the “star-four principle”, where the opposite wires form a balanced wire pair to minimize crosstalk and EMI. As the name implies, HSD is dedicated to high-speed data transfer, offering high signal quality and interference safety for the demanding automotive industry.

Key Applications:

• Connects electrical and electronic components in modern vehicles.
• High-resolution video links for GMSL2/FPD-Link cameras and occupant displays.
• Robust connectivity for ADAS (Advanced Driver Assistance Systems).
• Ideal for digital infotainment, HUDs, Ethernet data connections, and telematics systems requiring high-speed video transmission.
