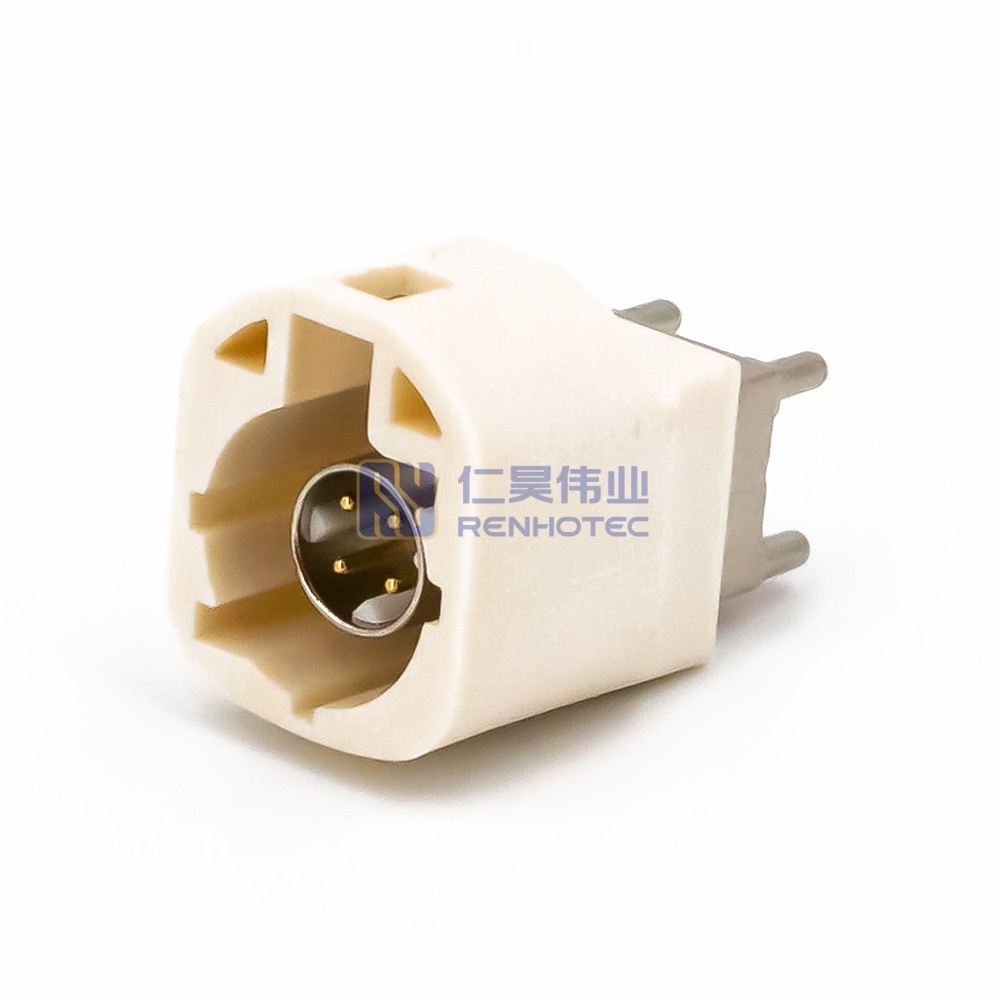

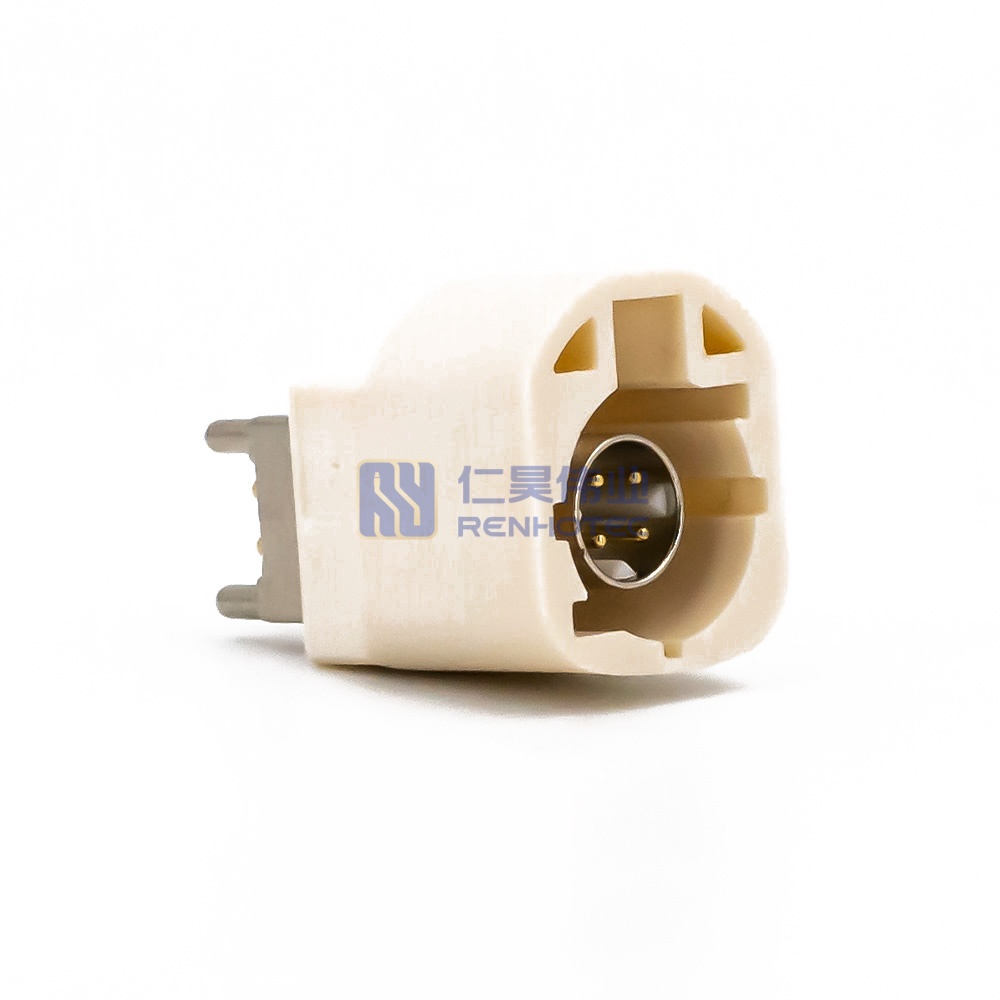

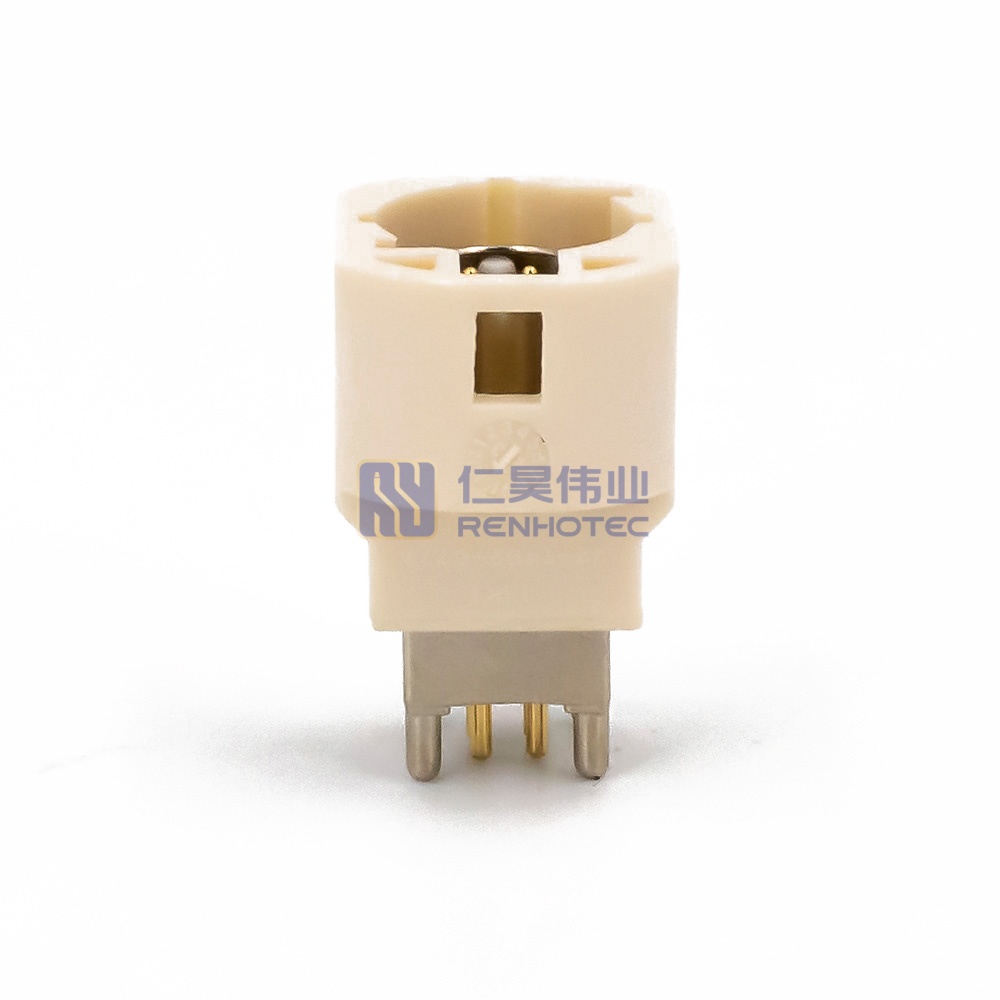

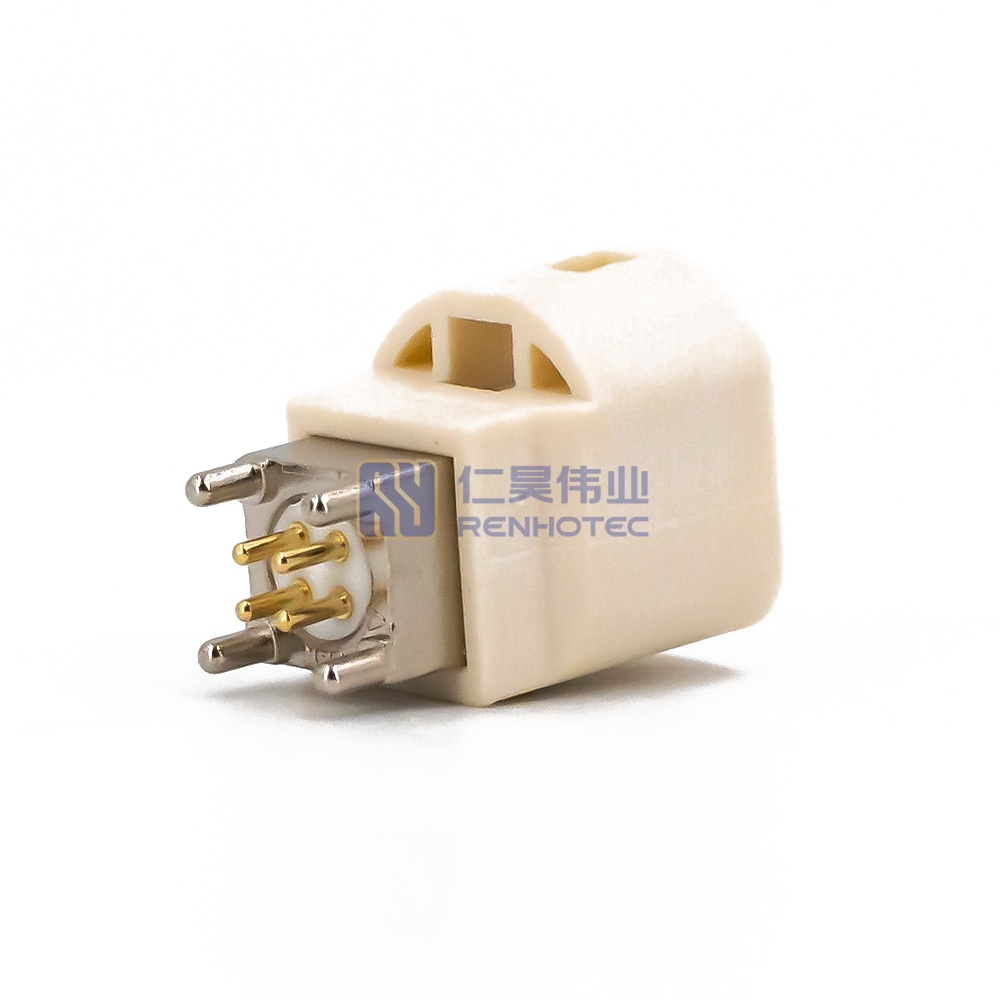

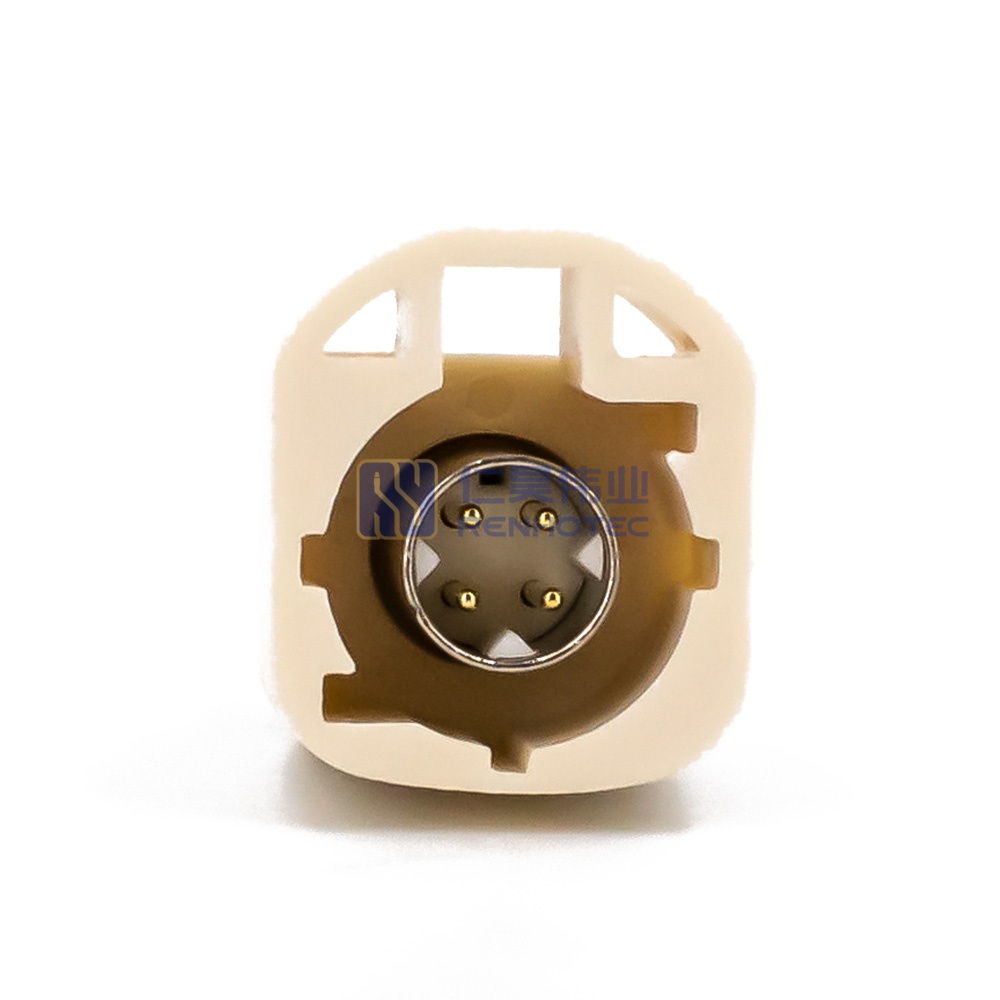

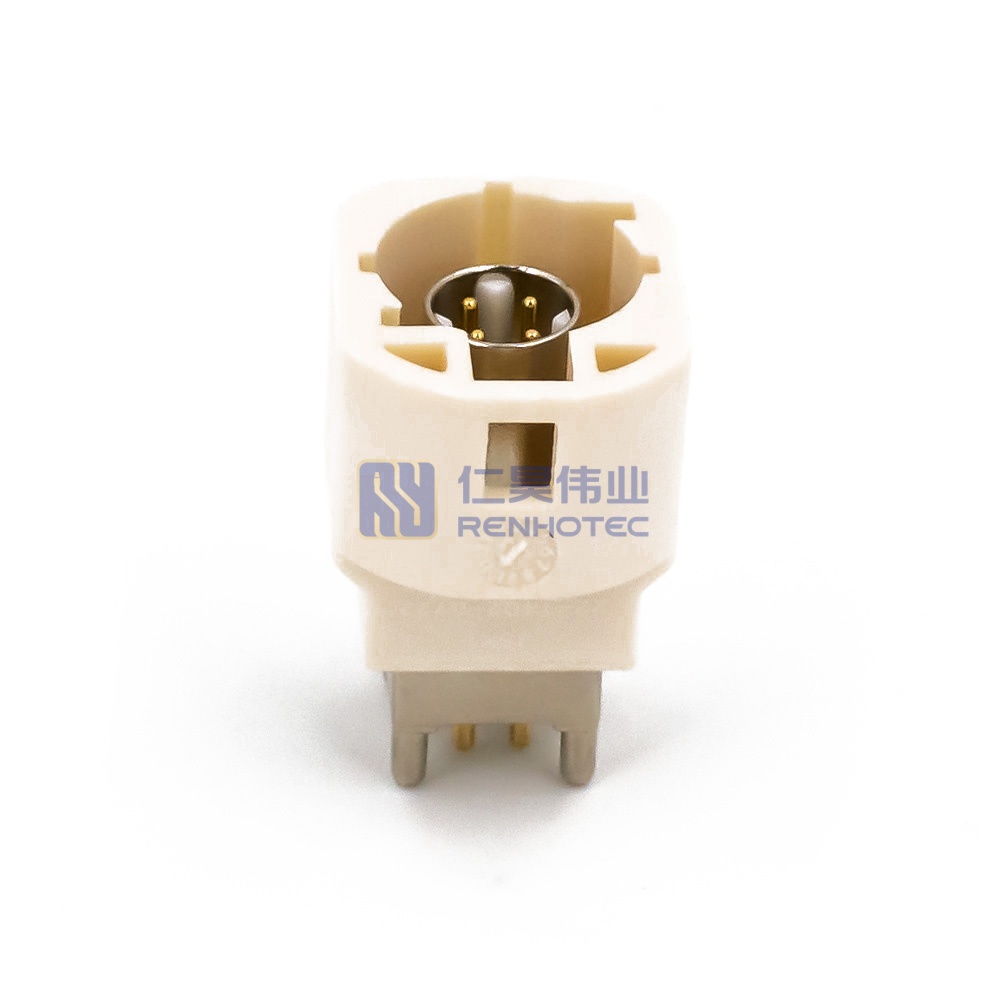

HSD 4P Male B Code Male Straight PCB Mount Connector for GMSL Video Link
| Part Number | 33-1402-0745 |
||
|---|---|---|---|
| Key Code | B |
||
| Part Number | 33-1402-0745 |
Key Code | B |
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Orientation | Straight |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | PCB |
||
| Cable Color | White |
||
| Number of Ports | 4 |
||
| Plastic Housing | PA66 |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | PTFE |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Impedance | 100Ω |
||
| Frequency - Max | DC～2GHz |
||
| Connector Type | Plug |
Orientation | Straight |
| Mounting Type | Panel Mount |
Mounting Feature | PCB |
| Cable Color | White |
Number of Ports | 4 |
| Plastic Housing | PA66 |
Shell Material | Brass |
| Shell Finish | Nickel Plated |
Insulator Material | PTFE |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Impedance | 100Ω |
Frequency - Max | DC～2GHz |
| 基本单位 | 个 |
|---|---|
| Part Number | 33-1402-0745 |
| Connector Type | Plug |
| Orientation | Straight |
| Mounting Type | Panel Mount |
| Mounting Feature | PCB |
| Cable Color | White |
| Key Code | B |
| Number of Ports | 4 |
| Plastic Housing | PA66 |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Insulator Material | PTFE |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Impedance | 100Ω |
| Frequency - Max | DC～2GHz |
HSD connectors provide connectivity solutions for automotive infotainment modules, GMSL/GMSL2 cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive requirements up to 6 Gbps. It is engineered to support leading SerDes protocols with superior signal integrity.
These connectors can be combined with GMSL2, LVDS, IEEE 1394, and USB 2.0. Our high-speed solutions are compatible with the German AK HSD interface and support protocols compliant with USCAR 30.
HSD plug and jack in schematic view with pin assignment
| Code | A | B | C | D | E | F | G |
| Color | Jet black | Cream | Signal blue | Claret violet | Leaf green | Nut brown | Blue grey |
| Male |  |
 |
 |
 |
 |
 |
 |
| Female |  |
 |
 |
 |
 |
 |
 |
| Code | H | J | K | L | M | O | Z |
| Color | Heather violet | Beige | Curry | Yellow green | Pastel orange | Pastel green | Water blue |
| Male |  |
 |
 |
 |
 |
 |
 |
| Female |  |
 |
 |
 |
 |
 |
 |
HSD stands for High Speed Data and is a high-density interface available in 1-pin, 4-pin, 6-pin (4+2), and 4+4 pin (Dual HSD) configurations to meet various data and power needs. The core 4-pin data interface is designed based on the “star-four principle”, where the opposite wires form a balanced wire pair to minimize crosstalk and EMI. As the name implies, HSD is dedicated to high-speed data transfer, offering high signal quality and interference safety for the demanding automotive industry. Key Applications:
