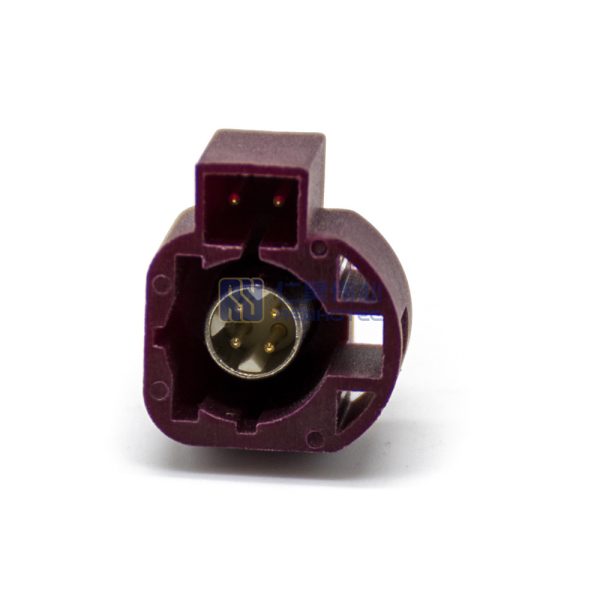

HSD Connector Plug Straight 4+2 Pin Panel Mount

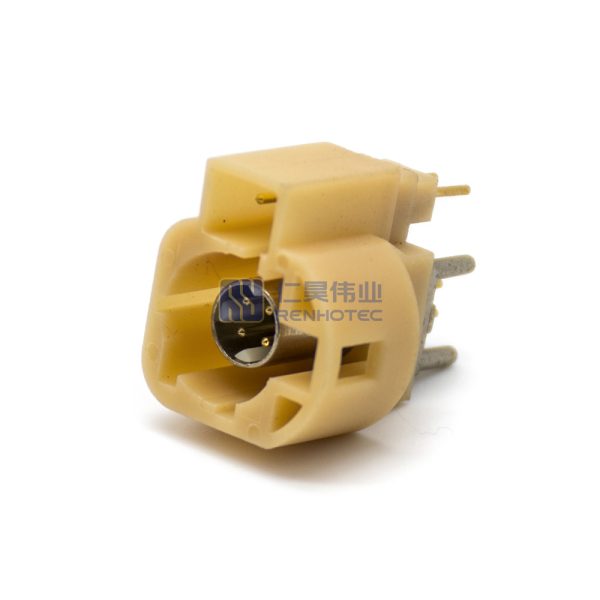

HSD Connector Plug Straight 4+2 Pin Panel Mount - Image 2

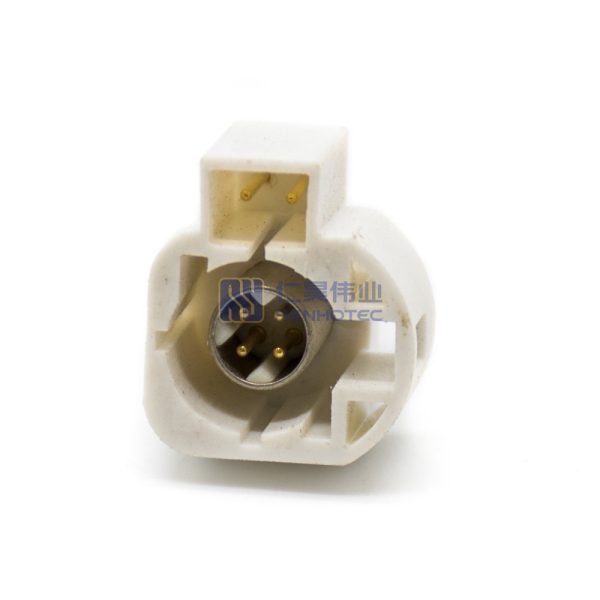

HSD Connector Plug Straight 4+2 Pin Panel Mount - Image 3

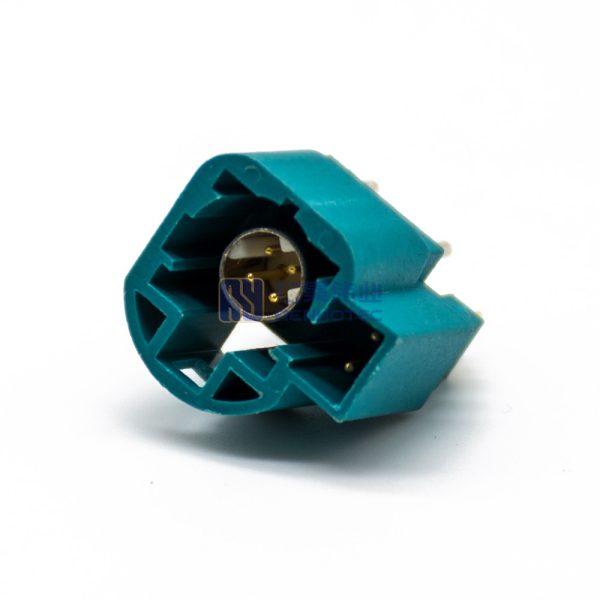

HSD Connector Plug Straight 4+2 Pin Panel Mount - Image 4

Request for Quotation

HSD Connector Plug Straight 4+2 Pin Panel Mount

OEM Compatibility & Manufacturer Part Number Reference

This product can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.

Rosenberger Part No.	99S10D-40MA5-Y
TE Connectivity Alternative	2177954

Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.

SKU ID-3453 Category HSD Connectors

Product Files

Open drawing and specification files.

Drawing PDF

Securely connect your devices with this HSD Connector Plug. This straight 4+2 pin panel mount ensures a reliable and stable connection for optimal performance in various applications.

Product Specification

Cable Color	Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green
Contact Finish	Gold Plated
Contact Material	Copper
Contact Termination Style	Solder
Connector Type	Plug
Contact Type	Male Pin
Core Connection Resistance	≤ 10 MΩ
Impedance	100 ohm
Insulator Material	PA, LCP
Latch Holding Force	≥110N
Mating Durability	≥ 25 Cycles
Mounting Feature	Through Hole
Mounting Type	Panel Mount
Number of Ports	4+2
Operating Voltage	100V rms
Orientation	Straight
Plastic Housing	PA, PBT
RF Series	HSD
Temperature Range	-40°C to +105°C
Withstand Voltage	250V rms
Cable Color	Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green	Contact Finish	Gold Plated
Contact Material	Copper	Contact Termination Style	Solder
Connector Type	Plug	Contact Type	Male Pin
Core Connection Resistance	≤ 10 MΩ	Impedance	100 ohm
Insulator Material	PA, LCP	Latch Holding Force	≥110N
Mating Durability	≥ 25 Cycles	Mounting Feature	Through Hole
Mounting Type	Panel Mount	Number of Ports	4+2
Operating Voltage	100V rms	Orientation	Straight
Plastic Housing	PA, PBT	RF Series	HSD
Temperature Range	-40°C to +105°C	Withstand Voltage	250V rms

Cable Color	Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green
Contact Finish	Gold Plated
Contact Material	Copper
Contact Termination Style	Solder
Connector Type	Plug
Contact Type	Male Pin
Core Connection Resistance	≤ 10 MΩ
Impedance	100 ohm
Insulator Material	PA, LCP
Latch Holding Force	≥110N
Mating Durability	≥ 25 Cycles
Mounting Feature	Through Hole
Mounting Type	Panel Mount
Number of Ports	4+2
Operating Voltage	100V rms
Orientation	Straight
Plastic Housing	PA, PBT
RF Series	HSD
Temperature Range	-40°C to +105°C
Withstand Voltage	250V rms

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.
