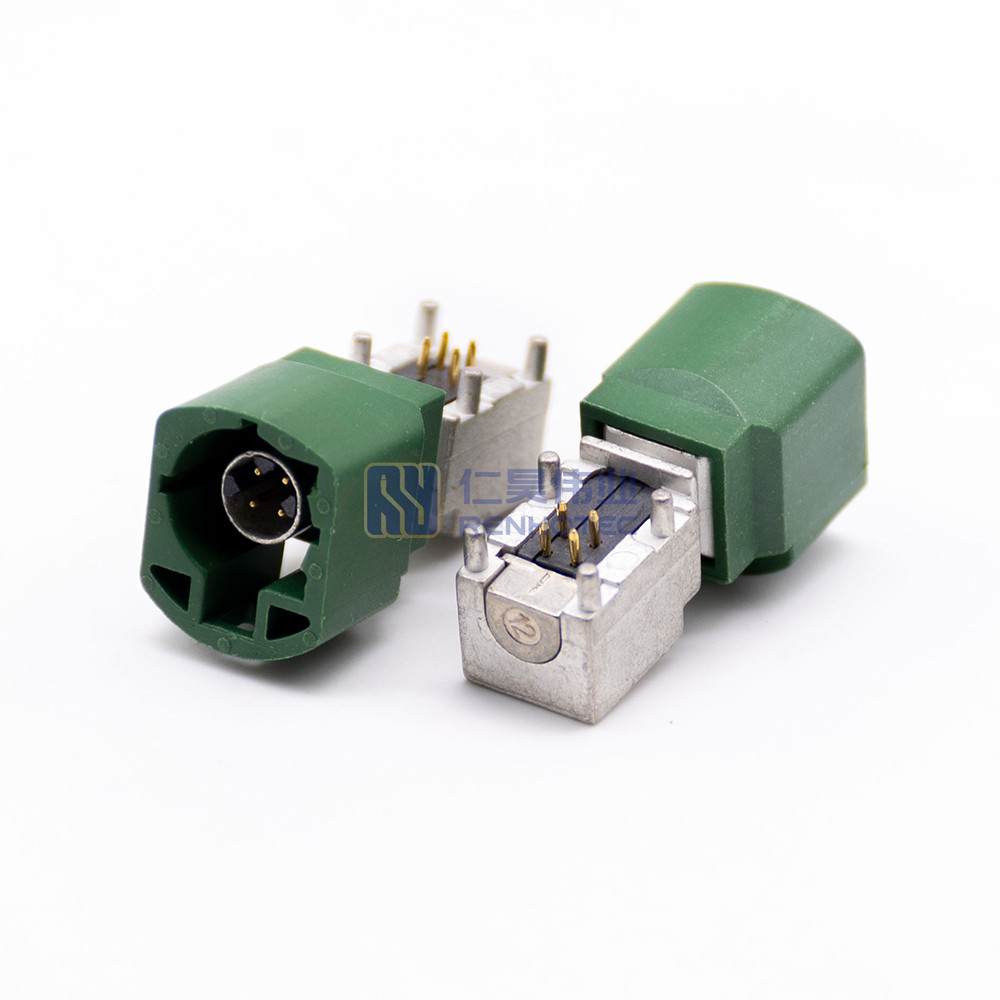

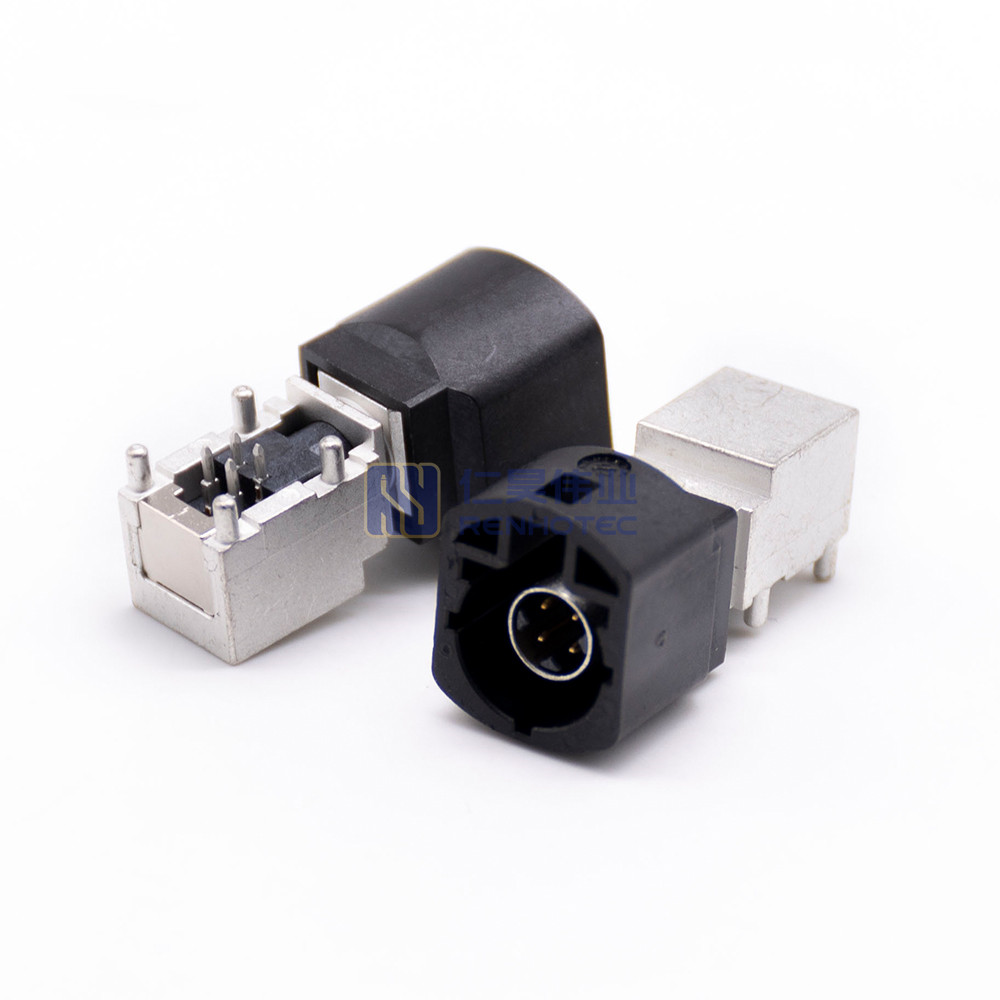

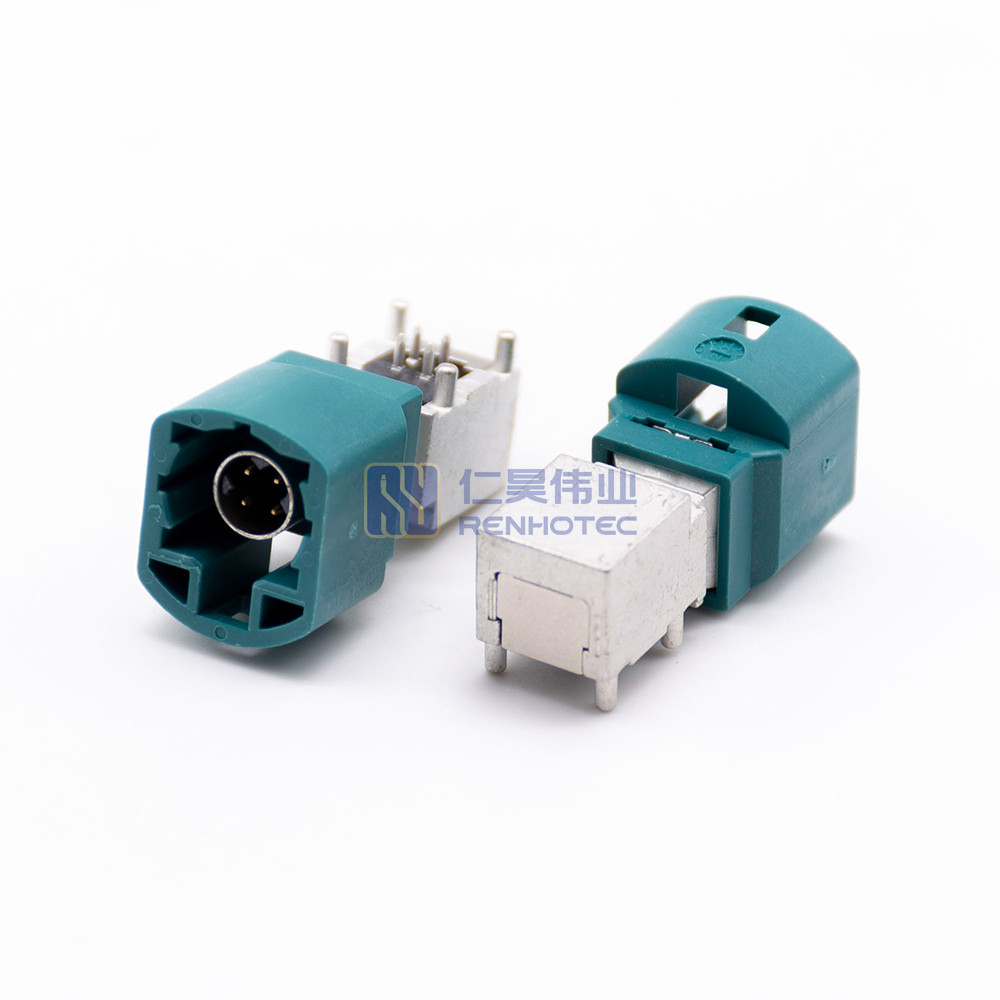

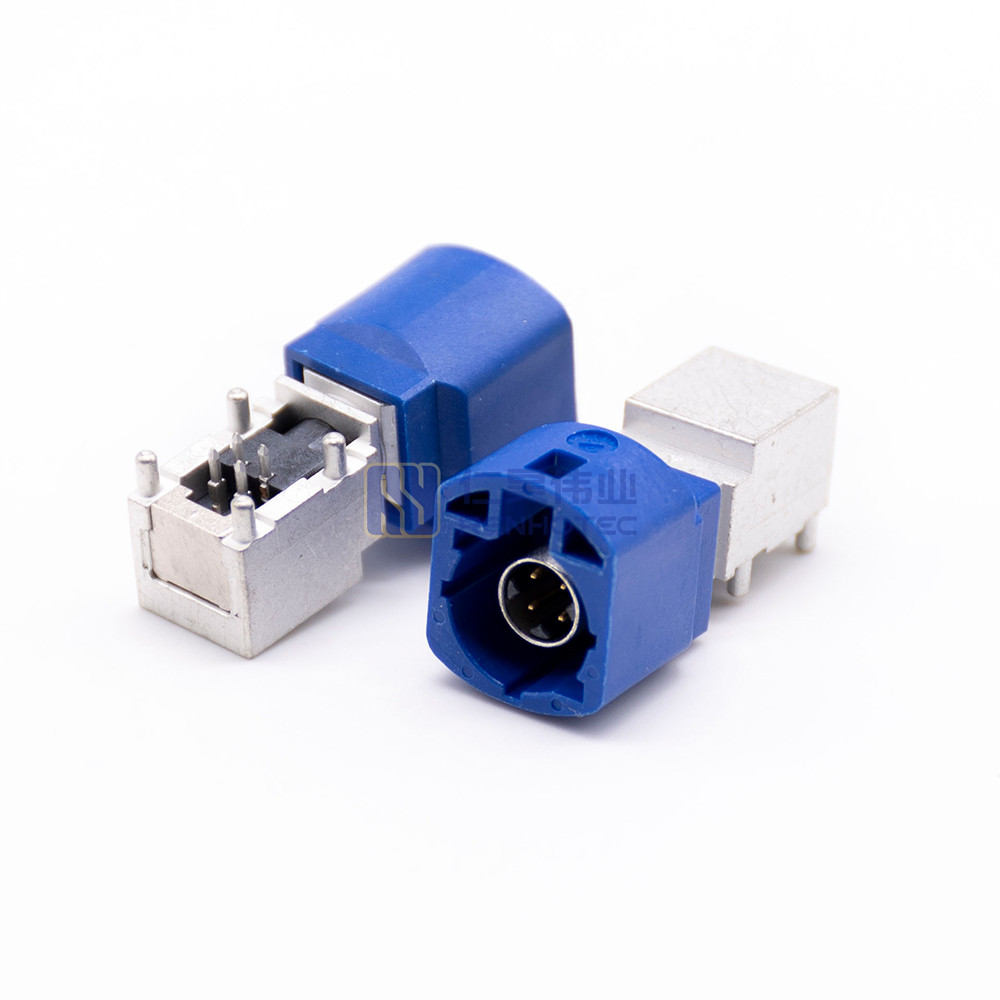

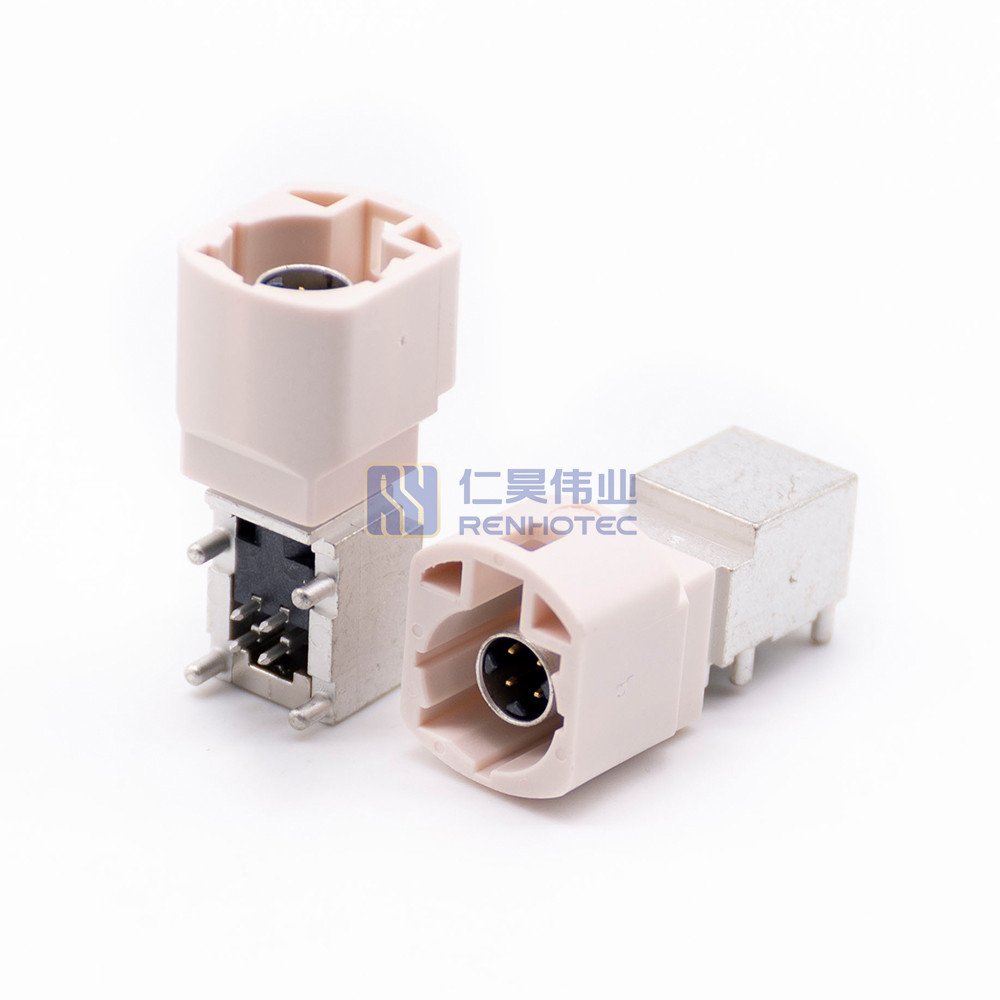

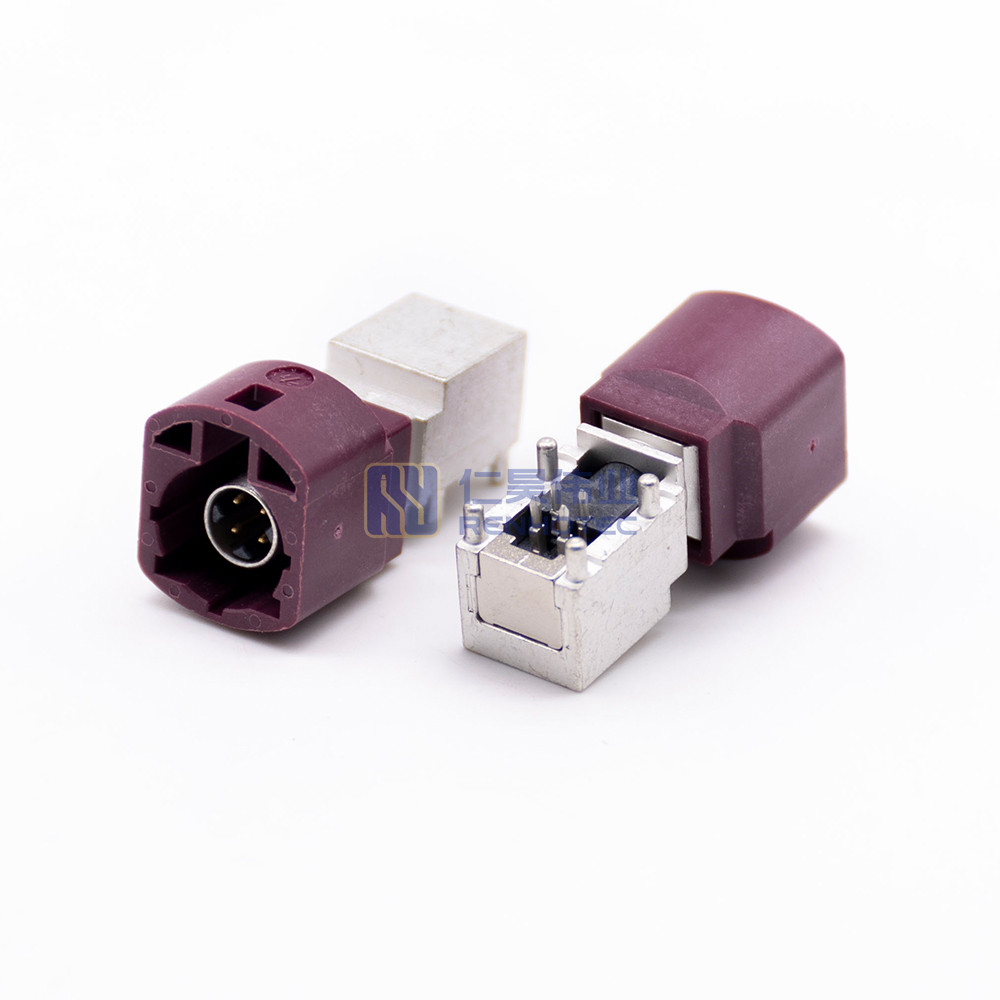

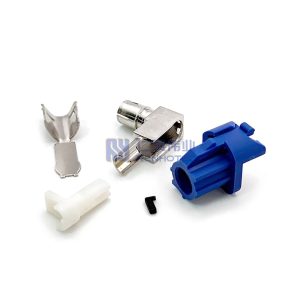

HSD Connector Plug Right Angle 4 Pin Panel Mount

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.

HSD Interface Dimensions

HSD Connector Coding

Product Specification

RF Series

HSD

Connector Type

Plug

Contact Type

Male Pin

Orientation

Right Angle

Contacts

4 Pin

Contact Termination Style

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Plastic Housing

PA, PBT

Contact Material

Copper

Insulator Material

PA, LCP

Contact Finish

Gold Plated

Impedance

100 ohm

Operating Voltage

100V rms

Withstand Voltage

250 V rms

Core Connection Resistance

≤ 10 MΩ

Mating Durability

≥ 25 Cycles

Latch Holding Force

≥110N

Temperature Range

-40°C to +105°C

Cable Color

Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green
