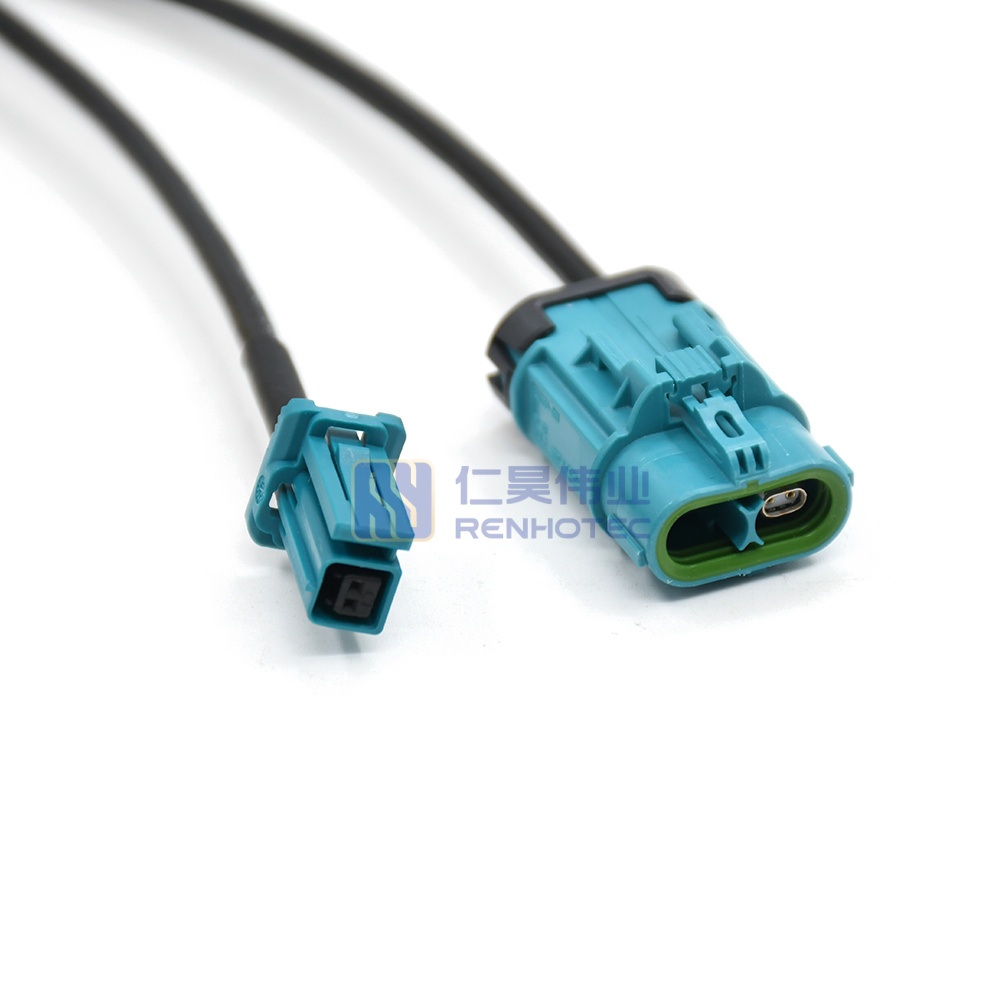

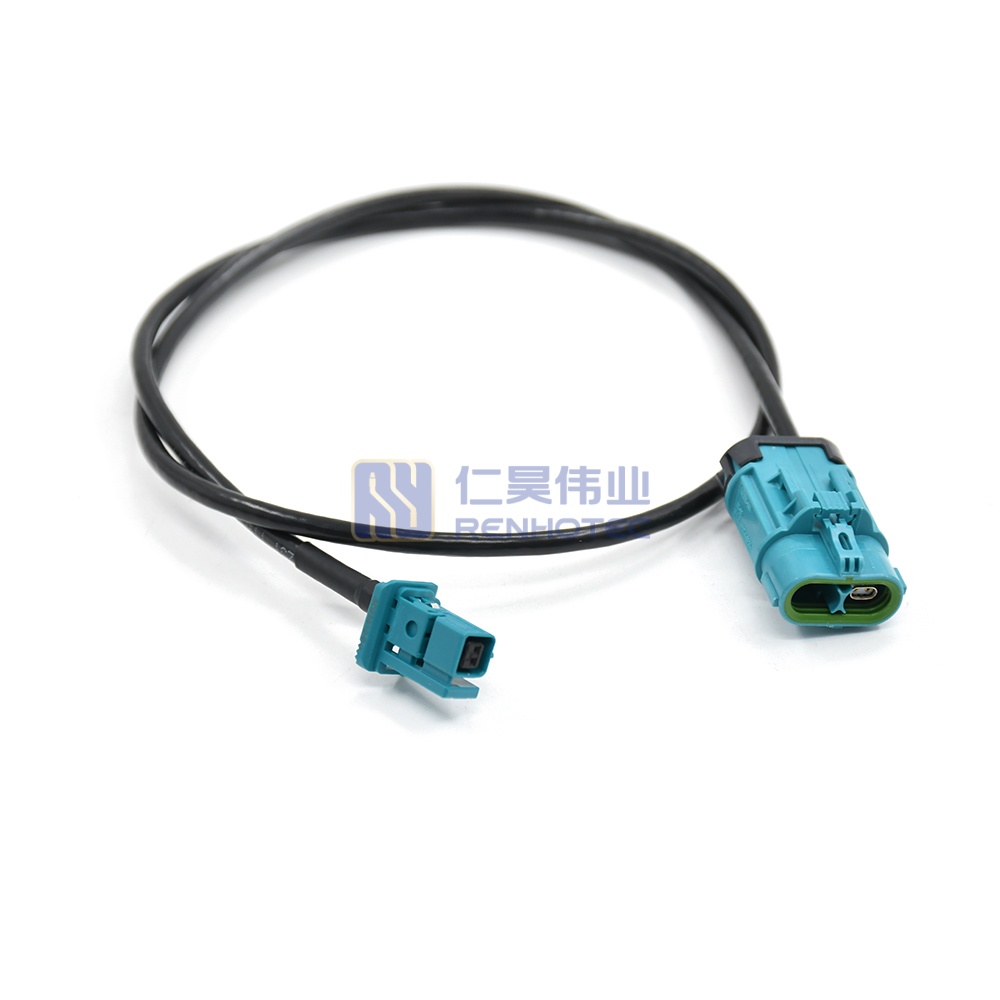

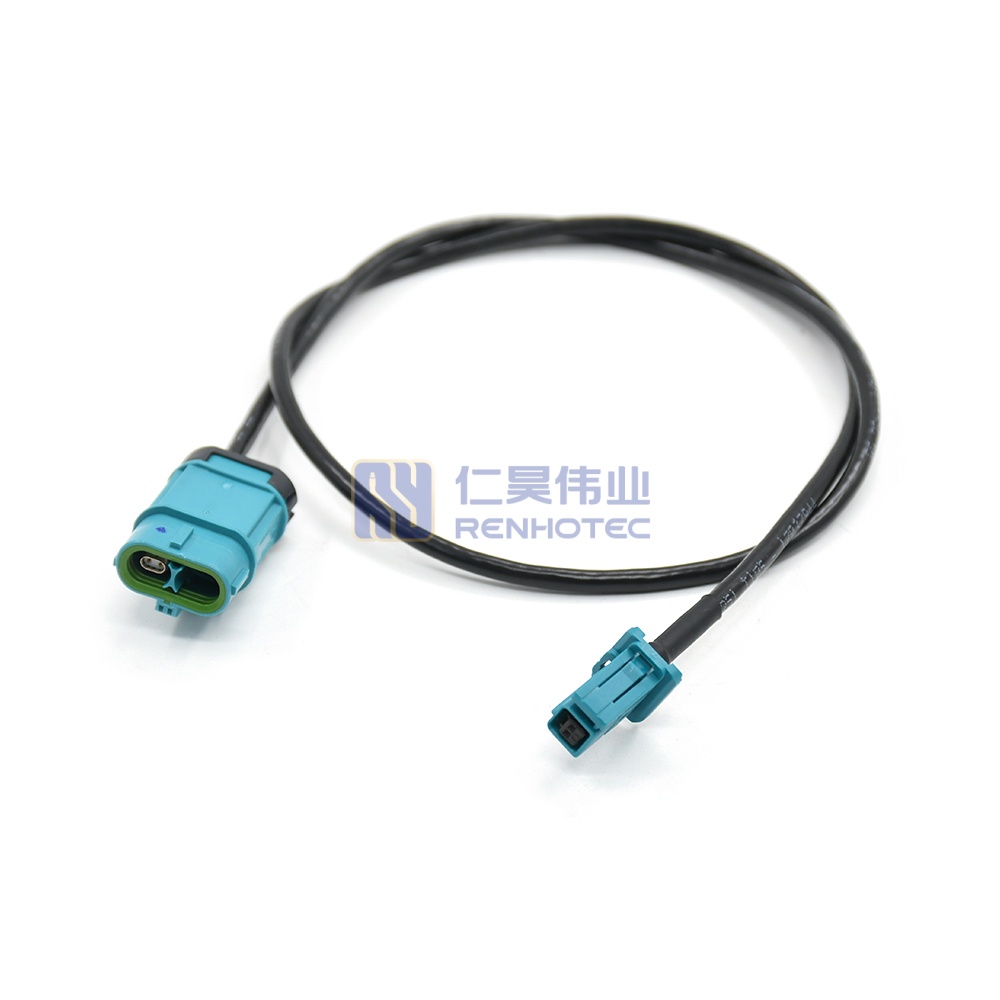

H-MTD E6K14B-1CAZ5-y to 2302452-3 + 2302454-9 + 2-1703930-4 + 2302450-1 cable, L=600MM
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-9816 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-9816 |
| Rosenberger Part No. | 1st Connector E6K14B-1CAZ5-y |
| TE Connectivity Alternative | 2nd Connector 2302452-3 + 2302454-9 + 2-1703930-4 + 2302450-1 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Connector | E6K14B-1CAZ5-y |
||
|---|---|---|---|
| 2nd Connector | 2302452-3 + 2302454-9 + 2-1703930-4 + 2302450-1 |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Plastic Housing | PBT-I-GF30 |
||
| Contact Material | Bronze |
||
| Insulator Material | PBT |
||
| Impedance | 100Ω |
||
| 1st Connector | E6K14B-1CAZ5-y |
2nd Connector | 2302452-3 + 2302454-9 + 2-1703930-4 + 2302450-1 |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Plastic Housing | PBT-I-GF30 |
Contact Material | Bronze |
| Insulator Material | PBT |
Impedance | 100Ω |
| Operation Temperature | -40℃~ +105℃ |
|---|---|
| Operation Temperature | -40℃~ +105℃ |
| 1st Connector | E6K14B-1CAZ5-y |
|---|---|
| 2nd Connector | 2302452-3 + 2302454-9 + 2-1703930-4 + 2302450-1 |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Plastic Housing | PBT-I-GF30 |
| Contact Material | Bronze |
| Insulator Material | PBT |
| Impedance | 100Ω |
| Operation Temperature | -40℃~ +105℃ |
Drawing for H-MTD E6K14B-1CAZ5-y to 2302452-3 + 2302454-9 + 2-1703930-4 + 2302450-1 cable
