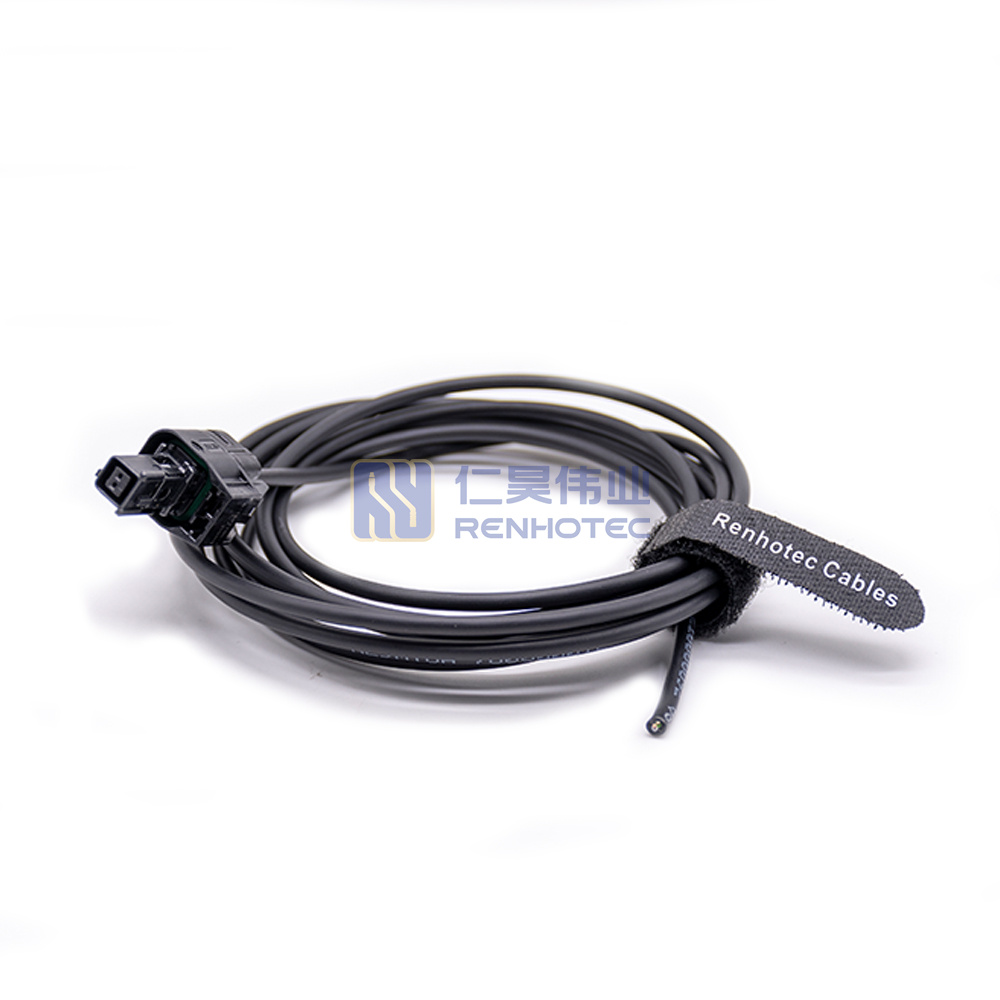

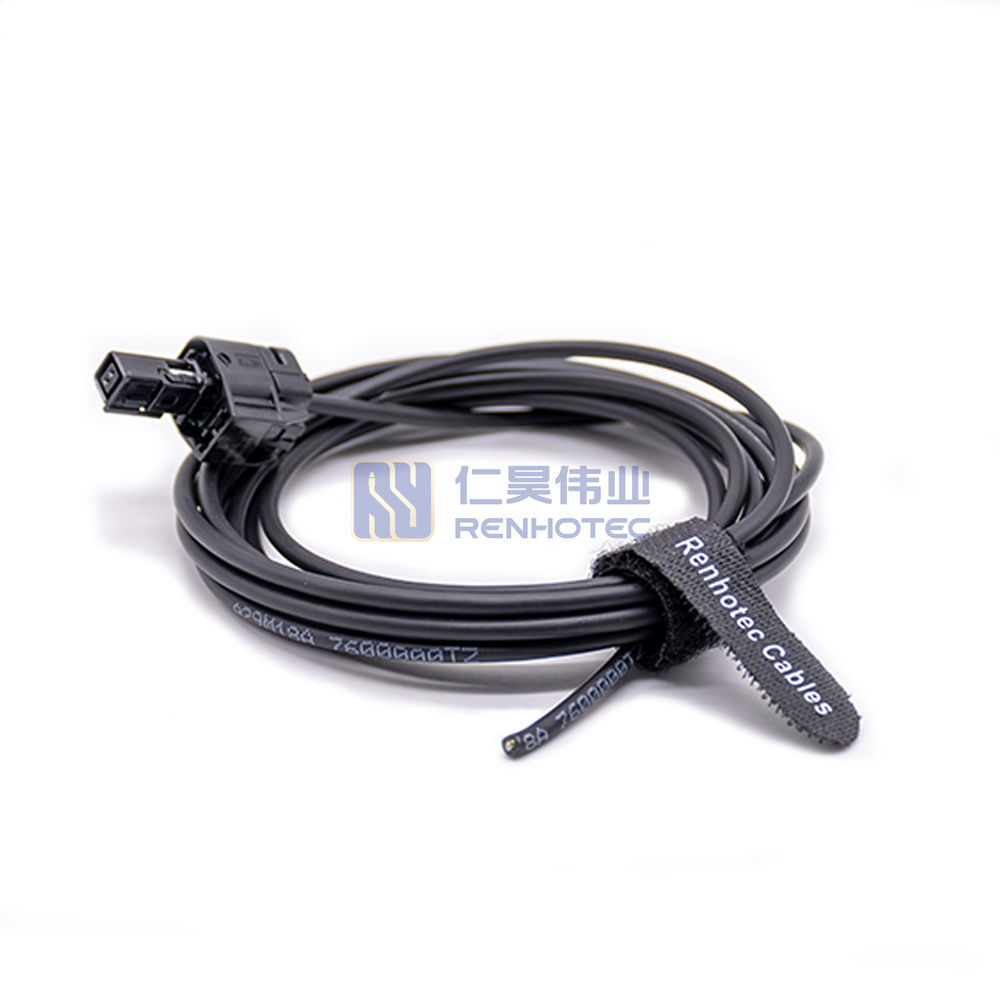

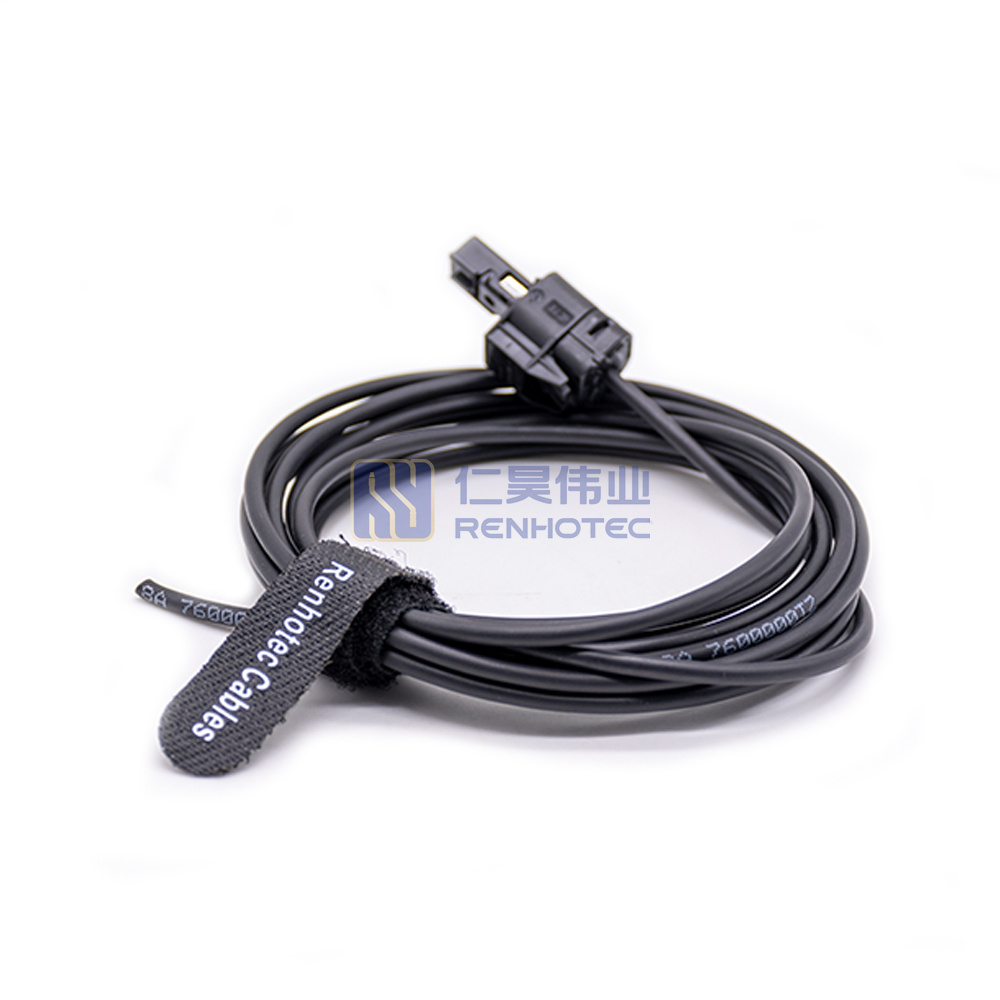

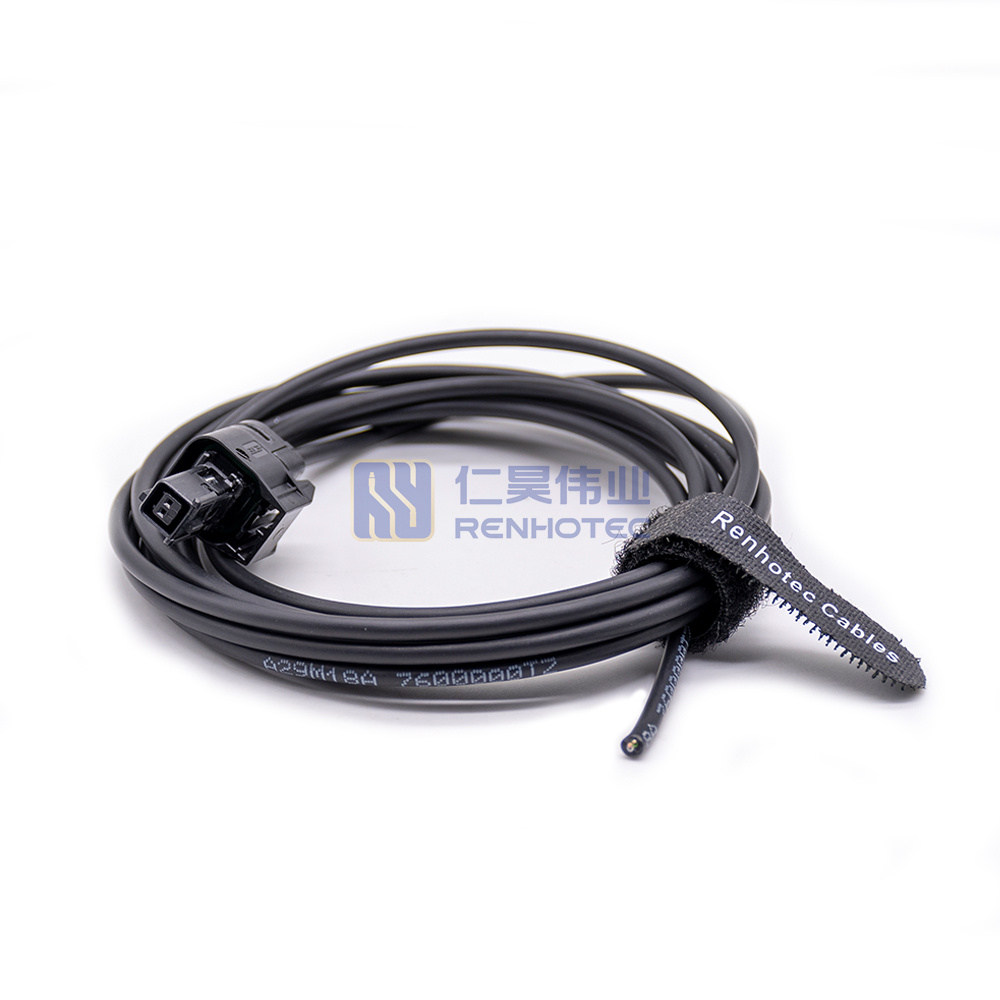

9-1802105-9 Automotive Ethernet Cable Assemblies,A Code Male cable
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF 104-12-10012 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | 104-12-10012 |
| TE Connectivity Alternative | 9-1802105-9 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
- Primary and secondary lock
- High cable retention force
- High coding efficiency (different codings on plastichousings to avoid misconnections)
- No contact pin damage possible
- Optional Connector Position Assurance (CPA)
Product Specification
| 1st Connector | 9-1802105-9, A Code |
||
|---|---|---|---|
| 1st Contact Type | Female Pin |
||
| 1st Connector Orientation | Straight |
||
| Plastic Housing | PA, PBT |
||
| Contact Material | Copper |
||
| Insulator Material | PA, LCP |
||
| Impedance | 100 ohm |
||
| 1st Connector | 9-1802105-9, A Code |
1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
Plastic Housing | PA, PBT |
| Contact Material | Copper |
Insulator Material | PA, LCP |
| Impedance | 100 ohm |
| 1st Connector | 9-1802105-9, A Code |
|---|---|
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| Plastic Housing | PA, PBT |
| Contact Material | Copper |
| Insulator Material | PA, LCP |
| Impedance | 100 ohm |
Automotive Ethernet Cable Assemblies
Automotive Ethernet Cable Assemblies are modular and scalable miniaturized data connector system for Automotive Ethernet. It can transmit up to 1?Gbps according to IEEE 100BASE-T1 and 1000BASE-T1 standards, and up to 4?Gbps, based on alternative technologies. It offers true automotive robustness and is compatible with both unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP) variants.
Automotive Ethernet Cable Assemblies offer 600mm to 10m cable lengths and female/female, male, and male/male gender options. These cable assemblies include no connector, plug, receptacle, and socket connector ends. Automotive Ethernet Cable Assemblies are Miniaturized Automotive Terminals for Ethernet applications.
Application
Product Portfolio Overview
Automotive Ethernet Cable Assemblies
Drawing for 9-1802105-9 Automotive Ethernet Cable Assemblies A Code Male cableDownload
