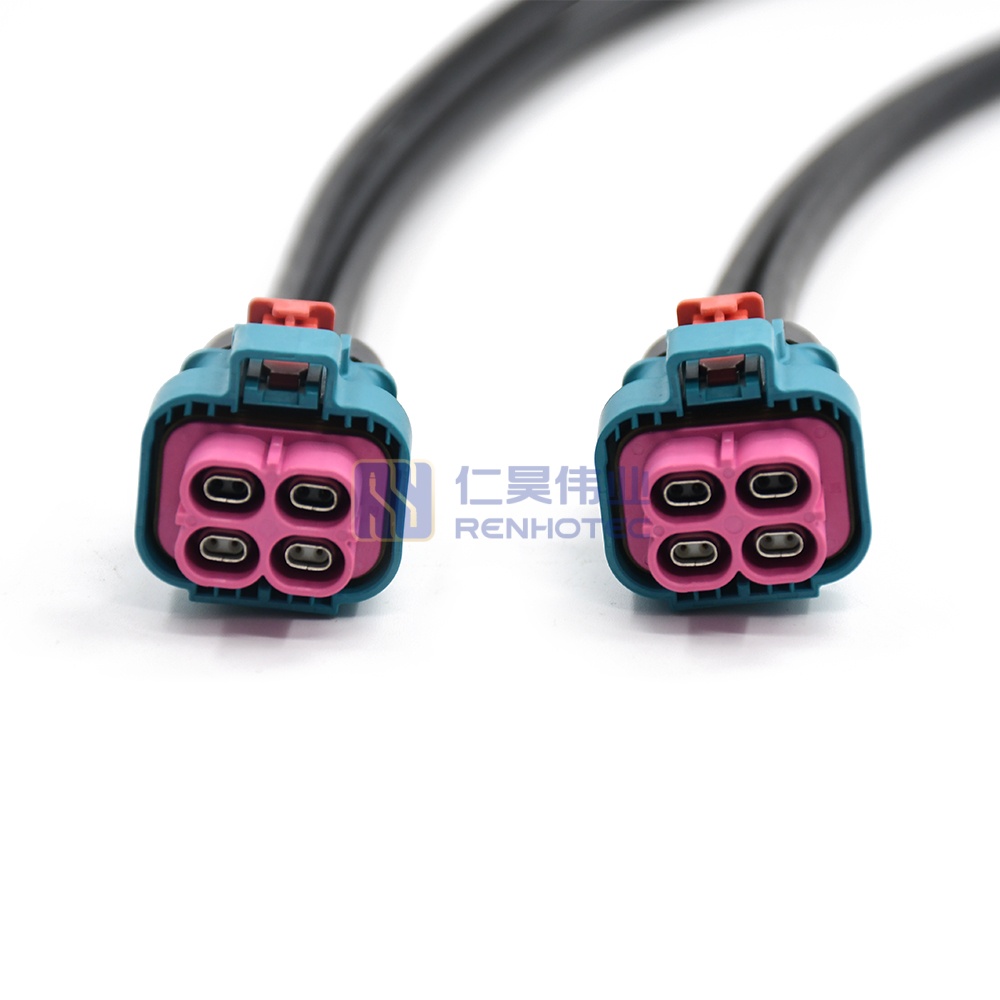

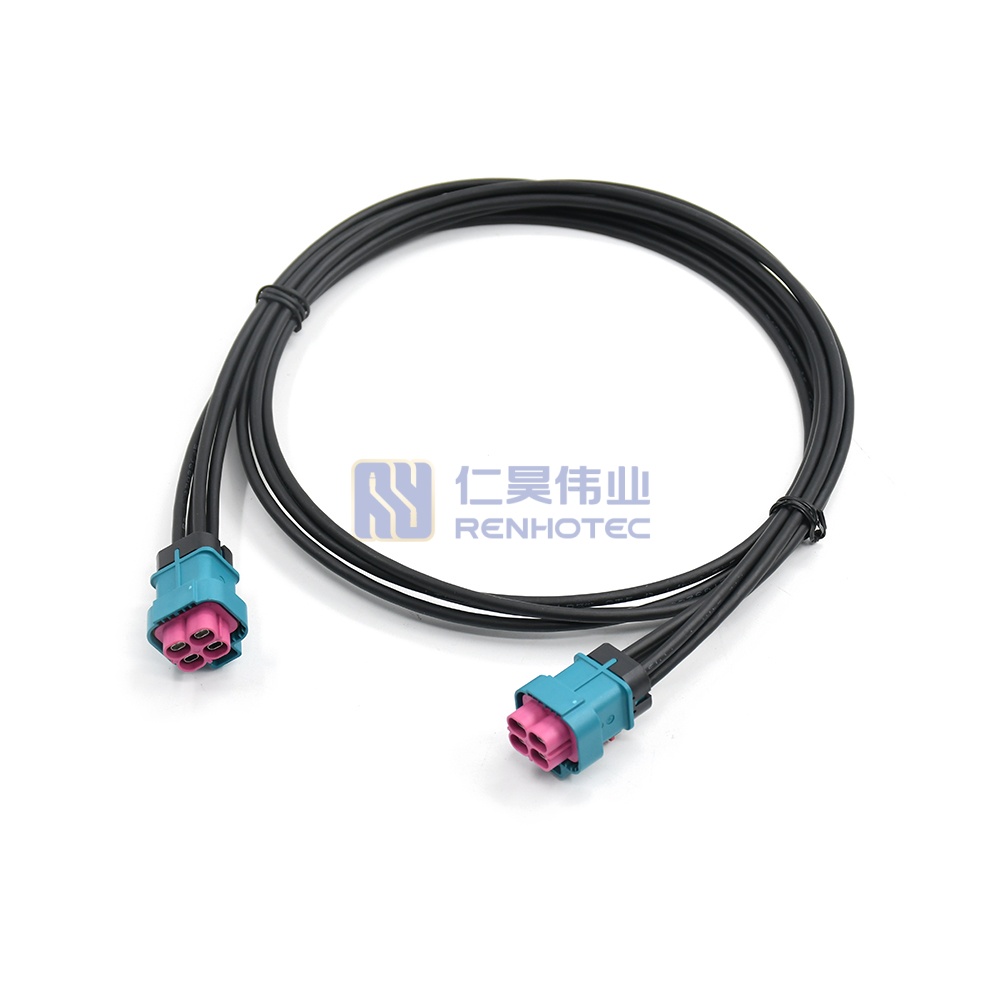

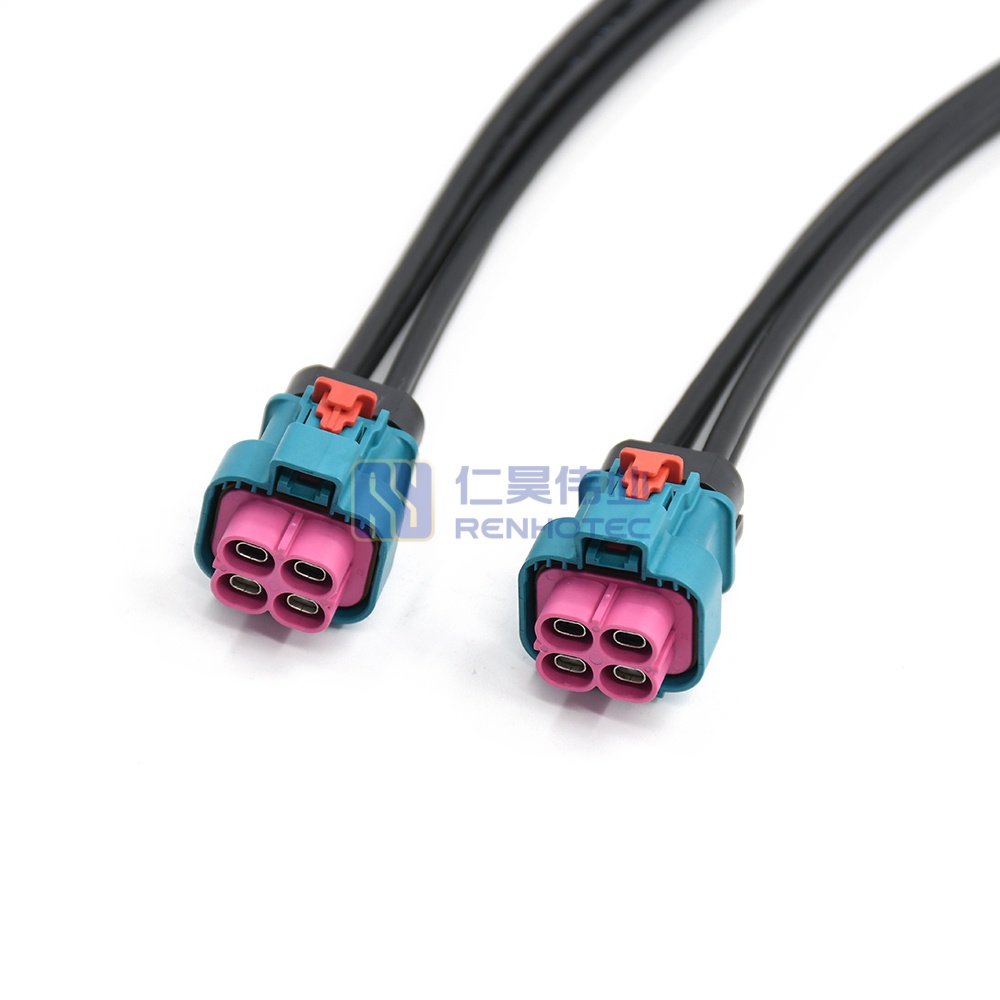

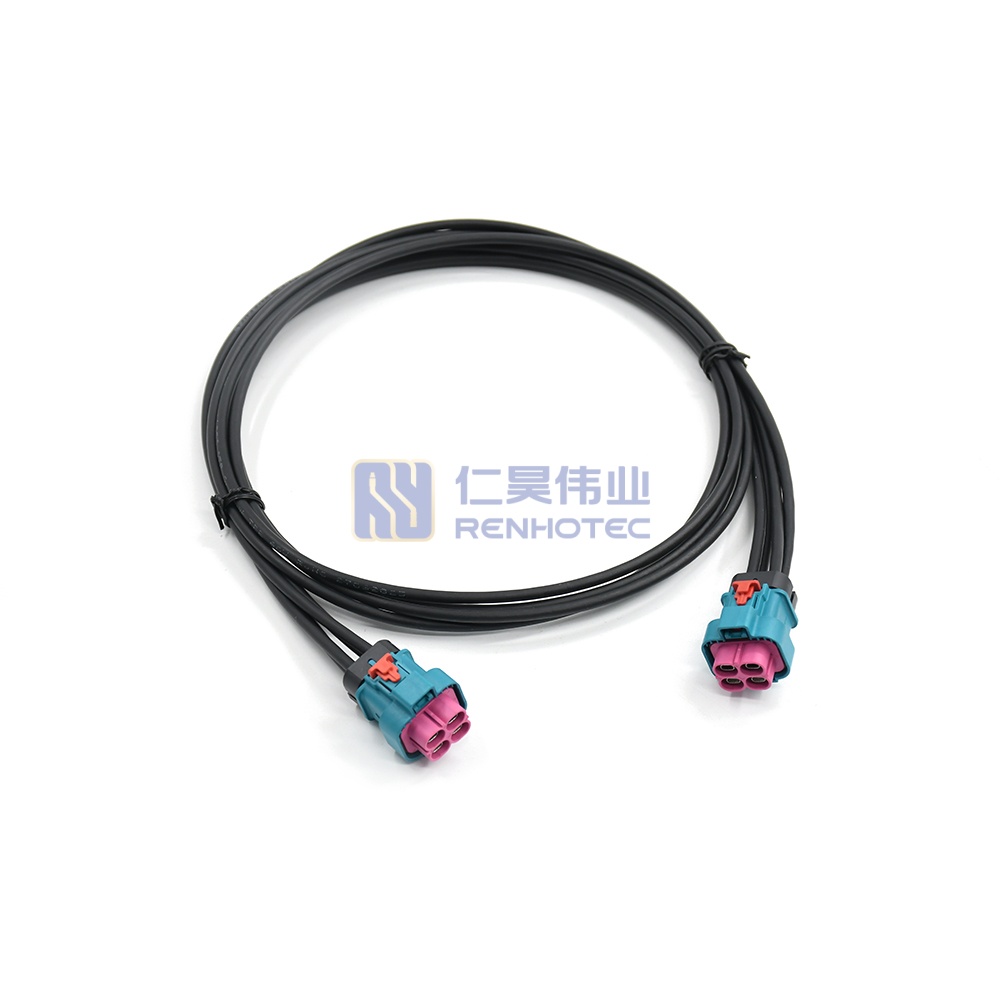

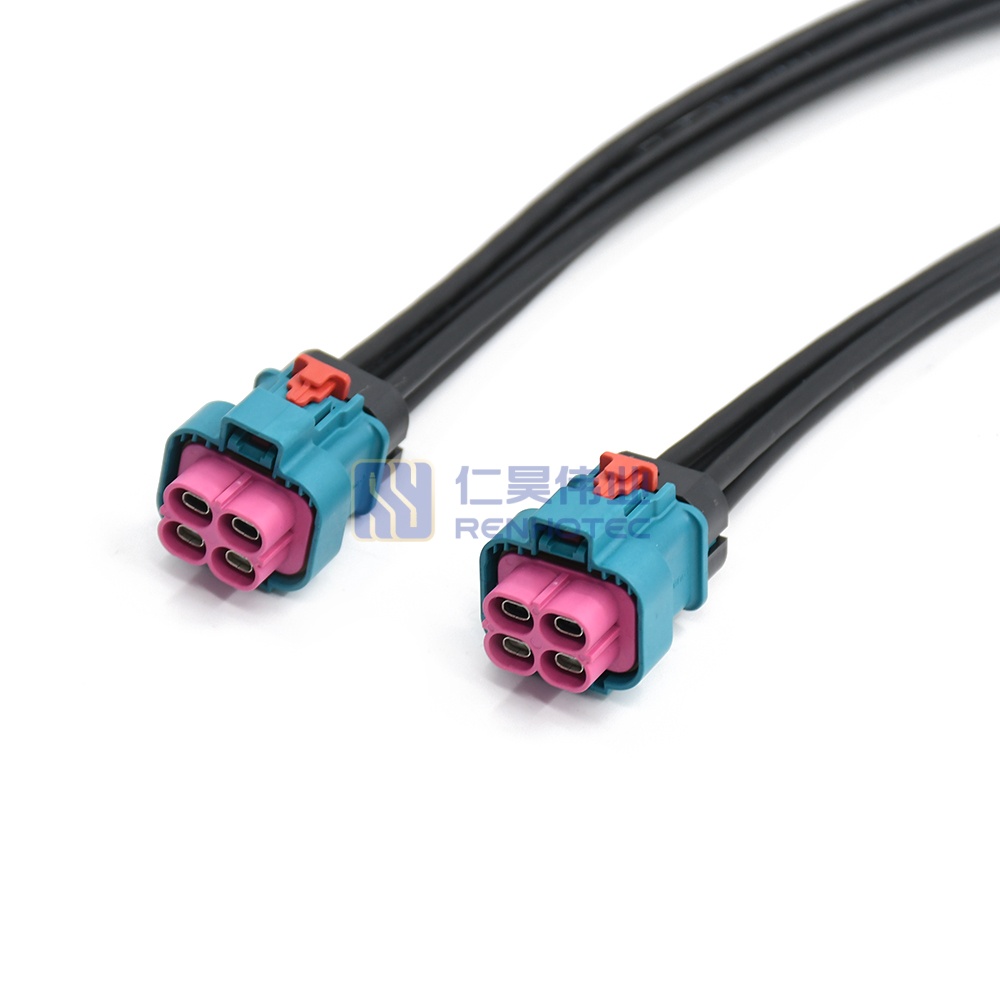

VNTCF022Z20S toVNTCF022Z20S forCABLTKSTPD38 STP LTK, L=1000MM
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-9899 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-9899 |
| Rosenberger Part No. | 1st Connector VNTCF022Z20S; 2nd Connector VNTCF022Z20S |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Connector | VNTCF022Z20S |
||
|---|---|---|---|
| 2nd Connector | VNTCF022Z20S |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Dielectric Withstanding Voltage | 500V AC |
||
| 1st Connector | VNTCF022Z20S |
2nd Connector | VNTCF022Z20S |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Dielectric Withstanding Voltage | 500V AC |
| Current Rating | 1.5A |
||
|---|---|---|---|
| Contact Resistance | 20MΩ MAX |
||
| Insulator Resistance | 100MΩ MIN. |
||
| Operation Temperature | -40℃~ +105℃ |
||
| Current Rating | 1.5A |
Contact Resistance | 20MΩ MAX |
| Insulator Resistance | 100MΩ MIN. |
Operation Temperature | -40℃~ +105℃ |
| 1st Connector | VNTCF022Z20S |
|---|---|
| 2nd Connector | VNTCF022Z20S |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Current Rating | 1.5A |
| Contact Resistance | 20MΩ MAX |
| Insulator Resistance | 100MΩ MIN. |
| Dielectric Withstanding Voltage | 500V AC |
| Operation Temperature | -40℃~ +105℃ |
Drawing for VNTCF022Z20S toVNTCF022Z20S forCABLTKSTPD38 STP LTK
