SMA Cable Assembly Guide: Types, Specs & Applications up to 26.5 GHz

Introduction

SMA cable assemblies are widely used RF interconnect solutions that combine precision SMA connectors with coaxial cables to provide reliable 50-ohm signal transmission in high-frequency systems. Depending on the cable type, connector configuration and assembly design, high-performance SMA cable assemblies can support applications up to 26.5 GHz with low insertion loss, stable impedance and consistent RF performance.

From RF test equipment and wireless communication systems to radar and satellite applications, selecting the right SMA cable assembly requires careful consideration of frequency range, cable construction, connector style and environmental requirements.

This guide explains SMA cable assembly types, specifications and selection criteria to help engineers choose the right solution for their RF applications.

Quick Specification

Selecting the proper SMA coax cable requires an evaluation of core physical and electrical operating limits. Below is an overview of standardized industry specifications for commercial and precision-grade SMA assemblies.

Parameter	Specification
Frequency Range	DC to 26.5 GHz (Depending on Cable Type and Assembly Design)
Impedance	50 Ohm
Connector Interface	SMA Male, SMA Female, Straight, Right Angle
Cable Options	1.13 mm Micro Coax, RG316, RG142 and Other RF Cables
VSWR	Typically ≤ 1.35 (Frequency Dependent)
Shielding	Single or Double Shielded Coaxial Cable Options Available
Testing	100% VNA Testing Available
Customization	Custom Length, Cable Type, Connector Configuration and OEM Solutions

Why High-Performance SMA Cable Assemblies Matter

At microwave frequencies, small mechanical discrepancies or poor cable shielding can introduce significant insertion loss, impedance discontinuities, and signal distortion. High-quality SMA cable assemblies prevent system degradation through three fundamental engineering advantages:

Superior Signal Integrity

In high-speed digital and RF transmissions, signal reflection occurs whenever there is an impedance mismatch along the transmission path. Precision SMA assemblies maintain strict 50-ohm characteristic impedance throughout the connector interface and crimp/solder junction, minimizing return loss and preserving phase linearity across the entire bandwidth.

Low Insertion Loss

RF energy dissipates as heat due to conductor resistance and dielectric absorption. Utilizing silver-plated solid copper center conductors and expanded PTFE dielectrics reduces attenuation, ensuring maximum power transfer from the signal source to the load—a critical factor in low-noise amplifier (LNA) front ends and battery-powered remote sensors.

Stable Impedance & Mechanical Durability

Environmental factors such as mechanical vibration, thermal cycling, and repetitive mating cycles can shift physical tolerances within a cheap connector. High-grade assemblies feature precision-machined threads (1/4-36 UNS) and spring-beryllium copper contacts, ensuring predictable performance over at least 500 mating cycles without degradation of shielding effectiveness.

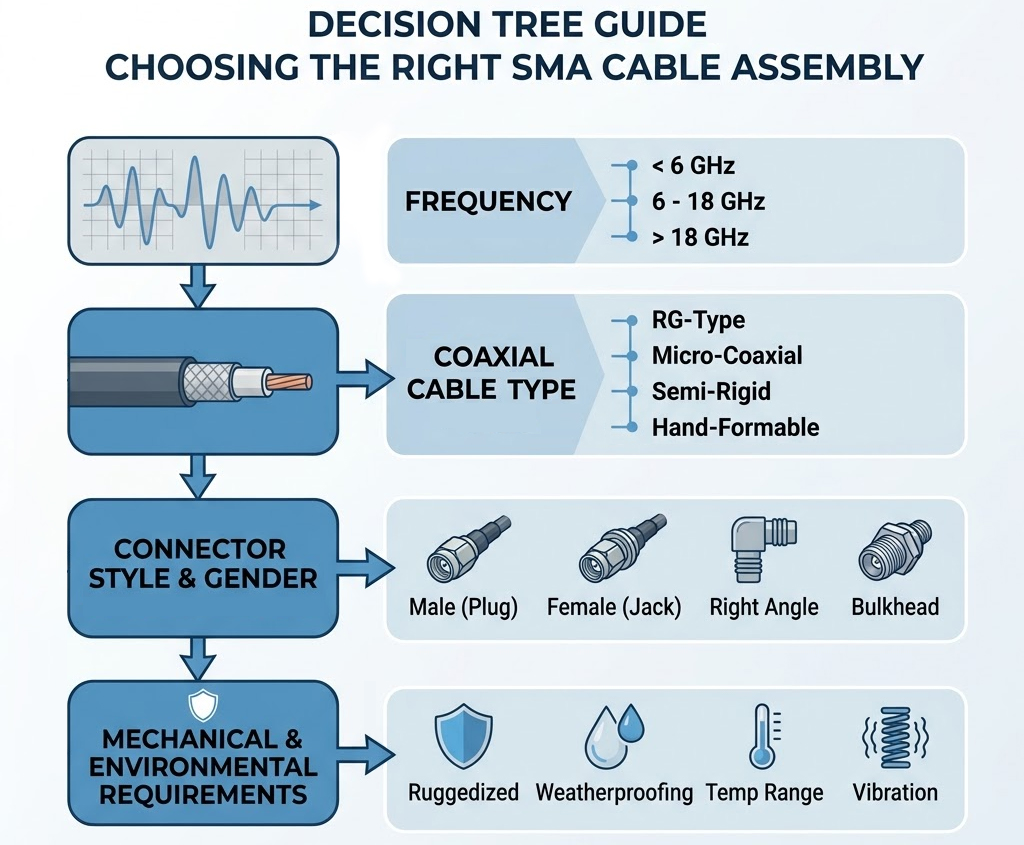

How to Choose the Right SMA Cable Assembly

Selecting an optimized SMA to SMA cable or inter-series assembly requires a systematic four-step evaluation process tailored to your application environment.

Step 1: Confirm Operating Frequency

Always align the cable assembly with the highest frequency component of your signal (including upper harmonics in digital signals).

• DC to 6 GHz: Wi-Fi 6, sub-6 GHz 5G, Bluetooth, ISM bands, and general internal interconnects.
• 6 GHz to 18 GHz: Military communications, X-band radar, satellite downlinks, and standard lab RF test equipment.
• 18 GHz to 26.5 GHz: Precision Ku/K-band satellite communications, automotive millimeter-wave radar testing, and high-frequency microwave systems.

Step 2: Choose Cable Type

The choice of coaxial line directly governs flexibility, power handling, and attenuation performance:

• Micro-Coax (e.g., 1.13mm, RG178): Ultra-thin and flexible coax designed for tight enclosure routing, board-to-panel jumpers, and miniature wireless modules (e.g., U.FL/IPEX to SMA bulkhead).
• Flexible Coax (e.g., RG316, RG142):
  • RG316: Single-shielded PTFE cable featuring a durable FEP jacket, commonly used for low to mid-frequency RF applications where flexibility is required.
  • RG142: Double-shielded, high-temperature coaxial cable with silver-plated copper conductors, delivering superior EMI shielding (>70 dB) and high power handling capability.
• Semi-Rigid / Semi-Flex (e.g., RG402, RG405):
  • RG402 (.141″) & RG405 (.086″): Solid copper outer jacket or formable tinned copper braid assemblies. These offer minimal attenuation, exceptional phase stability, and seamless performance from 18 GHz up to 26.5 GHz.

Step 3: Choose Connector Style & Gender

Determine the mechanical interface required at both terminations:

• Gender Configuration: SMA Male (inside threads with center pin) to SMA Male, or SMA Male to SMA Female (outside threads with center receptacle).
• Orientation: Straight connectors for standard inline connections; Right-Angle (RA) connectors for tight physical clearances where sharp bend radii must be avoided.
• Inter-Series Alternatives: When interfacing across different equipment standards, select hybrid assemblies such as a BNC to SMA cable (frequently used to bridge test instruments with RF modules) or SMA to N-Type jumpers.

Step 4: Evaluate Mechanical & Environmental Requirements

• Temperature Extremes: Ensure materials withstand operating conditions (-55°C to +125°C for standard PTFE/FEP; up to +165°C for specialized aerospace grades).
• Flexibility & Bend Radius: Respect minimum dynamic and static bend radius limits to prevent outer conductor kinking or impedance shifts.
• Durability & Corrosion Resistance: Specify passivated stainless steel or thick gold-plated brass housings for high-humidity or marine installations requiring strict salt-spray resistance.

Product Series

Renhotec provides a complete portfolio of factory-assembled SMA cable assemblies optimized for distinct frequency bands and environmental constraints:

1. SMA 1.13 Cable Assembly

• Key Features: Ultra-flexible 1.13mm micro-coaxial cable, compact bending radius, optional IPEX/U.FL inter-series connection.
• Primary Use: Internal antenna routing for IoT devices, router boards, and embedded wireless systems up to 6 GHz.

2. SMA RG316 Cable Assembly

• Key Features: High-temperature PTFE dielectric, FEP outer jacket, reliable 50-ohm transmission, cost-effective flexible construction.
• Primary Use: General-purpose internal wiring, medical electronics, automotive telemetry, and commercial wireless devices.

3. SMA RG142 Cable Assembly

• Key Features: Double-shielded braid construction, high power handling capability, low EMI leakage, high temperature tolerance up to +200°C.
• Primary Use: Avionics, military communications, vehicle mounted radio gear, and high-interference industrial control panels.

4. High-Frequency RG402 / RG405 Semi-Flex Assembly

• Key Features: Hand-formable tinned copper outer shield, precision passivated stainless steel SMA connectors, ultra-low VSWR up to 26.5 GHz.
• Primary Use: High-frequency lab testing, microwave subsystems, radar feed networks, and satellite transceivers.

Why Renhotec

When sourcing B2B electronic components, technical reliability and strict quality control take precedence. Renhotec delivers precision-engineered RF interconnect solutions supported by quantifiable engineering standards:

• 100% VNA Test: Every single cable assembly undergoes rigorous automated Vector Network Analyzer testing to verify Insertion Loss and VSWR parameters up to 26.5 GHz prior to shipment.
• Low VSWR Guarantee: Engineered for precision impedance matching, maintaining typical VSWR < 1.15 at 6 GHz, < 1.25 at 18 GHz, and < 1.35 at 26.5 GHz.
• Corrosion Resistant Construction: Premium brass housing with thick gold plating or passivated stainless steel body options engineered to surpass 48-hour salt spray corrosion resistance standards (IEC 60068-2-11).
• Custom Length & Phase Matching: Full OEM/ODM manufacturing capability supporting custom lengths, specialized heat-shrink tubing, armored jacketing, and phase-matched pairs (< 1 ps delay difference).
• Direct Factory Supply & Fast Delivery: In-house automated crimping and soldering lines support rapid prototyping turnaround within 3 to 5 business days without compromising quality.

Typical Applications

Renhotec high-frequency SMA cable assemblies provide reliable transmission across diverse industrial and commercial sectors:

• RF Test & Measurement: Connecting spectrum analyzers, VNAs, and signal generators in RF development laboratories.
• Radar Systems: Serving as low-loss interconnects within marine, defense, and meteorological phased-array radar modules.
• Wireless Infrastructure: Delivering RF energy in Wi-Fi 6E/7 enterprise access points, 5G small cells, and IoT gateways.
• Satellite Communications: Interfacing low-noise block converters (LNBs) and feedhorns in Ku/Ka band ground terminals.

FAQ

Can standard SMA cable assemblies handle up to 26.5 GHz?

Standard SMA cable assemblies typically support different frequency ranges depending on the cable type, connector design and assembly process. High-performance SMA cable assemblies using suitable microwave cables can support frequencies up to 26.5 GHz or higher, while standard RG316 or similar assemblies are commonly used for lower-frequency applications.

What is the advantage of 1.13mm micro coax in SMA cable assemblies?

1.13mm micro coax provides a compact and lightweight solution for applications where space is limited. It offers excellent flexibility and is commonly used in miniature RF devices, wireless modules and compact test systems where small cable routing is required.

Do you offer custom SMA cable assemblies with VNA test reports?

Yes. Custom SMA cable assemblies can be manufactured according to cable type, connector configuration, cable length and application requirements. VNA testing reports can be provided to verify key RF performance parameters such as insertion loss and VSWR.

What Is the Difference Between an SMA Cable and an SMA Cable Assembly?

An SMA cable refers to the coaxial cable itself, while an SMA cable assembly is a complete RF connection solution consisting of an SMA connector terminated to a coaxial cable. Cable assemblies are ready-to-use components designed for direct installation in RF systems.
