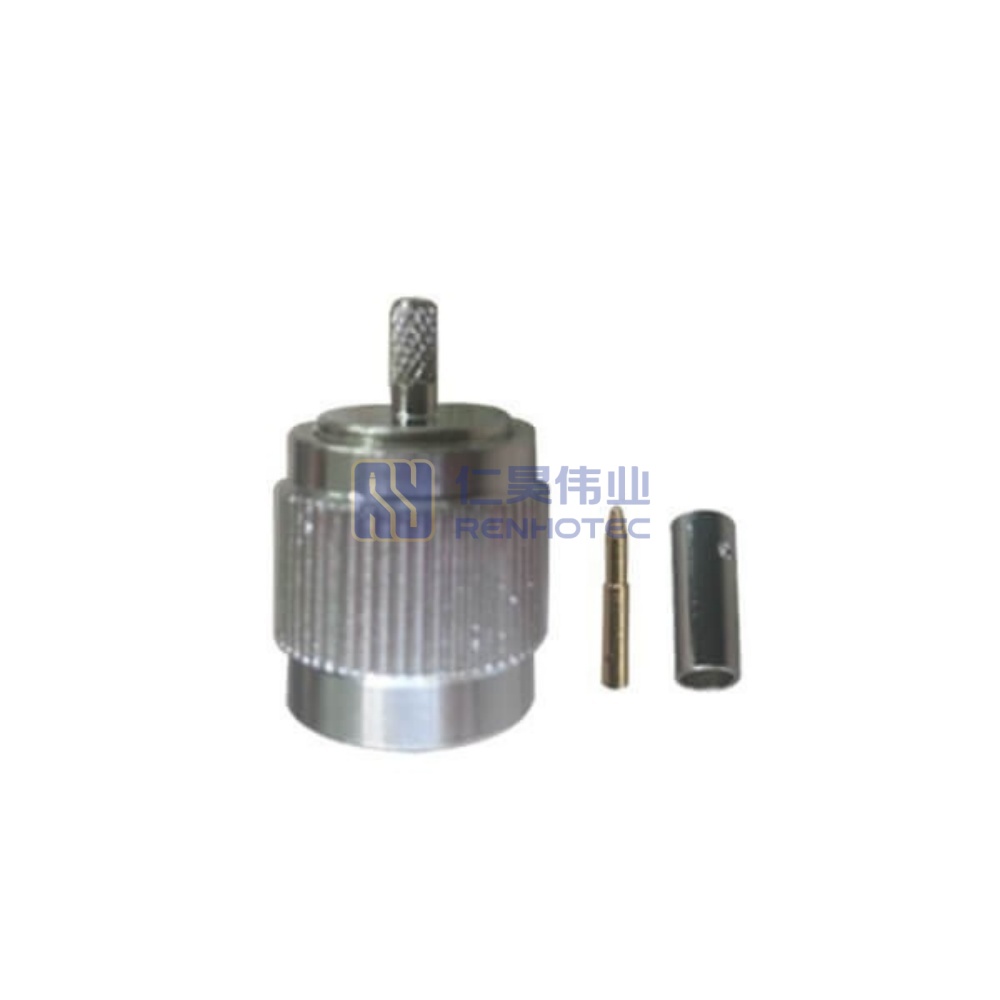

TNC Male Crimp Connector Straight for Cable RG316D – RHT-615-0204
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | RG316D |
||
| Contact Type | Male Pin |
||
| Connector Type | Plug |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Center Contact Resistance | 2.0MΩ |
||
| Outer Contact Resistance | 0.2MΩ |
||
| Frequency Range | DC-4G |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Crimp |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Temperature Range | -65°C to +165°C |
||
| VSWR | 1.25MAX |
||
| Working Voltage | 250V rms |
||
| RF Series | TNC Type |
Cable Type | RG316D |
| Contact Type | Male Pin |
Connector Type | Plug |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Center Contact Resistance | 2.0MΩ |
Outer Contact Resistance | 0.2MΩ |
| Frequency Range | DC-4G |
Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
Mounting Type | Cable Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Shell Material | Brass |
Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Insulator Material | PTFE |
| Temperature Range | -65°C to +165°C |
VSWR | 1.25MAX |
| Working Voltage | 250V rms |
| Polarity | Standard |
|---|---|
| Polarity | Standard |
| RF Series | TNC Type |
|---|---|
| Cable Type | RG316D |
| Polarity | Standard |
| Contact Type | Male Pin |
| Connector Type | Plug |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Center Contact Resistance | 2.0MΩ |
| Outer Contact Resistance | 0.2MΩ |
| Frequency Range | DC-4G |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Insulator Material | PTFE |
| Temperature Range | -65°C to +165°C |
| VSWR | 1.25MAX |
| Working Voltage | 250V rms |
Drawing for TNC Male Crimp Connector Straight for Cable RG316DDownload
