TNC Connector Male Clamp Cable Type 50ohm – RHT-615-0006
High-quality TNC male connector with clamp for secure attachment to 50ohm cable. Ensures reliable RF signal transmission in various applications.
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.
TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Renhotec accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying.
As a result of their versatility and durability, TNC connectors are ideal for a variety applications.
Threaded coupling interface ensures connector with not de-couple in vibration-intense applications
Durable construction,
High Performance
Expansive product line includes designs for many common cable types
Complete Variety

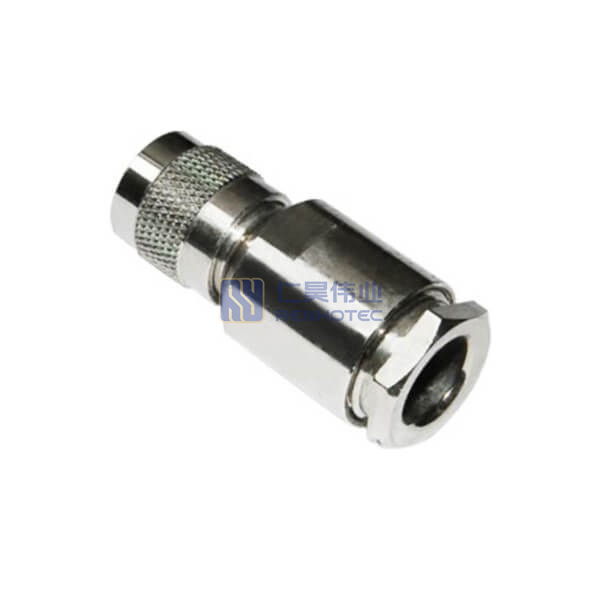

TNC Male
TNC Female
RP-TNC Male
RP-TNC Female
Crimp Type
Crimp Type
Solder Type
Solder Cup
Twist On
Through Hole
R/A Through Hole
Surfance Mount
Flange Type
Bulkhead Type
Product Application
High performance TNC coaxial connectors with thread coupling for vibration environment, Mainly used for Cellular Mobile Phones, Aviation Controls, Telemetry, and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation, etc…
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
RF Series | TNC Type |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Straight |
||
Contact Type | Male Pin |
||
Shield Termination | Clamp |
||
Mounting Type | Cable Mount |
||
Fastening Type | Threaded |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency - Max | 6GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Nickel Plated |
||
Insulator Material | Teflon White |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Insultation Resistance | 500 MΩ Min |
||
Center Contact Resistance | 1.5 MΩ Max |
||
Outer Contact Resistance | 0.2 MΩ Max |
||
Temperature Range | -65℃ to +165℃ |
||
Mating Durability | ≥ 500 Cycles |
||
