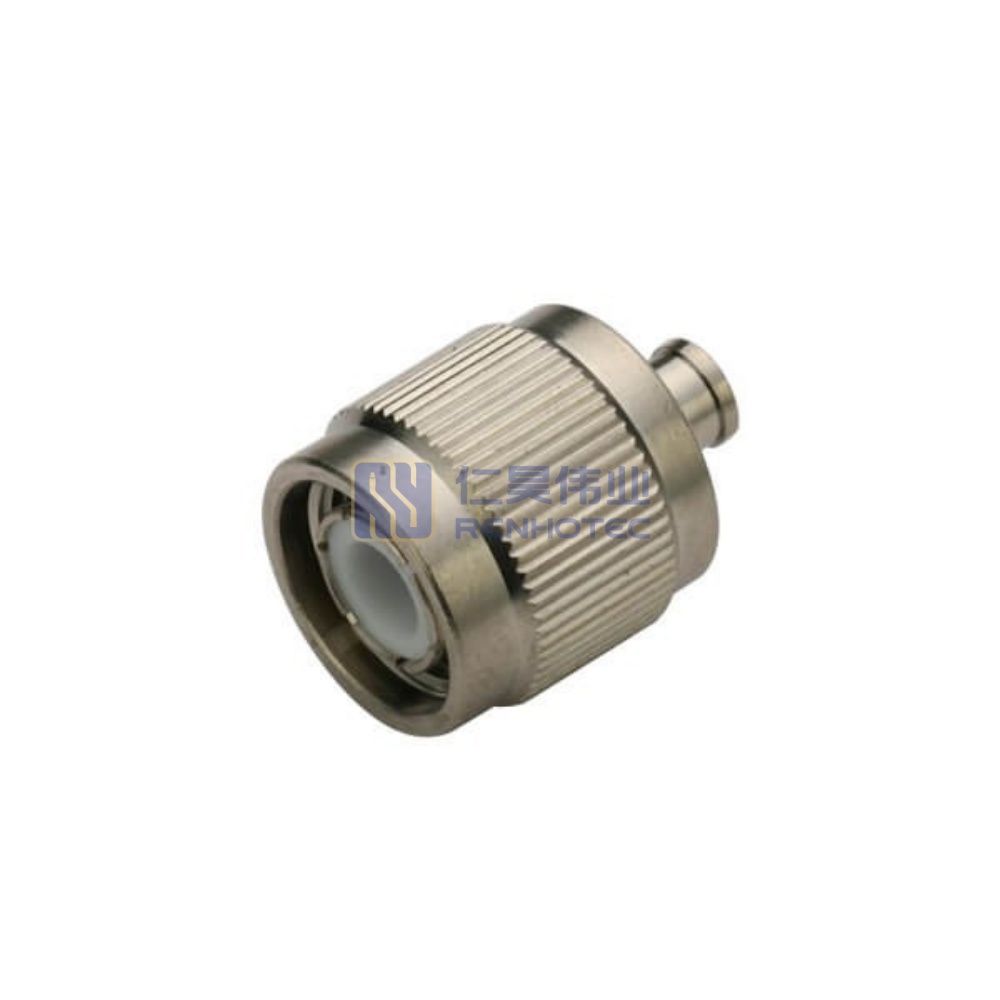

RF TNC Connector Solder Type Straight Plug for Cable UT141 – RHT-615-0200
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | UT141 |
||
| Contact Type | Male Pin |
||
| Connector Type | Plug |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Frequency Range | DC-11G |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Solder |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Temperature Range | -55°C to +145°C |
||
| Working Voltage | 500V rms |
||
| RF Series | TNC Type |
Cable Type | UT141 |
| Contact Type | Male Pin |
Connector Type | Plug |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-11G |
Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
Mounting Type | Cable Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Shell Material | Brass |
Shell Finish | Nickel Plated |
| Shield Termination | Solder |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Insulator Material | PTFE |
| Temperature Range | -55°C to +145°C |
Working Voltage | 500V rms |
| Polarity | Standard |
|---|---|
| Polarity | Standard |
| RF Series | TNC Type |
|---|---|
| Cable Type | UT141 |
| Polarity | Standard |
| Contact Type | Male Pin |
| Connector Type | Plug |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-11G |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Solder |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Insulator Material | PTFE |
| Temperature Range | -55°C to +145°C |
| Working Voltage | 500V rms |
Drawing for RF TNC Connector Solder Type Straight Plug for Cable UT141Download
