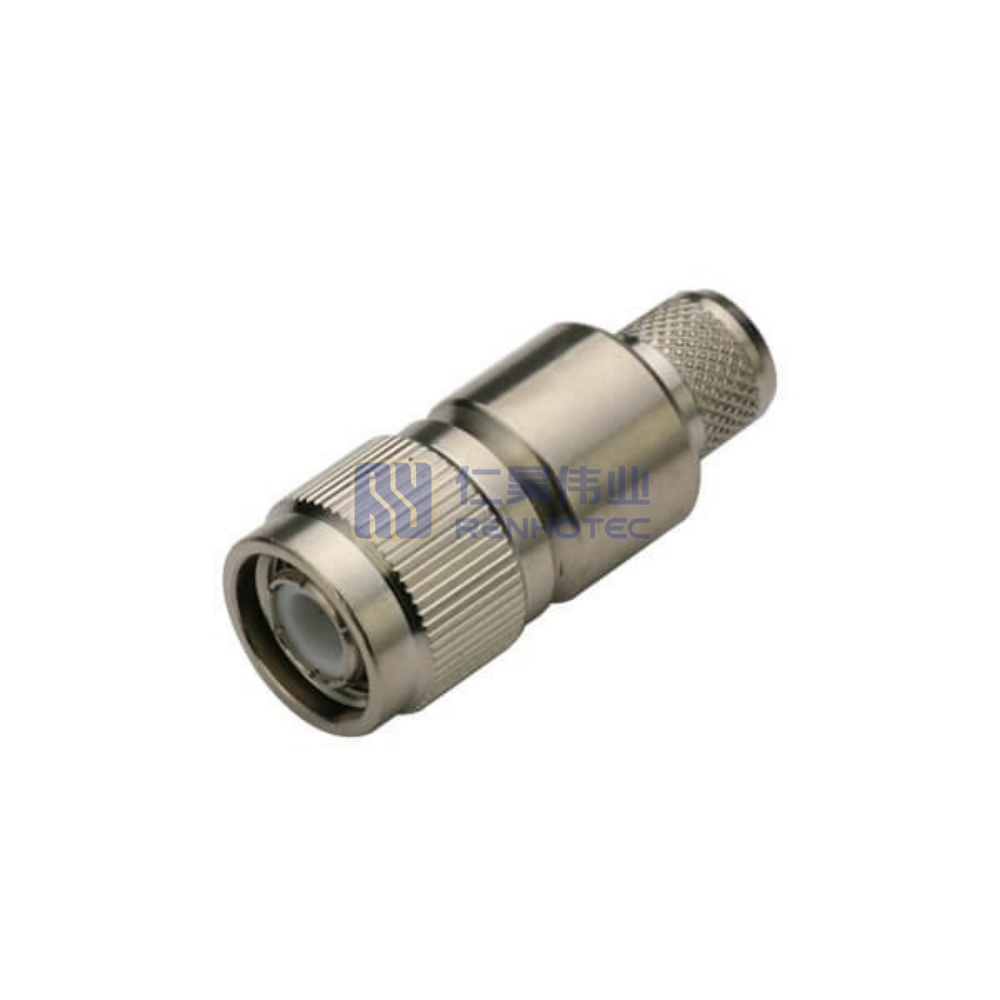

Male TNC Connector Straight Crimp Type for Cable LMR400/RG213 – RHT-615-0208
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | R400/RG213 |
||
| Contact Type | Male Pin |
||
| Connector Type | Plug |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Frequency Range | DC-4G |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Crimp |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | TEFLON |
||
| Temperature Range | -40°C to +85°C |
||
| VSWR | Max 1.23:1 up to 3GHz |
||
| Working Voltage | 500V rms |
||
| RF Series | TNC Type |
Cable Type | R400/RG213 |
| Contact Type | Male Pin |
Connector Type | Plug |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-4G |
Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
Mounting Type | Cable Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Shell Material | Brass |
Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Insulator Material | TEFLON |
| Temperature Range | -40°C to +85°C |
VSWR | Max 1.23:1 up to 3GHz |
| Working Voltage | 500V rms |
| Polarity | Standard |
|---|---|
| Polarity | Standard |
| RF Series | TNC Type |
|---|---|
| Cable Type | R400/RG213 |
| Polarity | Standard |
| Contact Type | Male Pin |
| Connector Type | Plug |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-4G |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Insulator Material | TEFLON |
| Temperature Range | -40°C to +85°C |
| VSWR | Max 1.23:1 up to 3GHz |
| Working Voltage | 500V rms |
Drawing for Male TNC Connector Straight Crimp Type for Cable LMR400/RG213Download
