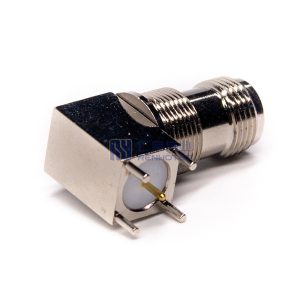

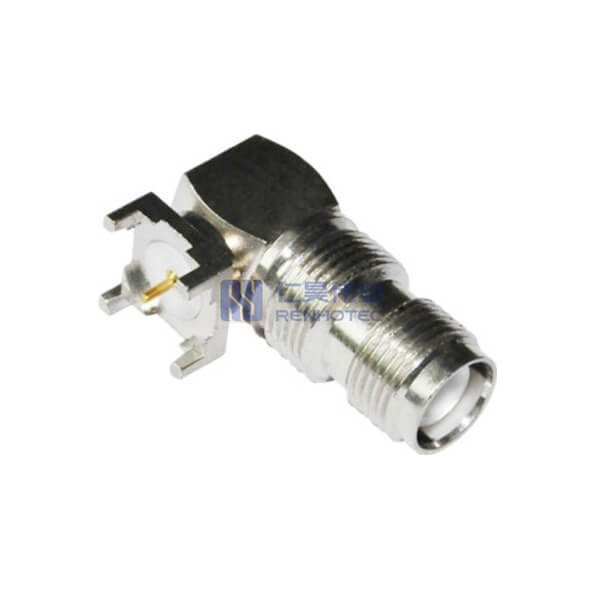

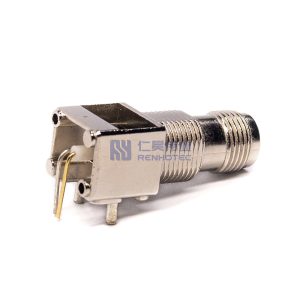

TNC Connector Jack Male Pin Solder Panel Mount 50ohm
- Durable construction
- Threaded coupling interface ensures connector with not de-couple in vibration-intense applications
- The expansive product line includes designs for many common cable types
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance. And a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.
TNC connectors are available in both standard polarity and reverse polarity production. Reverse polarity is a keying system accomplished with a reverse interface and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Amphenol accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality.
Invented in the late 1950s and named after Paul Neill of Bell Labs and Carl Concelman of Amphenol. And the TNC connector has been employed in a wide range of radio and wired applications.
Interface
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Orientation | Right Angle |
||
| Contact Type | Male Pin |
||
| Contact Termination Style | Solder |
||
| Shield Termination | Solder |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Through Hole |
||
| Fastening Type | Threaded |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Frequency - Max | 6GHz |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | Teflon White |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insultation Resistance | 500 MΩ Min |
||
| Center Contact Resistance | 1.5 MΩ Max |
||
| Outer Contact Resistance | 0.2 MΩ Max |
||
| Temperature Range | -65℃ to +165℃ |
||
| Mating Durability | ≥ 500 Cycles |
||
| RF Series | TNC Type |
Connector Type | Jack |
| Orientation | Right Angle |
Contact Type | Male Pin |
| Contact Termination Style | Solder |
Shield Termination | Solder |
| Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
| Fastening Type | Threaded |
Number of Ports | 1 |
| Impedance | 50 ohm |
Frequency - Max | 6GHz |
| Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
| Insulator Material | Teflon White |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Insultation Resistance | 500 MΩ Min |
| Center Contact Resistance | 1.5 MΩ Max |
Outer Contact Resistance | 0.2 MΩ Max |
| Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
| RF Series | TNC Type |
|---|---|
| Connector Type | Jack |
| Orientation | Right Angle |
| Contact Type | Male Pin |
| Contact Termination Style | Solder |
| Shield Termination | Solder |
| Mounting Type | Panel Mount |
| Mounting Feature | Through Hole |
| Fastening Type | Threaded |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Frequency - Max | 6GHz |
| Shell Material | Copper Alloy |
| Shell Finish | Nickel Plated |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Insultation Resistance | 500 MΩ Min |
| Center Contact Resistance | 1.5 MΩ Max |
| Outer Contact Resistance | 0.2 MΩ Max |
| Temperature Range | -65℃ to +165℃ |
| Mating Durability | ≥ 500 Cycles |
