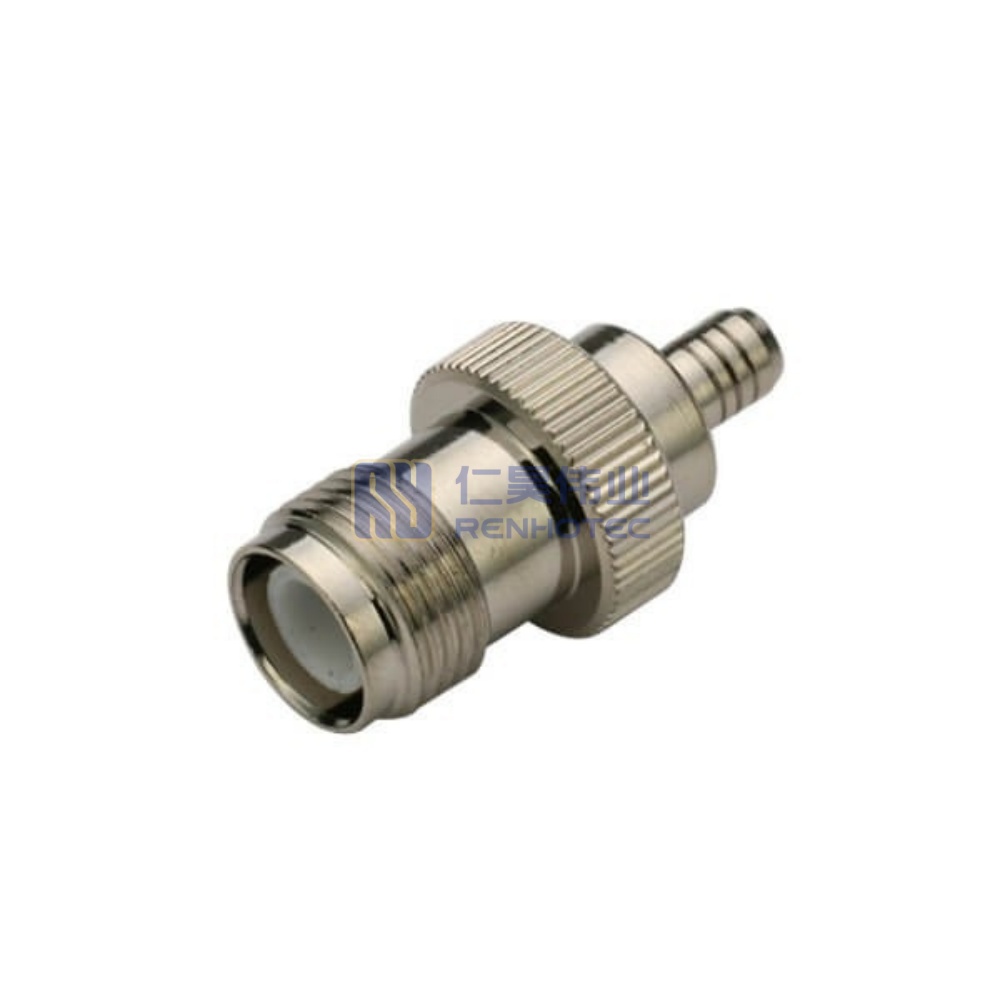

TNC Coaxial Connector Straight Female Crimp Type for RG316 Cable – RHT-615-0212
- Designed for internal wireless module wiring, automotive telematics, and compact communication assemblies.
- Straight female TNC coaxial connector designed for secure crimp assembly with RG316 coaxial cable.
- Threaded interface ensures constant physical contact to maintain uninterrupted signal continuity.
- Built with quality conductive plating to withstand thermal variations in industrial operating conditions.
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | RG316 |
||
| Contact Type | Female Pin |
||
| Connector Type | Jack |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Crimp |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| RF Series | TNC Type |
Cable Type | RG316 |
| Contact Type | Female Pin |
Connector Type | Jack |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Impedance | 50 ohm |
Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
Number of Ports | 1 |
| Orientation | Straight |
Shell Material | Brass |
| Shell Finish | Nickel Plated |
Shield Termination | Crimp |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Insulator Material | PTFE |
| Polarity | Standard |
|---|---|
| Polarity | Standard |
| RF Series | TNC Type |
|---|---|
| Cable Type | RG316 |
| Polarity | Standard |
| Contact Type | Female Pin |
| Connector Type | Jack |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Insulator Material | PTFE |
Drawing for TNC Coaxial Connector Straight Female Crimp Type for RG316 CableDownload
