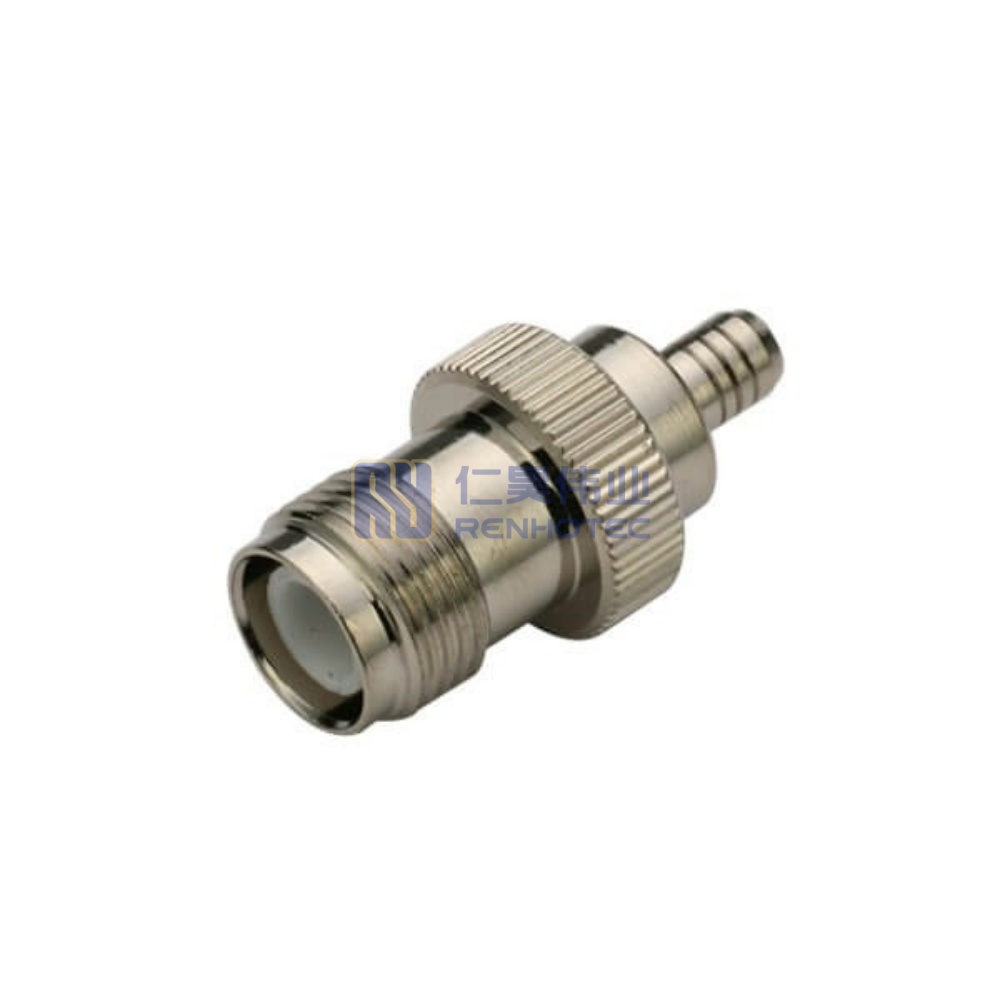

Female TNC Connector Crimp Type Sraight for Cable RG400 – RHT-615-0213
- Designed for high-temperature and harsh-environment RF wiring applications, such as avionics and marine electronics.
- Features a straight female TNC body engineered for straightforward crimp attachment to RG400 cables.
- High-retention crimp sleeve ensures high pull-off resistance against cable movement and mechanical shock.
- Delivers steady RF power handling and low transmission loss across standard operating temperature ranges.
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | RG400 |
||
| Contact Type | Female Pin |
||
| Connector Type | Jack |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Frequency Range | DC-11G |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Crimp |
||
| Contact Material | BeCu |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Temperature Range | -55°C to +155°C |
||
| VSWR | 1.3：1@2GHz; 2.0@11GHz |
||
| Working Voltage | 335V rms |
||
| RF Series | TNC Type |
Cable Type | RG400 |
| Contact Type | Female Pin |
Connector Type | Jack |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-11G |
Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
Mounting Type | Cable Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Shell Material | Brass |
Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
Contact Material | BeCu |
| Contact Finish | Gold Plated |
Insulator Material | PTFE |
| Temperature Range | -55°C to +155°C |
VSWR | 1.3：1@2GHz; 2.0@11GHz |
| Working Voltage | 335V rms |
| Polarity | Standard |
|---|---|
| Polarity | Standard |
| RF Series | TNC Type |
|---|---|
| Cable Type | RG400 |
| Polarity | Standard |
| Contact Type | Female Pin |
| Connector Type | Jack |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-11G |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
| Contact Material | BeCu |
| Contact Finish | Gold Plated |
| Insulator Material | PTFE |
| Temperature Range | -55°C to +155°C |
| VSWR | 1.3：1@2GHz; 2.0@11GHz |
| Working Voltage | 335V rms |
Drawing for Female TNC Connector Crimp Type Sraight for Cable RG400Download
