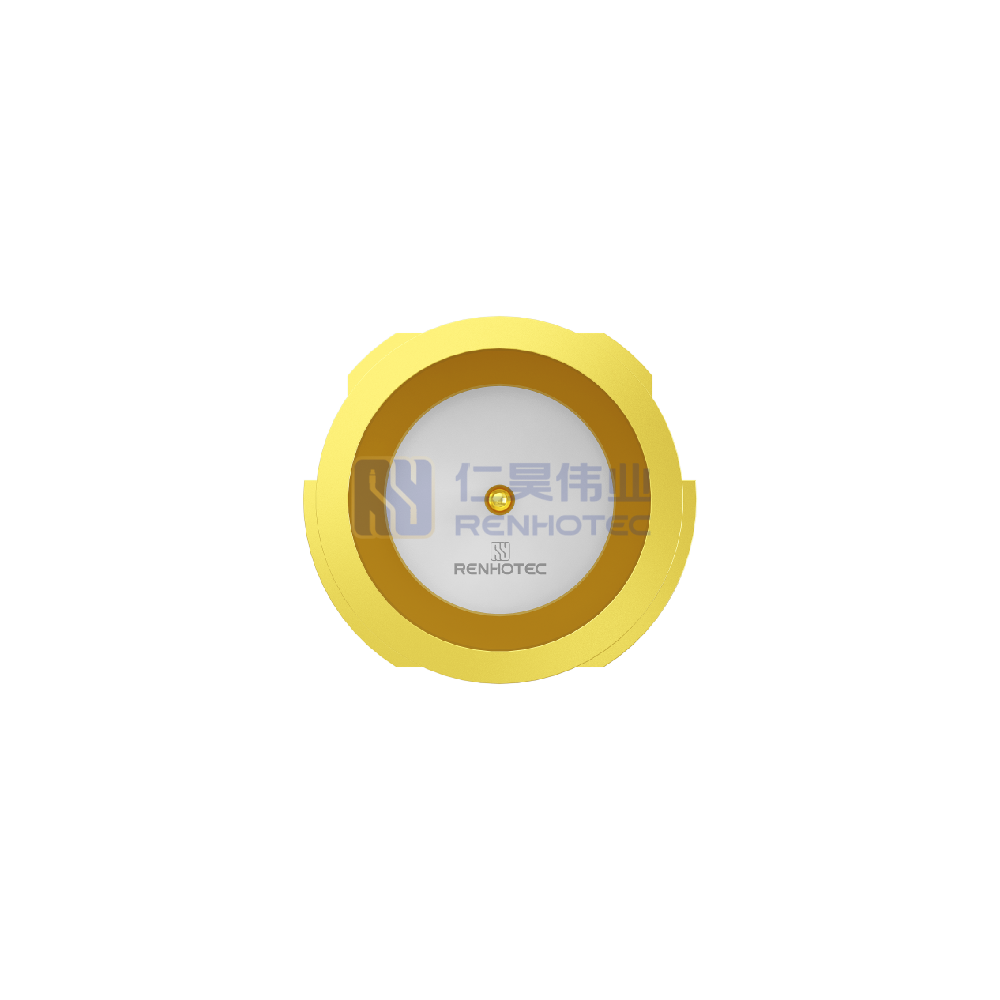

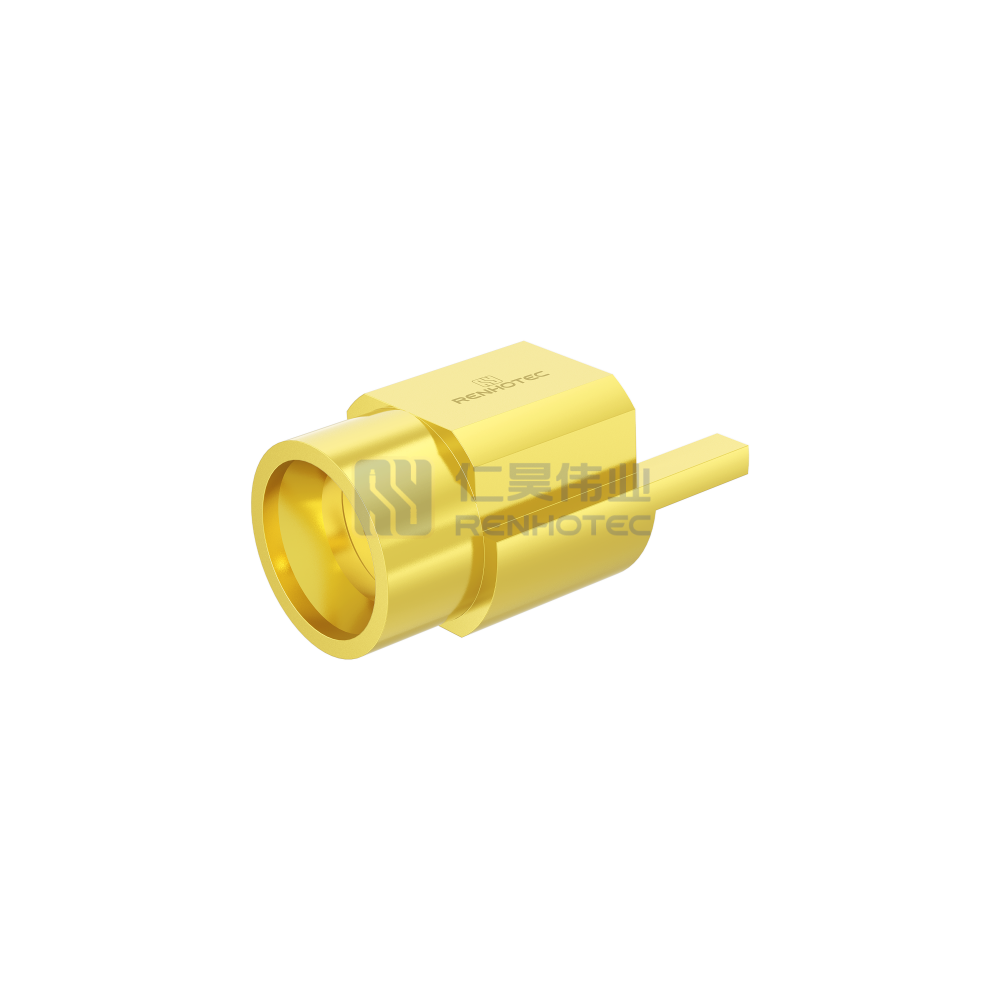

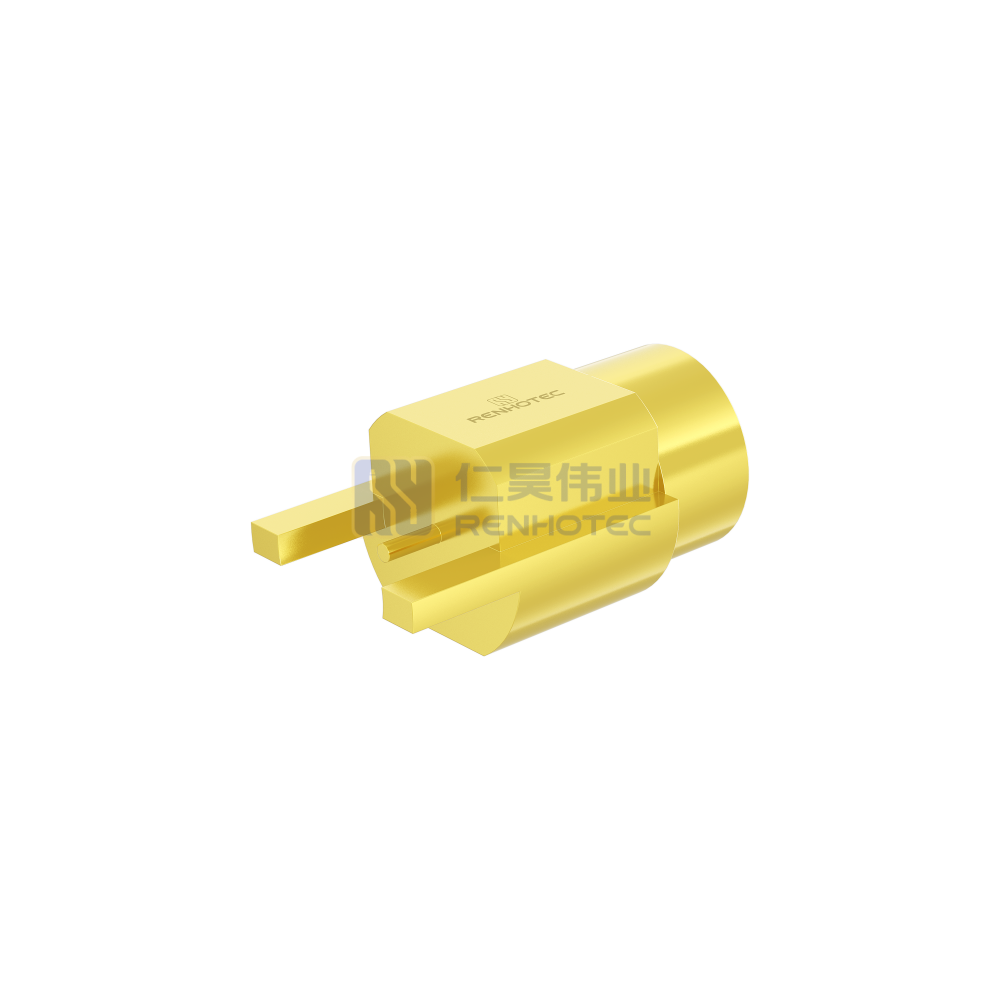

SSMP Male for PCB Connector – RHT-628-2037
SSMP male PCB connector, 50Ω, ultra-subminiature surface-mount package for space-critical designs, supports frequencies up to 65 GHz with stable return loss, ideal for 5G mmWave modules, automotive radar arrays, and high-density interposer boards.
Product Specification
| RF Series | SSMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Plug |
||
| Mounting Type | Panel Mount |
||
| Contact Type | Male Pin |
||
| Contact Material | CuBe |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-40GHz |
||
| Working Voltage | 335 V rms |
||
| Dielectric Withstanding Voltage | 1000 V |
||
| Insulation Resistance | 5000MΩ Min |
||
| Temperature Range | -55°C to +165°C |
||
| RF Series | SSMP Type |
Orientation | Straight |
| Connector Type | Plug |
Mounting Type | Panel Mount |
| Contact Type | Male Pin |
Contact Material | CuBe |
| Contact Finish | Gold Plated |
Shell Material | Brass |
| Shell Finish | Gold Plated |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | DC-40GHz |
| Working Voltage | 335 V rms |
Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | 5000MΩ Min |
Temperature Range | -55°C to +165°C |
| Outer Conductor Material | Brass |
||
|---|---|---|---|
| Outer Contact Plating | Gold Plated |
||
| Insertion Loss | ≤0.1*√F (GHz) dB |
||
| Test voltage | 500 V |
||
| Mating Cycles | 500 Cycles mini |
||
| Outer Conductor Material | Brass |
Outer Contact Plating | Gold Plated |
| Insertion Loss | ≤0.1*√F (GHz) dB |
Test voltage | 500 V |
| Mating Cycles | 500 Cycles mini |
| RF Series | SSMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Plug |
| Mounting Type | Panel Mount |
| Contact Type | Male Pin |
| Contact Material | CuBe |
| Contact Finish | Gold Plated |
| Outer Conductor Material | Brass |
| Outer Contact Plating | Gold Plated |
| Shell Material | Brass |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | DC-40GHz |
| Insertion Loss | ≤0.1*√F (GHz) dB |
| Test voltage | 500 V |
| Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | 5000MΩ Min |
| Mating Cycles | 500 Cycles mini |
| Temperature Range | -55°C to +165°C |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
