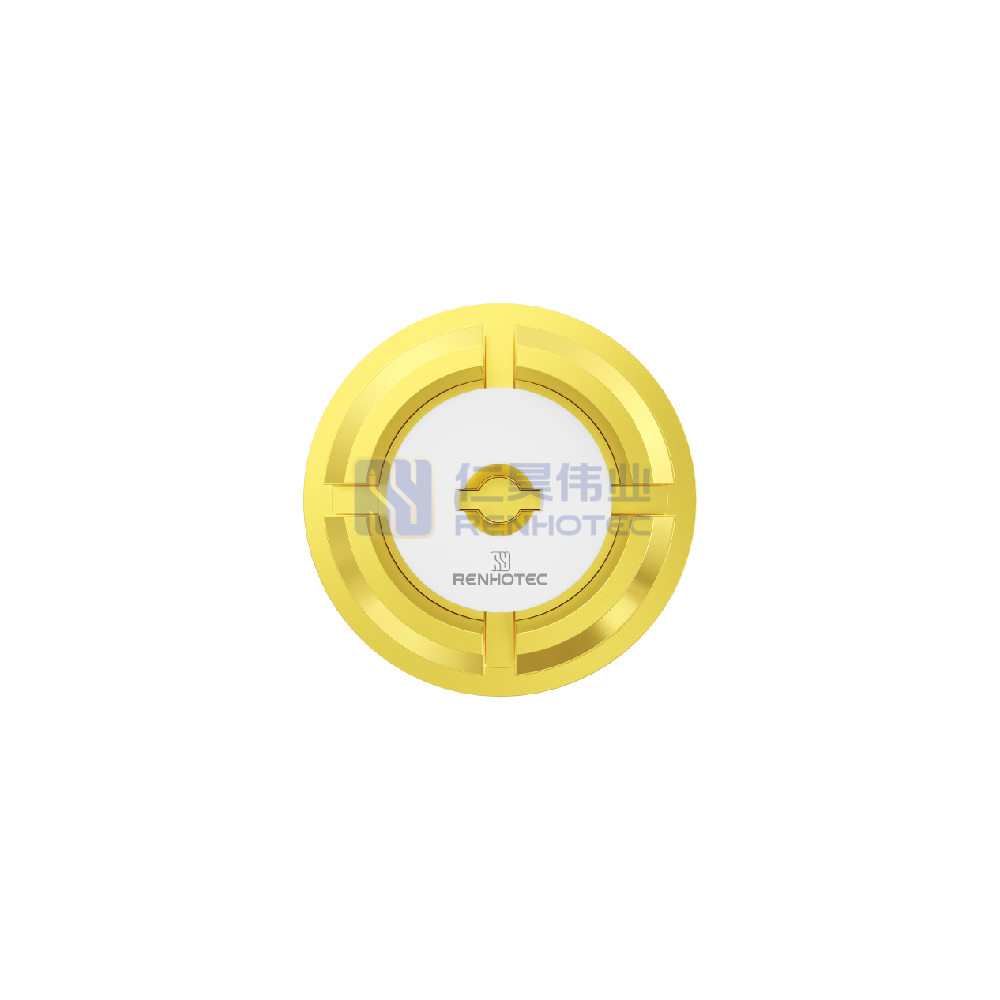

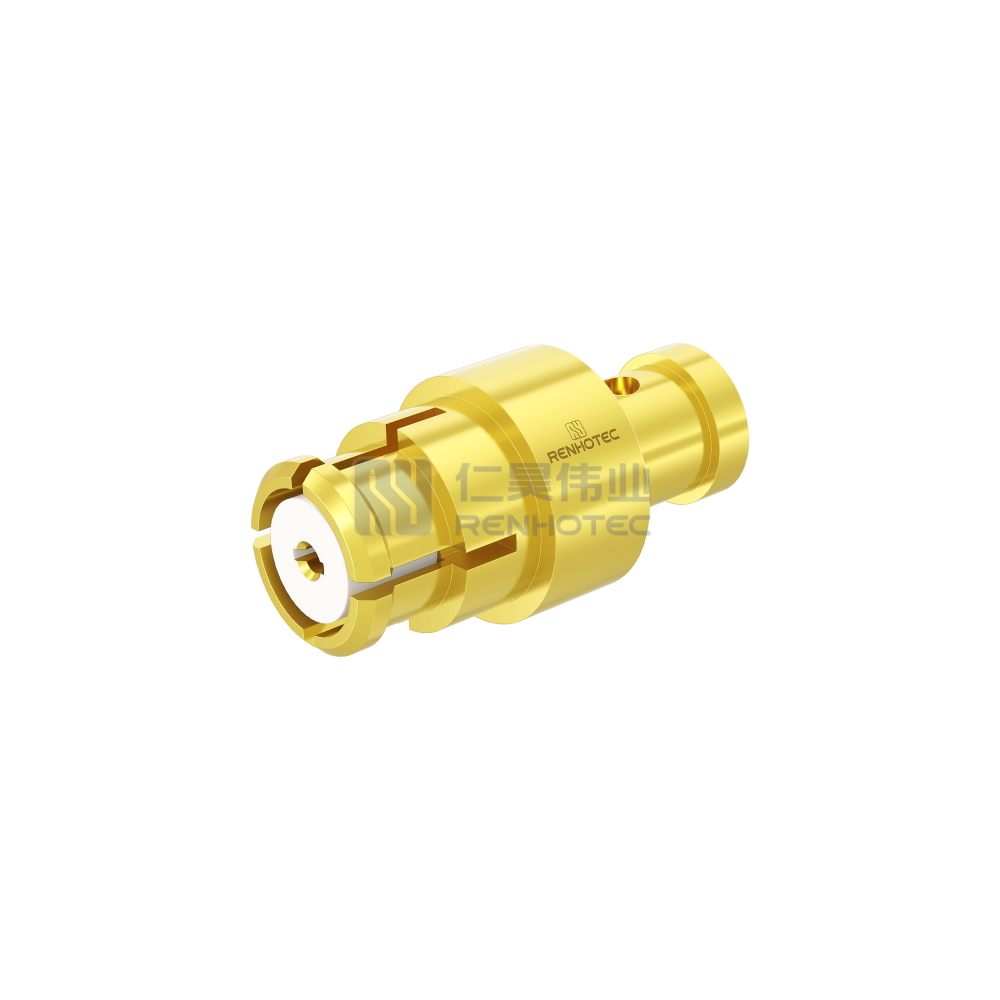

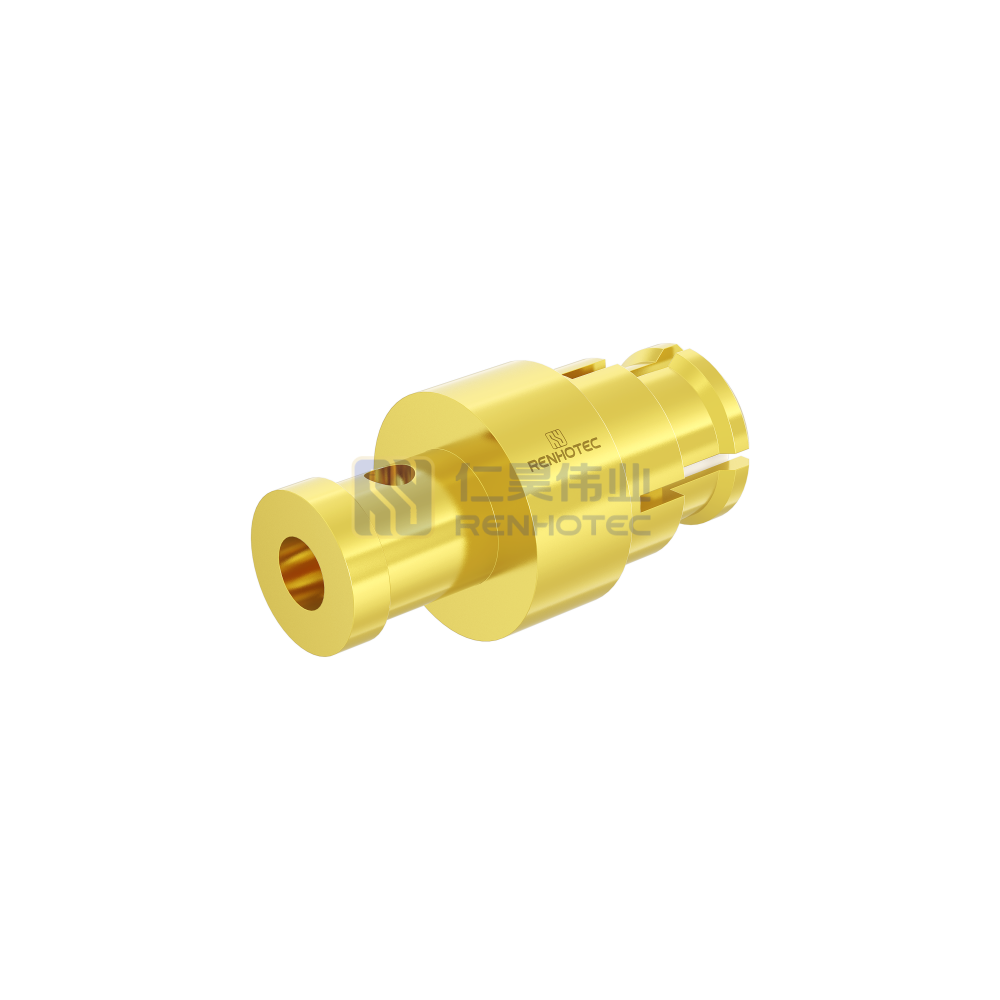

SMP Female Jack for .047 Cable – RHT-628-2039
SMP female jack, 50Ω, crimp termination for 0.047″ miniature cable, compact push-on interface enables blind-mate connections, delivers reliable performance up to 40 GHz, suitable for miniaturized microwave test probes and compact antenna feeds.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Suitable Cable | 047 Cable |
||
| Contact Type | Female Pin |
||
| Contact Material | Beryllium Bronze |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Beryllium Bronze |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-26.5GHz |
||
| VSWR | 1.4 MAX |
||
| Working Voltage | 335 V rms |
||
| Dielectric Withstanding Voltage | 500 V |
||
| Insulation Resistance | 5000MΩ Min |
||
| Temperature Range | -55°C to +165°C |
||
| Center Contact Resistance | ≤6mΩ |
||
| Outer Contact Resistance | ≤2mΩ |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Jack |
Suitable Cable | 047 Cable |
| Contact Type | Female Pin |
Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plated |
Shell Material | Beryllium Bronze |
| Shell Finish | Gold Plated |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | DC-26.5GHz |
| VSWR | 1.4 MAX |
Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 500 V |
Insulation Resistance | 5000MΩ Min |
| Temperature Range | -55°C to +165°C |
Center Contact Resistance | ≤6mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | 100 Cycles mini |
|---|---|
| Mating Cycles | 100 Cycles mini |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Jack |
| Suitable Cable | 047 Cable |
| Contact Type | Female Pin |
| Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plated |
| Shell Material | Beryllium Bronze |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | DC-26.5GHz |
| VSWR | 1.4 MAX |
| Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | 5000MΩ Min |
| Mating Cycles | 100 Cycles mini |
| Temperature Range | -55°C to +165°C |
| Center Contact Resistance | ≤6mΩ |
| Outer Contact Resistance | ≤2mΩ |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
