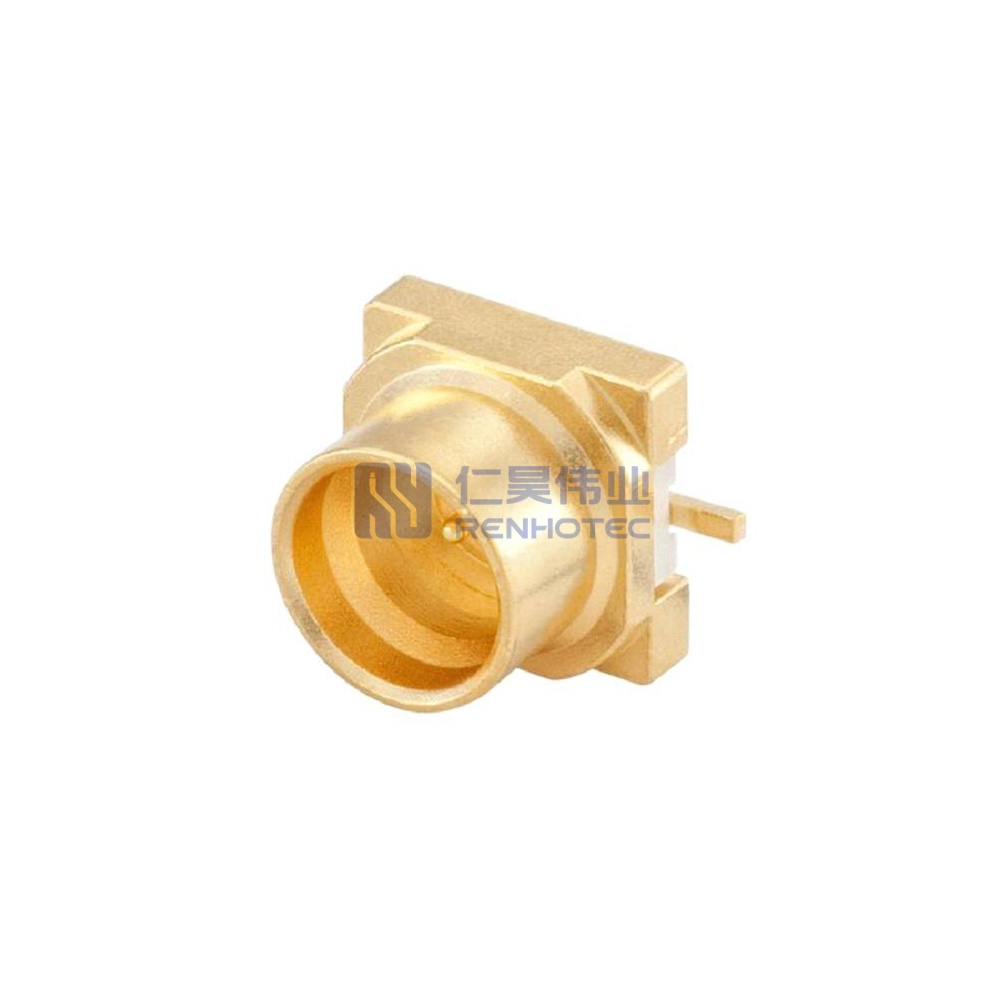

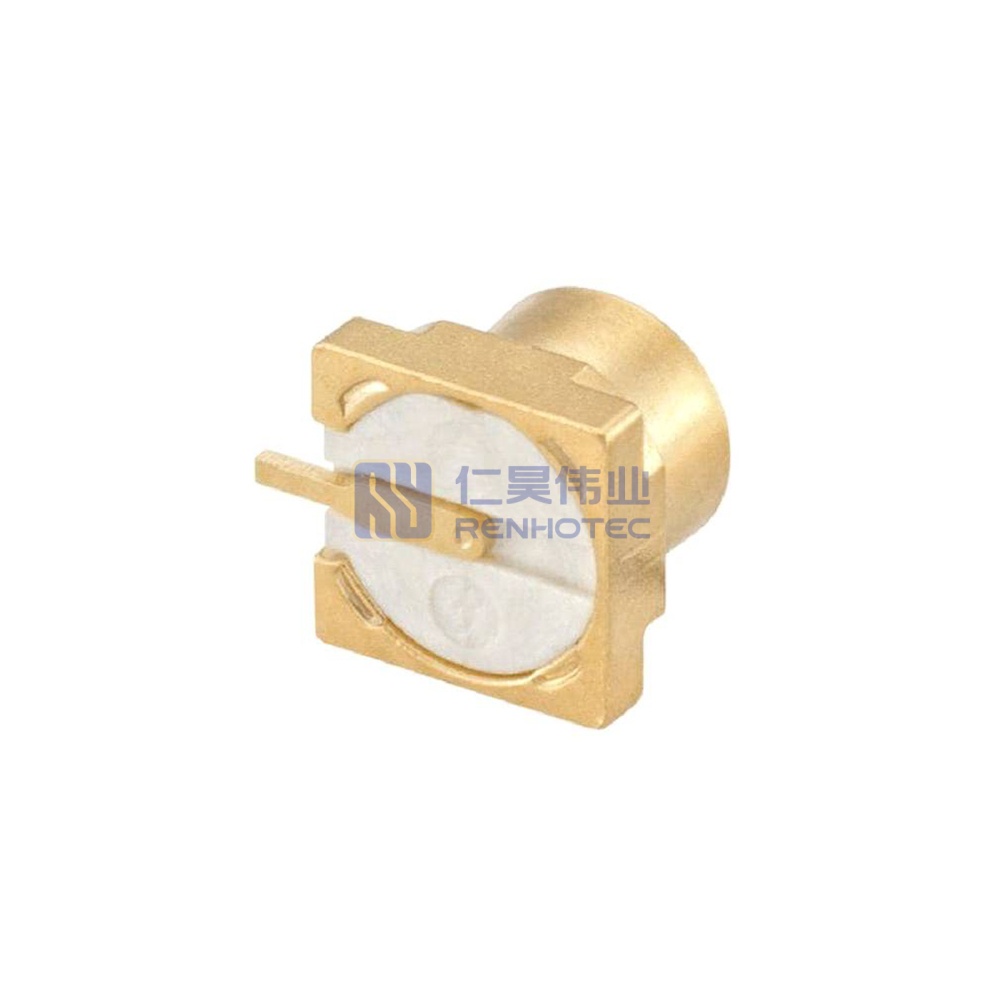

SMP Plug for PCB Connector – RHT-628-2034
SMP plug, 50Ω, PCB-mountable male connector with surface-mount or through-hole options, low-profile design for dense circuit board layouts, supports 40 GHz operation, commonly deployed in millimeter-wave radar and high-speed digital-radio interfaces.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Mounting Type | Panel Mount |
||
| Contact Type | Male Pin |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | LCP |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-26.5GHz |
||
| VSWR | 1.25 MAX |
||
| Working Voltage | 335 V rms |
||
| Dielectric Withstanding Voltage | 1000 V |
||
| Insulation Resistance | 5000MΩ Min |
||
| Temperature Range | -55°C to +165°C |
||
| RF Series | SMP Type |
Connector Type | Plug |
| Mounting Type | Panel Mount |
Contact Type | Male Pin |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Insulator Material | LCP |
Impedance | 50 ohm |
| Frequency Range | DC-26.5GHz |
VSWR | 1.25 MAX |
| Working Voltage | 335 V rms |
Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | 5000MΩ Min |
Temperature Range | -55°C to +165°C |
| Outer Conductor Material | Brass |
||
|---|---|---|---|
| Outer Contact Plating | Gold Plated |
||
| Test voltage | 500 V |
||
| Mating Cycles | 500 Cycles mini |
||
| Contact Current | 1..2A DC max |
||
| Outer Conductor Material | Brass |
Outer Contact Plating | Gold Plated |
| Test voltage | 500 V |
Mating Cycles | 500 Cycles mini |
| Contact Current | 1..2A DC max |
| RF Series | SMP Type |
|---|---|
| Connector Type | Plug |
| Mounting Type | Panel Mount |
| Contact Type | Male Pin |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Outer Conductor Material | Brass |
| Outer Contact Plating | Gold Plated |
| Insulator Material | LCP |
| Impedance | 50 ohm |
| Frequency Range | DC-26.5GHz |
| VSWR | 1.25 MAX |
| Test voltage | 500 V |
| Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | 5000MΩ Min |
| Mating Cycles | 500 Cycles mini |
| Temperature Range | -55°C to +165°C |
| Contact Current | 1..2A DC max |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
